RCH47W-PFSQK (1998)
Toyota Regius/Touring Hiace

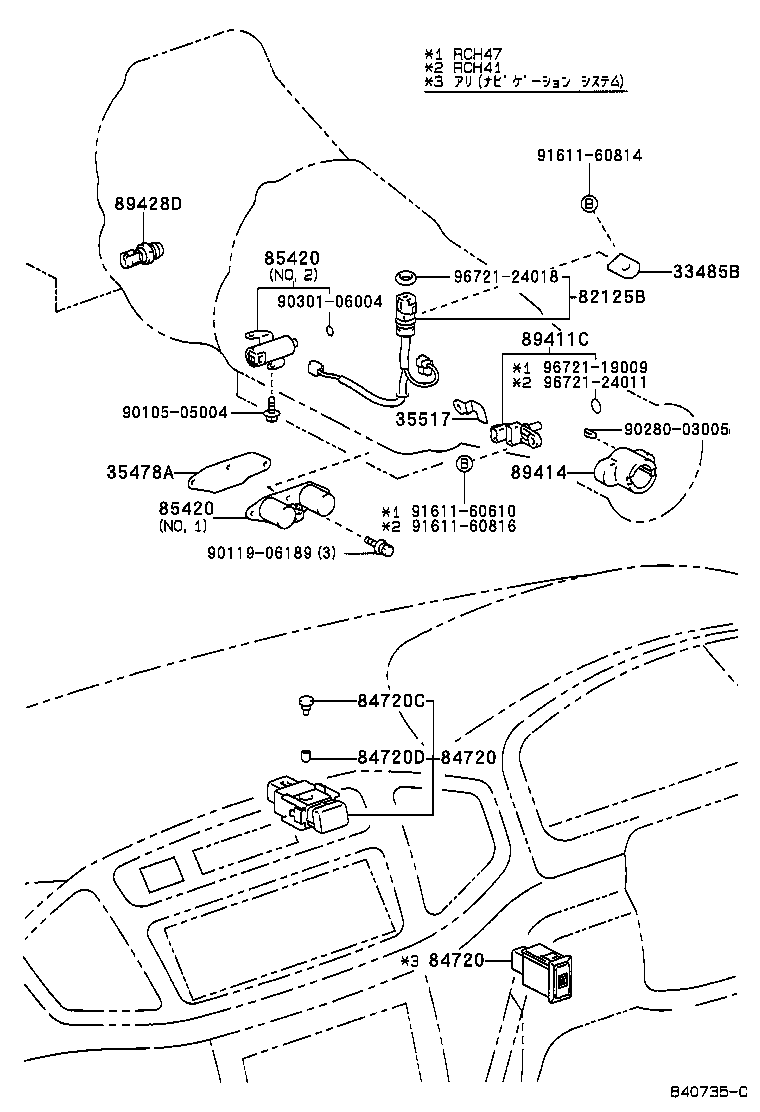

(9704-9907)RCH41,47
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33485B - PLATE, TRANSMISSION WIRE | ||||
| 33485-28010 |
RCH47 |
1 | ||
| 35478A - GASKET, SHIFT CONTROL SOLENOID | ||||
| 35478-30010 |
RCH41,47 |
1 | ||
| 35517 - PLATE, TRANSMISSION WIRE LOCK | ||||
| 35517-26010 |
RCH47 |
1 | ||
| 35517-30010 |
KCH4#,RCH41,47 |
1 | ||
| 82125B - WIRE, TRANSMISSION | ||||
| 82125-28010 |
RCH41,47 |
1 | ||
| 82125-22230 |
RCH41,47 |
1 | ||
| 84720 - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-26030 |
KCH4#,RCH41,47 |
1 | ||
| 84720-20160 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 84720-26040 |
KCH4#,RCH41,47 |
1 | ||
| 84720 - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-26030 |
KCH4#,RCH41,47 |
1 | ||
| 84720-20160 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 84720-26040 |
KCH4#,RCH41,47 |
1 | ||
| 84720C - BULB(FOR PATTERN SELECT SWITCH) | ||||
| 84999-10320 |
KCH4#,RCH41,47 14V 0.84W |
1 | ||
| 84720D - CAP, PATTERN SELECT SWITCH | ||||
| 84998-10280 |
KCH4#,RCH41,47 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-30050 |
RCH41,47 NO.1 |
1 | ||
| 85420-22170 |
KCH4#,RCH41,47 NO.2 |
1 | ||
| 85420-22150 |
KCH4#,RCH41,47 NO.1 |
1 | ||
| 85420-30070 |
RCH41,47 NO.2 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-30050 |
RCH41,47 NO.1 |
1 | ||
| 85420-22170 |
KCH4#,RCH41,47 NO.2 |
1 | ||
| 85420-22150 |
KCH4#,RCH41,47 NO.1 |
1 | ||
| 85420-30070 |
RCH41,47 NO.2 |
1 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-35030 |
KCH46,RCH47 |
1 | ||
| 89411-50010 |
RCH41,47 |
2 | ||
| 89414 - ROTOR, SENSOR | ||||
| 89414-35010 |
KCH46,RCH47 |
1 | ||
| 89414-60020 |
RCH47 |
1 | ||
| 89414-26010 |
RCH47 |
1 | ||
| 89428D - SWITCH, TEMPERATURE, NO.2 | ||||
| 89428-60090 |
LXH49,RCH47..ATM |
1 | ||
| Common parts | ||||
| 90105-05004 | ||||
| 90119-06189 | ||||
| 90280-03005 | ||||
| 90301-06004 | ||||
| 91611-60610 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 96721-19009 | ||||
| 96721-24011 | ||||
| 96721-24018 | ||||

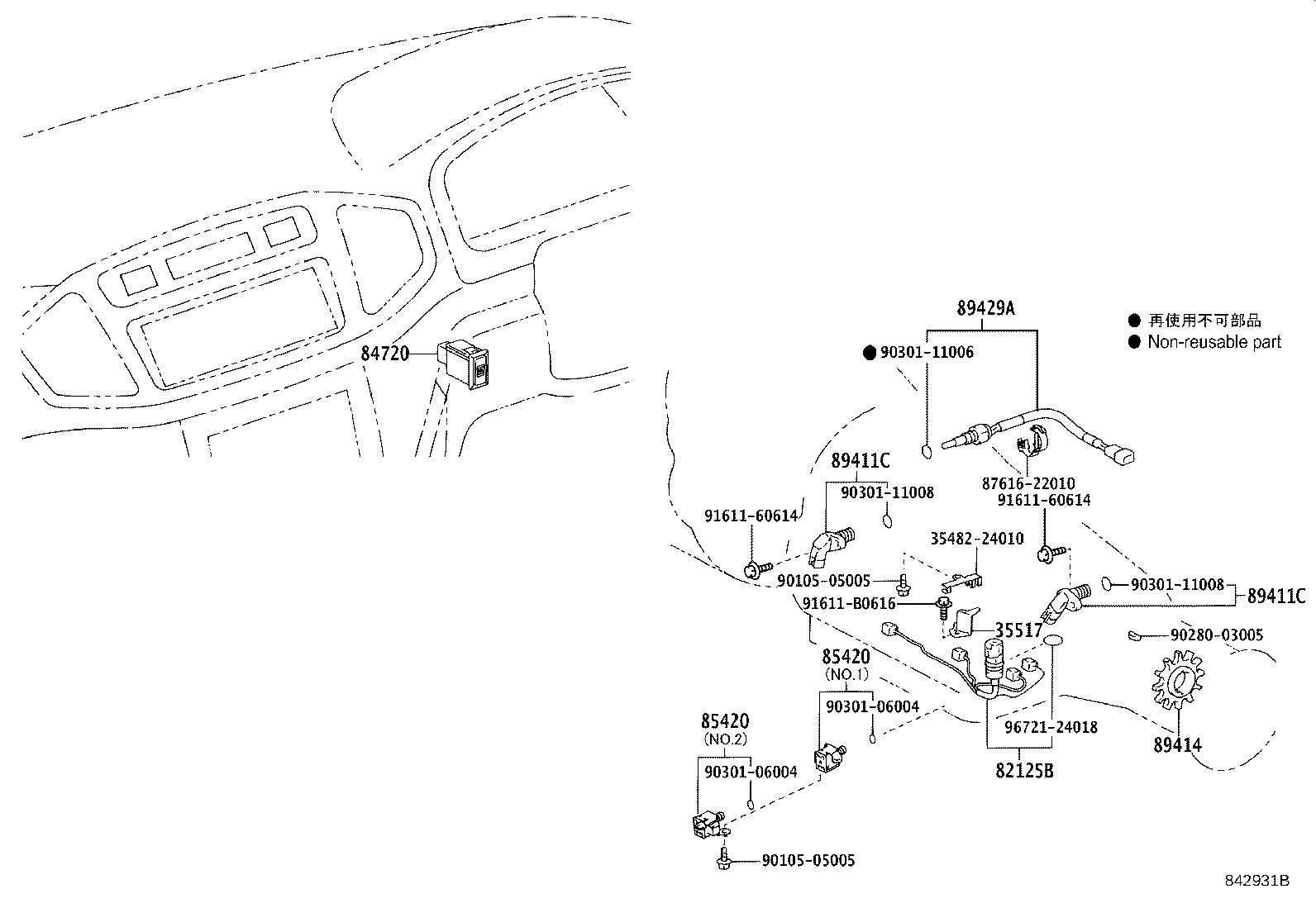

(9907- )RCH41,47
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35517 - PLATE, TRANSMISSION WIRE LOCK | ||||
| 35517-26010 |
RCH47 |
1 | ||
| 35517-30010 |
KCH4#,RCH41,47 |
1 | ||
| 82125B - WIRE, TRANSMISSION | ||||
| 82125-28010 |
RCH41,47 |
1 | ||
| 82125-22230 |
RCH41,47 |
1 | ||
| 84720 - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-26030 |
KCH4#,RCH41,47 |
1 | ||
| 84720-20160 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 84720-26040 |
KCH4#,RCH41,47 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-30050 |
RCH41,47 NO.1 |
1 | ||
| 85420-22170 |
KCH4#,RCH41,47 NO.2 |
1 | ||
| 85420-22150 |
KCH4#,RCH41,47 NO.1 |
1 | ||
| 85420-30070 |
RCH41,47 NO.2 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-30050 |
RCH41,47 NO.1 |
1 | ||
| 85420-22170 |
KCH4#,RCH41,47 NO.2 |
1 | ||
| 85420-22150 |
KCH4#,RCH41,47 NO.1 |
1 | ||
| 85420-30070 |
RCH41,47 NO.2 |
1 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-35030 |
KCH46,RCH47 |
1 | ||
| 89411-50010 |
RCH41,47 |
2 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-35030 |
KCH46,RCH47 |
1 | ||
| 89411-50010 |
RCH41,47 |
2 | ||
| 89414 - ROTOR, SENSOR | ||||
| 89414-35010 |
KCH46,RCH47 |
1 | ||
| 89414-60020 |
RCH47 |
1 | ||
| 89414-26010 |
RCH47 |
1 | ||
| 89429A - SENSOR, TEMPERATURE | ||||
| 89429-26010 |
RCH41,47 |
1 | ||
| Common parts | ||||
| 35482-24010 | ||||
| 87616-22010 | ||||
| 90105-05005 | ||||
| 90280-03005 | ||||
| 90301-06004 | ||||
| 90301-11006 | ||||
| 90301-11008 | ||||
| 91611-60614 | ||||
| 91611-B0616 | ||||
| 96721-24018 | ||||
