RCH47W-PFSQK (1998)

Toyota Regius/Touring Hiace

Production Apr 1998 - May 2002
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

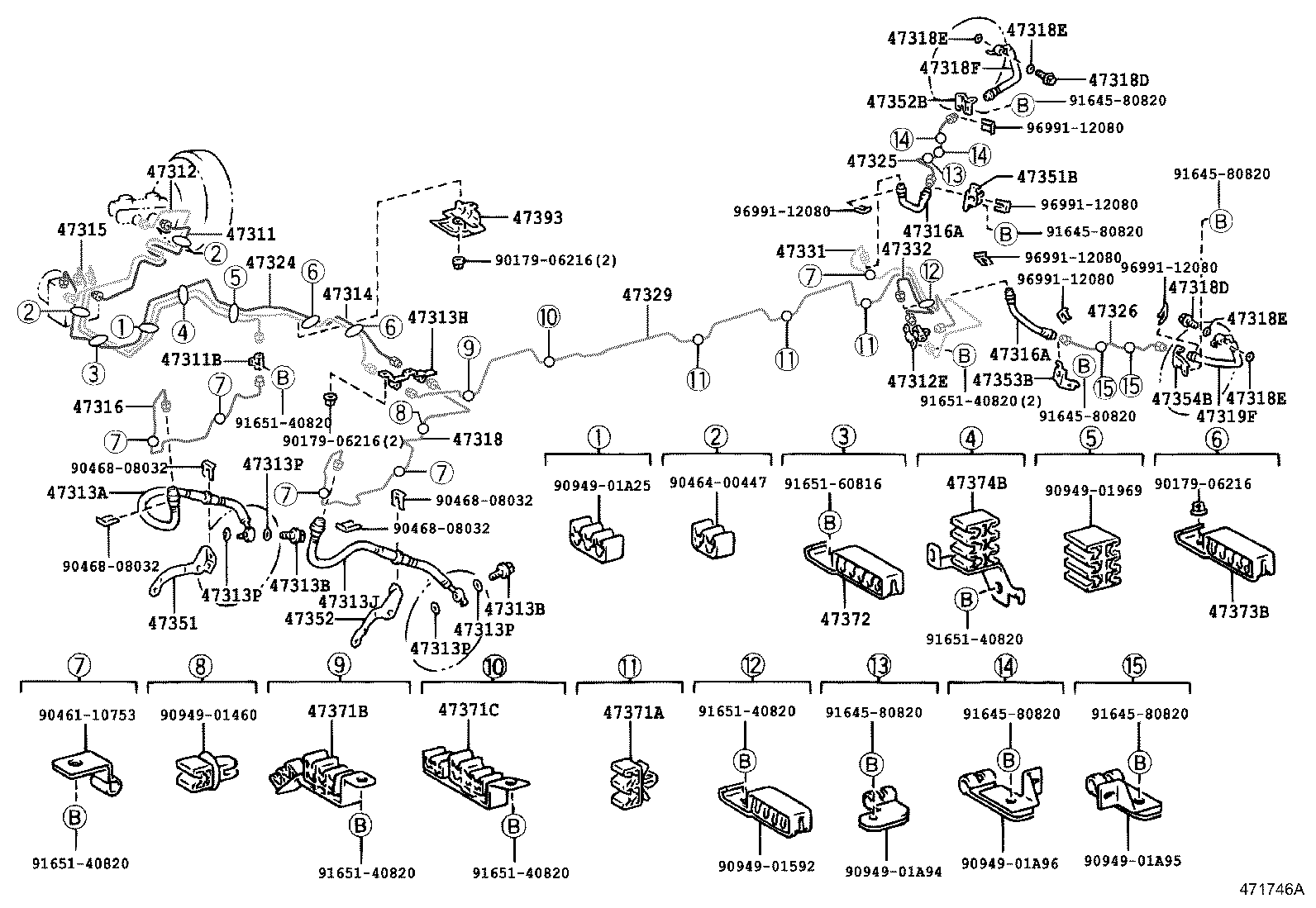

ILLUST NO. 1 OF 2(9704-9907)KCH46,RCH47

Click highlighted areas on diagram

ｱﾘ(ABS)

diagram 47311 47311B 47312 47312E 47313A 47313B 47313B 47313H 47313J 47313P 47313P 47313P 47313P 47314 47315 47316 47316A 47316A 47318 47318D 47318D 47318E 47318E 47318E 47318E 47318F 47319F 47324 47325 47326 47329 47331 47332 47351 47351B 47352 47352B 47353B 47354B 47371A 47371B 47371C 47372 47373B 47374B 47393 9017906216 9017906216 9017906216 9046110753 9046400447 9046808032 9046808032 9046808032 9046808032 9094901460 9094901592 9094901969 9094901A25 9094901A94 9094901A95 9094901A96 9164580820 9164580820 9164580820 9164580820 9164580820 9164580820 9164580820 9165140820 9165140820 9165140820 9165140820 9165140820 9165140820 9165140820 9165160816 9699112080 9699112080 9699112080 9699112080 9699112080 9699112080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-26721

RCH41,47

 1
47311-26590

RCH41,47

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10165

KCH4#,LXH4#,RCH4#

ｱﾘ(ABS)

 1
47312 - TUBE, FRONT BRAKE, NO.2
47322-26250

RCH41,47

 1
47322-26321

RCH41,47

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90904-13035

KCH4#,RCH41,47

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02829

KCH46,LXH49,RCH47

 1
90947-02C03

KCH46,LXH49,RCH47

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

KCH4#,LXH4#,RCH4#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

KCH4#,LXH4#,RCH4#

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90904-12052

KCH4#,RCH41,47

 1
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02829

KCH46,LXH49,RCH47

 1
90947-02C03

KCH46,LXH49,RCH47

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

KCH4#,LXH4#,RCH4#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

KCH4#,LXH4#,RCH4#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

KCH4#,LXH4#,RCH4#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

KCH4#,LXH4#,RCH4#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-26250

KCH4#,LXH4#,RCH4#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26190

KCH4#,LXH4#,RCH4#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26290

KCH46,LXH49,RCH47

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02828

KCH4#,LXH4#,RCH4#

 2
90947-02C02

KCH4#,LXH4#,RCH4#

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02828

KCH4#,LXH4#,RCH4#

 2
90947-02C02

KCH4#,LXH4#,RCH4#

 2
47318 - TUBE, FRONT BRAKE, NO.8
47318-26090

KCH46,LXH49,RCH47

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015

KCH4#,RCH41,47

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015

KCH4#,RCH41,47

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

KCH4#,RCH41,47

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

KCH4#,RCH41,47

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

KCH4#,RCH41,47

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

KCH4#,RCH41,47

 4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02C13

KCH4#,RCH41,47

 1
90947-02935

KCH4#,RCH41,47

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02936

KCH4#,RCH41,47

 1
90947-02C14

KCH4#,RCH41,47

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-26441

KCH4#,LXH4#,RCH4#

 1
47324-26370

KCH4#,LXH4#,RCH4#

 1
47325 - TUBE, REAR BRAKE, NO.5
47333-26040

KCH4#,RCH41,47

 1
47326 - TUBE, REAR BRAKE, NO.6
47334-26050

KCH4#,RCH41,47

 1
47329 - TUBE, REAR BRAKE, NO.9
47329-26150

KCH46,RCH47

 1
47329-26151

KCH46,RCH47

 1
47331 - TUBE, REAR BRAKE, NO.10
47331-26100

KCH4#,RCH41,47

 1
47332 - TUBE, REAR BRAKE, NO.11
47332-26060

KCH4#,RCH41,47

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-26160

KCH46,LXH49,RCH47

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26200

KCH4#,LXH4#,RCH4#

 1
47351-26150

KCH4#,LXH4#,RCH4#

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-26150

KCH46,LXH49,RCH47

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47351-26180

KCH4#,RCH41,47

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47352-26180

KCH4#,LXH4#,RCH4#

 1
47352-26140

KCH4#,LXH4#,RCH4#

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47352-26160

KCH4#,RCH41,47

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90469-05013

KCH4#,LXH4#,RCH4#

 3
90469-05013

RCH41..W08S;KCH4#,LXH49,RCH42,47

 3
47371B - CLAMP, BRAKE TUBE, NO.6
47371-26140

KCH4#,LXH4#,RCH4#

 1
47371C - CLAMP, BRAKE TUBE, NO.7
47371-26150

KCH4#,LXH4#,RCH4#

 1
47371-26190

KCH4#,LXH4#,RCH4#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-26050

RCH41,42..5D..ATM;RCH41..(G,V,WISTD)..W08S;KCH4#,RCH47..(G,V,WISTD)..(W07S,W08S)

 1
47371-26050

LXH4#;RCH42..MTM;KCH4#,RCH41,47..E,STD,WINT;KCH4#,RCH41..4D..(G07S,W07S)

ｱﾘ(ABS)

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-26110

KCH4#,LXH4#,RCH4#

 2
47374B - CLAMP, BRAKE TUBE, NO.4
47371-26160

KCH4#,LXH4#,RCH4#

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-26050

RCH4#

 1
Common parts
90179-06216
90461-10753
90464-00447
90468-08032
90949-01460
90949-01592
90949-01969
90949-01A25
90949-01A94
90949-01A95
90949-01A96
91645-80820
91651-40820
91651-60816
96991-12080

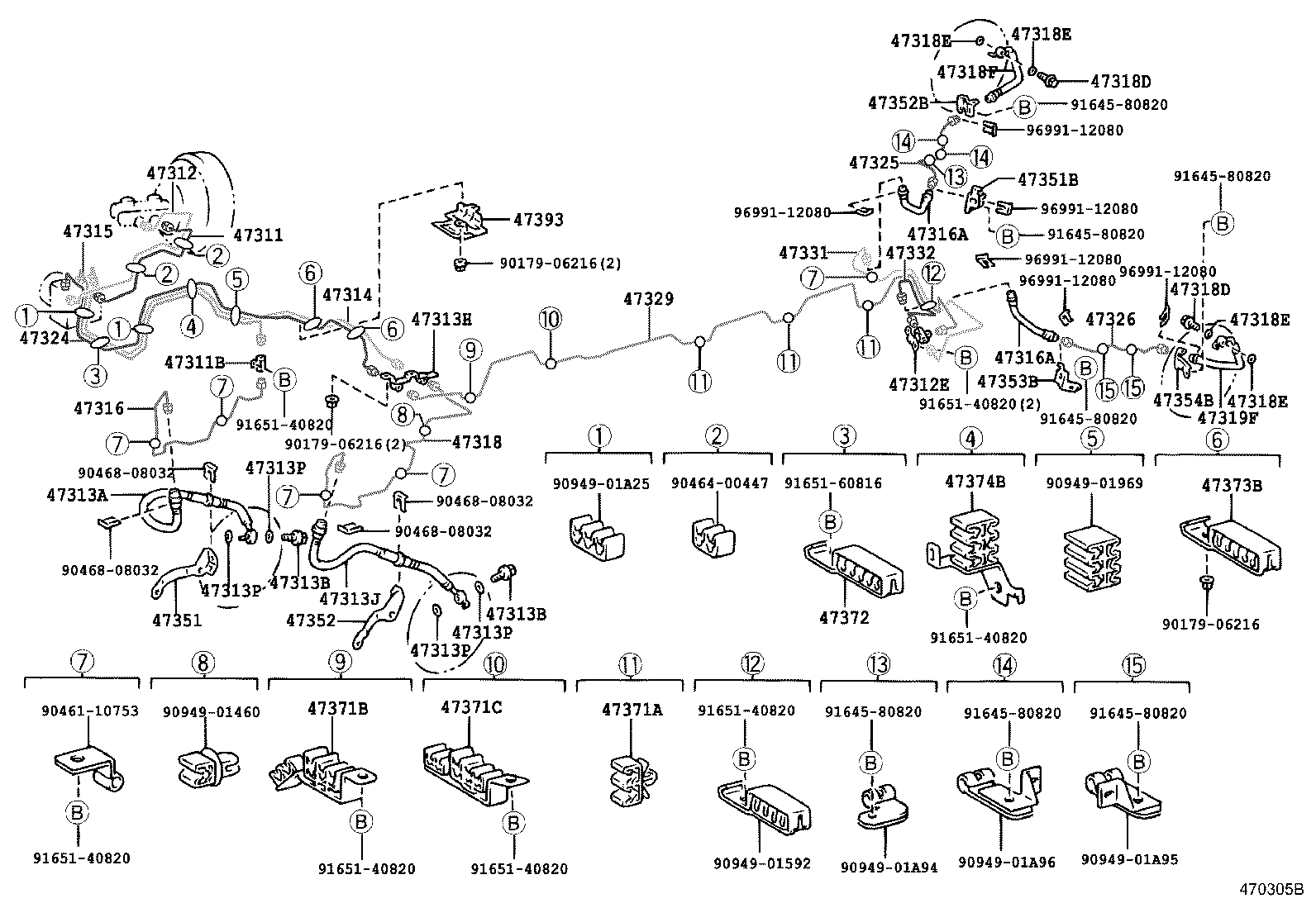

ILLUST NO. 1 OF 2(9907- )KCH46,RCH47

Click highlighted areas on diagram

ｱﾘ(ABS)

diagram 47311 47311B 47312 47312E 47313A 47313B 47313B 47313H 47313J 47313P 47313P 47313P 47313P 47314 47315 47316 47316A 47316A 47318 47318D 47318D 47318E 47318E 47318E 47318E 47318F 47319F 47324 47325 47326 47329 47331 47332 47351 47351B 47352 47352B 47353B 47354B 47371A 47371B 47371C 47372 47373B 47374B 47393 9017906216 9017906216 9017906216 9046110753 9046400447 9046808032 9046808032 9046808032 9046808032 9094901460 9094901592 9094901969 9094901A25 9094901A94 9094901A95 9094901A96 9164580820 9164580820 9164580820 9164580820 9164580820 9164580820 9164580820 9165140820 9165140820 9165140820 9165140820 9165140820 9165140820 9165140820 9165160816 9699112080 9699112080 9699112080 9699112080 9699112080 9699112080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-26721

RCH41,47

 1
47311-26590

RCH41,47

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10165

KCH4#,LXH4#,RCH4#

ｱﾘ(ABS)

 1
47312 - TUBE, FRONT BRAKE, NO.2
47322-26250

RCH41,47

 1
47322-26321

RCH41,47

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90904-13035

KCH4#,RCH41,47

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02829

KCH46,LXH49,RCH47

 1
90947-02C03

KCH46,LXH49,RCH47

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

KCH4#,LXH4#,RCH4#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

KCH4#,LXH4#,RCH4#

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90904-12052

KCH4#,RCH41,47

 1
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02829

KCH46,LXH49,RCH47

 1
90947-02C03

KCH46,LXH49,RCH47

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

KCH4#,LXH4#,RCH4#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

KCH4#,LXH4#,RCH4#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

KCH4#,LXH4#,RCH4#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

KCH4#,LXH4#,RCH4#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-26250

KCH4#,LXH4#,RCH4#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26190

KCH4#,LXH4#,RCH4#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26290

KCH46,LXH49,RCH47

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02828

KCH4#,LXH4#,RCH4#

 2
90947-02C02

KCH4#,LXH4#,RCH4#

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02828

KCH4#,LXH4#,RCH4#

 2
90947-02C02

KCH4#,LXH4#,RCH4#

 2
47318 - TUBE, FRONT BRAKE, NO.8
47318-26090

KCH46,LXH49,RCH47

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015

KCH4#,RCH41,47

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015

KCH4#,RCH41,47

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

KCH4#,RCH41,47

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

KCH4#,RCH41,47

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

KCH4#,RCH41,47

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

KCH4#,RCH41,47

 4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02C13

KCH4#,RCH41,47

 1
90947-02935

KCH4#,RCH41,47

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02936

KCH4#,RCH41,47

 1
90947-02C14

KCH4#,RCH41,47

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-26441

KCH4#,LXH4#,RCH4#

 1
47324-26370

KCH4#,LXH4#,RCH4#

 1
47325 - TUBE, REAR BRAKE, NO.5
47333-26040

KCH4#,RCH41,47

 1
47326 - TUBE, REAR BRAKE, NO.6
47334-26050

KCH4#,RCH41,47

 1
47329 - TUBE, REAR BRAKE, NO.9
47329-26150

KCH46,RCH47

 1
47329-26151

KCH46,RCH47

 1
47331 - TUBE, REAR BRAKE, NO.10
47331-26100

KCH4#,RCH41,47

 1
47332 - TUBE, REAR BRAKE, NO.11
47332-26060

KCH4#,RCH41,47

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-26160

KCH46,LXH49,RCH47

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26200

KCH4#,LXH4#,RCH4#

 1
47351-26150

KCH4#,LXH4#,RCH4#

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-26150

KCH46,LXH49,RCH47

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47351-26180

KCH4#,RCH41,47

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47352-26180

KCH4#,LXH4#,RCH4#

 1
47352-26140

KCH4#,LXH4#,RCH4#

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47352-26160

KCH4#,RCH41,47

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90469-05013

KCH4#,LXH4#,RCH4#

 3
90469-05013

RCH41..W08S;KCH4#,LXH49,RCH42,47

 3
47371B - CLAMP, BRAKE TUBE, NO.6
47371-26140

KCH4#,LXH4#,RCH4#

 1
47371C - CLAMP, BRAKE TUBE, NO.7
47371-26150

KCH4#,LXH4#,RCH4#

 1
47371-26190

KCH4#,LXH4#,RCH4#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-26050

RCH41,42..5D..ATM;RCH41..(G,V,WISTD)..W08S;KCH4#,RCH47..(G,V,WISTD)..(W07S,W08S)

 1
47371-26050

LXH4#;RCH42..MTM;KCH4#,RCH41,47..E,STD,WINT;KCH4#,RCH41..4D..(G07S,W07S)

ｱﾘ(ABS)

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-26110

KCH4#,LXH4#,RCH4#

 2
47374B - CLAMP, BRAKE TUBE, NO.4
47371-26160

KCH4#,LXH4#,RCH4#

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-26050

RCH4#

 1
Common parts
90179-06216
90461-10753
90464-00447
90468-08032
90949-01460
90949-01592
90949-01969
90949-01A25
90949-01A94
90949-01A95
90949-01A96
91645-80820
91651-40820
91651-60816
96991-12080
