RCH47W-PFSQK (1998)
Toyota Regius/Touring Hiace
(9704-9907)RCH41,47
A43DE,A43DF

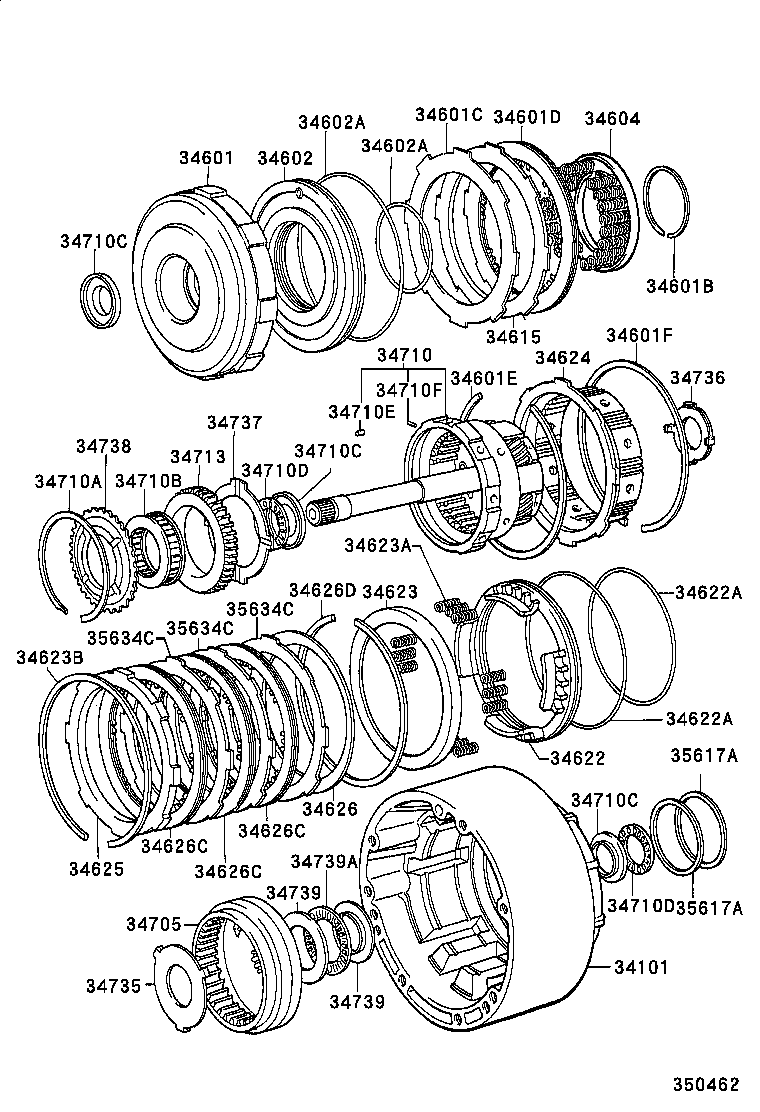

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34101 - CASE SUB-ASSY, OVERDRIVE | ||||
| 34101-22020 |
LXH4#,RCH41,47..ATM |
1 | ||
| 34101-30062 |
RCH41,47 |
1 | ||
| 34601 - DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34601-30022 |
RCH41,47 |
1 | ||
| 34601-50020 |
RCH47 |
1 | ||
| 34601B - RING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 90520-52262 |
LXH4#,RCH41,47..ATM |
1 | ||
| 34601C - PLATE, CLUTCH (FOR OVERDRIVE) | ||||
| 34618-30010 |
LXH4#,RCH41,47..ATM |
1 | ||
| 34601D - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-30140 |
RCH41,47 |
1 | ||
| 34601E - RING, HOLE SNAP, NO.1 (FOR OVERDRIVE) | ||||
| 90521-99146 |
LXH4#,RCH41,47..ATM |
1 | ||
| 34601F - RING, HOLE SNAP, NO.2 (FOR OVERDRIVE) | ||||
| 90521-99001 |
LXH4#,RCH41,47..ATM |
1 | ||
| 34602 - PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34602-30030 |
LXH4#,RCH41,47..ATM |
1 | ||
| 34602-30020 |
KCH40,RCH41,47 |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-57188 |
LXH4#,RCH41,47..ATM 内側 |
1 | ||
| 90301-99016 |
LXH4#,RCH41,47..ATM 外側 |
1 | ||
| 90301-65006 |
KCH4#,RCH41,47 内側 |
1 | ||
| 90301-99086 |
KCH4#,RCH41,47 外側 |
1 | ||
| 90301-99058 |
LXH4#,RCH41,47..ATM 外側 |
1 | ||
| 90301-56007 |
LXH4#,RCH41,47..ATM 内側 |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-57188 |
LXH4#,RCH41,47..ATM 内側 |
1 | ||
| 90301-99016 |
LXH4#,RCH41,47..ATM 外側 |
1 | ||
| 90301-65006 |
KCH4#,RCH41,47 内側 |
1 | ||
| 90301-99086 |
KCH4#,RCH41,47 外側 |
1 | ||
| 90301-99058 |
LXH4#,RCH41,47..ATM 外側 |
1 | ||
| 90301-56007 |
LXH4#,RCH41,47..ATM 内側 |
1 | ||
| 34604 - SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN | ||||
| 34604-22010 |
LXH4#,RCH41,47..ATM |
1 | ||
| 34604-30010 |
KCH4#,RCH41,47 |
1 | ||
| 34615 - FLANGE, OVERDRIVE CLUTCH | ||||
| 35675-22010 |
LXH4#,RCH41,47..ATM 厚さ=4.0 |
1 | ||
| 34615-30030 |
KCH4#,RCH41,47 厚さ=3.5 |
1 | ||
| 34615-22010 |
KCH4#,RCH41,47 厚さ=3.1 |
1 | ||
| 34615-50030 |
KCH4#,RCH41,47 厚さ=3.4 |
1 | ||
| 34615-30050 |
KCH4#,RCH41,47 厚さ=3.3 |
1 | ||
| 34615-30070 |
KCH4#,RCH41,47 厚さ=3.1 |
1 | ||
| 34615-30060 |
KCH4#,RCH41,47 厚さ=3.2 |
1 | ||
| 34615-30020 |
KCH4#,RCH41,47 厚さ=3.6 |
1 | ||
| 34615-50050 |
KCH4#,RCH41,47 厚さ=3.6 |
1 | ||
| 34615-50040 |
KCH4#,RCH41,47 厚さ=3.5 |
1 | ||
| 34615-22030 |
KCH4#,RCH41,47 厚さ=3.3 |
1 | ||
| 34615-22020 |
KCH4#,RCH41,47 厚さ=3.2 |
1 | ||
| 34615-30040 |
KCH4#,RCH41,47 厚さ=3.4 |
1 | ||
| 34622 - PISTON, OVERDRIVE BRAKE | ||||
| 34622-30040 |
LXH4#,RCH41,47..ATM |
1 | ||
| 34622-30100 |
KCH4#,RCH41,47 |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99008 |
LXH4#,RCH41,47..ATM 内側 |
1 | ||
| 90301-99009 |
LXH4#,RCH41,47..ATM 外側 |
1 | ||
| 90301-99090 |
KCH4#,RCH41,47 外側 |
1 | ||
| 90301-99088 |
KCH4#,RCH41,47 内側 |
1 | ||
| 90301-99111 |
LXH4#,RCH41,47..ATM 外側 |
1 | ||
| 90301-99103 |
LXH4#,RCH41,47..ATM 内側 |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99008 |
LXH4#,RCH41,47..ATM 内側 |
1 | ||
| 90301-99009 |
LXH4#,RCH41,47..ATM 外側 |
1 | ||
| 90301-99090 |
KCH4#,RCH41,47 外側 |
1 | ||
| 90301-99088 |
KCH4#,RCH41,47 内側 |
1 | ||
| 90301-99111 |
LXH4#,RCH41,47..ATM 外側 |
1 | ||
| 90301-99103 |
LXH4#,RCH41,47..ATM 内側 |
1 | ||
| 34623 - SEAT, OVERDRIVE BRAKE RETURN SPRING | ||||
| 34623-30020 |
LXH4#,RCH41,47..ATM |
1 | ||
| 34623A - SPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING | ||||
| 90501-11023 |
RCH41,47 |
12 | ||
| 34623B - RING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT | ||||
| 90521-99004 |
LXH4#,RCH41,47..ATM |
1 | ||
| 34624 - HUB, OVERDRIVE BRAKE | ||||
| 34624-26010 |
LXH4#,RCH41,47..ATM |
1 | ||
| 34625 - FLANGE, OVERDRIVE BRAKE, NO.1 | ||||
| 34625-26010 |
RCH41,47 厚さ=4.0 |
1 | ||
| 34625-30160 |
KCH4#,RCH41,47 厚さ=3.5,ﾏｰｸ 78 |
1 | ||
| 34625-30130 |
KCH4#,RCH41,47 厚さ=3.8,ﾏｰｸ 81 |
1 | ||
| 34625-22030 |
KCH4#,RCH41,47 厚さ=3.3,ﾏｰｸ 33 |
1 | ||
| 34625-30120 |
KCH4#,RCH41,47 厚さ=3.9,ﾏｰｸ 82 |
1 | ||
| 34625-22060 |
KCH4#,RCH41,47 厚さ=4.0,ﾏｰｸ 40 |
1 | ||
| 34625-30180 |
KCH4#,RCH41,47 厚さ=4.0,ﾏｰｸ 83 |
1 | ||
| 34625-30170 |
KCH4#,RCH41,47 厚さ=3.3,ﾏｰｸ 77 |
1 | ||
| 34625-30150 |
KCH4#,RCH41,47 厚さ=3.6,ﾏｰｸ 79 |
1 | ||
| 34625-50040 |
KCH4#,RCH41,47 厚さ=3.7,ﾏｰｸ 37 |
1 | ||
| 34625-30140 |
KCH4#,RCH41,47 厚さ=3.7,ﾏｰｸ 80 |
1 | ||
| 34625-50030 |
KCH4#,RCH41,47 厚さ=3.6,ﾏｰｸ 36 |
1 | ||
| 34625-22050 |
KCH4#,RCH41,47 厚さ=3.9,ﾏｰｸ 39 |
1 | ||
| 34625-50020 |
KCH4#,RCH41,47 厚さ=3.5,ﾏｰｸ 35 |
1 | ||
| 34625-22040 |
KCH4#,RCH41,47 厚さ=3.8,ﾏｰｸ 38 |
1 | ||
| 34626 - PLATE, OVERDRIVE BRAKE CUSHION | ||||
| 34626-30050 |
LXH4#,RCH41,47..ATM |
1 | ||
| 34626C - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-43010 |
RCH41,47 |
3 | ||
| 34626C - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-43010 |
RCH41,47 |
3 | ||
| 34626C - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-43010 |
RCH41,47 |
3 | ||
| 34626D - RING, HOLE SNAP (FOR OVERDRIVE) | ||||
| 90521-99004 |
LXH4#,RCH41,47..ATM |
1 | ||
| 34705 - GEAR SUB-ASSY, OVERDRIVE PLANETARY RING | ||||
| 34705-30021 |
LXH4#,RCH41,47..ATM |
1 | ||
| 34710 - GEAR ASSY, OVERDRIVE PLANETARY | ||||
| 34710-14011 |
RCH41,47 |
1 | ||
| 34710-60020 |
KCH46,RCH47 |
1 | ||
| 34710A - RING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90521-99003 |
LXH4#,RCH41,47..ATM |
1 | ||
| 34710B - CLUTCH, 1WAY, NO.1(FOR OVERDRIVE) | ||||
| 35791-30030 |
RCH41,47 |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 34739-30041 |
LXH4#,RCH41,47..ATM ﾌﾛﾝﾄ |
1 | ||
| 35789-22010 |
LXH4#,RCH41,47..ATM ﾘﾔ |
1 | ||
| 34739-30031 |
RCH41,47 ｾﾝﾀ |
1 | ||
| 35789-30050 |
KCH4#,RCH41,47 |
1 | ||
| 35789-30051 |
KCH4#,RCH41,47 |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 34739-30041 |
LXH4#,RCH41,47..ATM ﾌﾛﾝﾄ |
1 | ||
| 35789-22010 |
LXH4#,RCH41,47..ATM ﾘﾔ |
1 | ||
| 34739-30031 |
RCH41,47 ｾﾝﾀ |
1 | ||
| 35789-30050 |
KCH4#,RCH41,47 |
1 | ||
| 35789-30051 |
KCH4#,RCH41,47 |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 34739-30041 |
LXH4#,RCH41,47..ATM ﾌﾛﾝﾄ |
1 | ||
| 35789-22010 |
LXH4#,RCH41,47..ATM ﾘﾔ |
1 | ||
| 34739-30031 |
RCH41,47 ｾﾝﾀ |
1 | ||
| 35789-30050 |
KCH4#,RCH41,47 |
1 | ||
| 35789-30051 |
KCH4#,RCH41,47 |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-23012 |
LXH4#,RCH41,47..ATM ﾘﾔ |
1 | ||
| 90374-25005 |
KCH4#,RCH41,47 ｾﾝﾀ |
1 | ||
| 90374-24001 |
RCH41,47 ﾌﾛﾝﾄ |
1 | ||
| 90374-31005 |
KCH4#,RCH41,47 ﾌﾛﾝﾄ |
1 | ||
| 90374-24004 |
KCH4#,RCH41,47 ｾﾝﾀ |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-23012 |
LXH4#,RCH41,47..ATM ﾘﾔ |
1 | ||
| 90374-25005 |
KCH4#,RCH41,47 ｾﾝﾀ |
1 | ||
| 90374-24001 |
RCH41,47 ﾌﾛﾝﾄ |
1 | ||
| 90374-31005 |
KCH4#,RCH41,47 ﾌﾛﾝﾄ |
1 | ||
| 90374-24004 |
KCH4#,RCH41,47 ｾﾝﾀ |
1 | ||
| 34710E - PLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90334-03001 |
RCH41,47 |
4 | ||
| 34710F - PIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90250-03024 |
LXH4#,RCH41,47..ATM |
4 | ||
| 34713 - RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE) | ||||
| 34713-30020 |
RCH41,47 |
1 | ||
| 34735 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1 | ||||
| 34735-30020 |
LXH4#,RCH41,47..ATM |
1 | ||
| 34736 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2 | ||||
| 34736-30010 |
LXH4#,RCH41,47..ATM |
1 | ||
| 34737 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3 | ||||
| 34737-50010 |
RCH47 |
1 | ||
| 34737-30020 |
RCH41,47 |
1 | ||
| 34738 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4 | ||||
| 34738-30020 |
RCH41,47 |
1 | ||
| 34739 - RACE, THRUST BEARING(FOR OVERDRIVE) | ||||
| 34739-30020 |
LXH4#,RCH41,47..ATM ﾌﾛﾝﾄ |
1 | ||
| 35789-22030 |
LXH4#,RCH41,47..ATM ﾘﾔ |
1 | ||
| 34739 - RACE, THRUST BEARING(FOR OVERDRIVE) | ||||
| 34739-30020 |
LXH4#,RCH41,47..ATM ﾌﾛﾝﾄ |
1 | ||
| 35789-22030 |
LXH4#,RCH41,47..ATM ﾘﾔ |
1 | ||
| 34739A - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE) | ||||
| 90374-28014 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-16010 |
RCH41,47 |
2 | ||
| 35617-30020 |
KCH4#,RCH41,47 |
2 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-16010 |
RCH41,47 |
2 | ||
| 35617-30020 |
KCH4#,RCH41,47 |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 34616-30010 |
KCH40,RCH41,47 厚さ=2.0 |
2 | ||
| 34634-30010 |
RCH41,47 厚さ=2.25−2.35 |
3 | ||
| 35634-30080 |
RCH41,47 厚さ=1.95−2.05 |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 34616-30010 |
KCH40,RCH41,47 厚さ=2.0 |
2 | ||
| 34634-30010 |
RCH41,47 厚さ=2.25−2.35 |
3 | ||
| 35634-30080 |
RCH41,47 厚さ=1.95−2.05 |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 34616-30010 |
KCH40,RCH41,47 厚さ=2.0 |
2 | ||
| 34634-30010 |
RCH41,47 厚さ=2.25−2.35 |
3 | ||
| 35634-30080 |
RCH41,47 厚さ=1.95−2.05 |
2 | ||
