RCH47W-GRSSK (1997)
Toyota Regius/Touring Hiace
Production
Apr 1997
-
Jul 1999
Engine
3RZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

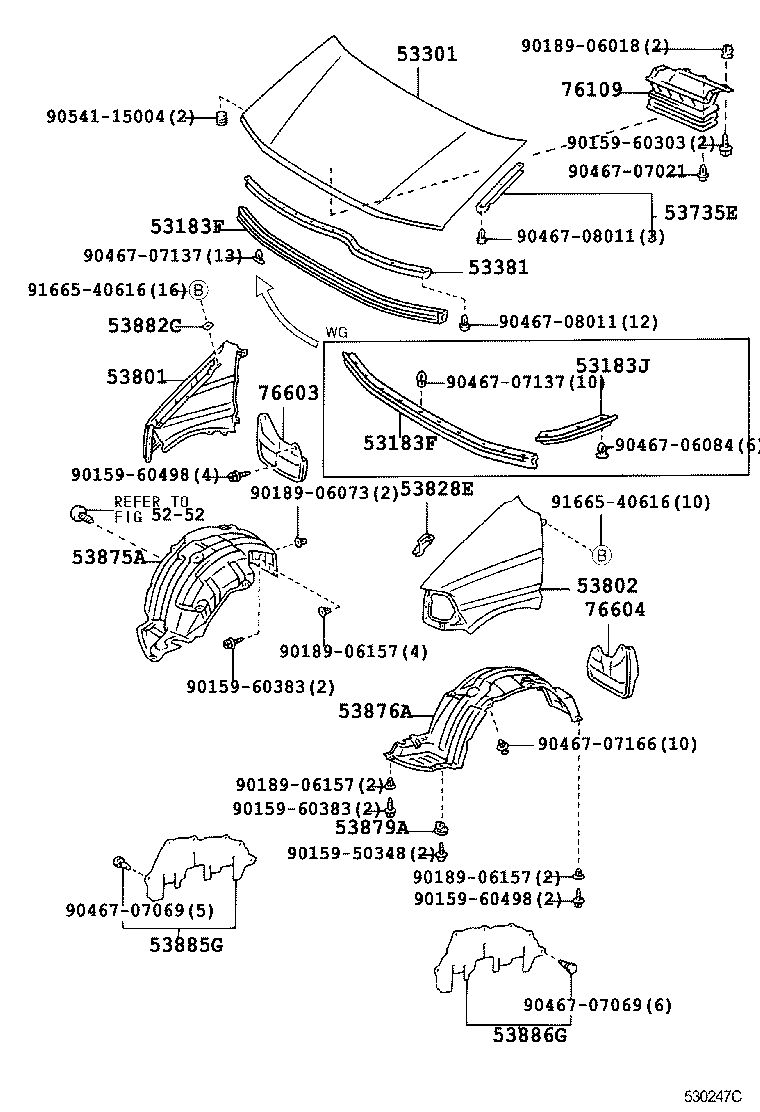

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53183F - SEAL, HEADLAMP COVER TO HOOD | ||||
| 53183-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 53183F - SEAL, HEADLAMP COVER TO HOOD | ||||
| 53183-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-26021 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 53301-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 53735E - SEAL, FRONT FENDER APRON, UPPER | ||||
| 53735-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 53828E - PROTECTOR, FRONT SIDE PANEL, NO.3 | ||||
| 53828-26010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-16010 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 53882C - SEAL, FRONT FENDER MAIN | ||||
| 53882-16030 |
KCH4#,LXH4#,RCH4# |
6 | ||
| 53882-26010 |
KCH4#,LXH4#,RCH4# |
6 | ||
| 53885G - SEAL SUB-ASSY, FENDER APRON MUDGUARD, RH | ||||
| 53807-26020 |
KCH46,LXH49,RCH47 |
1 | ||
| 53886G - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53808-26020 |
KCH46,LXH49,RCH47 |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-26020B3 |
KCH4#,RCH41,47..G,STD SILVER ME,2EB |
1 | ||
| 76621-26020G1 |
KCH4#,RCH41,47..G,STD GRAYISH BREEN M,2DJ ,2EV |
1 | ||
| 76621-26010 |
LXH4#;KCH4#,RCH4#..E,STD,V |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-26030G1 |
KCH4#,RCH41,47..G,STD GRAYISH BREEN M,2DJ ,2EV |
1 | ||
| 76622-26020 |
LXH4#;KCH4#,RCH4#..E,STD,V |
1 | ||
| 76622-26030B3 |
KCH4#,RCH41,47..G,STD SILVER ME,2EB |
1 | ||
| Common parts | ||||
| 90159-50348 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-60498 | ||||
| 90189-06018 | ||||
| 90189-06073 | ||||
| 90189-06157 | ||||
| 90467-06084 | ||||
| 90467-07021 | ||||
| 90467-07069 | ||||
| 90467-07137 | ||||
| 90467-07166 | ||||
| 90467-08011 | ||||
| 90541-15004 | ||||
| 91665-40616 | ||||
| Linked diagrams | ||||
| 5252 | ||||
