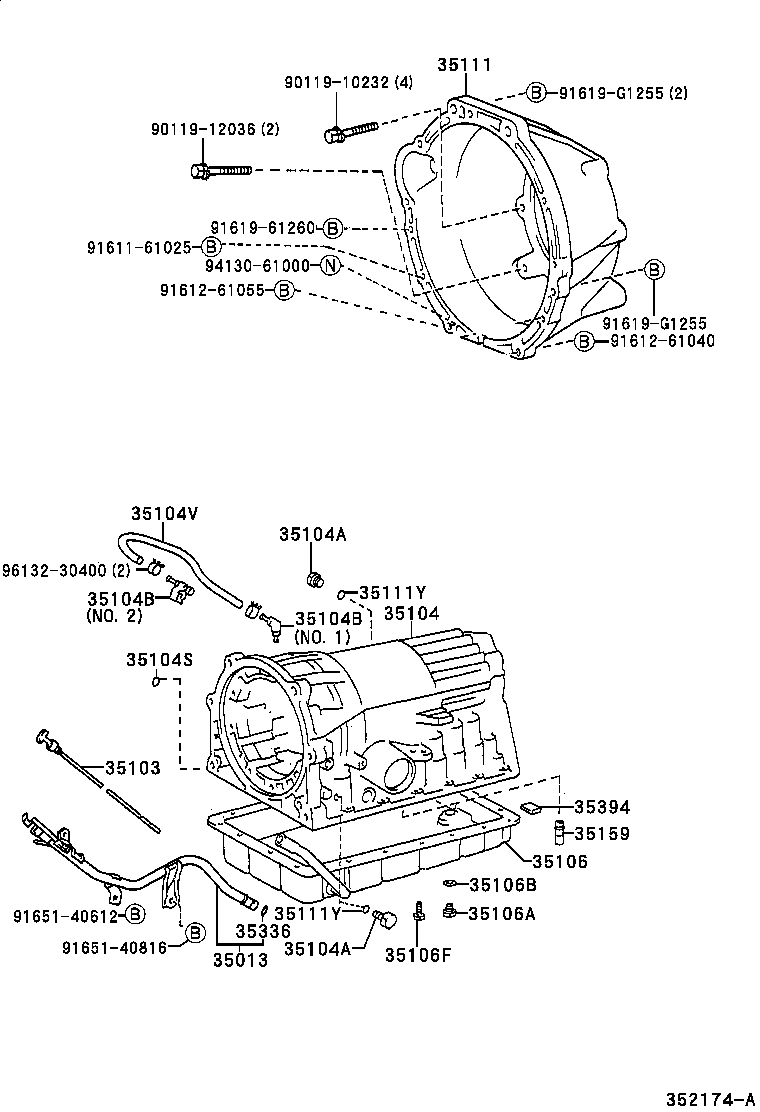

Toyota Regius/touring hiace RCH47 TRANSMISSION CASE & OIL PAN (ATM)

Part #	Description	Period	Qty
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-26330	RCH41,47	07/1999 - 12/2999	1
35013-26200	RCH41,47	04/1997 - 07/1999	1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-26160	RCH41,47	04/1997 - 07/1999	1
35103-26290	RCH41,47	07/1999 - 12/2999	1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-26040	RCH47	04/1997 - 07/1999	1
35104-26070	RCH41,47	07/1999 - 05/2002	1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001	LXH4#,RCH4#..ATM	07/1999 - 05/2002	2
90341-08001	KCH40,LXH4#,RCH41,47..ATM	04/1997 - 07/1999	2
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001	LXH4#,RCH4#..ATM	07/1999 - 05/2002	2
90341-08001	KCH40,LXH4#,RCH41,47..ATM	04/1997 - 07/1999	2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03099	LXH4#,RCH4#..ATM NO.2	07/1999 - 05/2002	1
90930-03099	KCH4#,LXH4#,RCH41,47..ATM NO.2	04/1997 - 07/1999	1
90930-03098	KCH4#,LXH4#,RCH4#..ATM NO.1	04/1997 - 05/2002	1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03099	LXH4#,RCH4#..ATM NO.2	07/1999 - 05/2002	1
90930-03099	KCH4#,LXH4#,RCH41,47..ATM NO.2	04/1997 - 07/1999	1
90930-03098	KCH4#,LXH4#,RCH4#..ATM NO.1	04/1997 - 05/2002	1
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-11006	KCH4#,RCH47	07/1999 - 05/2002	1
35104V - HOSE (FOR BREATHER PLUG)
90445-11096	LXH4#,RCH41,47..ATM	04/1997 - 07/1999	1
90445-11118	RCH41,47	07/1999 - 05/2002	1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-28050	LXH4#,RCH41,47..ATM	04/1997 - 07/1999	1
35106-26070	KCH4#,RCH41,47	07/1999 - 05/2002	1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10006	KCH4#,LXH4#,RCH41,47..ATM	04/1997 - 07/1999	1
90341-10018	RCH41,47	07/1999 - 05/2002	1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010	KCH4#,LXH4#,RCH41,47..ATM	04/1997 - 07/1999	1
35178-50010	RCH41,47	07/1999 - 05/2002	1
35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
90119-06117	KCH46,LXH4#,RCH41,47..ATM	04/1997 - 07/1999	14
90119-06513	KCH40,RCH41,47	07/1999 - 12/2999	19
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-26060	RCH47	04/1997 - 07/1999	1
35111-34020	RCH41,47	07/1999 - 05/2002	1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 05/2002	2
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 05/2002	2
35159 - GASKET, BRAKE DRUM
35159-30010	KCH4#,RCH41,47	07/1999 - 05/2002	1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011	LXH4#,RCH41,47..ATM	04/1997 - 07/1999	2
35394-30011	KCH4#,RCH41,47	07/1999 - 05/2002	3
Common parts
90119-10232
90119-12036
91611-61025
91612-61040
91612-61055
91619-61260
91619-G1255
91651-40612
91651-40816
94130-61000
96132-30400

RCH47W-GRSQK (1999)

(9907- )RCH47
