RCH47W-GRSGK (1997)
Toyota Regius/Touring Hiace

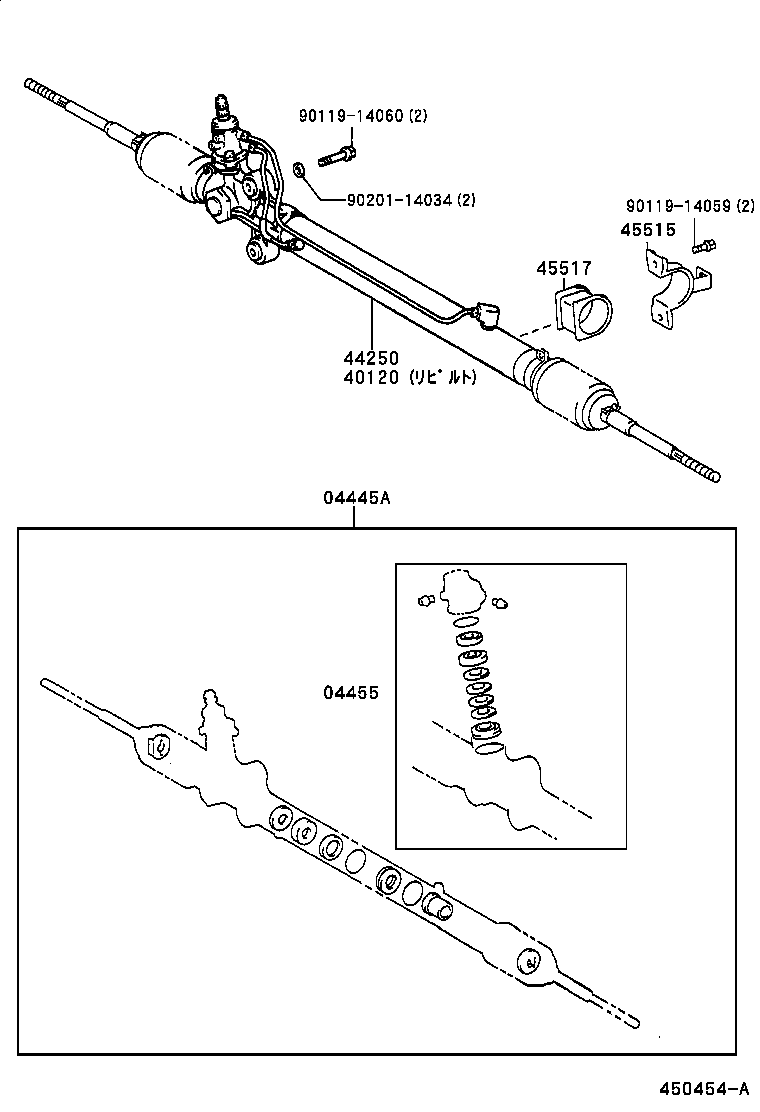

ILLUST NO. 1 OF 3(9704- )KCH46,LXH49,RCH47
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-26050 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-26030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-26390 |
KCH46,RCH47 TOYODA KOKI |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-26390 |
KCH46,RCH47 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-26051 |
KCH46,LXH49,RCH47 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-26040 |
KCH4#,LXH4#,RCH4# |
1 | ||
| Common parts | ||||
| 90119-14059 | ||||
| 90119-14060 | ||||
| 90201-14034 | ||||

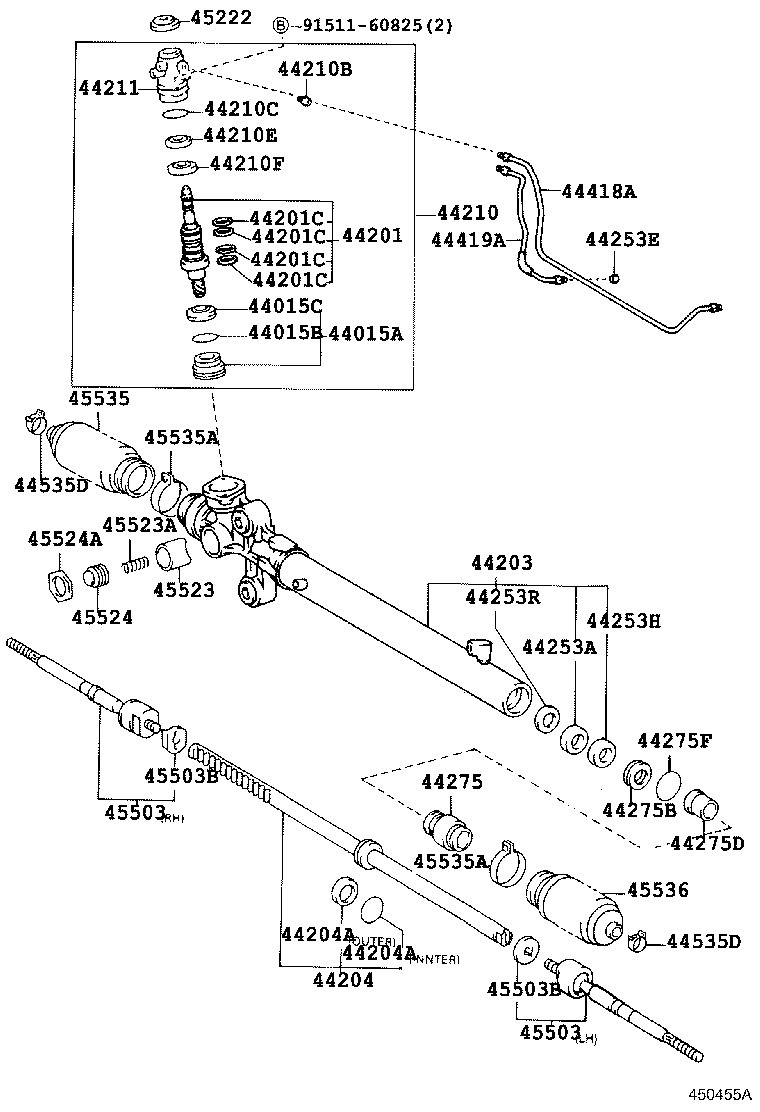

ILLUST NO. 2 OF 3(9704- )KCH46,LXH49,RCH47
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-22020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25004 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-26161 |
KCH46,RCH47 |
1 | ||
| 44201-26160 |
KCH46,RCH47 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
KCH4#,LXH4#,RCH4# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
KCH4#,LXH4#,RCH4# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
KCH4#,LXH4#,RCH4# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
KCH4#,LXH4#,RCH4# |
4 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-26260 |
KCH46,RCH47 |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-26190 |
KCH46,LXH49,RCH47 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-41007 |
KCH4#,LXH4#,RCH4# 内側 |
1 | ||
| 90562-45001 |
KCH4#,LXH4#,RCH4# 外側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-41007 |
KCH4#,LXH4#,RCH4# 内側 |
1 | ||
| 90562-45001 |
KCH4#,LXH4#,RCH4# 外側 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-26180 |
KCH46,RCH47 |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-51001 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19002 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-26080 |
KCH46,LXH49,RCH47 |
1 | ||
| 44211-60010 |
KCH46,LXH49,RCH47 |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-30012 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 44253E - SEAT, UNION(FOR POWER STEERING RACK HOUSING) | ||||
| 90410-04002 |
KCH46,LXH49,RCH47 |
1 | ||
| 44253H - BEARING, NO.1(FOR POWER STEERING RACK HOUSING) | ||||
| 90364-13003 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 44253R - SPACER(FOR POWER STEERING RACK HOUSING) | ||||
| 90560-30011 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-26040 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-30012 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 44275D - BUSH(FOR CYLINDER END STOPPER) | ||||
| 90386-30001 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 44275F - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-43007 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-26190 |
KCH46,LXH49,RCH47 |
1 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-26200 |
KCH46,LXH49,RCH47 |
1 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-19018 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-19018 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-32010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29575 |
KCH46,LXH49,RCH47 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29575 |
KCH46,LXH49,RCH47 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14005 |
KCH4#,LXH4#,RCH4# 外径=41 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14005 |
KCH4#,LXH4#,RCH4# 外径=41 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45504-28020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-29044 |
KCH46,LXH49,RCH47 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-28020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-26030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55016 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55016 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-26030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| Common parts | ||||
| 91511-60825 | ||||

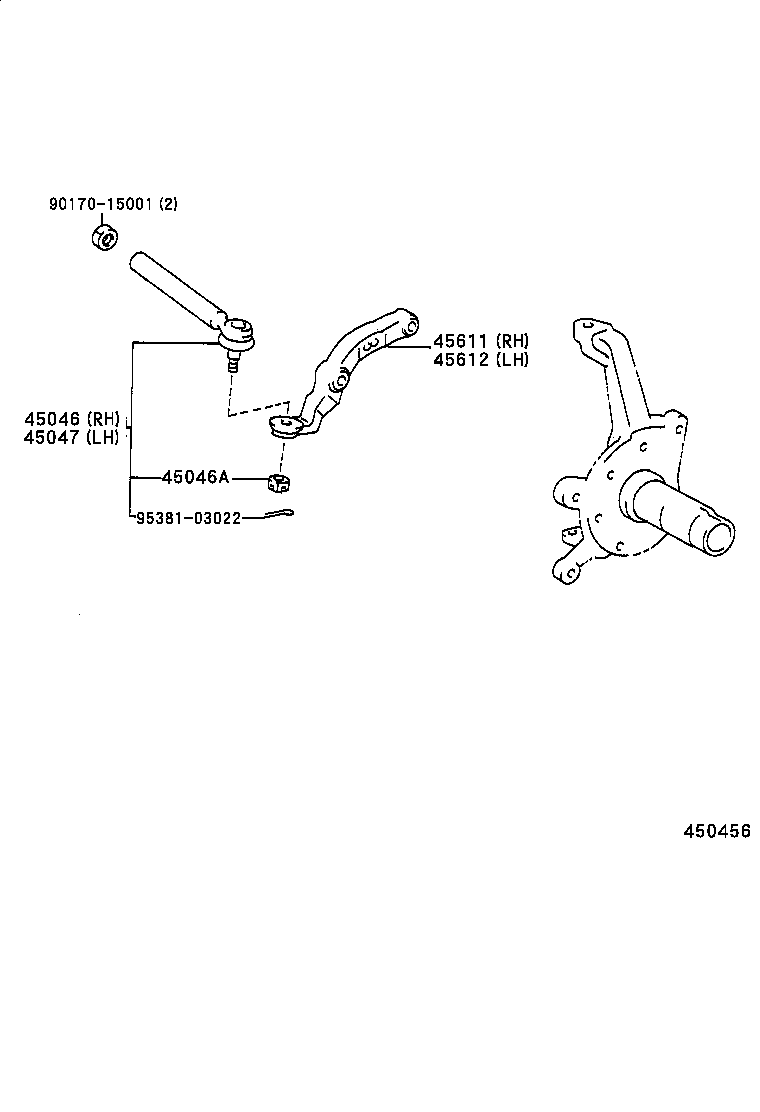

ILLUST NO. 3 OF 3(9704- )KCH46,LXH49,RCH47
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29375 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14002 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29375 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-26080 |
KCH46,LXH49,RCH47 |
1 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-26080 |
KCH46,LXH49,RCH47 |
1 | ||
| Common parts | ||||
| 90170-15001 | ||||
| 95381-03022 | ||||
