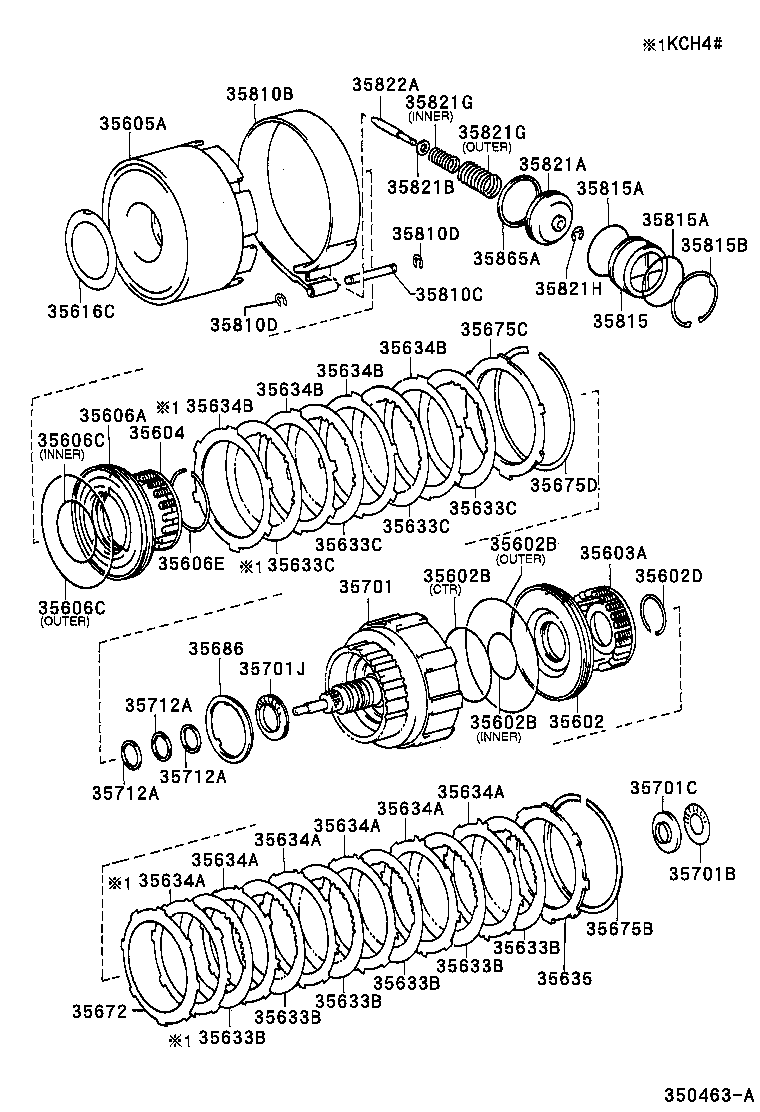

RCH47W-GRSGK (1997)
Toyota Regius/Touring Hiace
(9704- )KCH4# ; (9907- )RCH41,47
A340E,A343F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35602 - PISTON SUB-ASSY, FRONT CLUTCH | ||||
| 35602-30050 |
RCH41,47 |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-30051 |
RCH41,47 |
1 | ||
| 35701B - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR) | ||||
| 90374-23012 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35701C - RACE, THRUST BEARING (FOR INPUT SHAFT REAR) | ||||
| 35789-22010 |
LXH4#,RCH41,47..ATM |
1 | ||

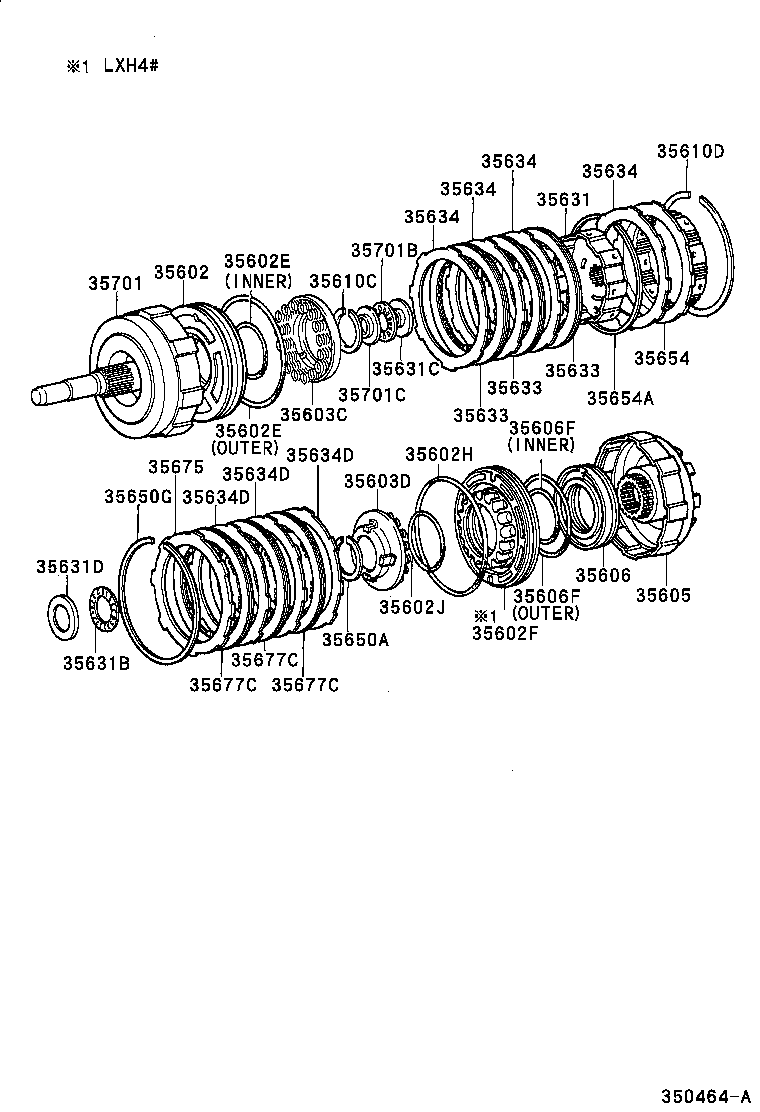

(9704-9907)LXH4#,RCH41,47..ATM ; (9907- )LXH4#,RCH42..ATM
A43DE,A43DF,A45DF,A45DL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35602 - PISTON SUB-ASSY, FRONT CLUTCH | ||||
| 35602-30050 |
RCH41,47 |
1 | ||
| 35602E - RING, O (FOR FRONT CLUTCH PISTON) | ||||
| 90301-57188 |
LXH4#,RCH41,47..ATM 内側 |
1 | ||
| 90301-99058 |
LXH4#,RCH41,47..ATM 外側 |
1 | ||
| 90301-99016 |
LXH4#,RCH41,47..ATM 外側 |
1 | ||
| 90301-56007 |
LXH4#,RCH41,47..ATM 内側 |
1 | ||
| 35602E - RING, O (FOR FRONT CLUTCH PISTON) | ||||
| 90301-57188 |
LXH4#,RCH41,47..ATM 内側 |
1 | ||
| 90301-99058 |
LXH4#,RCH41,47..ATM 外側 |
1 | ||
| 90301-99016 |
LXH4#,RCH41,47..ATM 外側 |
1 | ||
| 90301-56007 |
LXH4#,RCH41,47..ATM 内側 |
1 | ||
| 35602F - PISTON SUB-ASSY, REAR CLUTCH, NO.2 | ||||
| 35602-30041 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35602H - RING, O (FOR REAR CLUTCH PISTON NO.2 INNER) | ||||
| 90301-57188 |
LXH4#,RCH41,47..ATM |
1 | ||
| 90301-56007 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35602J - RING, O (FOR REAR CLUTCH PISTON NO.2 OUTER) | ||||
| 90301-99058 |
LXH4#,RCH41,47..ATM |
1 | ||
| 90301-99016 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35603C - SPRING SUB-ASSY, FRONT CLUTCH RETURN (ATM) | ||||
| 35603-22030 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35603D - SPRING SUB-ASSY, REAR CLUTCH RETURN (ATM) | ||||
| 35603-22010 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35605 - DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR | ||||
| 35605-22011 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35606 - PISTON SUB-ASSY, REAR CLUTCH | ||||
| 35606-22010 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35606F - RING, O (FOR REAR CLUTCH PISTON) | ||||
| 90301-83001 |
LXH4#,RCH41,47..ATM 外側 |
1 | ||
| 90301-56007 |
LXH4#,RCH41,47..ATM 内側 |
1 | ||
| 90301-57188 |
LXH4#,RCH41,47..ATM 内側 |
1 | ||
| 90301-84184 |
LXH4#,RCH41,47..ATM 外側 |
1 | ||
| 35606F - RING, O (FOR REAR CLUTCH PISTON) | ||||
| 90301-83001 |
LXH4#,RCH41,47..ATM 外側 |
1 | ||
| 90301-56007 |
LXH4#,RCH41,47..ATM 内側 |
1 | ||
| 90301-57188 |
LXH4#,RCH41,47..ATM 内側 |
1 | ||
| 90301-84184 |
LXH4#,RCH41,47..ATM 外側 |
1 | ||
| 35610C - RING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING | ||||
| 90520-39261 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35610D - RING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH) | ||||
| 90520-99012 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35631 - HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH) | ||||
| 35631-30050 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35631B - BEARING, THRUST(FOR FRONT CLUTCH HUB) | ||||
| 90374-28014 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35631C - RACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT) | ||||
| 35789-22050 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35631D - RACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR) | ||||
| 35789-22020 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35677-35010 |
RCH41,47 |
5 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35677-35010 |
RCH41,47 |
5 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35677-35010 |
RCH41,47 |
5 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-30090 |
RCH41,47 厚さ=1.4 |
1 | ||
| 35634-30070 |
RCH41,47 厚さ=2.0 |
4 | ||
| 35634-22040 |
RCH41,47 厚さ=1.8 |
4 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-30090 |
RCH41,47 厚さ=1.4 |
1 | ||
| 35634-30070 |
RCH41,47 厚さ=2.0 |
4 | ||
| 35634-22040 |
RCH41,47 厚さ=1.8 |
4 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-30090 |
RCH41,47 厚さ=1.4 |
1 | ||
| 35634-30070 |
RCH41,47 厚さ=2.0 |
4 | ||
| 35634-22040 |
RCH41,47 厚さ=1.8 |
4 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-30090 |
RCH41,47 厚さ=1.4 |
1 | ||
| 35634-30070 |
RCH41,47 厚さ=2.0 |
4 | ||
| 35634-22040 |
RCH41,47 厚さ=1.8 |
4 | ||
| 35634D - PLATE, REAR CLUTCH | ||||
| 35634-30120 |
RCH41,47 厚さ=2.3 |
2 | ||
| 35634-30090 |
RCH41,47 厚さ=1.4 |
1 | ||
| 35634D - PLATE, REAR CLUTCH | ||||
| 35634-30120 |
RCH41,47 厚さ=2.3 |
2 | ||
| 35634-30090 |
RCH41,47 厚さ=1.4 |
1 | ||
| 35634D - PLATE, REAR CLUTCH | ||||
| 35634-30120 |
RCH41,47 厚さ=2.3 |
2 | ||
| 35634-30090 |
RCH41,47 厚さ=1.4 |
1 | ||
| 35650A - RING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING) | ||||
| 90520-39261 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35650G - RING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING) | ||||
| 90521-99139 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35654 - HUB, REAR CLUTCH | ||||
| 35654-30010 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35654A - RING, HOLE SNAP (FOR REAR CLUTCH HUB) | ||||
| 90521-99012 |
RCH41,47 |
1 | ||
| 35675 - FLANGE, REAR CLUTCH | ||||
| 35675-30020 |
RCH41,47 厚さ=3.8 |
1 | ||
| 35675-30030 |
RCH41,47 厚さ=3.6 |
1 | ||
| 35675-22010 |
LXH4#,RCH41,47..ATM 厚さ=4.0 |
1 | ||
| 35677C - DISC, REAR CLUTCH | ||||
| 35677-30160 |
LXH4#,RCH41,47..ATM |
3 | ||
| 35677C - DISC, REAR CLUTCH | ||||
| 35677-30160 |
LXH4#,RCH41,47..ATM |
3 | ||
| 35677C - DISC, REAR CLUTCH | ||||
| 35677-30160 |
LXH4#,RCH41,47..ATM |
3 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-30051 |
RCH41,47 |
1 | ||
| 35701B - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR) | ||||
| 90374-23012 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35701C - RACE, THRUST BEARING (FOR INPUT SHAFT REAR) | ||||
| 35789-22010 |
LXH4#,RCH41,47..ATM |
1 | ||
