RCH47W-GRSGK (1999)

Toyota Regius/Touring Hiace

Production Jul 1999 - May 2002
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

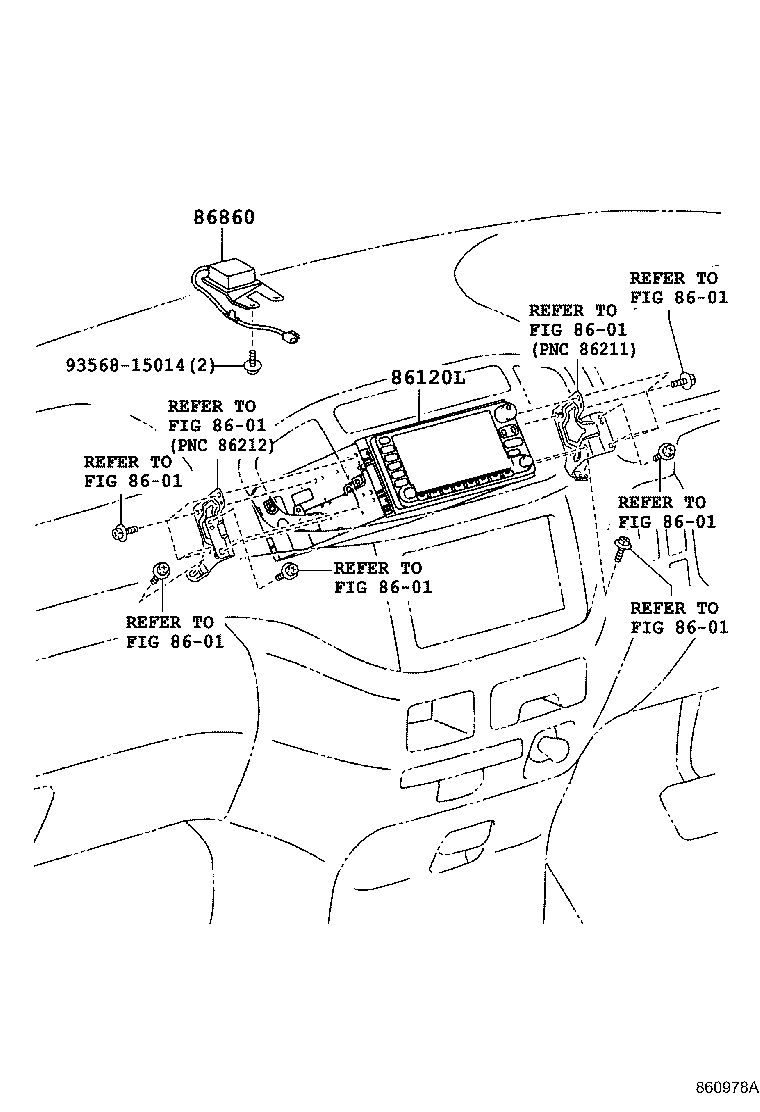

ILLUST NO. 1 OF 2(9907- )

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 8601 8601 8601 8601 86120L 86860 9356815014
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86120-26130

KCH4#,RCH41,47..G

FUJITSU TEN,ID=16021,ｱﾘ(9 ｽﾋﾟ-ｶ)

 1
86120-26140

KCH4#,RCH41,47

FUJITSU TEN,ID=16020,ｱﾘ(6 ｽﾋﾟ-ｶ)

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-26050

KCH4#,RCH41,47

 1
Common parts
93568-15014
Linked diagrams
8601
