Toyota Regius/touring hiace RCH47 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
REGIUS/TOURING HIACE
RCH47W-GFSQK (1998)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

RCH47W-GFSQK (1998)

Toyota Regius/Touring Hiace

Production Apr 1998 - Jul 1999

Engine 3RZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

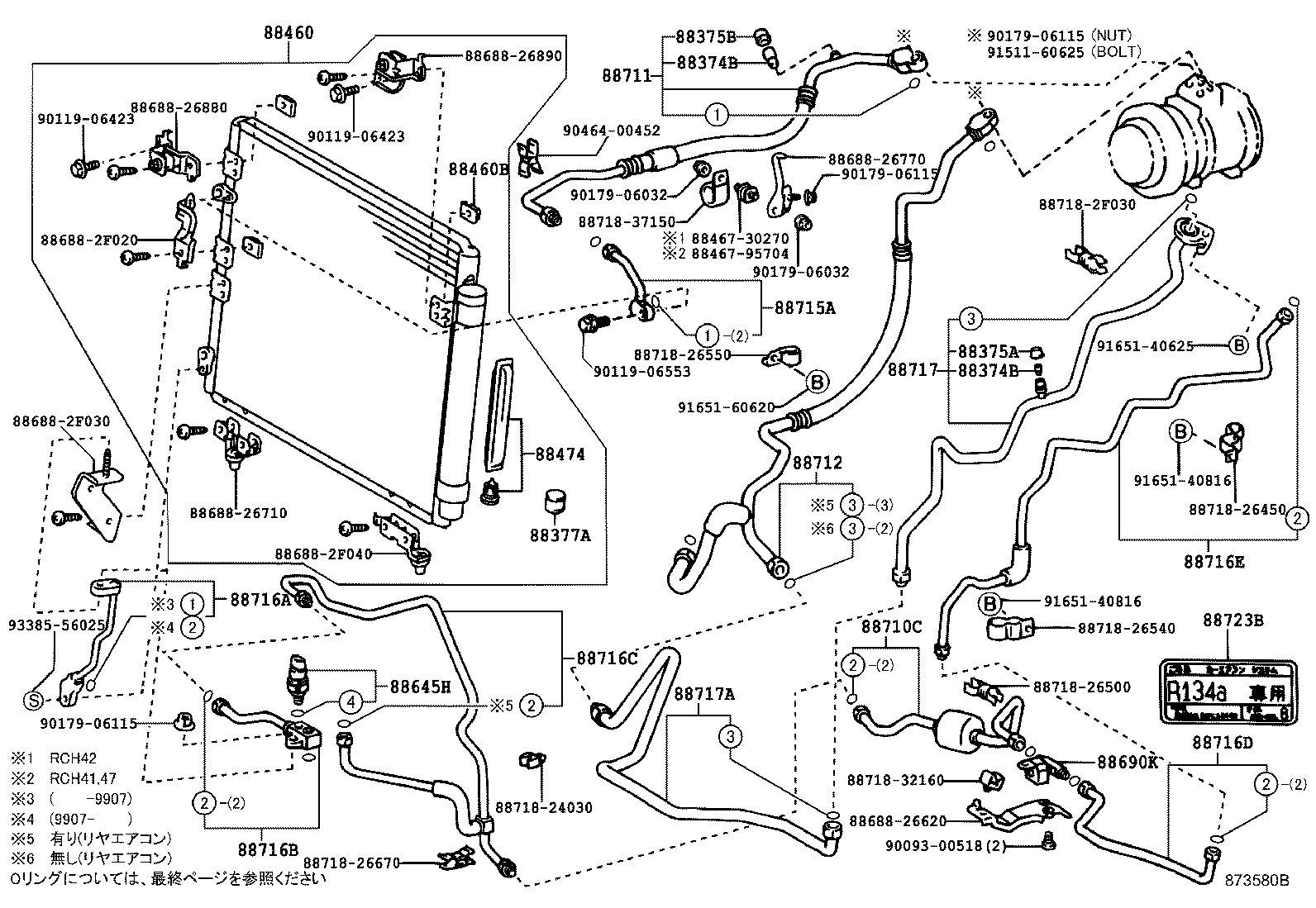

ILLUST NO. 1 OF 3(9804- )RCH4#

Click highlighted areas on diagram

ﾌﾛﾝﾄｱﾘ(ｸｰﾙﾎﾞﾂｸｽ)

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	KCH4#,LXH4#,RCH4#	04/1997 - 04/1998	2
88374B - VALVE, SERVICE, NO.1
88374-30010	KCH4#,LXH4#,RCH4#	04/1997 - 04/1998	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30290	KCH4#,LXH4#,RCH4#	04/1997 - 04/1998	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	KCH4#,LXH4#,RCH4#	04/1997 - 04/1998	1
88377A - FILTER, REFRIGERANT
88377-22010	KCH4#,LXH4#,RCH4#	04/1998 - 07/1999	1
88460 - CONDENSER ASSY, COOLER
88460-26430	RCH4#	04/1997 - 04/1998	1
88460-26490	RCH4#	04/1998 - 07/1999	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88463-35120	KCH4#,LXH4#,RCH4#	04/1998 - 07/1999	3
88463-35120	KCH4#,LXH4#,RCH4#	04/1997 - 04/1998	2
88474 - DRYER, COOLER
88474-22010	KCH4#,LXH4#,RCH4#	04/1998 - 07/1999	1
88645H - SWITCH, PRESSURE NO.1
88645-26020	LXH4#..G;KCH4#,RCH41,47	04/1997 - 12/2999	1
88710C - TUBE ASSY, AIR CONDITIONER
88710-26700	KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)	04/1998 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-26790	RCH41,47	04/1997 - 07/1999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-26700	RCH41,47	04/1997 - 07/1999	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-26320	KCH4#,LXH4#,RCH4#	04/1998 - 12/2999	1
88715-26270	KCH4#,LXH4#,RCH4#	04/1997 - 04/1998	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2F310	KCH4#,LXH4#,RCH4#	04/1997 - 04/1998	1
88716-2F470	KCH4#,LXH4#,RCH4#	04/1998 - 07/1999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2F350	KCH4#,LXH4#,RCH4#	04/1997 - 07/1999	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2F300	LXH4#..G;KCH4#,RCH41,47	04/1997 - 12/2999	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-2F260	KCH4#,LXH4#,RCH4#	04/1997 - 12/2999	1
88716-2F320	KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ)	04/1998 - 12/2999	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2F270	RCH4#	04/1997 - 12/2999	1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-26810	RCH4#	04/1997 - 12/2999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-26800	KCH4#,LXH4#,RCH4#	04/1997 - 12/2999	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030	KCH4#,LXH4#,RCH4#	04/1997 - 04/1998	1
Common parts
88467-30270
88467-95704
88688-26620
88688-26710
88688-26770
88688-26880
88688-26890
88688-2F020
88688-2F030
88688-2F040
88718-24030
88718-26450
88718-26500
88718-26540
88718-26550
88718-26670
88718-2F030
88718-32160
88718-37150
90093-00518
90119-06423
90119-06553
90179-06032
90179-06115
90464-00452
91511-60625
91651-40625
91651-40816
91651-60620
93385-56025

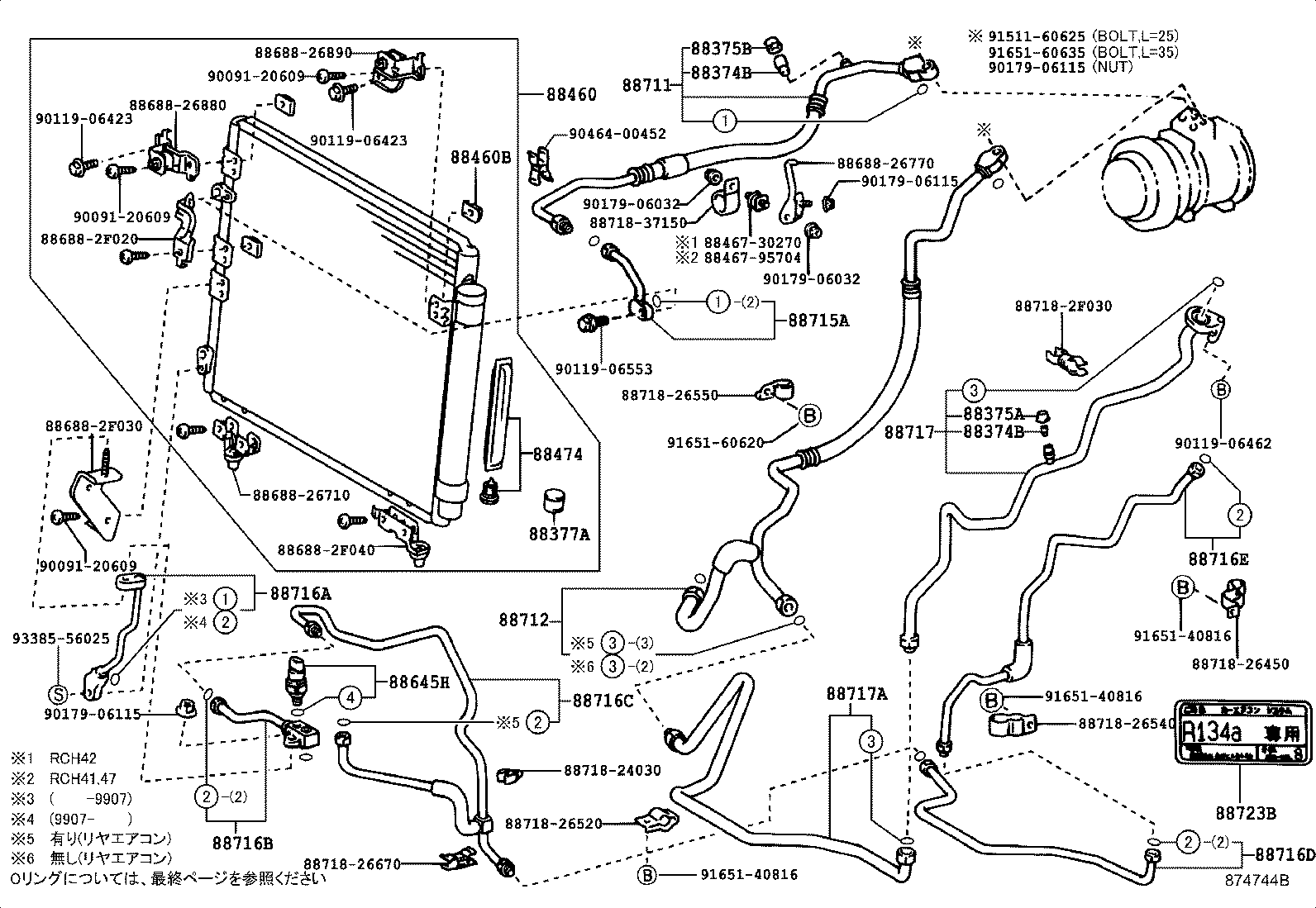

ILLUST NO. 1 OF 3(9804- )RCH4#

Click highlighted areas on diagram

ﾌﾛﾝﾄ

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	KCH4#,LXH4#,RCH4#	04/1997 - 04/1998	2
88374B - VALVE, SERVICE, NO.1
88374-30010	KCH4#,LXH4#,RCH4#	04/1997 - 04/1998	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30290	KCH4#,LXH4#,RCH4#	04/1997 - 04/1998	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	KCH4#,LXH4#,RCH4#	04/1997 - 04/1998	1
88377A - FILTER, REFRIGERANT
88377-22010	KCH4#,LXH4#,RCH4#	04/1998 - 07/1999	1
88460 - CONDENSER ASSY, COOLER
88460-26430	RCH4#	04/1997 - 04/1998	1
88460-26490	RCH4#	04/1998 - 07/1999	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88463-35120	KCH4#,LXH4#,RCH4#	04/1998 - 07/1999	3
88463-35120	KCH4#,LXH4#,RCH4#	04/1997 - 04/1998	2
88474 - DRYER, COOLER
88474-22010	KCH4#,LXH4#,RCH4#	04/1998 - 07/1999	1
88645H - SWITCH, PRESSURE NO.1
88645-26020	LXH4#..G;KCH4#,RCH41,47	04/1997 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-26790	RCH41,47	04/1997 - 07/1999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-26700	RCH41,47	04/1997 - 07/1999	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-26320	KCH4#,LXH4#,RCH4#	04/1998 - 12/2999	1
88715-26270	KCH4#,LXH4#,RCH4#	04/1997 - 04/1998	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2F310	KCH4#,LXH4#,RCH4#	04/1997 - 04/1998	1
88716-2F470	KCH4#,LXH4#,RCH4#	04/1998 - 07/1999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2F350	KCH4#,LXH4#,RCH4#	04/1997 - 07/1999	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2F300	LXH4#..G;KCH4#,RCH41,47	04/1997 - 12/2999	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-2F260	KCH4#,LXH4#,RCH4#	04/1997 - 12/2999	1
88716-2F320	KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ)	04/1998 - 12/2999	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2F270	RCH4#	04/1997 - 12/2999	1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-26810	RCH4#	04/1997 - 12/2999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-26800	KCH4#,LXH4#,RCH4#	04/1997 - 12/2999	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030	KCH4#,LXH4#,RCH4#	04/1997 - 04/1998	1
Common parts
88467-30270
88467-95704
88688-26710
88688-26770
88688-26880
88688-26890
88688-2F020
88688-2F030
88688-2F040
88718-24030
88718-26450
88718-26520
88718-26540
88718-26550
88718-26670
88718-2F030
88718-37150
90091-20609
90119-06423
90119-06462
90119-06553
90179-06032
90179-06115
90464-00452
91511-60625
91651-40816
91651-60620
91651-60635
93385-56025

RCH47W-GFSQK (1998)

ILLUST NO. 1 OF 3(9804- )RCH4#

ILLUST NO. 1 OF 3(9804- )RCH4#
