RCH42V-SRMDE (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - Jul 1999
Engine 1RZE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

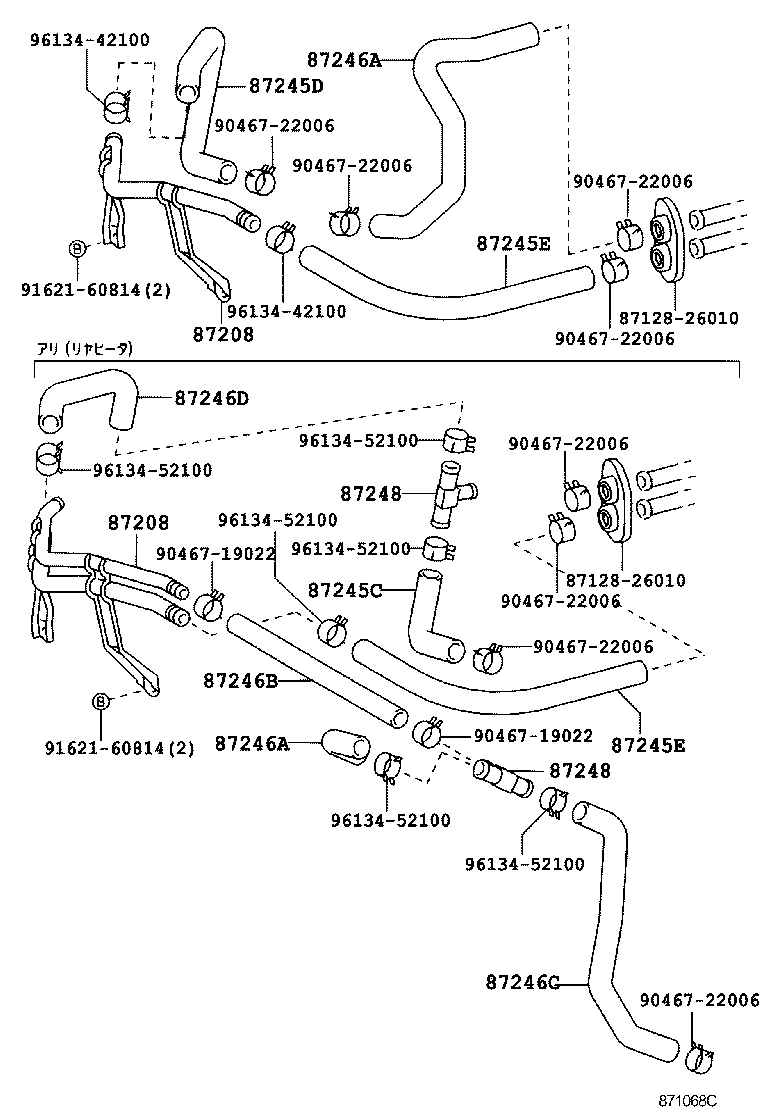

ILLUST NO. 1 OF 2(9706- )RCH42

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 8712826010 8712826010 87208 87208 87245C 87245D 87245E 87245E 87246A 87246A 87246B 87246C 87246D 87248 87248 9046719022 9046719022 9046722006 9046722006 9046722006 9046722006 9046722006 9046722006 9046722006 9046722006 9162160814 9162160814 9613442100 9613442100 9613452100 9613452100 9613452100 9613452100 9613452100 9613452100
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-26650

RCH42

 1
87208-26640

RCH42

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-26650

RCH42

 1
87208-26640

RCH42

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-26890

RCH42

 1
87245D - HOSE, HEATER WATER, INLET D
87245-2F030

RCH42

 1
87245E - HOSE, HEATER WATER, INLET E
87245-2F170

RCH42

 1
87245E - HOSE, HEATER WATER, INLET E
87245-2F170

RCH42

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2F010

RCH42

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-2F040

RCH42

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2F010

RCH42

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-2F040

RCH42

 1
87246B - HOSE, HEATER WATER, OUTLET B
99556-20300

RCH42

長さ=300

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-2F020

RCH42

 1
87246D - HOSE, HEATER WATER, OUTLET D
87245-26880

RCH42

 1
87248 - PIPE SUB-ASSY, WATER
87248-60460

RCH42

 2
87248 - PIPE SUB-ASSY, WATER
87248-60460

RCH42

 2
Common parts
87128-26010
90467-19022
90467-22006
91621-60814
96134-42100
96134-52100

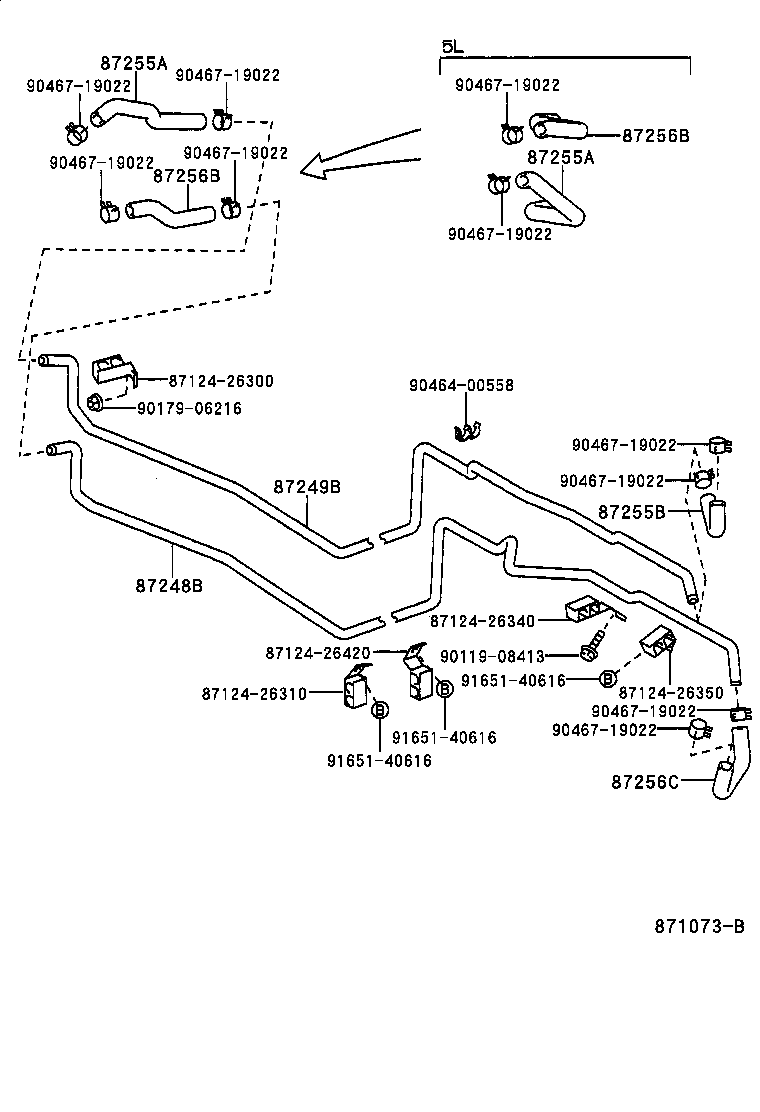

ILLUST NO. 2 OF 2(9706- )5D

Click highlighted areas on diagram

ﾘﾔ---ﾌﾛｱ ｵｷ ﾀｲﾌﾟ

diagram 8712426300 8712426310 8712426340 8712426350 8712426420 87248B 87249B 87255A 87255A 87255B 87256B 87256B 87256C 9011908413 9017906216 9046400558 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9165140616 9165140616 9165140616
Part # Description Qty Price
87248B - PIPE, HEATER WATER INLET, B
87248-26140

LXH4#,RCH42..5D

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26130

LXH4#,RCH42..5D

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-2F130

RCH42

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-2F130

RCH42

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-2F110

LXH4#,RCH42..5D

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-2F140

RCH42

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-2F140

RCH42

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-2F120

LXH4#,RCH42..5D

 1
Common parts
87124-26300
87124-26310
87124-26340
87124-26350
87124-26420
90119-08413
90179-06216
90464-00558
90467-19022
91651-40616
