RCH42V-SRMDE (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - Jul 1999
Engine 1RZE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9706- )1RZE

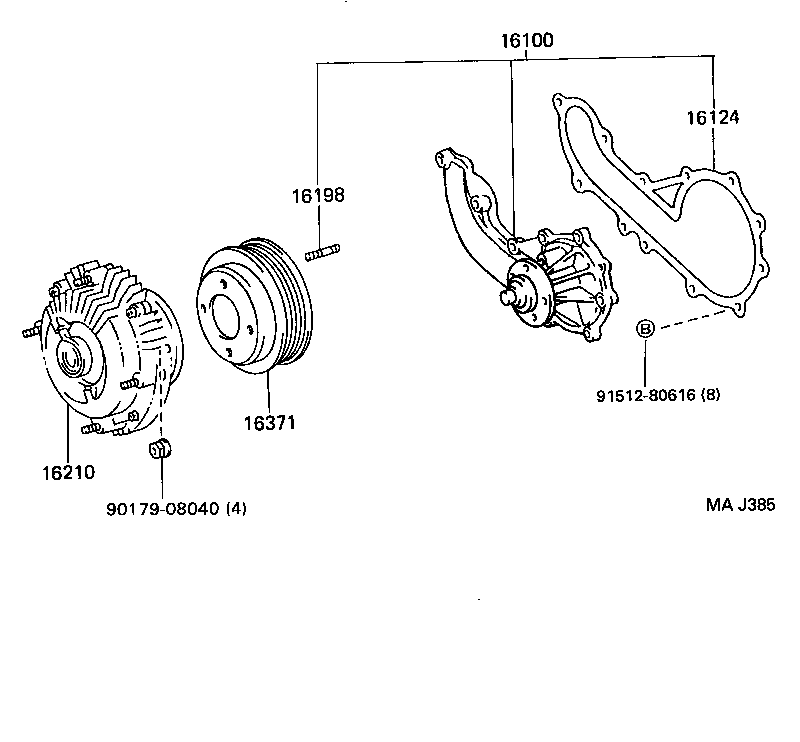

Click highlighted areas on diagram

diagram 16100 16124 16198 16210 16371 9017908040 9151280616
Part # Description Qty Price
16124 - GASKET, WATER PUMP COVER
16124-75030

1RZE,3RZFE..RCH4#

 1
16198 - BOLT, STUD(FOR WATER PUMP PULLEY SEAT)
92122-60818

1RZE,3RZFE..RCH4#

 4
Common parts
90179-08040
91512-80616
