RCH41W-GRSSK (1997)
Toyota Regius/Touring Hiace
Production
Apr 1997
-
Jul 1999
Engine
3RZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

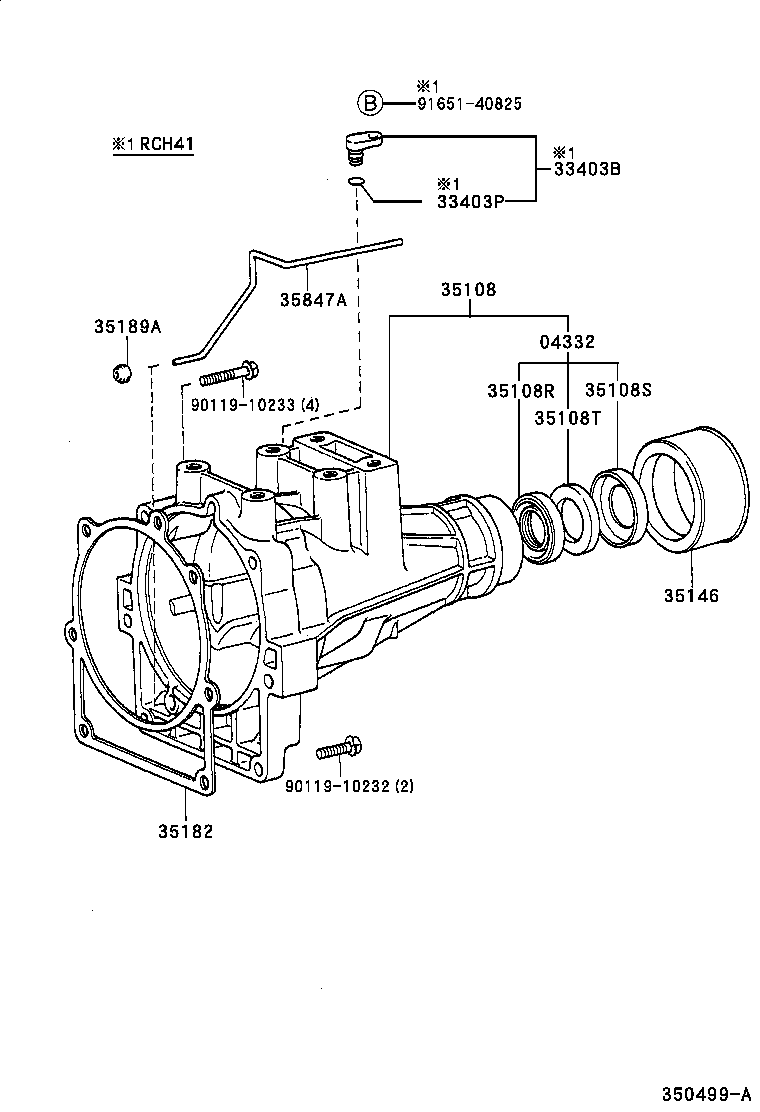

(9704-9907)LXH43,RCH41..ATM
Click highlighted areas on diagram
A43DE,A45DL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04332 - SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING) | ||||
| 04332-30030 |
LXH43,RCH41..ATM |
1 | ||
| 33403B - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE | ||||
| 33403-26050 |
KCH40,RCH41 |
1 | ||
| 33403P - RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER) | ||||
| 90301-18004 |
KCH40,RCH41 |
1 | ||
| 35108 - HOUSING SUB-ASSY, EXTENSION (ATM) | ||||
| 35108-26020 |
RCH41 |
1 | ||
| 35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING | ||||
| 90311-38032 |
LXH43,RCH41..ATM |
1 | ||
| 35108S - RETAINER, EXTENSION HOUSING DUST SEAL (ATM) | ||||
| 33145-30010 |
LXH43,RCH41..ATM |
1 | ||
| 35108T - SEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSIN | ||||
| 90303-38010 |
LXH43,RCH41..ATM |
1 | ||
| 35146 - DEFLECTOR, EXTENSION HOUSING DUST (ATM) | ||||
| 33146-30020 |
KCH40,LXH43,RCH41,42..ATM |
1 | ||
| 35182 - GASKET, EXTENSION HOUSING (ATM) | ||||
| 35182-28010 |
KCH4#,LXH4#,RCH4#..ATM |
1 | ||
| 35189A - GASKET, EXTENSION HOUSING BUSH APPLY TUBE | ||||
| 35189-30010 |
KCH40,LXH43,RCH41,42..ATM |
1 | ||
| 35847A - TUBE, EXTENSION HOUSING BUSH APPLY | ||||
| 35847-30020 |
KCH40,LXH43,RCH41,42..ATM |
1 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-10233 | ||||
| 91651-40825 | ||||

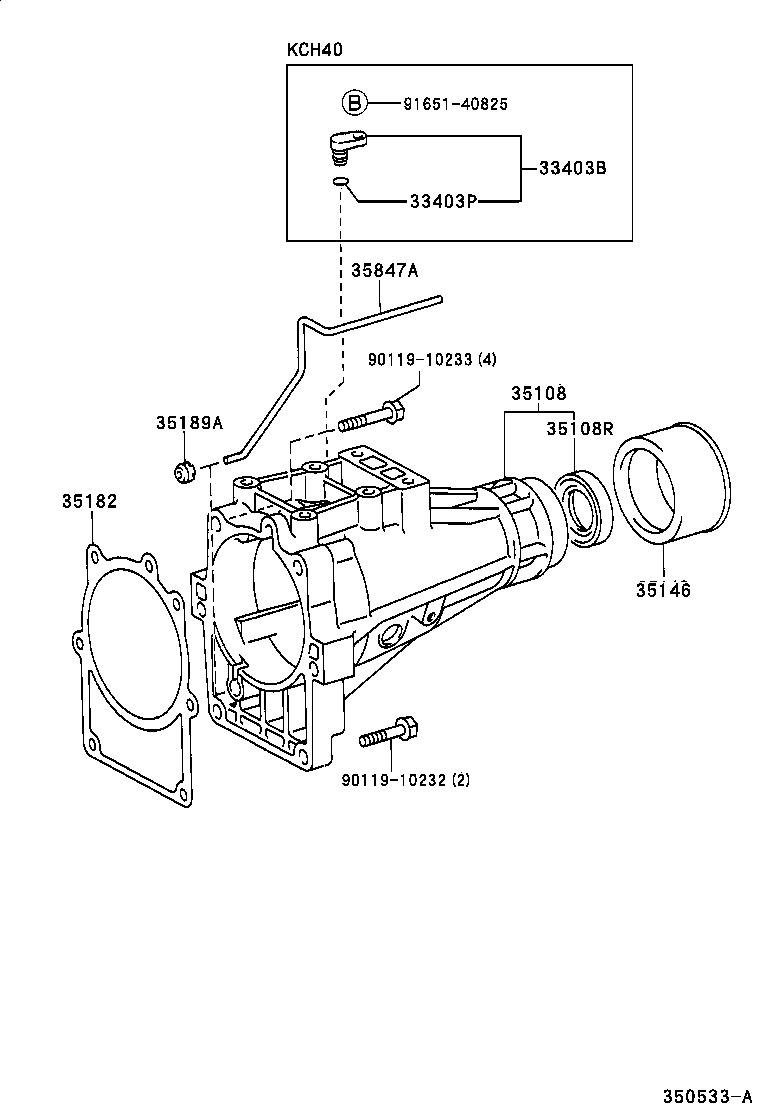

(9704- )KCH40 ; (9907- )RCH41
Click highlighted areas on diagram
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403B - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE | ||||
| 33403-26050 |
KCH40,RCH41 |
1 | ||
| 33403P - RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER) | ||||
| 90301-18004 |
KCH40,RCH41 |
1 | ||
| 35108 - HOUSING SUB-ASSY, EXTENSION (ATM) | ||||
| 35108-26020 |
RCH41 |
1 | ||
| 35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING | ||||
| 90311-38032 |
LXH43,RCH41..ATM |
1 | ||
| 35146 - DEFLECTOR, EXTENSION HOUSING DUST (ATM) | ||||
| 33146-30020 |
KCH40,LXH43,RCH41,42..ATM |
1 | ||
| 35182 - GASKET, EXTENSION HOUSING (ATM) | ||||
| 35182-28010 |
KCH4#,LXH4#,RCH4#..ATM |
1 | ||
| 35189A - GASKET, EXTENSION HOUSING BUSH APPLY TUBE | ||||
| 35189-30010 |
KCH40,LXH43,RCH41,42..ATM |
1 | ||
| 35847A - TUBE, EXTENSION HOUSING BUSH APPLY | ||||
| 35847-30020 |
KCH40,LXH43,RCH41,42..ATM |
1 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-10233 | ||||
| 91651-40825 | ||||
