RCH41W-GRSGK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

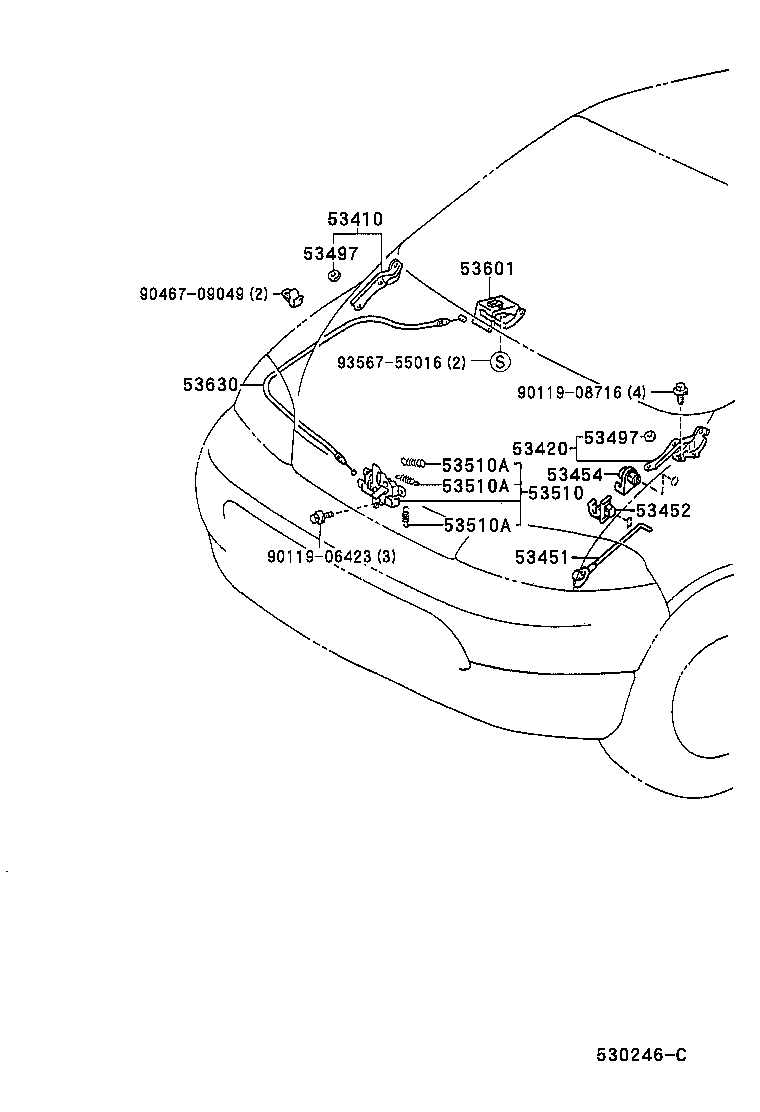

Click highlighted areas on diagram

diagram 53410 53420 53451 53452 53454 53497 53497 53510 53510A 53510A 53510A 53601 53630 9011906423 9011908716 9046709049 9356755016
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-26020

KCH4#,LXH4#,RCH4#

 1
53420 - HINGE ASSY, HOOD, LH
53420-26020

KCH4#,LXH4#,RCH4#

 1
53451 - ROD, HOOD SUPPORT
53440-26030

KCH4#,LXH4#,RCH4#

 1
53452 - HOLDER, HOOD STAY
53452-26010

KCH4#,LXH4#,RCH4#

 1
53454 - CLIP, HOOD SUPPORT ROD
53454-16010

KCH4#,LXH4#,RCH4#

 1
53497 - PAD, HOOD HINGE, NO.1
53497-12050

KCH4#,LXH4#,RCH4#

厚さ=1.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-12050

KCH4#,LXH4#,RCH4#

厚さ=1.0

 4
53510 - LOCK ASSY, HOOD
53510-26030

KCH4#,LXH4#,RCH4#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-18067

KCH4#,LXH4#,RCH4#

線径=1.8,ｺｲﾙ巻数=13

 1
90506-09051

KCH4#,LXH4#,RCH4#

線径=0.9,ｺｲﾙ巻数=9.75

 1
90506-09055

KCH4#,LXH4#,RCH4#

線径=0.9,ｺｲﾙ巻数=21

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-18067

KCH4#,LXH4#,RCH4#

線径=1.8,ｺｲﾙ巻数=13

 1
90506-09051

KCH4#,LXH4#,RCH4#

線径=0.9,ｺｲﾙ巻数=9.75

 1
90506-09055

KCH4#,LXH4#,RCH4#

線径=0.9,ｺｲﾙ巻数=21

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-18067

KCH4#,LXH4#,RCH4#

線径=1.8,ｺｲﾙ巻数=13

 1
90506-09051

KCH4#,LXH4#,RCH4#

線径=0.9,ｺｲﾙ巻数=9.75

 1
90506-09055

KCH4#,LXH4#,RCH4#

線径=0.9,ｺｲﾙ巻数=21

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-10020C0

KCH4#,RCH41,47..G

BLACK,TRIM6#

 1
53601-10020C0

KCH4#,RCH41,47..STD

BLACK,TRIM1#,6#

 1
53601-10020C0

LXH4#,RCH42;KCH4#,RCH41,47..E,WINT,WISTD

BLACK,TRIM1#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-26030

KCH4#,LXH4#,RCH4#

 1
Common parts
90119-06423
90119-08716
90467-09049
93567-55016
