RCH41W-GRSGK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )RCH4#

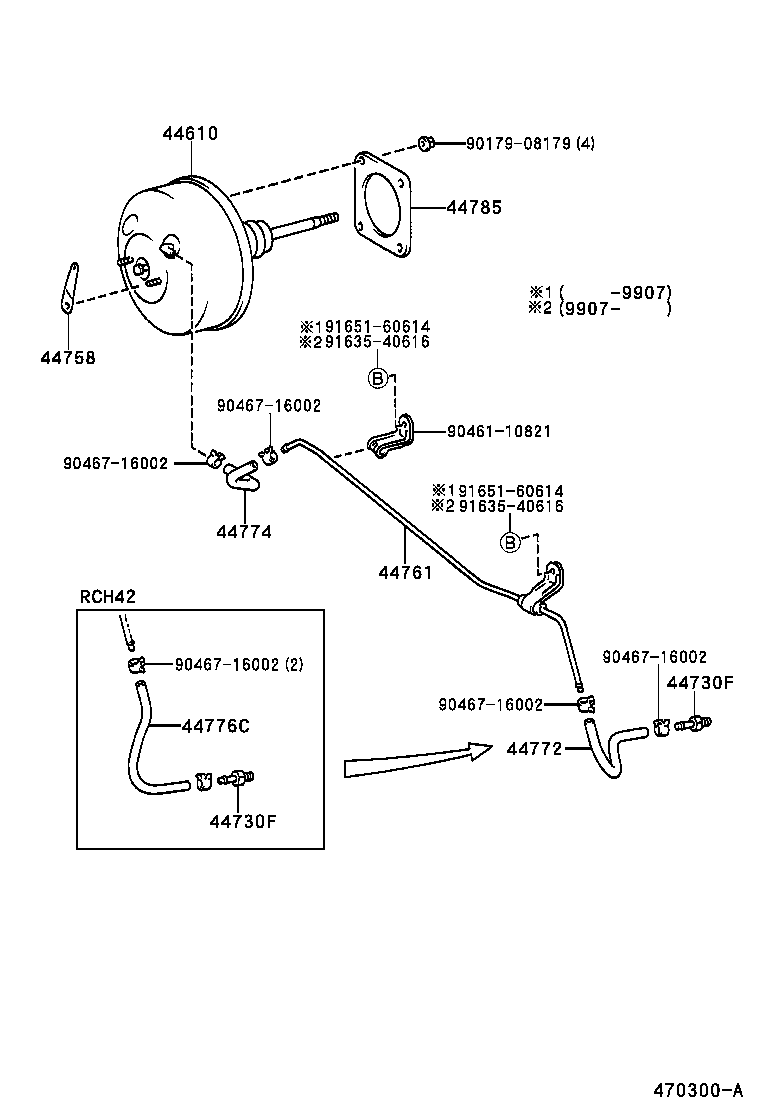

Click highlighted areas on diagram

diagram 44610 44730F 44730F 44758 44761 44772 44774 44776C 44785 9017908179 9046110821 9046716002 9046716002 9046716002 9046716002 9046716002 9163540616 9163540616 9165160614 9165160614
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-26590

RCH4#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

RCH4#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

RCH4#

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-26080

RCH4#

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26310

RCH4#

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-26190

RCH41,47

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26280

RCH4#

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

KCH4#,LXH4#,RCH4#

 1
Common parts
90179-08179
90461-10821
90467-16002
91635-40616
91651-60614
