RCH41W-GRSGK (1999)

Toyota Regius/Touring Hiace

Production Jul 1999 - May 2002
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )KCH4#,RCH41,47

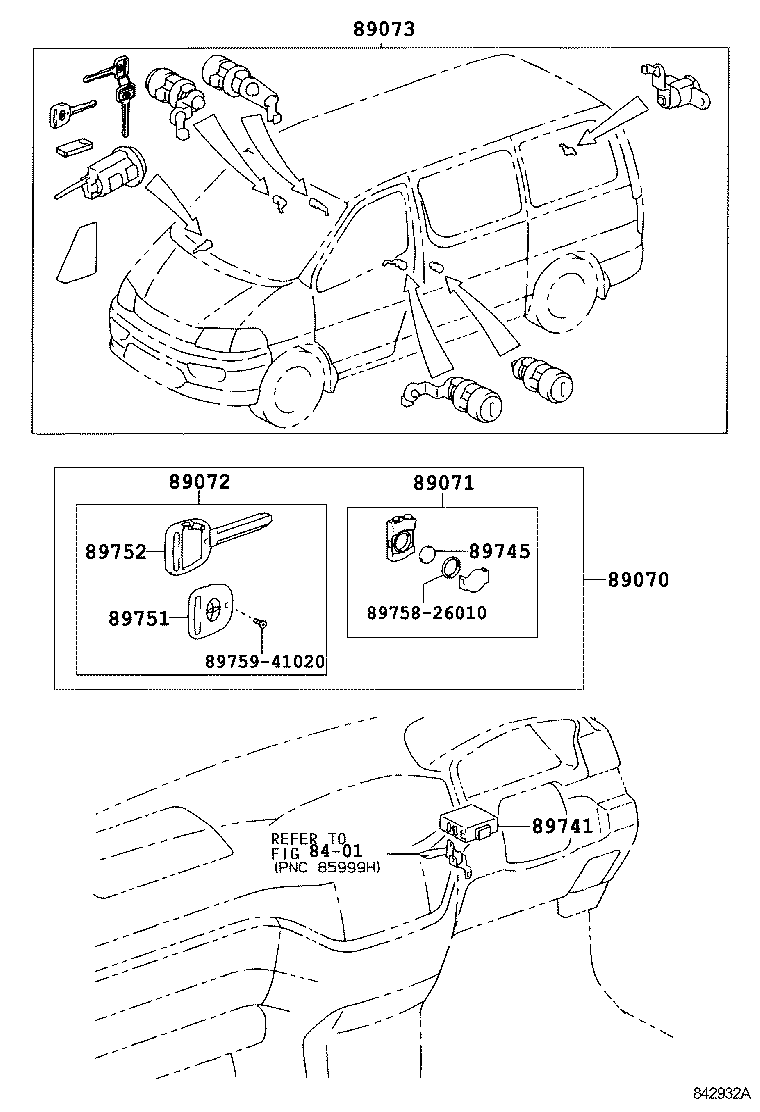

Click highlighted areas on diagram

diagram 8401 89070 89071 89072 89073 89741 89745 89751 89752 8975826010 8975941020
Part # Description Qty Price
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-26040

KCH4#,RCH41,47

 1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-26010

KCH4#,RCH41,47

 1
89072 - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-47020

KCH4#,RCH41,47

 1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-26010

KCH4#,RCH41,47..W08S

 1
89741 - RECEIVER, DOOR CONTROL
89741-26080

KCH4#,RCH41,47

 1
89741-26061

KCH4#,RCH41..G

 1
89745 - BATTERY, TRANSMITTER
89745-26010

KCH4#,RCH41,47

 1
89751 - COVER, TRANSMITTER HOUSING
89751-44010

KCH4#,RCH41,47

 1
89752 - CASE, TRANSMITTER HOUSING
89752-46020

KCH4#,RCH41,47

 1
Common parts
89758-26010
89759-41020
Linked diagrams
8401
