RCH41W-GRSGK (1999)

Toyota Regius/Touring Hiace

Production Jul 1999 - May 2002
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )KCH4#,RCH41,47

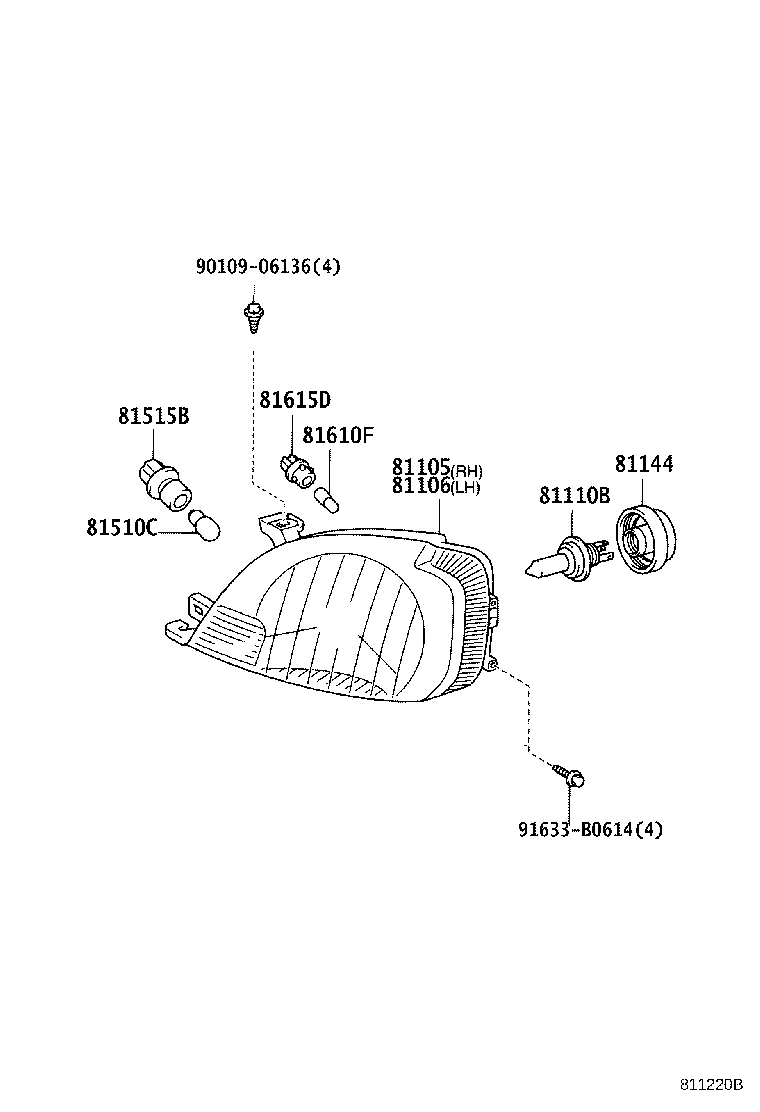

Click highlighted areas on diagram

diagram 81105 81106 81110B 81144 81510C 81515B 81610F 81615D 9010906136 91633B0614
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-26210

KCH4#,RCH41,47..E,G,STD

 1
81105-26320

KCH4#,RCH41,47..G,V

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-26220

KCH4#,RCH41,47..E,G,STD

 1
81106-26320

KCH4#,RCH41,47..G,V

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-22003

KCH4#,LXH4#,RCH4#

12V 60/55W,*HAL *WH

 2
81144 - COVER, HEADLAMP, NO.1
81139-37110

KCH4#,RCH41,47

 2
81139-87641

KCH4#,LXH4#,RCH4#

 2
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011

KCH4#,RCH41,47

12V 21W,ｱﾝﾊﾞｰ

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

KCH4#,RCH41,47

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

KCH4#,LXH4#,RCH4#

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
81615-12590

KCH4#,RCH41,47

 2
Common parts
90109-06136
91633-B0614
