RCH41W-GRSGK (1999)

Toyota Regius/Touring Hiace

Production Jul 1999 - May 2002
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0004-0103)V

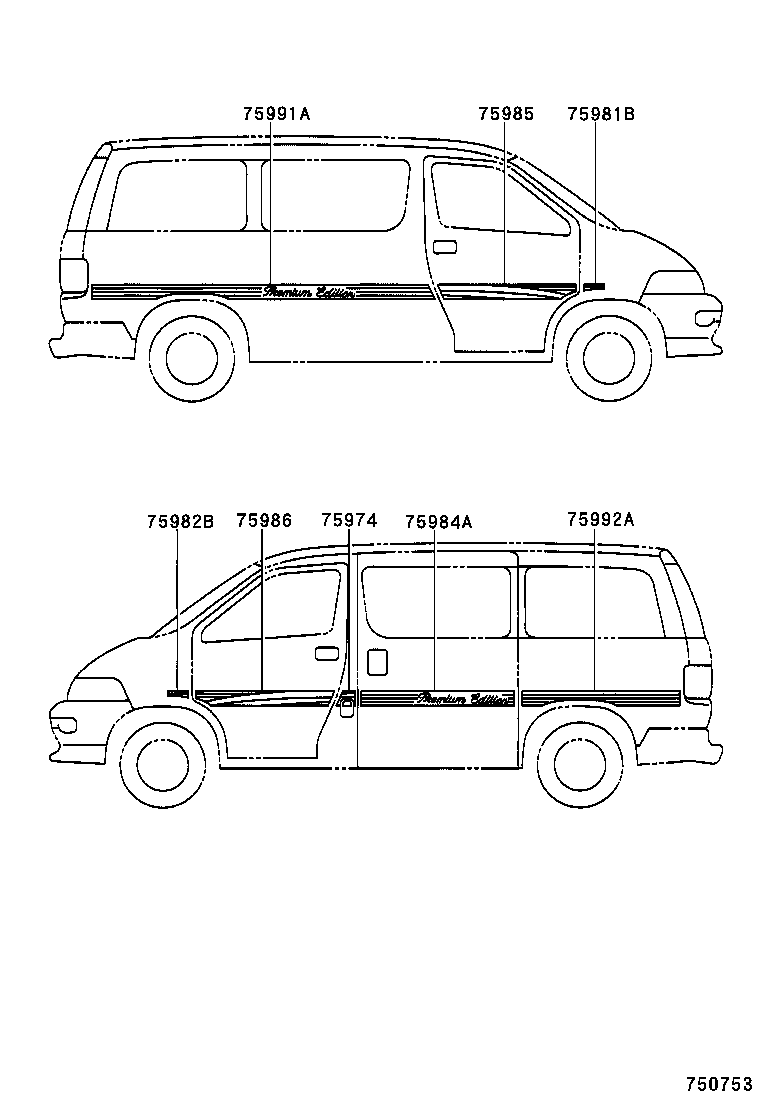

Click highlighted areas on diagram

ﾌﾟﾚﾐｱﾑｴﾃﾞｲｼﾖﾝ

diagram 75974 75981B 75982B 75984A 75985 75986 75991A 75992A
Part # Description Qty Price
75974 - STRIPE, CENTER PILLAR, LH NO.2
75942-26370

KCH4#,RCH41,47..V

ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(H),*(I)

 1
75981B - STRIPE, FENDER, RH
75981-26120

KCH4#,RCH41,47..V

ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(H),*(I)

 1
75982B - STRIPE, FENDER, LH
75982-26120

KCH4#,RCH41,47..V

ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(H),*(I)

 1
75984A - STRIPE, SLIDE DOOR
75984-26450

KCH4#,RCH41,47..V

ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(H),*(I)

 1
75985 - STRIPE, FRONT DOOR, RH
75985-26430

KCH4#,RCH41,47..V

ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(H),*(I)

 1
75986 - STRIPE, FRONT DOOR, LH
75986-26430

KCH4#,RCH41,47..V

ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(H),*(I)

 1
75991A - STRIPE, QUARTER, RH
75991-26500

KCH4#,RCH41,47..V

ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(H),*(I)

 1
75992A - STRIPE, QUARTER, LH
75992-26320

KCH4#,RCH41,47..V

ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(H),*(I)

 1
