RCH41W-GRSGK (1999)
Toyota Regius/Touring Hiace

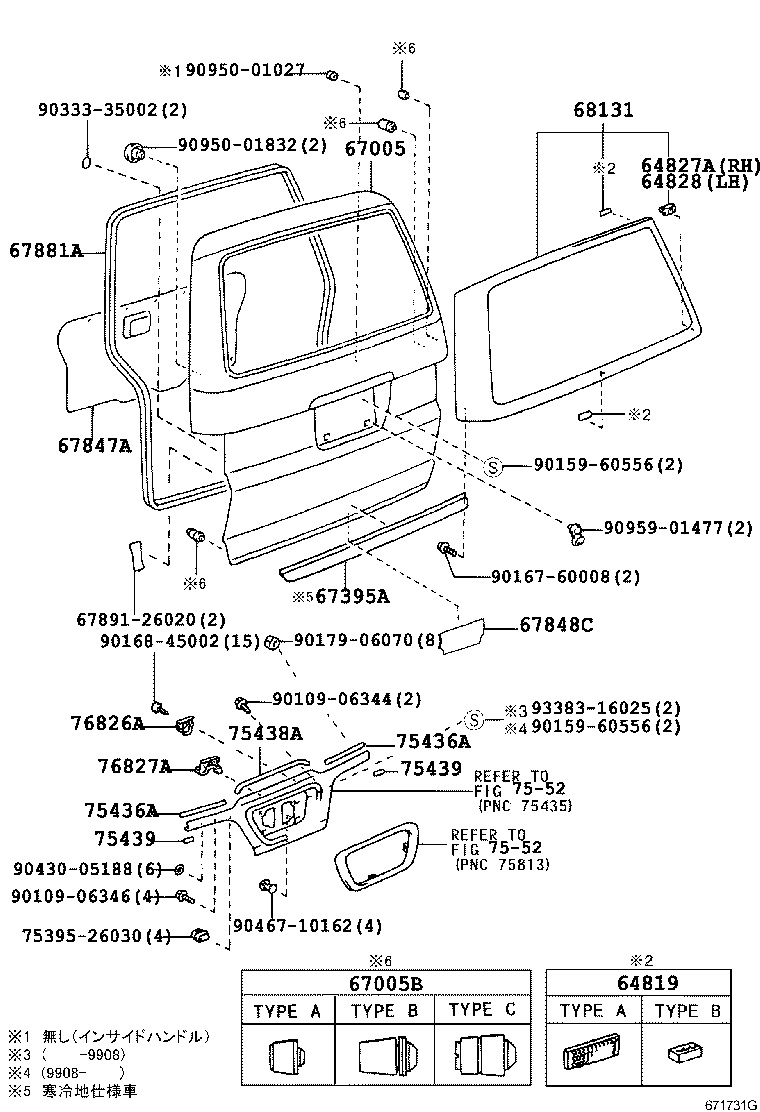

ILLUST NO. 2 OF 2(9907- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-26010 |
KCH4#,LXH4#,RCH4# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 64819-26010 |
KCH4#,LXH4#,RCH4# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
6 | ||
| 64819-26030 |
KCH4#,LXH4#,RCH4# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 64827A - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-26010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 64828 - CLIP, BACK WINDOW GLASS, LH | ||||
| 64828-26010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-2N680 |
KCH4#,RCH41..G,STD ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｰﾃﾝ & ﾘﾔ ｽﾎﾟｲﾗ & ｲｰｼﾞｰｸﾛｰｻﾞ) |
1 | ||
| 67005-2N750 |
RCH47..STD;KCH4#,RCH41..G08S,W08S |
1 | ||
| 67005-2N740 |
KCH4#,RCH41,47..G,STD ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 67005-2W770 |
KCH4#,RCH41,47..G,V ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ﾘﾔ ｽﾎﾟｲﾗ & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 67005-2W790 |
KCH4#,RCH41,47..V ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ﾘﾔ ｽﾎﾟｲﾗ & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 67005-2W800 |
KCH4#,RCH41,47..V ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ & ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 67005-2W820 |
KCH4#,RCH41,47..V ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 67005-2W810 |
KCH4#,RCH41,47..G,V ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾘﾔ ｽﾎﾟｲﾗ & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 67005-2W780 |
KCH4#,RCH41,47..V ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09092 |
KCH4#,RCH42;RCH41,47..W08S TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90541-09092 |
LXH4#;RCH42..MTM;KCH4#..G07S;RCH41,47..W07S;KCH4#,RCH41,47..E,STD,WINT TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90541-10032 |
KCH4#,RCH42;RCH41,47..W08S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90541-06061 |
LXH4#;RCH42..MTM;KCH4#..G07S;RCH41,47..W07S;KCH4#,RCH41,47..E,STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90541-10032 |
LXH4#;RCH42..MTM;KCH4#..G07S;RCH41,47..W07S;KCH4#,RCH41,47..E,STD,WINT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90541-06061 |
KCH4#,RCH42;RCH41,47..W08S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 67395A - PROTECTOR, BACK DOOR, LOWER | ||||
| 67395-26030 |
LXH4#..STD;KCH4#,RCH4#..E,G,STD |
1 | ||
| 67395-26040 |
KCH4#,RCH41,47 |
1 | ||
| 67847A - COVER, BACK DOOR SERVICE HOLE | ||||
| 67847-26070 |
KCH4#,RCH41,47 |
1 | ||
| 67848C - COVER, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67848-26040 |
KCH4#,RCH41..G,STD |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-26040 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-26030 |
KCH4#,RCH41,47..G *EHT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68105-26020 |
LXH4#;KCH4#,RCH4#..E,STD,WINT *EHT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68105-26060 |
KCH4#,RCH41,47..V *SERT,厚さ=5.0,ｸﾞﾘｰﾝ,ﾌﾟﾚｼﾞﾔ-ｻﾙ-ﾝ *(R),*(P) |
1 | ||
| 68105-26040 |
KCH4#,RCH41,47..V *EHT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68105-26060 |
KCH4#,RCH41,47..V *SERT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68105-26070 |
KCH4#,RCH41,47..G *EHSERT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 75436A - PROTECTOR, BACK DOOR ORNAMENT | ||||
| 75436-26090C0 |
KCH4#,RCH41,47..V BLACK,2GA ,2GB,右側 |
1 | ||
| 75437-26030A0 |
KCH4#,RCH41,47..V ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(H),*(I) & ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),GRAY,2GW,左側 |
1 | ||
| 75436-26090B0 |
KCH4#,RCH41,47..G DK. GRAY,2FY ,2FZ,右側 |
1 | ||
| 75436-26090C0 |
KCH4#,RCH41,47..G BLACK,2GA,右側 |
1 | ||
| 75436-26110A0 |
KCH4#,RCH41,47..V ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(H),*(I) & ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),GRAY,2GW,右側 |
1 | ||
| 75437-26010B0 |
KCH4#,RCH41,47..V DK. GRAY,056 ,199 ,2FY ,2FZ,左側 |
1 | ||
| 75436-26110A0 |
KCH4#,RCH41,47..V GRAY,056 ,199 ,2FY ,2FZ,右側 |
1 | ||
| 75437-26010B0 |
KCH4#,RCH41,47..G DK. GRAY,2FY ,2FZ,左側 |
1 | ||
| 75436-26090B0 |
KCH4#,RCH41,47..V DK. GRAY,056 ,199 ,2FY ,2FZ,右側 |
1 | ||
| 75437-26010C0 |
KCH4#,RCH41,47..V BLACK,2GA ,2GB,左側 |
1 | ||
| 75436-26110A0 |
KCH4#,RCH41,47..V ﾌﾟﾚｼﾞﾔ-ｻﾙ-ﾝ *(R),*(P),GRAY,1C0,右側 |
1 | ||
| 75437-26010C0 |
KCH4#,RCH41,47..G BLACK,2GA,左側 |
1 | ||
| 75437-26030A0 |
KCH4#,RCH41,47..G GRAY,2FY ,2FZ,左側 |
1 | ||
| 75436-26110A1 |
KCH4#,RCH41,47..G BLACK,2GA,右側 |
1 | ||
| 75436-26110A0 |
KCH4#,RCH41,47..G GRAY,2FY ,2FZ,右側 |
1 | ||
| 75437-26030A0 |
KCH4#,RCH41,47..V GRAY,056 ,199 ,2FY ,2FZ,左側 |
1 | ||
| 75437-26030A0 |
KCH4#,RCH41,47..V ﾌﾟﾚｼﾞﾔ-ｻﾙ-ﾝ *(R),*(P),GRAY,1C0,左側 |
1 | ||
| 75436-26110A1 |
KCH4#,RCH41,47..V BLACK,2GA ,2GB,右側 |
1 | ||
| 75437-26030A1 |
KCH4#,RCH41,47..G BLACK,2GA,左側 |
1 | ||
| 75437-26030A1 |
KCH4#,RCH41,47..V BLACK,2GA ,2GB,左側 |
1 | ||
| 75436A - PROTECTOR, BACK DOOR ORNAMENT | ||||
| 75436-26090C0 |
KCH4#,RCH41,47..V BLACK,2GA ,2GB,右側 |
1 | ||
| 75437-26030A0 |
KCH4#,RCH41,47..V ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(H),*(I) & ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),GRAY,2GW,左側 |
1 | ||
| 75436-26090B0 |
KCH4#,RCH41,47..G DK. GRAY,2FY ,2FZ,右側 |
1 | ||
| 75436-26090C0 |
KCH4#,RCH41,47..G BLACK,2GA,右側 |
1 | ||
| 75436-26110A0 |
KCH4#,RCH41,47..V ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(H),*(I) & ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),GRAY,2GW,右側 |
1 | ||
| 75437-26010B0 |
KCH4#,RCH41,47..V DK. GRAY,056 ,199 ,2FY ,2FZ,左側 |
1 | ||
| 75436-26110A0 |
KCH4#,RCH41,47..V GRAY,056 ,199 ,2FY ,2FZ,右側 |
1 | ||
| 75437-26010B0 |
KCH4#,RCH41,47..G DK. GRAY,2FY ,2FZ,左側 |
1 | ||
| 75436-26090B0 |
KCH4#,RCH41,47..V DK. GRAY,056 ,199 ,2FY ,2FZ,右側 |
1 | ||
| 75437-26010C0 |
KCH4#,RCH41,47..V BLACK,2GA ,2GB,左側 |
1 | ||
| 75436-26110A0 |
KCH4#,RCH41,47..V ﾌﾟﾚｼﾞﾔ-ｻﾙ-ﾝ *(R),*(P),GRAY,1C0,右側 |
1 | ||
| 75437-26010C0 |
KCH4#,RCH41,47..G BLACK,2GA,左側 |
1 | ||
| 75437-26030A0 |
KCH4#,RCH41,47..G GRAY,2FY ,2FZ,左側 |
1 | ||
| 75436-26110A1 |
KCH4#,RCH41,47..G BLACK,2GA,右側 |
1 | ||
| 75436-26110A0 |
KCH4#,RCH41,47..G GRAY,2FY ,2FZ,右側 |
1 | ||
| 75437-26030A0 |
KCH4#,RCH41,47..V GRAY,056 ,199 ,2FY ,2FZ,左側 |
1 | ||
| 75437-26030A0 |
KCH4#,RCH41,47..V ﾌﾟﾚｼﾞﾔ-ｻﾙ-ﾝ *(R),*(P),GRAY,1C0,左側 |
1 | ||
| 75436-26110A1 |
KCH4#,RCH41,47..V BLACK,2GA ,2GB,右側 |
1 | ||
| 75437-26030A1 |
KCH4#,RCH41,47..G BLACK,2GA,左側 |
1 | ||
| 75437-26030A1 |
KCH4#,RCH41,47..V BLACK,2GA ,2GB,左側 |
1 | ||
| 75438A - PAD, BACK DOOR ORNAMENT | ||||
| 75438-26010B0 |
KCH4#,RCH41,47..G DK. GRAY,2FY ,2FZ |
1 | ||
| 75438-26010C0 |
KCH4#,RCH41,47..V BLACK,2GA ,2GB |
1 | ||
| 75438-26010C0 |
KCH4#,RCH41,47..G BLACK,2GA |
1 | ||
| 75438-26010B0 |
KCH4#,RCH41,47..V DK. GRAY,056 ,199 ,2FY ,2FZ |
1 | ||
| 75438-26010A0 |
KCH4#,RCH41,47..V ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(H),*(I) & ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),GRAY,2GW |
1 | ||
| 75438-26010A0 |
KCH4#,RCH41,47..V ﾌﾟﾚｼﾞﾔ-ｻﾙ-ﾝ *(R),*(P),GRAY,1C0 |
1 | ||
| 75438-26010A1 |
KCH4#,RCH41,47..V BLACK,2GA ,2GB |
1 | ||
| 75438-26010A0 |
KCH4#,RCH41,47..V GRAY,056 ,199 ,2FY ,2FZ |
1 | ||
| 75438-26010A0 |
KCH4#,RCH41,47..G GRAY,2FY ,2FZ |
1 | ||
| 75438-26010A1 |
KCH4#,RCH41,47..G BLACK,2GA |
1 | ||
| 75439 - PAD, BACK DOOR ORNAMENT, NO.2 | ||||
| 75439-26050 |
KCH4#,RCH41,47 |
5 | ||
| 75439-26050 |
KCH4#,RCH41,47 |
7 | ||
| 75439 - PAD, BACK DOOR ORNAMENT, NO.2 | ||||
| 75439-26050 |
KCH4#,RCH41,47 |
5 | ||
| 75439-26050 |
KCH4#,RCH41,47 |
7 | ||
| 76826A - RETAINER, BACK DOOR GARNISH, NO.1 | ||||
| 76826-26060 |
KCH4#,RCH41,47 |
1 | ||
| 76827A - RETAINER, BACK DOOR GARNISH, NO.2 | ||||
| 76827-26050 |
KCH4#,RCH41,47 |
1 | ||
| Common parts | ||||
| 67891-26020 | ||||
| 75395-26030 | ||||
| 90109-06344 | ||||
| 90109-06346 | ||||
| 90159-60556 | ||||
| 90167-60008 | ||||
| 90168-45002 | ||||
| 90179-06070 | ||||
| 90333-35002 | ||||
| 90430-05188 | ||||
| 90467-10162 | ||||
| 90950-01027 | ||||
| 90950-01832 | ||||
| 90959-01477 | ||||
| 93383-16025 | ||||
| Linked diagrams | ||||
| 7552 | ||||
