Toyota Regius/touring hiace RCH41 SLIDE ROLLER & RAIL

Part #	Description	Period	Qty
51780B - STEP ASSY, LH
51780-26010	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
58371D - COVER, REAR FLOOR STEP, NO.1
58371-26020	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
67827B - PROTECTOR, SLIDE DOOR EDGE
67827-26020	KCH4#,RCH41,47	07/1999 - 12/2999	1
67881C - BRACKET, SLIDE DOOR EDGE PROTECTOR, LH
67889-26020	KCH4#,RCH41,47	07/1999 - 12/2999	1
69415 - STOPPER, SLIDE DOOR DOWN FEMALE
69415-26010	KCH4#,LXH4#,RCH41,47..4D	04/1997 - 12/2999	2
69415 - STOPPER, SLIDE DOOR DOWN FEMALE
69415-26010	KCH4#,LXH4#,RCH41,47..4D	04/1997 - 12/2999	2
84260D - SENSOR ASSY, POWER SLIDE DOOR
84260-26020	KCH4#,RCH41,47	07/1999 - 12/2999	1
85040A - RAIL ASSY, POWER SLIDE DOOR HARNESS
85040-26080	KCH4#,RCH41,47	07/1999 - 12/2999	1
85090 - CLUTCH ASSY, SLIDE DOOR MOTOR
85090-26030	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
85605A - MOTOR SUB-ASSY, SLIDE DOOR
85605-26030	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
85620A - MOTOR ASSY, SLIDE DOOR LOCK RELEASE, LH
85620-26030	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
85620-26040	KCH4#,RCH41,47	07/1999 - 12/2999	1
85630 - MOTOR ASSY, SLIDE DOOR
85006-26010	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
85630 - MOTOR ASSY, SLIDE DOOR
85006-26010	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
85644 - PULLEY, BELT IDLE, NO.1
85644-26020	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
85645 - PULLEY, BELT IDLE, NO.2
85645-26020	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
85646 - PULLEY, MAIN
85646-26020	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
85648 - PULLEY, DRIVE BELT
85648-26020	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	2
85648 - PULLEY, DRIVE BELT
85648-26020	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	2
85649 - FLANGE, PULLEY(FOR SLIDE DOOR MOTOR)
85649-26020	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	2
85649 - FLANGE, PULLEY(FOR SLIDE DOOR MOTOR)
85649-26020	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	2
85653 - PLATE, DRIVE BELT
85653-26030	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
85659 - COVER, BELT
85064-26020	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
85672 - BELT, CLUTCH TO MAIN PULLEY
85672-26020	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
85673 - BELT, SLIDE DOOR MOTOR
85673-26030	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
85684 - BRACKET, POWER SLIDE DOOR MOTOR ARM
85684-26010	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
85695 - PULLEY, CLUTCH, NO.1
85695-26020	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
85699 - BRACKET, SLIDE DOOR MOTOR CONNECTOR
85699-26020	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
85762A - BRACKET, BELT IDLER, NO.2
85762-26010	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
85765A - BRACKET, DRIVE BELT PULLEY
85765-26010	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	2
85765A - BRACKET, DRIVE BELT PULLEY
85765-26010	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	2
85768 - PLATE, SLIDE DOOR MOTOR CONTROL
85768-26010	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
85769 - COVER, SLIDE DOOR MOTOR CONTROL PLATE
85769-26020	RCH47..STD;KCH4#,RCH41..G,STD,WINT NO.2	04/1997 - 04/1998	1
85769-26010	RCH47..STD;KCH4#,RCH41..G,STD,WINT NO.1	04/1997 - 04/1998	1
85769 - COVER, SLIDE DOOR MOTOR CONTROL PLATE
85769-26020	RCH47..STD;KCH4#,RCH41..G,STD,WINT NO.2	04/1997 - 04/1998	1
85769-26010	RCH47..STD;KCH4#,RCH41..G,STD,WINT NO.1	04/1997 - 04/1998	1
Common parts
90105-05010
90105-05017
90105-06182
90105-06256
90109-06145
90119-06302
90119-06348
90167-30011
90189-05131
90249-08288
90249-08290
90249-08293
90269-05047
90333-30002
90363-08015
90363-08016
90387-08137
90463-12570
90905-41006
90950-06116
90980-09149
90980-09304
91621-40614
91621-40616
91651-60614
91651-60620
93319-13010
93319-14006
93381-15008
93560-55016
93567-14512
94130-60600
96160-00600

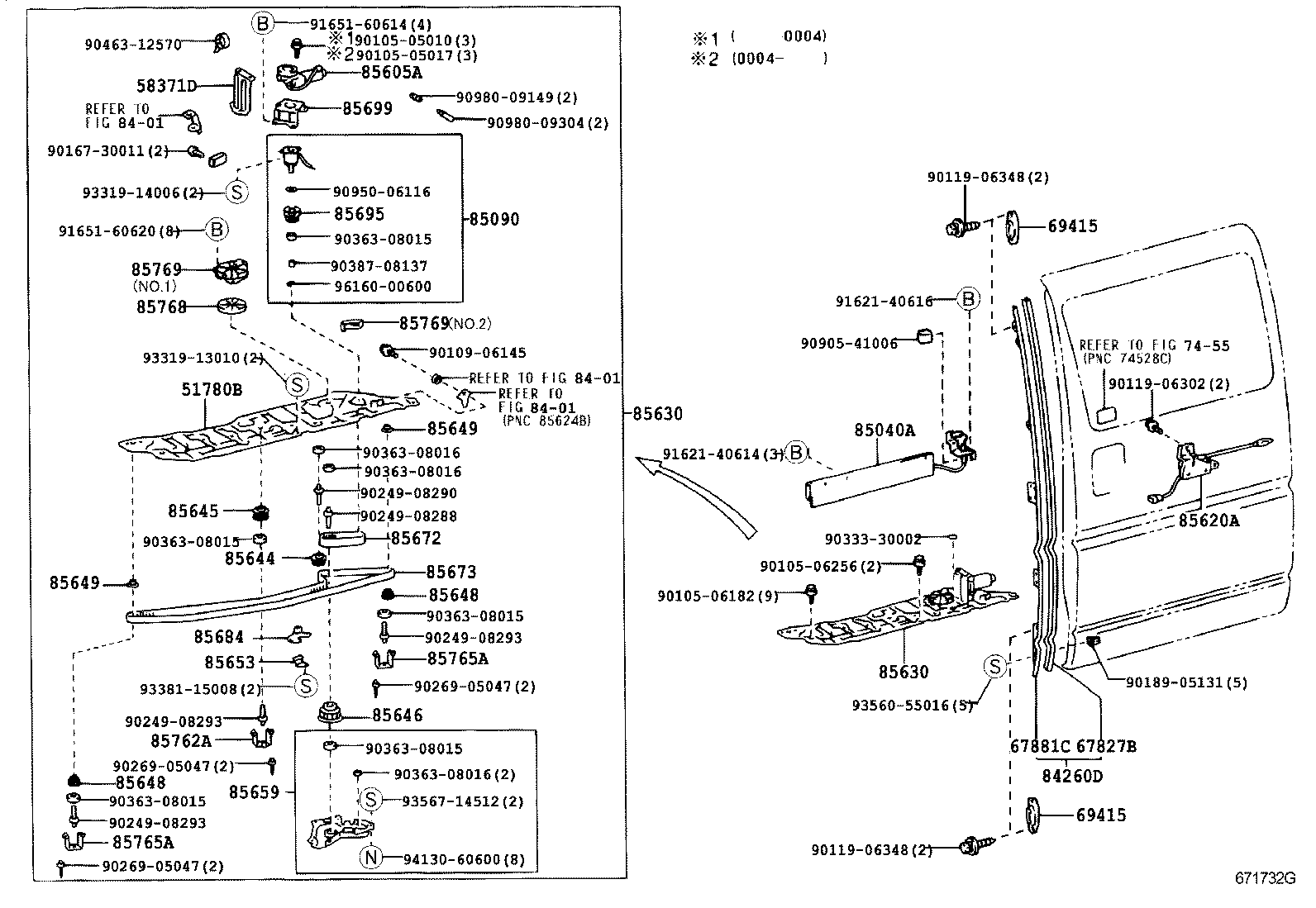

Linked diagrams
7455
8401

RCH41W-GRSGK (1999)

(9907- )
