RCH41W-GRSGK (1999)

Toyota Regius/Touring Hiace

Production Jul 1999 - May 2002
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )KCH4#,RCH41,47

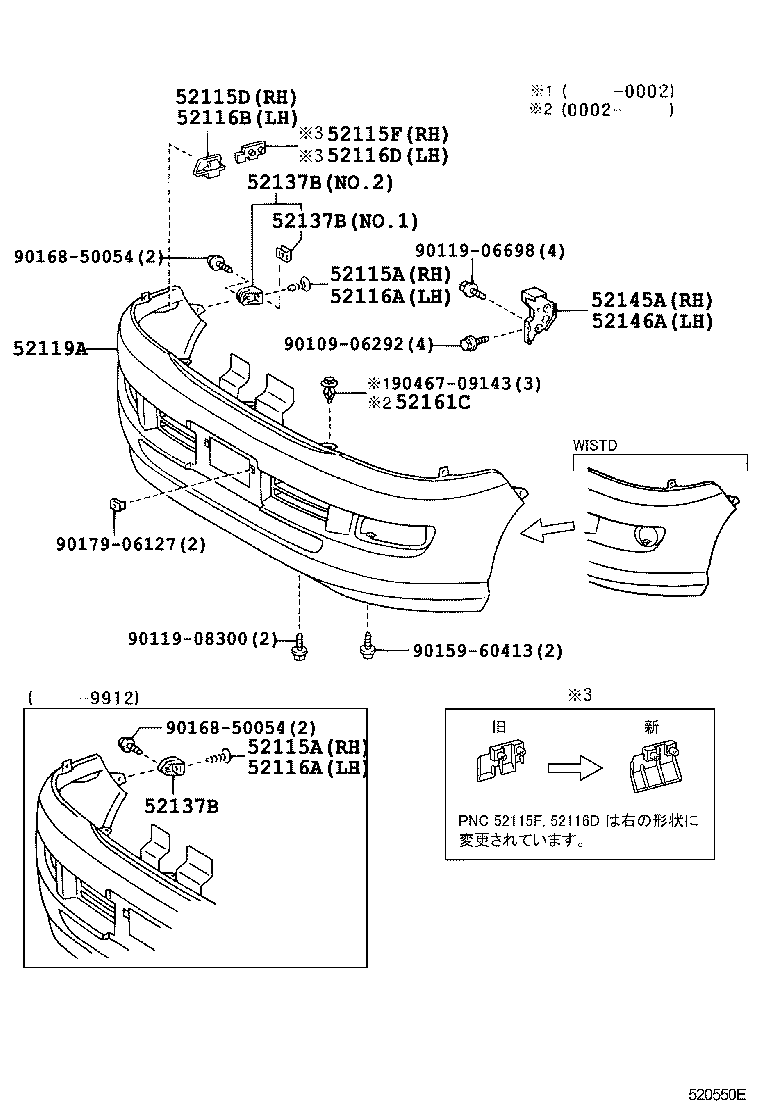

Click highlighted areas on diagram

diagram 52115A 52115A 52115D 52115F 52116A 52116A 52116B 52116D 52119A 52137B 52137B 52137B 52145A 52146A 52161C 9010906292 9011906698 9011908300 9015960413 9016850054 9016850054 9017906127 9046709143
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-26040

KCH4#,LXH4#,RCH4#

 1
52115-26040

KCH4#,LXH4#,RCH4#

 1
52115-26080

KCH4#,RCH41,47

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-26040

KCH4#,LXH4#,RCH4#

 1
52115-26040

KCH4#,LXH4#,RCH4#

 1
52115-26080

KCH4#,RCH41,47

 1
52115D - SUPPORT, FRONT BUMPER SIDE, NO.2 RH
52675-26010

KCH4#,RCH41,47

 1
52115F - INSERT, FRONT BUMPER COVER
52677-26010

KCH4#,RCH41,47

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-26080

KCH4#,RCH41,47

 1
52115-26040

KCH4#,LXH4#,RCH4#

 1
52115-26040

KCH4#,LXH4#,RCH4#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-26080

KCH4#,RCH41,47

 1
52115-26040

KCH4#,LXH4#,RCH4#

 1
52115-26040

KCH4#,LXH4#,RCH4#

 1
52116B - RETAINER, FRONT BUMPER
52676-26010

KCH4#,RCH41,47

 1
52116D - SUPPORT, FRONT BUMPER SIDE, NO.2 LH
52678-26010

KCH4#,RCH41,47

 1
52119A - COVER, FRONT BUMPER
52119-26280B1

KCH4#,RCH41,47..G,STD

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),BL.GRAY ME,2DK

 1
52119-26270G1

KCH4#,RCH41..G

GRAYISH BREEN M,2DJ

 1
52119-26270B1

KCH4#,RCH41,47..G,STD

BL.GRAY ME,2DK

 1
52119-26280G0

KCH4#,RCH41..G

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),GRAYISH BREEN M,2DJ

 1
52119-26270G0

LXH4#..G;KCH4#,RCH41,47..E,STD

LT GREEN M,6L5

 1
52119-26400B0

KCH4#,RCH41,47..V

ﾌﾟﾚｼﾞﾔ-ｻﾙ-ﾝ *(R),*(P),SILVER ME.,1C0

 1
52119-26280B2

KCH4#,RCH41,47..G,STD

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SILVER ME,2EB

 1
52119-26400A0

KCH4#,RCH41,47..V

WHITE,056

 1
52119-26420B0

KCH4#,RCH41,47..V

ﾌﾟﾚｼﾞﾔ-ｻﾙ-ﾝ *(R),*(P) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸ ｿﾅ-),SILVER ME.,1C0

 1
52119-26270B2

KCH4#,RCH41,47..G,STD

SILVER ME,2EB

 1
52119-26400B0

KCH4#,RCH41,47..G,V

SILVER ME.,2FZ

 1
52119-26400G0

KCH4#,RCH41,47..G,V

GRAYISH BREEN M,2FY ,2GA

 1
52119-26400E0

KCH4#,RCH41,47..V

ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(H),*(I),BEIGE MC.ME.,2GW

 1
52119-26420B2

KCH4#,RCH41,47..V

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SILVER ME,199

 1
52119-26400B1

KCH4#,RCH41,47..V

BL.GRAY ME,2GB

 1
52119-26420B1

KCH4#,RCH41,47..V

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),BL.GRAY ME,2GB

 1
52119-26420A0

KCH4#,RCH41,47..V

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),WHITE,056

 1
52119-26420G0

KCH4#,RCH41,47..G,V

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),GRAYISH BREEN M,2FY ,2GA

 1
52119-26400B2

KCH4#,RCH41,47..V

SILVER ME,199

 1
52119-26420B0

KCH4#,RCH41,47..G,V

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SILVER ME.,2FZ

 1
52137B - PLATE, FRONT BUMPER BRACKET, NO.1
52137-26020

KCH4#,LXH4#,RCH4#

 2
52116-26080

KCH4#,RCH41,47

NO.2

 2
52116-26050

KCH4#,RCH41,47

 2
52137-26020

KCH4#,RCH41,47

NO.1

 2
52137B - PLATE, FRONT BUMPER BRACKET, NO.1
52137-26020

KCH4#,LXH4#,RCH4#

 2
52116-26080

KCH4#,RCH41,47

NO.2

 2
52116-26050

KCH4#,RCH41,47

 2
52137-26020

KCH4#,RCH41,47

NO.1

 2
52137B - PLATE, FRONT BUMPER BRACKET, NO.1
52137-26020

KCH4#,LXH4#,RCH4#

 2
52116-26080

KCH4#,RCH41,47

NO.2

 2
52116-26050

KCH4#,RCH41,47

 2
52137-26020

KCH4#,RCH41,47

NO.1

 2
52145A - STAY, FRONT BUMPER, NO.2 RH
52145-26030

KCH4#,LXH4#,RCH4#..E,G,STD

 1
52145-26060

KCH4#,RCH41,47

 1
52146A - STAY, FRONT BUMPER, NO.2 LH
52146-26030

KCH4#,LXH4#,RCH4#..E,G,STD

 1
52146-26060

KCH4#,RCH41,47

 1
52161C - PIECE, FRONT BUMPER
52161-44010C0

KCH4#,RCH41,47..V

BLACK,056 ,199 ,2FY ,2FZ ,2GA ,2GB

 3
52161-16010

KCH4#,LXH4#,RCH4#

 3
52161-44010C0

KCH4#,RCH41,47..G

BLACK,2FY ,2FZ ,2GA

 3
Common parts
90109-06292
90119-06698
90119-08300
90159-60413
90168-50054
90179-06127
90467-09143
