RCH41W-GRSGK (1999)

Toyota Regius/Touring Hiace

Production Jul 1999 - May 2002
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )

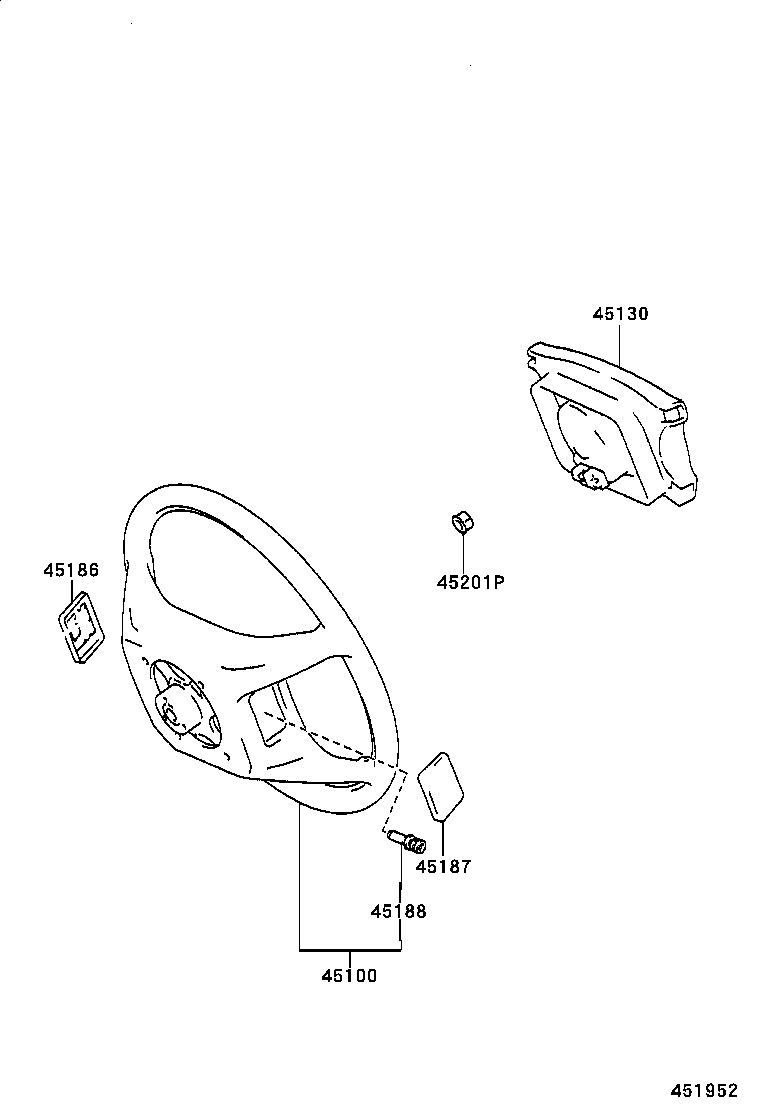

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45130 45186 45187 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-26300E0

KCH4#,RCH41,47..G,V

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),ORCHID BROWN,TRIM4#

 1
45100-26250G0

KCH4#,RCH41,47..G,STD

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),DK.SAGE,TRIM6#

 1
45100-26250B0

LXH4#;KCH4#,RCH4#..E,STD,WINT

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45100-26330E0

KCH4#,RCH41,47..G

4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,ｱﾘ(*80),ORCHID BROWN,TRIM4#

 1
45100-26330E0

KCH4#,RCH41,47..V

4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(H),*(I), ｱﾘ(*80),ORCHID BROWN,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-26270G0

KCH4#,RCH41,47..G,STD

ｱﾘ(*80),DK.SAGE,TRIM6#

 1
45130-26330E0

KCH4#,RCH41,47..V

ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(H),*(I), ｱﾘ(*80),ORCHID BROWN,TRIM4#

 1
45130-26320E0

KCH4#,RCH41,47..G,V

ｱﾘ(*80),ORCHID BROWN,TRIM4#

 1
45130-26330E0

KCH4#,RCH41,47..G

EX ﾊﾟﾂｹ-ｼﾞ *(G) & ｱﾘ(*80),ORCHID BROWN,TRIM4#

 1
45130-26270B0

LXH4#;KCH4#,RCH4#..E,STD,WINT

ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-26010B0

LXH4#;KCH4#,RCH4#..E,STD,WINT

BLUISH GRAY,TRIM1#

 1
45186-26010G0

KCH4#,RCH41,47..G,STD

DK.SAGE,TRIM6#

 1
45186-33050E2

KCH4#,RCH41,47..G,V

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ,ｻﾃﾗｲﾄｾﾝｻ ﾂｷ),ORCHID BROWN,TRIM4#

 1
45186-44010E1

KCH4#,RCH41,47..G,V

ORCHID BROWN,TRIM4#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45186-26010G0

KCH4#,RCH41,47..G,STD

DK.SAGE,TRIM6#

 1
45186-26010B0

LXH4#;KCH4#,RCH4#..E,STD,WINT

BLUISH GRAY,TRIM1#

 1
45186-44010E1

KCH4#,RCH41,47..G,V

ORCHID BROWN,TRIM4#

 1
45186-33050E2

KCH4#,RCH41,47..G,V

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ,ｻﾃﾗｲﾄｾﾝｻ ﾂｷ),ORCHID BROWN,TRIM4#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

KCH4#,LXH4#,RCH4#

長さ=18

 2
90148-60031

KCH4#,LXH4#,RCH4#

長さ=18

 2
90148-60011

KCH4#,LXH4#,RCH4#

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

KCH4#,LXH4#,RCH4#

 1
