RCH41W-GRSGK (1999)
Toyota Regius/Touring Hiace
(9907- )RCH41,47
A340E,A343F

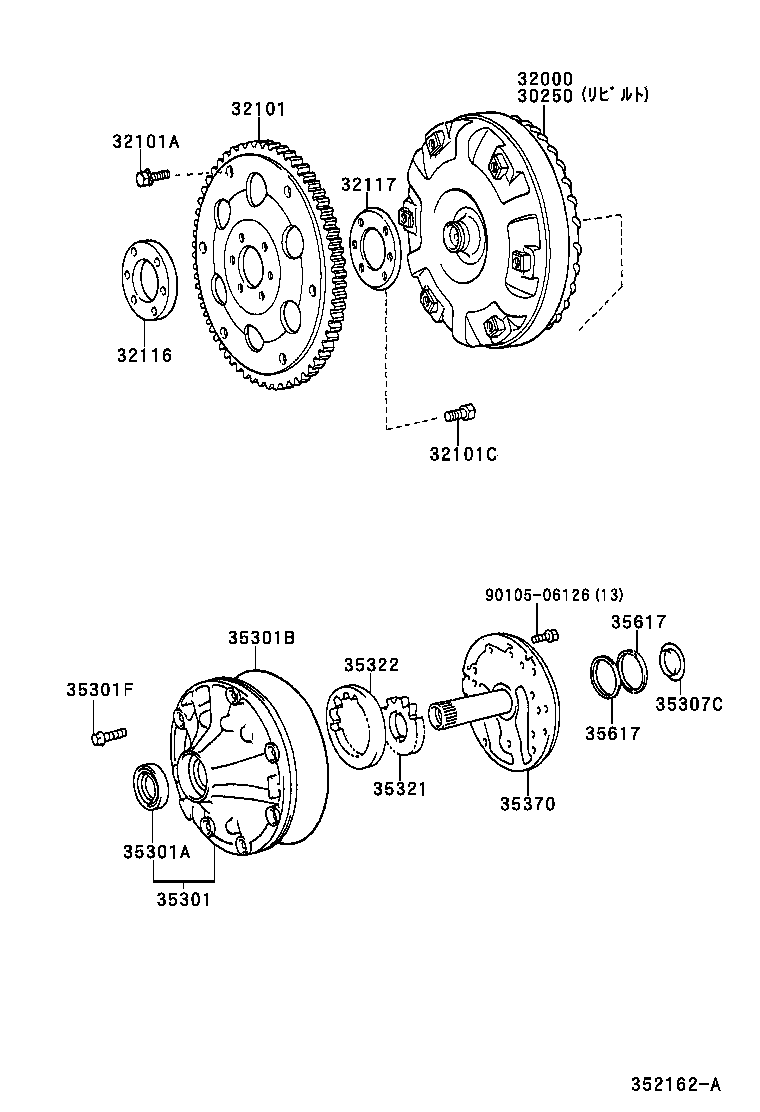

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30250 - CONVERTER ASSY, TORQUE, REBUILT | ||||
| 30250-26040 |
RCH41,47 |
1 | ||
| 30250-26080 |
RCH41,47 |
1 | ||
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-26040 |
RCH41,47 |
1 | ||
| 32000-26080 |
RCH41,47 |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-26010 |
RCH4#..ATM |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-09010 |
KCH4#..G07S;LXH4#,RCH4#..ATM;KCH4#..E,STD,WINT *9−1.25PX12.8−9,ｸﾞﾘｰﾝ |
1 | ||
| 90119-09009 |
KCH4#..G07S;LXH4#,RCH4#..ATM;KCH4#..E,STD,WINT *9−1.25PX12.8−8.8,ｲｴﾛｰ |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-10276 |
RCH4#..ATM *10−1.25PX30−17.5 |
10 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-26010 |
RCH4#..ATM |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-26010 |
RCH4#..ATM |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35301-14010 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35301-30040 |
KCH4#,RCH41,47 |
1 | ||
| 35301-35010 |
RCH41,47 |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38020 |
LXH4#,RCH41,47..ATM |
1 | ||
| 90311-38029 |
KCH4#,RCH41,47 |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99010 |
LXH4#,RCH41,47..ATM |
1 | ||
| 90301-99033 |
KCH4#,RCH41,47 |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08137 |
LXH4#,RCH41,47..ATM |
7 | ||
| 90105-08091 |
KCH4#,RCH41,47 *8−1.25PX35−35 |
7 | ||
| 35307C - RACE, THRUST BEARING (FOR STATOR SHAFT) | ||||
| 35789-30340 |
KCH4#,RCH41,47 厚さ=3.7 |
1 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-22020 |
LXH4#,RCH41,47..ATM 厚さ=17.244−17.235 |
1 | ||
| 35321-22040 |
LXH4#,RCH41,47..ATM 厚さ=17.265−17.255 |
1 | ||
| 35321-12080 |
KCH4#,RCH41,47 厚さ=9.450−9.459 |
1 | ||
| 35321-22060 |
LXH4#,RCH41,47..ATM 厚さ=17.285−17.276 |
1 | ||
| 35321-12070 |
KCH4#,RCH41,47 厚さ=9.440−9.449 |
1 | ||
| 35321-22030 |
LXH4#,RCH41,47..ATM 厚さ=17.254−17.245 |
1 | ||
| 35321-12110 |
KCH4#,RCH41,47 厚さ=9.481−9.490 |
1 | ||
| 35321-12090 |
KCH4#,RCH41,47 厚さ=9.460−9.470 |
1 | ||
| 35321-12040 |
RCH41,47 厚さ=10.710−10.720 |
1 | ||
| 35321-12100 |
KCH4#,RCH41,47 厚さ=9.471−9.480 |
1 | ||
| 35321-22050 |
LXH4#,RCH41,47..ATM 厚さ=17.275−17.266 |
1 | ||
| 35321-12020 |
RCH41,47 厚さ=10.690−10.699 |
1 | ||
| 35321-12030 |
RCH41,47 厚さ=10.700−10.709 |
1 | ||
| 35321-12060 |
RCH41,47 厚さ=10.731−10.740 |
1 | ||
| 35321-12050 |
RCH41,47 厚さ=10.721−10.730 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-22030 |
LXH4#,RCH41,47..ATM 厚さ=17.254−17.245 |
1 | ||
| 35322-22060 |
LXH4#,RCH41,47..ATM 厚さ=17.285−17.276 |
1 | ||
| 35322-12070 |
KCH4#,RCH41,47 厚さ=9.450−9.459 |
1 | ||
| 35322-12090 |
KCH4#,RCH41,47 厚さ=9.471−9.480 |
1 | ||
| 35322-12080 |
KCH4#,RCH41,47 厚さ=9.460−9.470 |
1 | ||
| 35322-22020 |
LXH4#,RCH41,47..ATM 厚さ=17.244−17.235 |
1 | ||
| 35322-12100 |
KCH4#,RCH41,47 厚さ=9.481−9.490 |
1 | ||
| 35322-22050 |
LXH4#,RCH41,47..ATM 厚さ=17.275−17.266 |
1 | ||
| 35322-12010 |
RCH41,47 厚さ=10.690−10.699 |
1 | ||
| 35322-22040 |
LXH4#,RCH41,47..ATM 厚さ=17.265−17.255 |
1 | ||
| 35322-12060 |
KCH4#,RCH41,47 厚さ=9.440−9.449 |
1 | ||
| 35322-12020 |
RCH41,47 厚さ=10.700−10.709 |
1 | ||
| 35322-12040 |
RCH41,47 厚さ=10.721−10.730 |
1 | ||
| 35322-12030 |
RCH41,47 厚さ=10.710−10.720 |
1 | ||
| 35322-12050 |
RCH41,47 厚さ=10.731−10.740 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-30031 |
KCH4#,RCH41,47 |
1 | ||
| 35370-14012 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-30020 |
KCH4#,RCH41,47 |
2 | ||
| 35617-32010 |
LXH4#,RCH41,47..ATM |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-30020 |
KCH4#,RCH41,47 |
2 | ||
| 35617-32010 |
LXH4#,RCH41,47..ATM |
2 | ||
| Common parts | ||||
| 90105-06126 | ||||
