Toyota Regius/touring hiace RCH41 FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
22210 - BODY ASSY, THROTTLE
22210-75240	3RZFE..RCH41,47	07/1999 - 04/2002	1
22210-75180	3RZFE..RCH41,47	04/1997 - 07/1999	1
22215 - GASKET, THROTTLE BODY COVER
22215-75050	3RZFE..RCH41,47	04/1997 - 07/1999	1
22215-7A680	3RZFE..RCH41,47	07/1999 - 04/2002	1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-75050	3RZFE..RCH41,47	07/1999 - 04/2002	1
22270-75030	3RZFE..RCH41,47	04/1997 - 07/1999	1
22271 - GASKET, THROTTLE BODY
22271-75020	3RZFE..RCH41,47	04/1997 - 04/2002	1
23250 - INJECTOR ASSY, FUEL
23209-79135	3RZFE..RCH41,47	07/1999 - 04/2002	4
23209-79095	3RZFE..RCH41,47	04/1997 - 07/1999	4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001	3RZFE..RCH41,47	04/1997 - 12/1998	4
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-75020	3RZFE..RCH41,47	04/1997 - 04/2002	1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001	3RZFE..RCH41,47	04/1997 - 12/1998	1
23291 - INSULATOR, INJECTOR VIBRATION
23291-73010	3RZFE..RCH41,47	04/1997 - 04/2002	4
23300P - FILTER, FUEL(FOR EFI)
23300-79446	3RZFE..RCH41,47	04/1997 - 04/2002	1
23803B - PIPE SUB-ASSY, FUEL, NO.3
23803-75060	3RZFE..RCH41,47	07/1999 - 05/2002	1
23803-75030	3RZFE..RCH41,47	04/1997 - 07/1999	1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-12033	3RZFE..RCH41,47 NO.1	07/1999 - 05/2002	1
90401-12097	3RZFE..RCH41,47	04/1997 - 07/1999	3
90401-12097	3RZFE..RCH41,47 NO.2	07/1999 - 05/2002	2
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-12033	3RZFE..RCH41,47 NO.1	07/1999 - 05/2002	1
90401-12097	3RZFE..RCH41,47	04/1997 - 07/1999	3
90401-12097	3RZFE..RCH41,47 NO.2	07/1999 - 05/2002	2
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-12033	3RZFE..RCH41,47 NO.1	07/1999 - 05/2002	1
90401-12097	3RZFE..RCH41,47	04/1997 - 07/1999	3
90401-12097	3RZFE..RCH41,47 NO.2	07/1999 - 05/2002	2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-12026	3RZFE..RCH41,47	07/1999 - 05/2002	1
90430-12017	3RZFE..RCH41,47	04/1997 - 07/1999	1
23803G - GASKET(FOR FUEL HOSE)
90430-12026	3RZFE..RCH41,47 NO.2	07/1999 - 05/2002	3
23279-74010	3RZFE..RCH41,47 NO.1	07/1999 - 05/2002	2
90430-12026	3RZFE..RCH41,47	04/1997 - 07/1999	5
23803G - GASKET(FOR FUEL HOSE)
90430-12026	3RZFE..RCH41,47 NO.2	07/1999 - 05/2002	3
23279-74010	3RZFE..RCH41,47 NO.1	07/1999 - 05/2002	2
90430-12026	3RZFE..RCH41,47	04/1997 - 07/1999	5
23803G - GASKET(FOR FUEL HOSE)
90430-12026	3RZFE..RCH41,47 NO.2	07/1999 - 05/2002	3
23279-74010	3RZFE..RCH41,47 NO.1	07/1999 - 05/2002	2
90430-12026	3RZFE..RCH41,47	04/1997 - 07/1999	5
23803G - GASKET(FOR FUEL HOSE)
90430-12026	3RZFE..RCH41,47 NO.2	07/1999 - 05/2002	3
23279-74010	3RZFE..RCH41,47 NO.1	07/1999 - 05/2002	2
90430-12026	3RZFE..RCH41,47	04/1997 - 07/1999	5
23803G - GASKET(FOR FUEL HOSE)
90430-12026	3RZFE..RCH41,47 NO.2	07/1999 - 05/2002	3
23279-74010	3RZFE..RCH41,47 NO.1	07/1999 - 05/2002	2
90430-12026	3RZFE..RCH41,47	04/1997 - 07/1999	5
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-75020	3RZFE..RCH41,47	04/1997 - 08/1997	1
23811C - HOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR)
23271-75100	3RZFE..RCH41,47	07/1999 - 05/2002	1
95334-06012	3RZFE..RCH41,47	04/1997 - 07/1999	1
23811D - CLIP, HOSE(FOR FUEL HOSE)
96135-51100	3RZFE..RCH41,47	04/2002 - 05/2002	2
96135-41100	3RZFE..RCH41,47	04/1997 - 04/2002	2
23811D - CLIP, HOSE(FOR FUEL HOSE)
96135-51100	3RZFE..RCH41,47	04/2002 - 05/2002	2
96135-41100	3RZFE..RCH41,47	04/1997 - 04/2002	2
23901 - TUBE SUB-ASSY, FUEL
23901-75030	3RZFE..RCH41,47	04/1997 - 08/1997	1
23906A - HOSE SUB-ASSY, FUEL
23906-75070	3RZFE..RCH41,47	04/1997 - 05/2002	1
Common parts
90079-10011
90079-11003
90105-08203
90119-08A52
90119-08A74
90179-08234
90301-19006
90561-10018
90929-01382
90949-01993
90999-92002
91641-C0612
92122-B0825

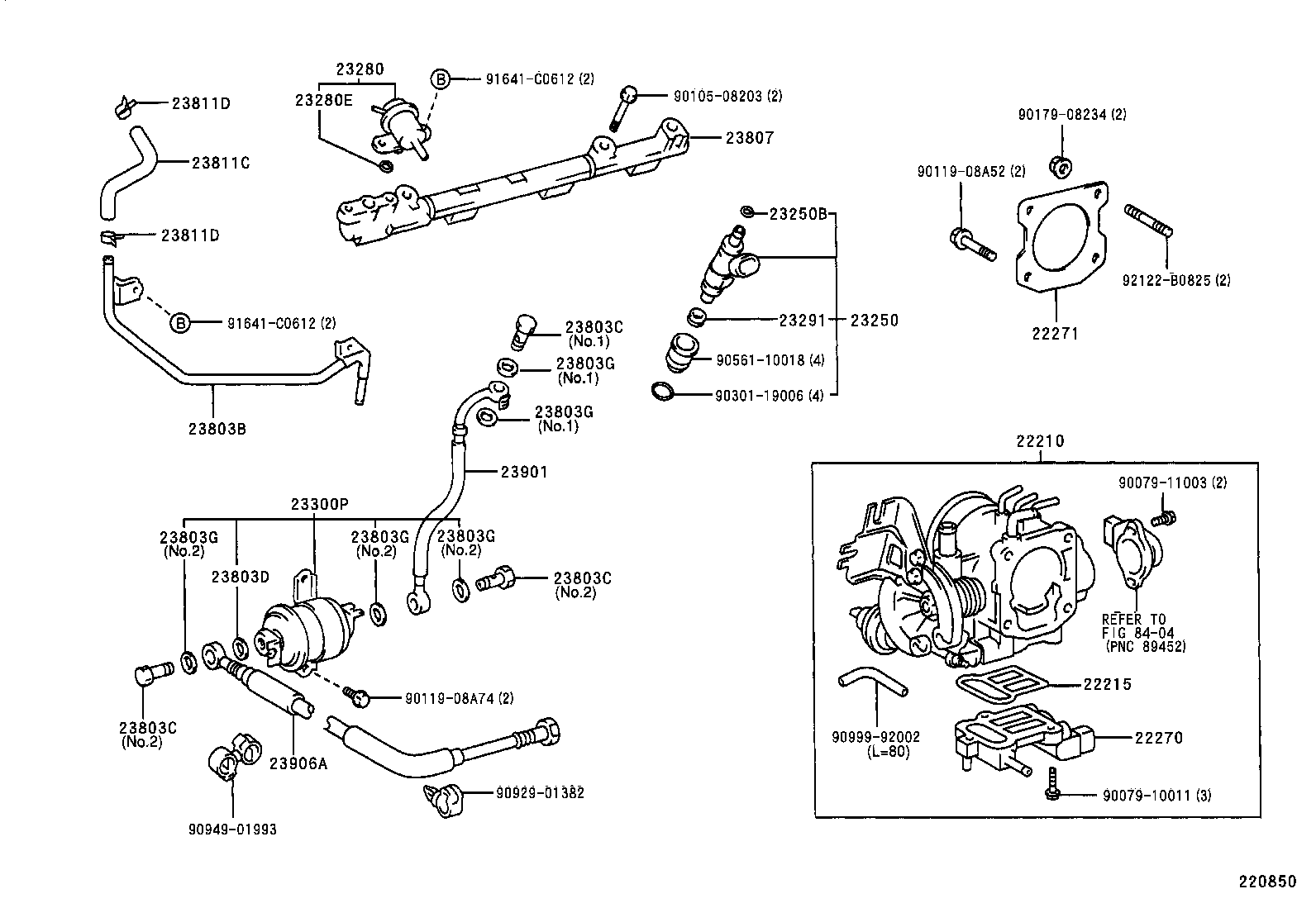

Linked diagrams
8404

RCH41W-GRSGK (1999)

ILLUST NO. 1 OF 2(9907- )3RZFE
