RCH41W-GRSGK (1999)

Toyota Regius/Touring Hiace

Production Jul 1999 - May 2002
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )3RZFE

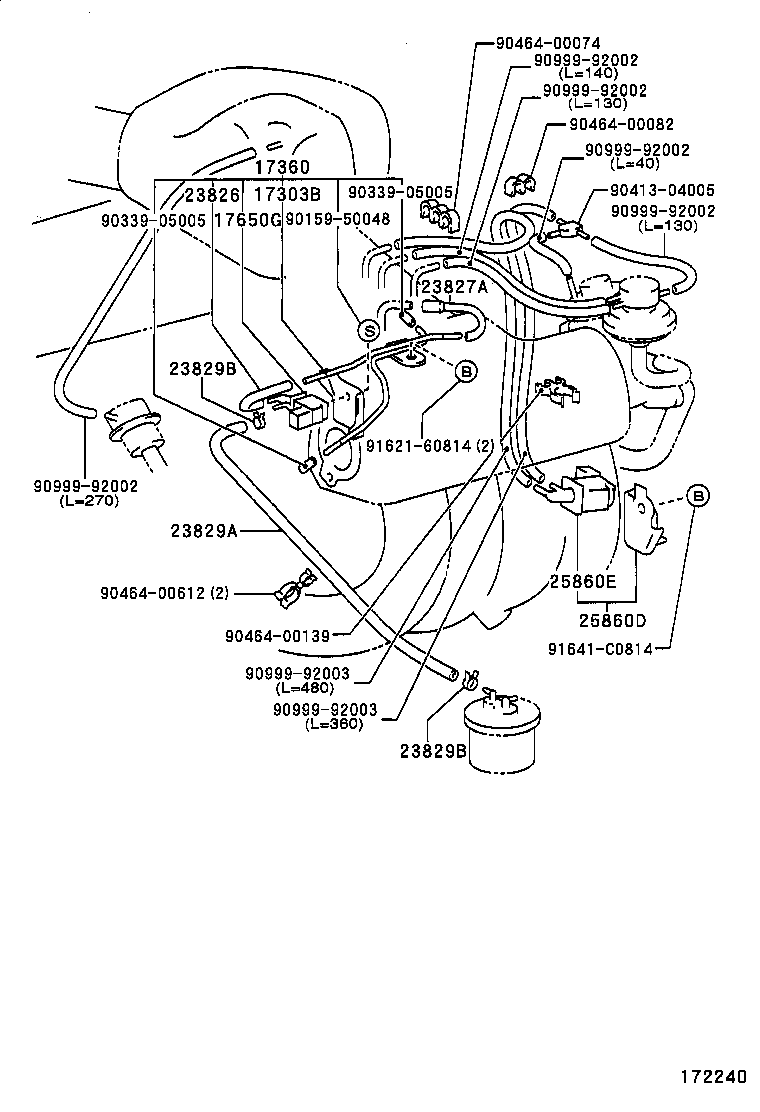

Click highlighted areas on diagram

diagram 17303B 17360 17650G 23826 23827A 23829A 23829B 23829B 25860D 25860E 9015950048 9033905005 9033905005 9041304005 9046400074 9046400082 9046400139 9046400612 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9162160814 91641C0814
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-75020

3RZFE..RCH41,47

 1
17360 - TUBE ASSY, AIR
17360-75020

3RZFE..RCH41,47

 1
17360-75010

3RZFE..RCH41,47

 1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12187

1RZE,3RZFE..RCH4#

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-75040

3RZFE..RCH41,47

 1
23826-75040

3RZFE..RCH41,47

 2
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-75150

3RZFE..RCH41,47

 1
23829A - HOSE, FUEL VAPOR FEED
23829-75190

3RZFE..RCH41,47

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51000

3RZFE..RCH41,47

 2
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51000

3RZFE..RCH41,47

 2
25860D - VALVE ASSY, VACUUM SWITCHING, NO.2
25860-75060

3RZFE..RCH41,47

 1
25860E - VALVE, VACUUM SWITCHING, NO.2
90910-12065

3RZFE..RCH41,47

 1
Common parts
90159-50048
90339-05005
90413-04005
90464-00074
90464-00082
90464-00139
90464-00612
90999-92002
90999-92003
91621-60814
91641-C0814
