RCH41W-GRSGK (1999)

Toyota Regius/Touring Hiace

Production Jul 1999 - May 2002
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )3RZFE

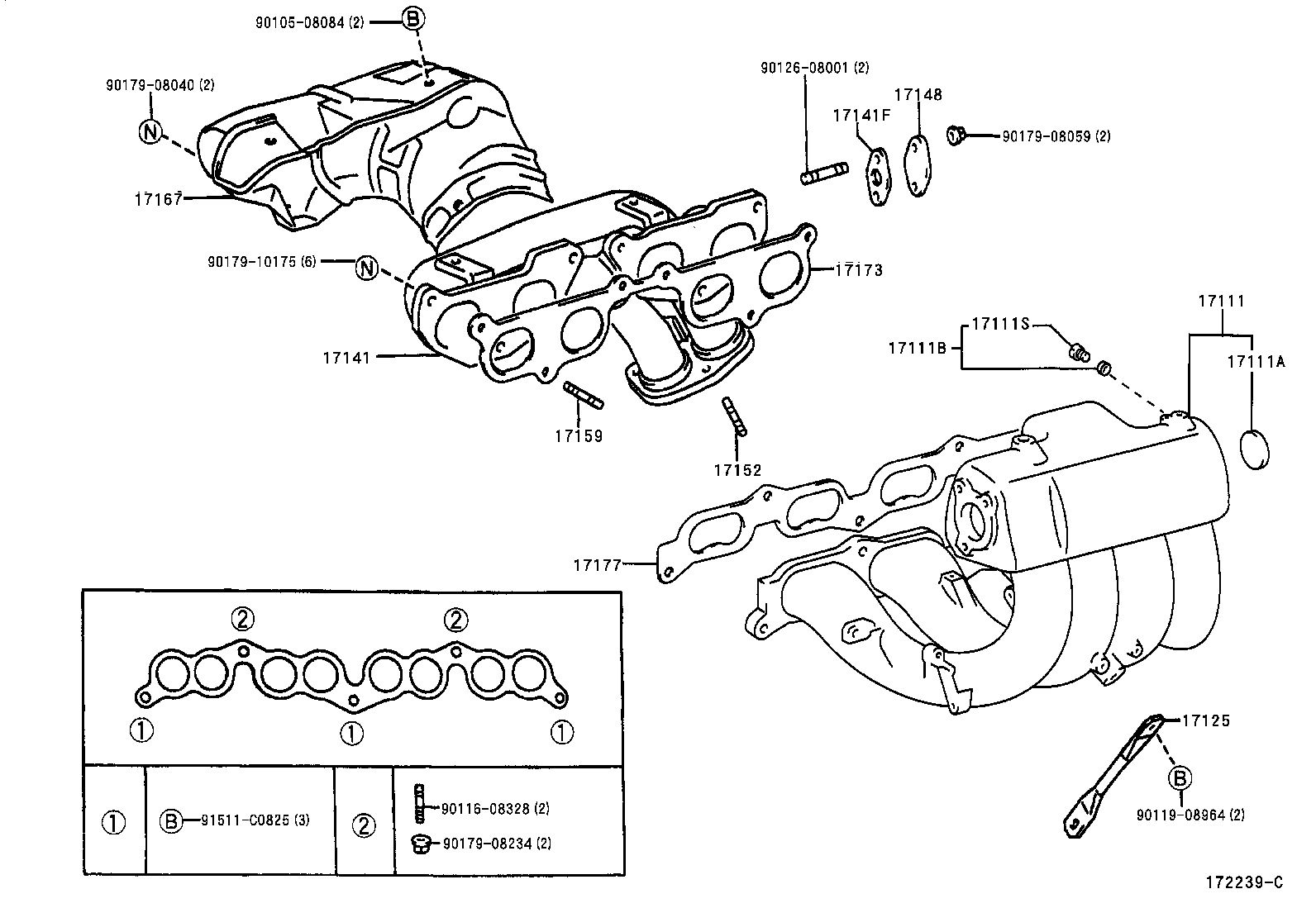

Click highlighted areas on diagram

diagram 17111 17111A 17111B 17111S 17125 17141 17141F 17148 17152 17159 17167 17173 17177 9010508084 9011608328 9011908964 9012608001 9017908040 9017908059 9017908234 9017910175 91511C0825
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-75041

3RZFE..RCH41,47

1
17101-75040

3RZFE..RCH41,47

1
17101-75031

3RZFE..RCH41,47

1
17111A - PLUG, NO.1
96411-43500

3RZFE..RCH41,47

2
17111B - PLUG, NO.2
90341-10009

3RZFE..RCH41,47

1
17111S - GASKET(FOR MANIFOLD PLUG)
90430-09005

3RZFE..RCH41,47

1
17125 - STAY, SURGE TANK, NO.1
17125-75010

3RZFE..RCH41,47

1
17141 - MANIFOLD, EXHAUST
17141-75060

3RZFE..RCH41,47

1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10149

1RZE,3RZFE..RCH4#

3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10163

3RZFE..RCH41,47

6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-75050

3RZFE..RCH41,47

1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-75020

3RZFE..RCH41,47

1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-75030

3RZFE..RCH41,47

1
17177-75020

3RZFE..RCH41,47

1
Common parts
90105-08084
90116-08328
90119-08964
90126-08001
90179-08040
90179-08059
90179-08234
90179-10175
91511-C0825
