RCH41W-GFSQK (1997)
Toyota Regius/Touring Hiace

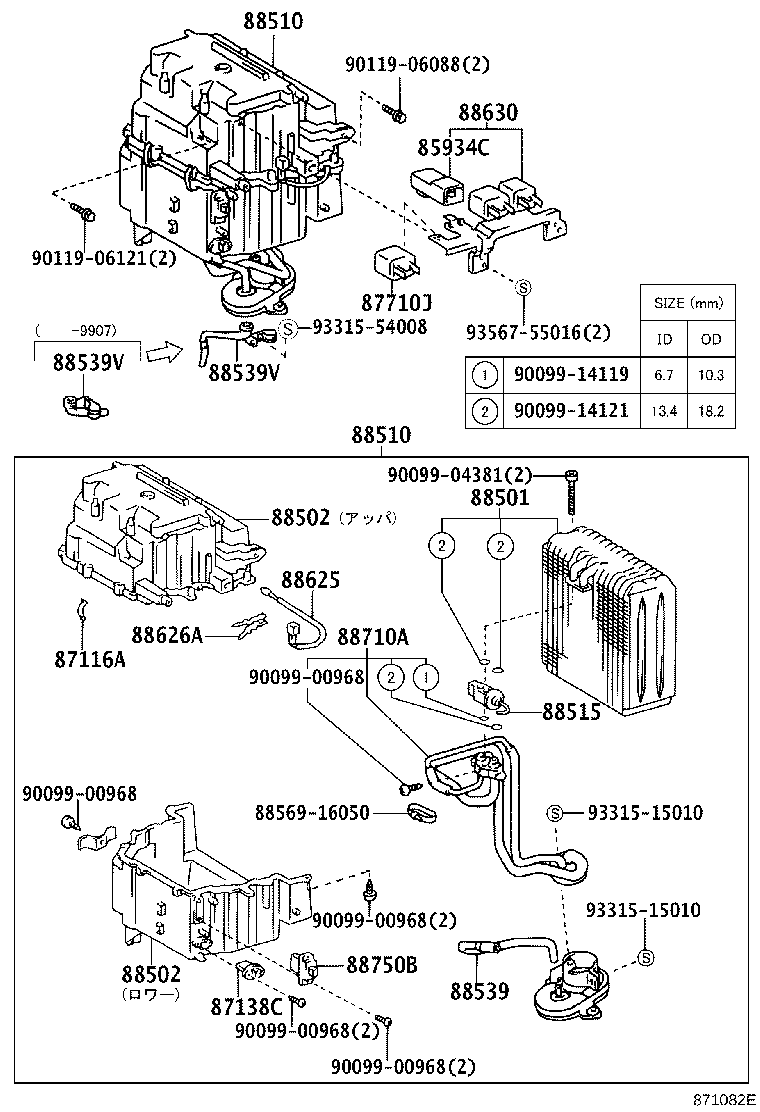

ILLUST NO. 1 OF 3(9704- )
ﾌﾛﾝﾄ---ﾏﾆﾕｱﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85934C - RELAY, MAGNET-CLUTCH | ||||
| 88630-26040 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 90987-05003 |
LXH4#;KCH4#,RCH4#..E,STD |
1 | ||
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
KCH4#,LXH4#,RCH4# |
4 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-26050 |
LXH4#;KCH4#,RCH4#..E,STD |
1 | ||
| 87138-26050 |
LXH4#;KCH4#,RCH4#..E,STD,WINT |
1 | ||
| 87138-26040 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88490A - PARTS ASSY, ELECTRICAL | ||||
| 88490-26030 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT |
1 | ||
| 88490-26030 |
LXH4#..G;KCH4#,RCH41,47..E,STD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-26101 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-26010 |
KCH4#,LXH4#,RCH4# 上側 |
1 | ||
| 88502-26021 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｵ-ﾄｴｱｺﾝ),下側 |
1 | ||
| 88502-26031 |
LXH4#;KCH4#,RCH4#..E,STD 下側 |
1 | ||
| 88502-26031 |
LXH4#;KCH4#,RCH4#..E,STD,WINT 下側 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-26010 |
KCH4#,LXH4#,RCH4# 上側 |
1 | ||
| 88502-26021 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｵ-ﾄｴｱｺﾝ),下側 |
1 | ||
| 88502-26031 |
LXH4#;KCH4#,RCH4#..E,STD 下側 |
1 | ||
| 88502-26031 |
LXH4#;KCH4#,RCH4#..E,STD,WINT 下側 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-2F200 |
LXH4#;KCH4#,RCH4#..E,STD,WINT |
1 | ||
| 88510-2F210 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88510-2F200 |
LXH4#;KCH4#,RCH4#..E,STD |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-2F200 |
LXH4#;KCH4#,RCH4#..E,STD,WINT |
1 | ||
| 88510-2F210 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88510-2F200 |
LXH4#;KCH4#,RCH4#..E,STD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88515-22240 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-26360 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88539V - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-26340 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88539V - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-26340 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26070 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-33010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 90987-05007 |
LXH4#;KCH4#,RCH4#..E,STD |
1 | ||
| 90987-05007 |
LXH4#;KCH4#,RCH4#..E,STD,WINT |
1 | ||
| 88630X - RELAY ASSY | ||||
| 85940-28020 |
LXH4#..G;KCH4#,RCH41,47..E,STD |
1 | ||
| 85940-28020 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-26211 |
LXH4#..G;KCH4#,RCH41,47..E,STD |
1 | ||
| 88650-26211 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-26630 |
LXH4#;KCH4#,RCH4#..E,STD,WINT |
1 | ||
| 88688-26630 |
LXH4#;KCH4#,RCH4#..E,STD |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-26710 |
KCH4#,LXH4#,RCH4# |
1 | ||
| Common parts | ||||
| 88569-16050 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90119-06088 | ||||
| 90119-06121 | ||||
| 93315-15010 | ||||
| 93315-54008 | ||||
| 93567-55016 | ||||
ILLUST NO. 1 OF 3(9704- )
ﾌﾛﾝﾄ---ｵ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85934C - RELAY, MAGNET-CLUTCH | ||||
| 88630-26040 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 90987-05003 |
LXH4#;KCH4#,RCH4#..E,STD |
1 | ||
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
KCH4#,LXH4#,RCH4# |
4 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-26050 |
LXH4#;KCH4#,RCH4#..E,STD |
1 | ||
| 87138-26050 |
LXH4#;KCH4#,RCH4#..E,STD,WINT |
1 | ||
| 87138-26040 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-26101 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-26010 |
KCH4#,LXH4#,RCH4# 上側 |
1 | ||
| 88502-26021 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｵ-ﾄｴｱｺﾝ),下側 |
1 | ||
| 88502-26031 |
LXH4#;KCH4#,RCH4#..E,STD 下側 |
1 | ||
| 88502-26031 |
LXH4#;KCH4#,RCH4#..E,STD,WINT 下側 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-26010 |
KCH4#,LXH4#,RCH4# 上側 |
1 | ||
| 88502-26021 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｵ-ﾄｴｱｺﾝ),下側 |
1 | ||
| 88502-26031 |
LXH4#;KCH4#,RCH4#..E,STD 下側 |
1 | ||
| 88502-26031 |
LXH4#;KCH4#,RCH4#..E,STD,WINT 下側 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-2F200 |
LXH4#;KCH4#,RCH4#..E,STD,WINT |
1 | ||
| 88510-2F210 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88510-2F200 |
LXH4#;KCH4#,RCH4#..E,STD |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-2F200 |
LXH4#;KCH4#,RCH4#..E,STD,WINT |
1 | ||
| 88510-2F210 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88510-2F200 |
LXH4#;KCH4#,RCH4#..E,STD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88515-22240 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-26360 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88539V - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-26340 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88539V - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-26340 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26070 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-33010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-26020 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-26710 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88750B - TRANSISTOR ASSY, BLOWER RESISTOR | ||||
| 88750-20020 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| Common parts | ||||
| 88569-16050 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90119-06088 | ||||
| 90119-06121 | ||||
| 93315-15010 | ||||
| 93315-54008 | ||||
| 93567-55016 | ||||

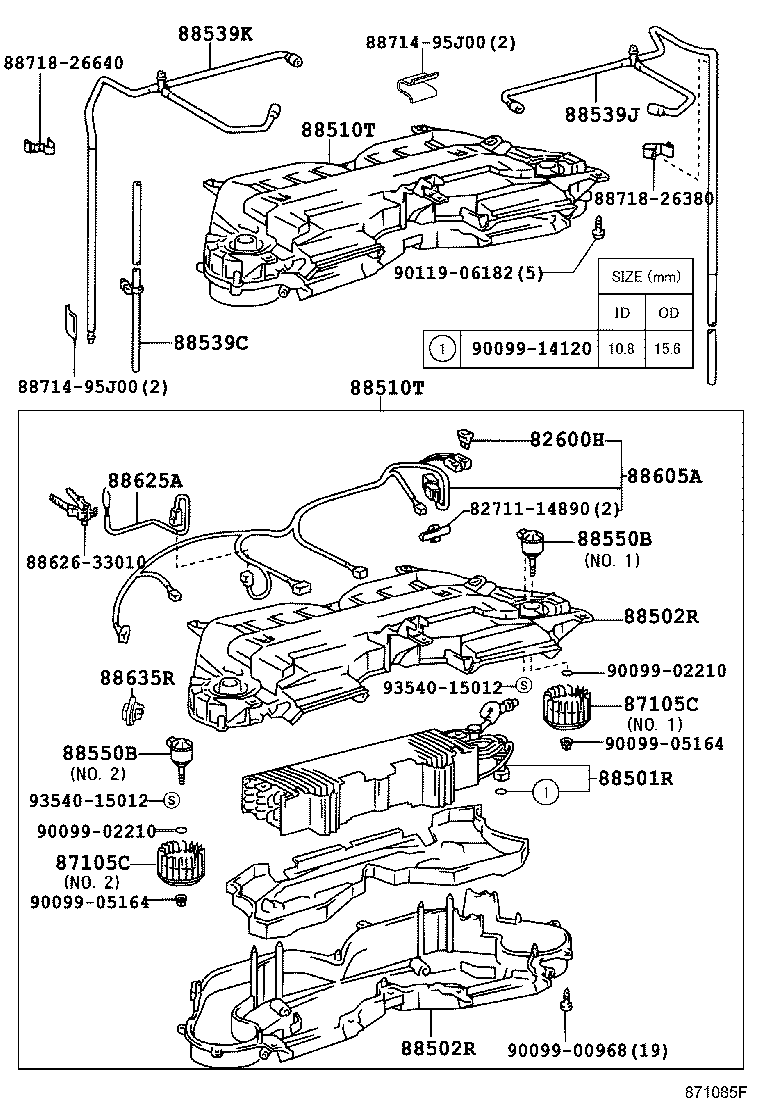

ILLUST NO. 2 OF 3(9704- )
ﾘﾔ---ｵ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600H - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
LXH4#..G;KCH4#,RCH41,47 7.5A |
2 | ||
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-26040 |
LXH4#..G;KCH4#,RCH41,47 NO.2 |
1 | ||
| 87105-26030 |
LXH4#..G;KCH4#,RCH41,47 NO.1 |
1 | ||
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-26040 |
LXH4#..G;KCH4#,RCH41,47 NO.2 |
1 | ||
| 87105-26030 |
LXH4#..G;KCH4#,RCH41,47 NO.1 |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-26140 |
LXH4#..G;KCH4#,RCH41,47..4D |
1 | ||
| 88502R - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-26060 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｵ-ﾄｴｱｺﾝ),上側 |
1 | ||
| 88521-26010 |
LXH4#..G;KCH4#,RCH41,47 下側 |
1 | ||
| 88502-26070 |
KCH4#,RCH41,47..E,STD 上側 |
1 | ||
| 88502R - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-26060 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｵ-ﾄｴｱｺﾝ),上側 |
1 | ||
| 88521-26010 |
LXH4#..G;KCH4#,RCH41,47 下側 |
1 | ||
| 88502-26070 |
KCH4#,RCH41,47..E,STD 上側 |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88510-2F240 |
KCH4#,RCH41,47..E,STD |
1 | ||
| 88510-2F230 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88510-2F240 |
KCH4#,RCH41,47..E,STD |
1 | ||
| 88510-2F230 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-26410 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-26370 |
LXH4#..G;KCH4#,RCH41,47..4D |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-26400 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-26080 |
LXH4#..G;KCH4#,RCH41,47 NO.1 |
1 | ||
| 88550-26090 |
LXH4#..G;KCH4#,RCH41,47 NO.2 |
1 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-26080 |
LXH4#..G;KCH4#,RCH41,47 NO.1 |
1 | ||
| 88550-26090 |
LXH4#..G;KCH4#,RCH41,47 NO.2 |
1 | ||
| 88605A - HARNESS SUB-ASSY, COOLER WIRING | ||||
| 88605-26820 |
LXH4#..G;KCH4#,RCH41,47..E,STD |
1 | ||
| 88605-26820 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT |
1 | ||
| 88605-26810 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88625-26060 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 88630V - RELAY ASSY | ||||
| 88630-26030 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 88750R - TRANSISTOR ASSY, BLOWER RESISTOR(REAR) | ||||
| 88750-26010 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| Common parts | ||||
| 82711-14890 | ||||
| 88626-33010 | ||||
| 88714-95J00 | ||||
| 88714-95J03 | ||||
| 88718-26380 | ||||
| 90099-00968 | ||||
| 90099-02210 | ||||
| 90099-05164 | ||||
| 90099-14120 | ||||
| 90119-06182 | ||||
| 90159-60025 | ||||
| 90189-05074 | ||||
| 91651-40640 | ||||
| 93540-15012 | ||||

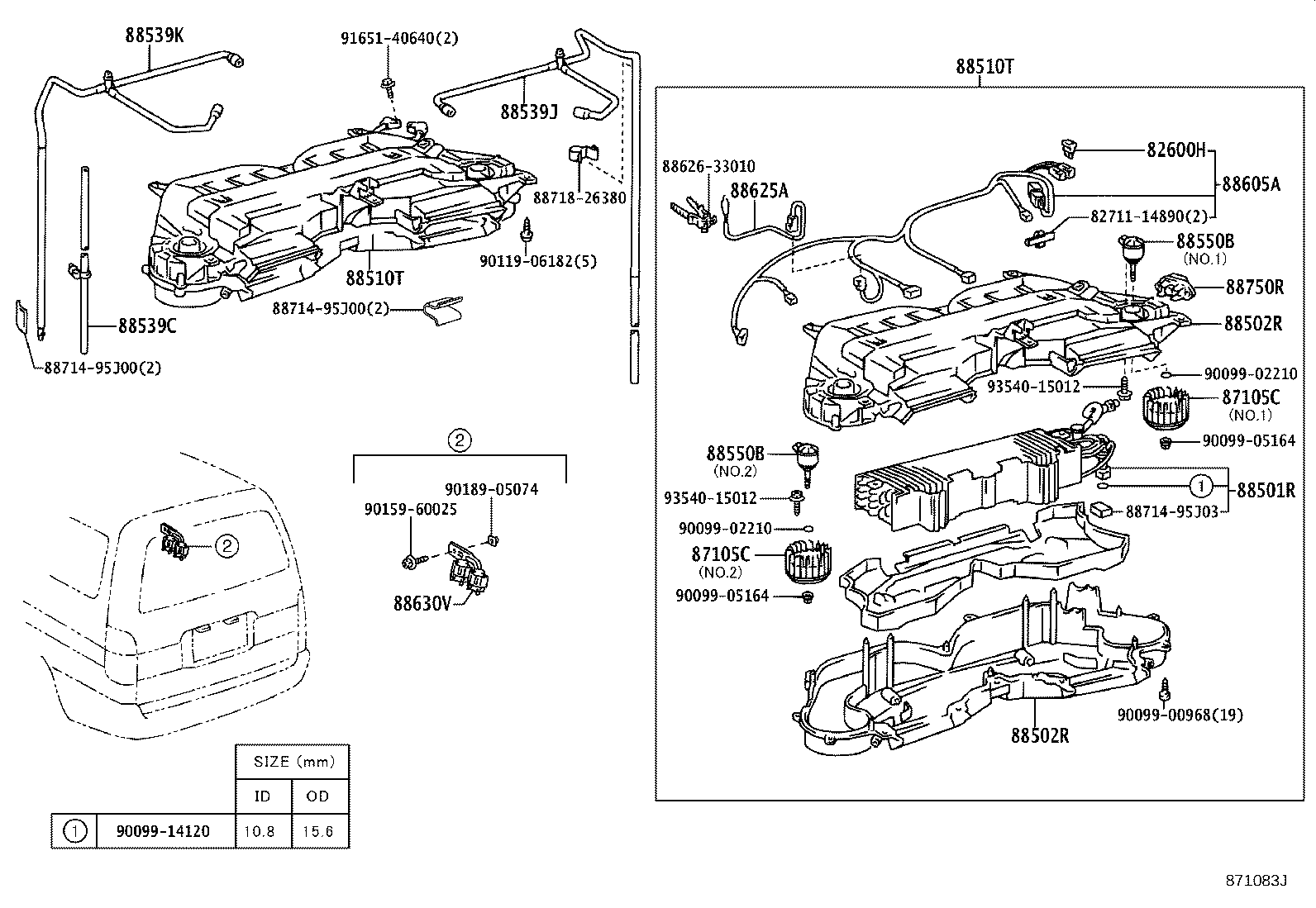

ILLUST NO. 2 OF 3(9704- )KCH4#,RCH4#
ﾘﾔ---ﾏﾆﾕｱﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600H - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
LXH4#..G;KCH4#,RCH41,47 7.5A |
2 | ||
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-26040 |
LXH4#..G;KCH4#,RCH41,47 NO.2 |
1 | ||
| 87105-26030 |
LXH4#..G;KCH4#,RCH41,47 NO.1 |
1 | ||
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-26040 |
LXH4#..G;KCH4#,RCH41,47 NO.2 |
1 | ||
| 87105-26030 |
LXH4#..G;KCH4#,RCH41,47 NO.1 |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-26140 |
LXH4#..G;KCH4#,RCH41,47..4D |
1 | ||
| 88502R - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-26060 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｵ-ﾄｴｱｺﾝ),上側 |
1 | ||
| 88521-26010 |
LXH4#..G;KCH4#,RCH41,47 下側 |
1 | ||
| 88502-26070 |
KCH4#,RCH41,47..E,STD 上側 |
1 | ||
| 88502R - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-26060 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｵ-ﾄｴｱｺﾝ),上側 |
1 | ||
| 88521-26010 |
LXH4#..G;KCH4#,RCH41,47 下側 |
1 | ||
| 88502-26070 |
KCH4#,RCH41,47..E,STD 上側 |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88510-2F240 |
KCH4#,RCH41,47..E,STD |
1 | ||
| 88510-2F230 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88510-2F240 |
KCH4#,RCH41,47..E,STD |
1 | ||
| 88510-2F230 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-26410 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-26370 |
LXH4#..G;KCH4#,RCH41,47..4D |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-26400 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-26080 |
LXH4#..G;KCH4#,RCH41,47 NO.1 |
1 | ||
| 88550-26090 |
LXH4#..G;KCH4#,RCH41,47 NO.2 |
1 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-26080 |
LXH4#..G;KCH4#,RCH41,47 NO.1 |
1 | ||
| 88550-26090 |
LXH4#..G;KCH4#,RCH41,47 NO.2 |
1 | ||
| 88605A - HARNESS SUB-ASSY, COOLER WIRING | ||||
| 88605-26820 |
LXH4#..G;KCH4#,RCH41,47..E,STD |
1 | ||
| 88605-26820 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT |
1 | ||
| 88605-26810 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88625-26060 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 88635R - RESISTOR, BLOWER | ||||
| 88635-26060 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT |
1 | ||
| 88635-26060 |
LXH4#..G;KCH4#,RCH41,47..E,STD |
1 | ||
| Common parts | ||||
| 82711-14890 | ||||
| 88626-33010 | ||||
| 88714-95J00 | ||||
| 88718-26380 | ||||
| 88718-26640 | ||||
| 90099-00968 | ||||
| 90099-02210 | ||||
| 90099-05164 | ||||
| 90099-14120 | ||||
| 90119-06182 | ||||
| 93540-15012 | ||||

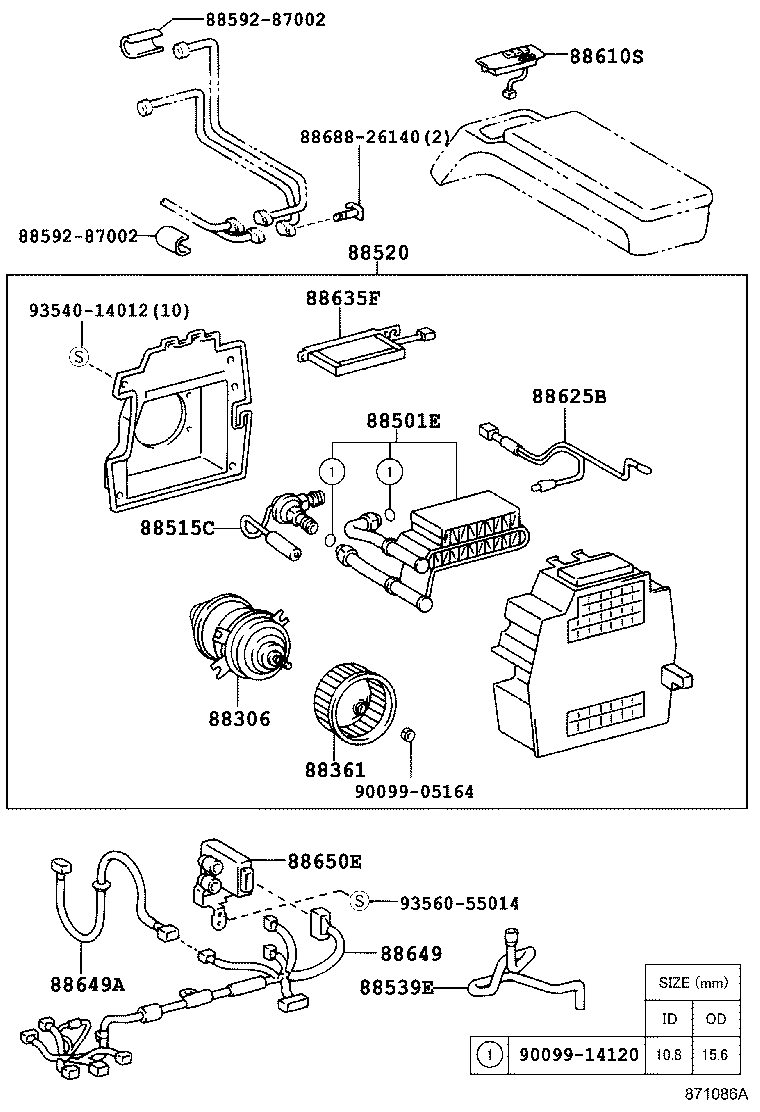

ILLUST NO. 3 OF 3(9704- )
ｸ-ﾙ ﾎﾞﾂｸｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-28040 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 88550-28040 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-87004 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 87105-87004 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX) | ||||
| 88501-26120 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 88501-26120 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 88515C - VALVE, COOLING BOX EXPANSION | ||||
| 88515-60020 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 88515-60020 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-26021 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 88520-26021 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-26350 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 88539-26350 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 88610S - SWITCH ASSY, CONTROL | ||||
| 88610-26070 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 88610-26070 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 88625B - THERMISTOR, COOLER NO.3 | ||||
| 88625-26080 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 88625-26080 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 88635F - RESISTER, COOLER BLOWER | ||||
| 88635-95D00 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 88635-28010 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 88635-95D00 |
KCH4#,RCH41,47..4D..(G,STD,WINT) |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88605-26851 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 88605-26851 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 88649A - WIRING, COOLER, NO.3 | ||||
| 88605-26860 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 88605-26860 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-26201 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 88650-26201 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| Common parts | ||||
| 88592-87002 | ||||
| 88688-26140 | ||||
| 90099-05164 | ||||
| 90099-14120 | ||||
| 93540-14012 | ||||
| 93560-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
