RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

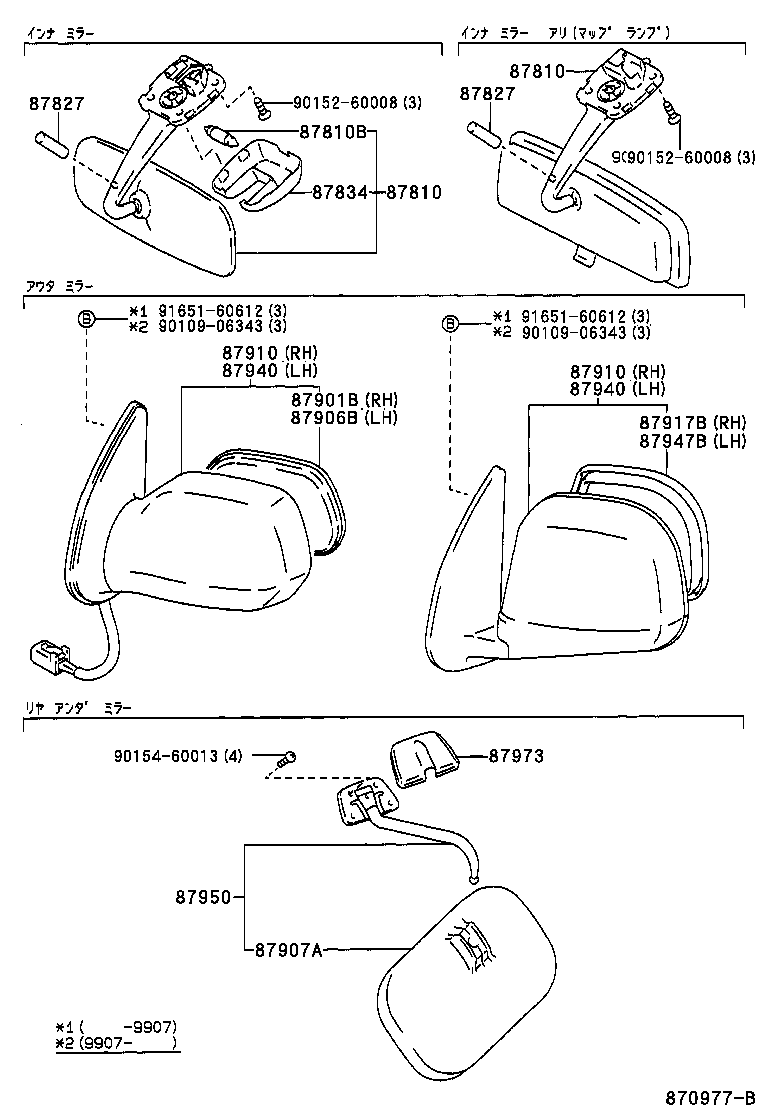

Click highlighted areas on diagram

diagram 87810 87810 87810B 87827 87827 87834 87901B 87906B 87907A 87910 87910 87917B 87940 87940 87947B 87950 87973 9010906343 9010906343 9015260008 9015260008 9015460013 9165160612 9165160612
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-26030

LXH4#..G;KCH4#,RCH41,47

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-26030

LXH4#..G;KCH4#,RCH41,47

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-30010

KCH4#,LXH4#,RCH4#

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-30010

KCH4#,LXH4#,RCH4#

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-26240

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ

 1
87931-26280

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- ﾋ-ﾀﾂｷ

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-26290

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ

 1
87961-26330

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- ﾋ-ﾀﾂｷ

 1
87907A - MIRROR SUB-ASSY, OUTER UNDER REAR VIEW
87907-95J02

KCH4#,LXH4#,RCH4#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-26240G1

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ,DK.GREEN M.M.,2DK

 1
87910-26240A0

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ,WHITE PM,2EB

 1
87910-26280A0

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- ﾋ-ﾀﾂｷ,WHITE PM,2EB

 1
87910-26280G0

KCH4#,RCH41,47..G

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- ﾋ-ﾀﾂｷ,LT GREEN M,2DJ

 1
87910-26240G0

KCH4#,RCH41,47..G

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ,LT GREEN M,2DJ

 1
87910-26280G1

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- ﾋ-ﾀﾂｷ,DK.GREEN M.M.,2DK

 1
87910-26280C0

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- ﾋ-ﾀﾂｷ,BLACK ME,205 ,2EV

 1
87910-26240C0

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ,BLACK ME,205 ,2EV

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-26240G1

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ,DK.GREEN M.M.,2DK

 1
87910-26240A0

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ,WHITE PM,2EB

 1
87910-26280A0

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- ﾋ-ﾀﾂｷ,WHITE PM,2EB

 1
87910-26280G0

KCH4#,RCH41,47..G

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- ﾋ-ﾀﾂｷ,LT GREEN M,2DJ

 1
87910-26240G0

KCH4#,RCH41,47..G

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ,LT GREEN M,2DJ

 1
87910-26280G1

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- ﾋ-ﾀﾂｷ,DK.GREEN M.M.,2DK

 1
87910-26280C0

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- ﾋ-ﾀﾂｷ,BLACK ME,205 ,2EV

 1
87910-26240C0

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ,BLACK ME,205 ,2EV

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-26330G0

KCH4#,RCH41,47..G

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- ﾋ-ﾀﾂｷ,LT GREEN M,2DJ

 1
87940-26290G0

KCH4#,RCH41,47..G

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-,LT GREEN M,2DJ

 1
87940-26290A0

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-,WHITE PM,2EB

 1
87940-26330A0

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- ﾋ-ﾀﾂｷ,WHITE PM,2EB

 1
87940-26290G1

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-,DK.GREEN M.M.,2DK

 1
87940-26330G1

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- ﾋ-ﾀﾂｷ,DK.GREEN M.M.,2DK

 1
87940-26290C0

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-,BLACK ME,205 ,2EV

 1
87940-26330C0

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- ﾋ-ﾀﾂｷ,BLACK ME,205 ,2EV

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-26330G0

KCH4#,RCH41,47..G

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- ﾋ-ﾀﾂｷ,LT GREEN M,2DJ

 1
87940-26290G0

KCH4#,RCH41,47..G

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-,LT GREEN M,2DJ

 1
87940-26290A0

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-,WHITE PM,2EB

 1
87940-26330A0

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- ﾋ-ﾀﾂｷ,WHITE PM,2EB

 1
87940-26290G1

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-,DK.GREEN M.M.,2DK

 1
87940-26330G1

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- ﾋ-ﾀﾂｷ,DK.GREEN M.M.,2DK

 1
87940-26290C0

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-,BLACK ME,205 ,2EV

 1
87940-26330C0

KCH4#,RCH41,47..G,STD

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- ﾋ-ﾀﾂｷ,BLACK ME,205 ,2EV

 1
87950 - MIRROR ASSY, OUTER UNDER REAR VIEW
87950-26030

KCH4#,LXH4#,RCH4#

 1
87973 - COVER, OUTER UNDER RR VIEW MIRROR
87973-26010

KCH4#,LXH4#,RCH4#

 1
Common parts
90109-06343
90152-60008
90154-60013
91651-60612
