RCH41W-GFSQK (1997)
Toyota Regius/Touring Hiace

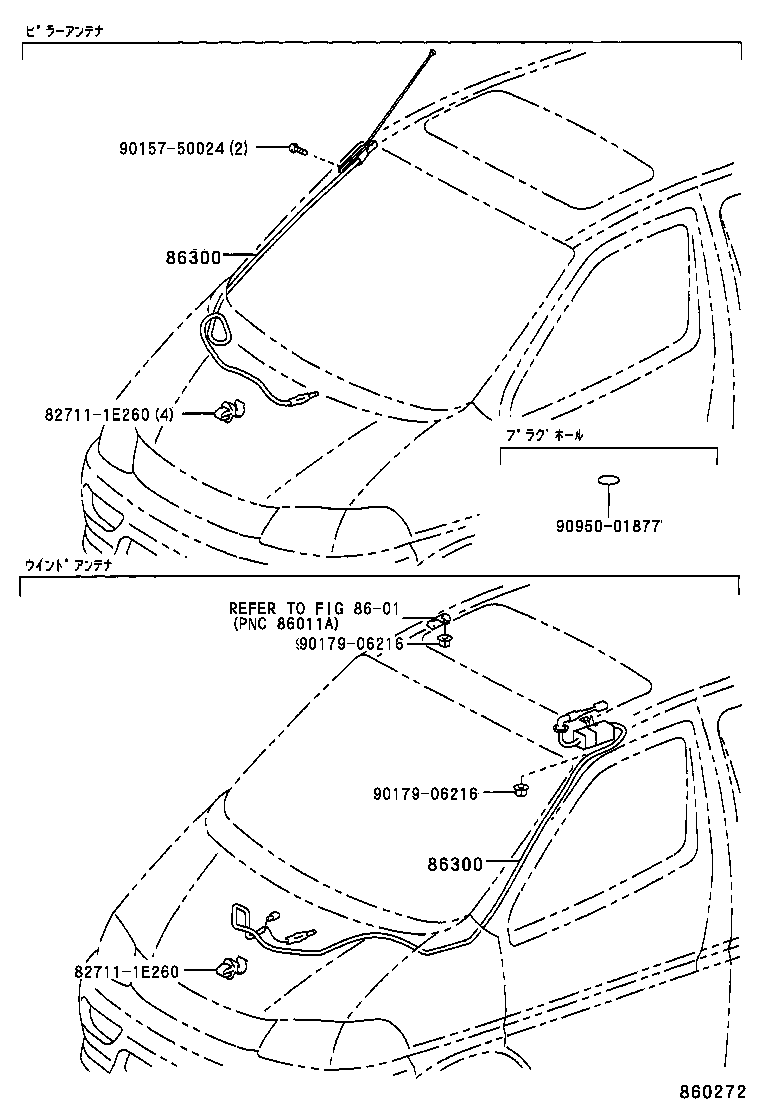

ILLUST NO. 1 OF 3(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-26070 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD ｳｲﾝﾄﾞｳ ｱﾝﾃﾅ |
1 | ||
| 86300-26061 |
LXH4#;KCH4#,RCH4#..E,STD,V,WINT,WISTD ﾋﾟﾗｰ ｱﾝﾃﾅ |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-26070 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD ｳｲﾝﾄﾞｳ ｱﾝﾃﾅ |
1 | ||
| 86300-26061 |
LXH4#;KCH4#,RCH4#..E,STD,V,WINT,WISTD ﾋﾟﾗｰ ｱﾝﾃﾅ |
1 | ||
| Common parts | ||||
| 82711-1E260 | ||||
| 90157-50024 | ||||
| 90179-06216 | ||||
| 90950-01877 | ||||
| Linked diagrams | ||||
| 8601 | ||||

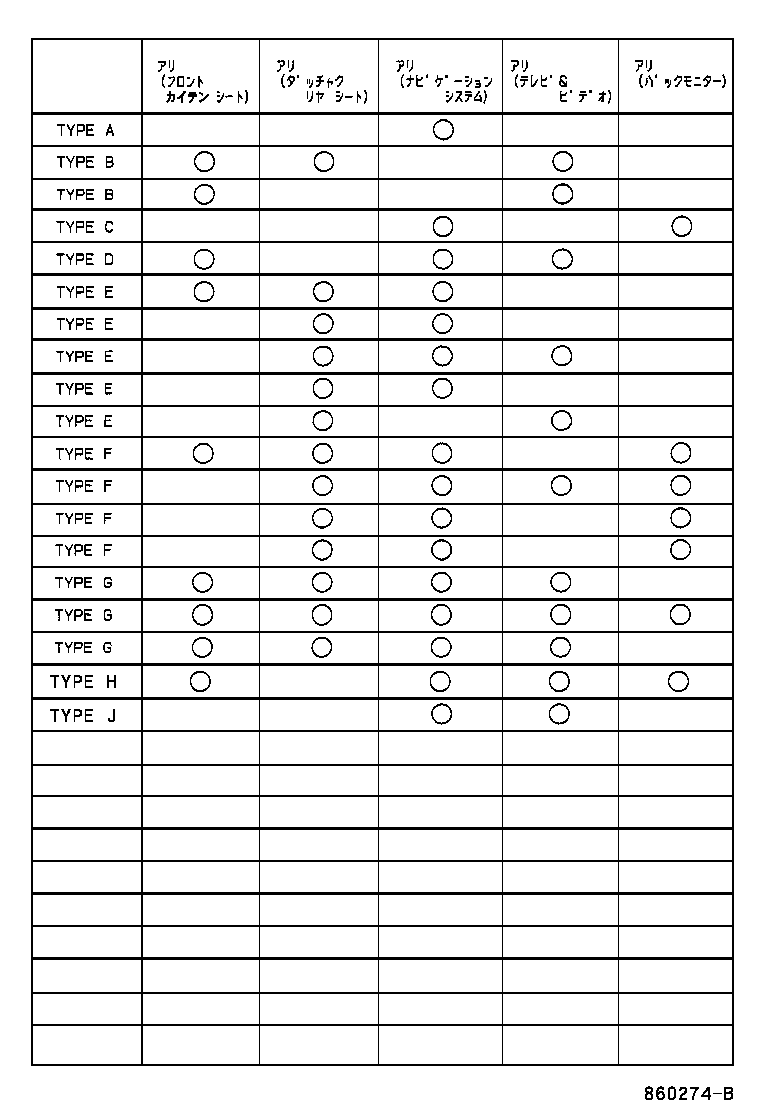

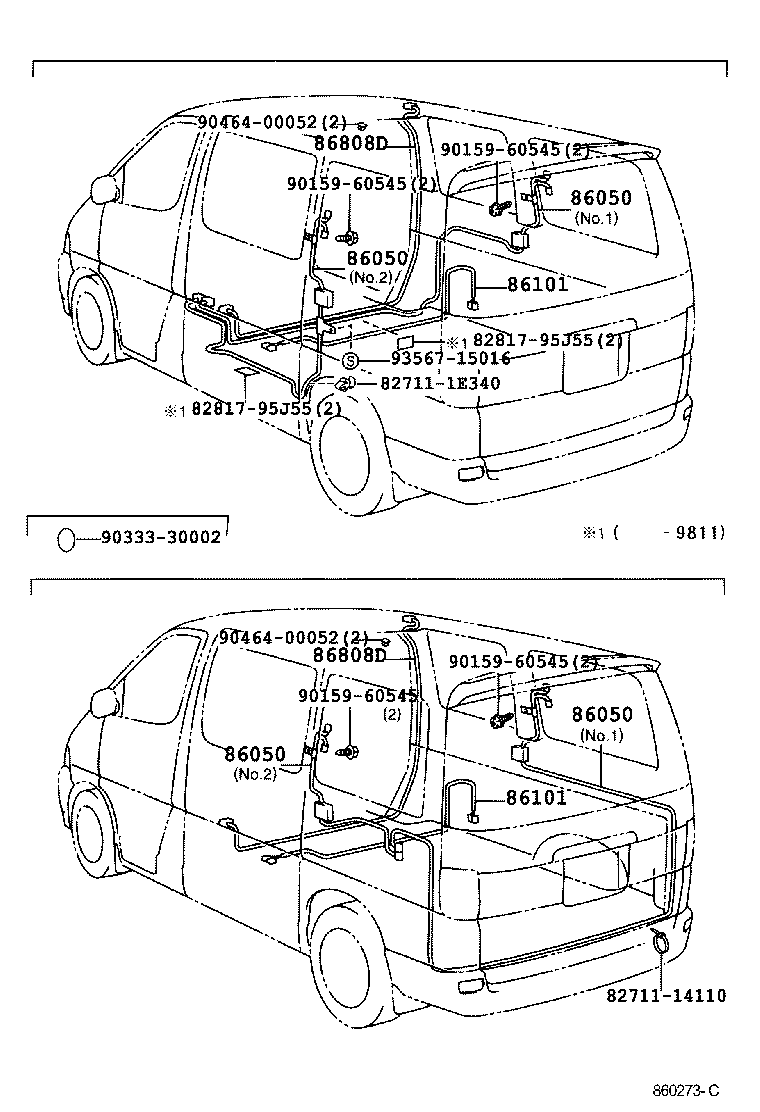

ILLUST NO. 2 OF 3(9704-9907)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86050 - ANTENNA ASSY, TELEVISION | ||||
| 86050-26120 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ),NO.1 |
1 | ||
| 86050-26110 |
KCH4#,RCH41..G,STD,WINT TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 86050-26140 |
KCH4#,RCH41..G,STD,WINT TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26150 |
KCH4#,RCH41..G,STD,WINT TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26110 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 86050-26130 |
KCH4#,RCH41,47..4D..(G,STD) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26130 |
KCH4#,RCH41..G,STD,WINT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26220 |
KCH4#,RCH41..G,STD,WINT TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26220 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26210 |
KCH4#,RCH41..G,STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26150 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26120 |
KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ),NO.1 |
1 | ||
| 86050-26110 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26130 |
RCH47..4D;KCH4#,RCH41..4D..(G,STD) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26210 |
KCH4#,RCH41,47..G,STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26150 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26140 |
KCH4#,RCH41,47..G,STD,WINT TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26210 |
KCH4#,RCH41,47..G,STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26140 |
KCH4#,RCH41,47..G,STD,WINT TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050 - ANTENNA ASSY, TELEVISION | ||||
| 86050-26120 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ),NO.1 |
1 | ||
| 86050-26110 |
KCH4#,RCH41..G,STD,WINT TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 86050-26140 |
KCH4#,RCH41..G,STD,WINT TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26150 |
KCH4#,RCH41..G,STD,WINT TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26110 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 86050-26130 |
KCH4#,RCH41,47..4D..(G,STD) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26130 |
KCH4#,RCH41..G,STD,WINT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26220 |
KCH4#,RCH41..G,STD,WINT TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26220 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26210 |
KCH4#,RCH41..G,STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26150 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26120 |
KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ),NO.1 |
1 | ||
| 86050-26110 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26130 |
RCH47..4D;KCH4#,RCH41..4D..(G,STD) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26210 |
KCH4#,RCH41,47..G,STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26150 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26140 |
KCH4#,RCH41,47..G,STD,WINT TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26210 |
KCH4#,RCH41,47..G,STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26140 |
KCH4#,RCH41,47..G,STD,WINT TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050 - ANTENNA ASSY, TELEVISION | ||||
| 86050-26120 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ),NO.1 |
1 | ||
| 86050-26110 |
KCH4#,RCH41..G,STD,WINT TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 86050-26140 |
KCH4#,RCH41..G,STD,WINT TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26150 |
KCH4#,RCH41..G,STD,WINT TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26110 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 86050-26130 |
KCH4#,RCH41,47..4D..(G,STD) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26130 |
KCH4#,RCH41..G,STD,WINT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26220 |
KCH4#,RCH41..G,STD,WINT TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26220 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26210 |
KCH4#,RCH41..G,STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26150 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26120 |
KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ),NO.1 |
1 | ||
| 86050-26110 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26130 |
RCH47..4D;KCH4#,RCH41..4D..(G,STD) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26210 |
KCH4#,RCH41,47..G,STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26150 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26140 |
KCH4#,RCH41,47..G,STD,WINT TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26210 |
KCH4#,RCH41,47..G,STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26140 |
KCH4#,RCH41,47..G,STD,WINT TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050 - ANTENNA ASSY, TELEVISION | ||||
| 86050-26120 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ),NO.1 |
1 | ||
| 86050-26110 |
KCH4#,RCH41..G,STD,WINT TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 86050-26140 |
KCH4#,RCH41..G,STD,WINT TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26150 |
KCH4#,RCH41..G,STD,WINT TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26110 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 86050-26130 |
KCH4#,RCH41,47..4D..(G,STD) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26130 |
KCH4#,RCH41..G,STD,WINT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26220 |
KCH4#,RCH41..G,STD,WINT TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26220 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26210 |
KCH4#,RCH41..G,STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26150 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26120 |
KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ),NO.1 |
1 | ||
| 86050-26110 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26130 |
RCH47..4D;KCH4#,RCH41..4D..(G,STD) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26210 |
KCH4#,RCH41,47..G,STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26150 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26140 |
KCH4#,RCH41,47..G,STD,WINT TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86050-26210 |
KCH4#,RCH41,47..G,STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86050-26140 |
KCH4#,RCH41,47..G,STD,WINT TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-26050 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(4 ｽﾋﾟ-ｶ);ｱﾘ(9 ｽﾋﾟ-ｶ) |
1 | ||
| 86101-26060 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(4 ｽﾋﾟ-ｶ);ｱﾘ(9 ｽﾋﾟ-ｶ) |
1 | ||
| 86101-26070 |
KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ) |
1 | ||
| 86101-26070 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ) |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-26050 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(4 ｽﾋﾟ-ｶ);ｱﾘ(9 ｽﾋﾟ-ｶ) |
1 | ||
| 86101-26060 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(4 ｽﾋﾟ-ｶ);ｱﾘ(9 ｽﾋﾟ-ｶ) |
1 | ||
| 86101-26070 |
KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ) |
1 | ||
| 86101-26070 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ) |
1 | ||
| 86808D - CORD SUB-ASSY, NAVIGATION ANTENNA | ||||
| 86808-26030 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 86808-26020 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 86808D - CORD SUB-ASSY, NAVIGATION ANTENNA | ||||
| 86808-26030 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 86808-26020 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-1E340 | ||||
| 82817-95J55 | ||||
| 90159-60545 | ||||
| 90333-30002 | ||||
| 90464-00052 | ||||
| 93567-15016 | ||||
ILLUST NO. 3 OF 3(9704-9907)
| Part # | Description | Qty | Price |
|---|
