Toyota Regius/touring hiace RCH41 NAVIGATION & FRONT MONITOR DISPLAY

Manufacturers Home
Toyota
JP
REGIUS/TOURING HIACE
RCH41W-GFSQK (1997)
8603 - NAVIGATION & FRONT MONITOR DISPLAY

RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999

Engine 3RZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

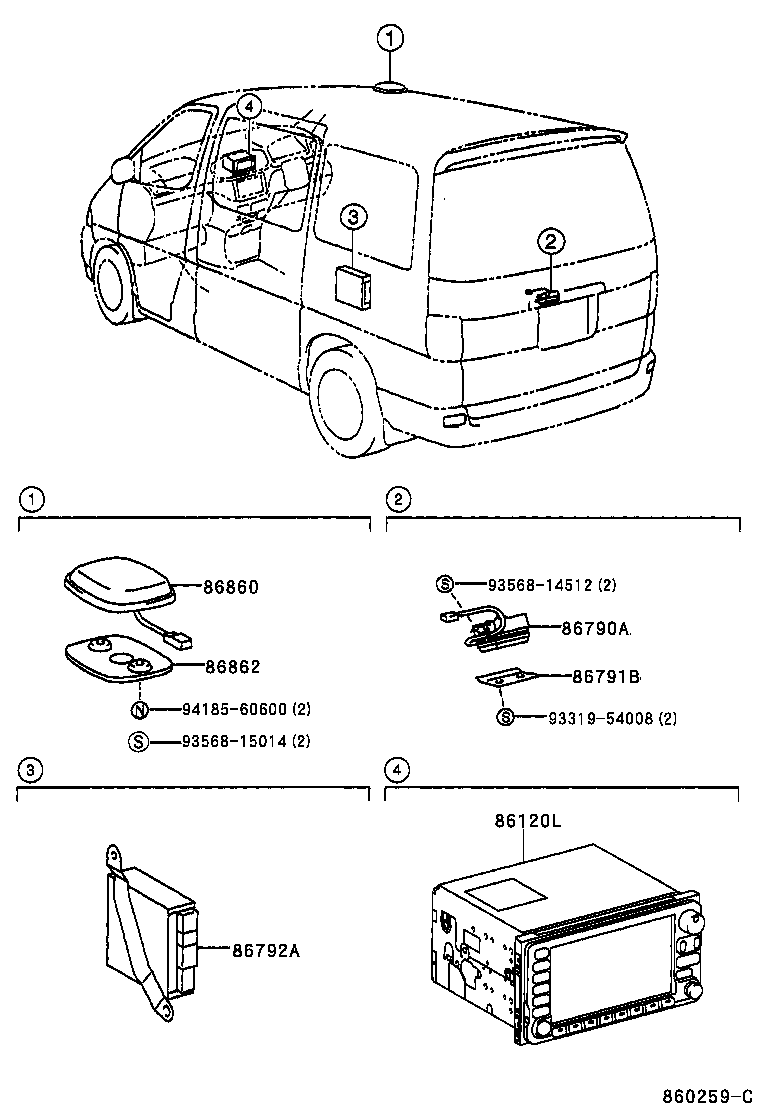

ILLUST NO. 1 OF 2(9704-9907)

Click highlighted areas on diagram

Part #	Description	Period	Qty
86120L - RECEIVER ASSY, NAVIGATION
86120-26021	KCH4#,RCH41..G,STD,WINT MATSUSHITA,ID=56016,ｱﾘ(4 ｽﾋﾟ-ｶ)	04/1997 - 08/1997	1
86120-26032	KCH4#,RCH41..G,STD,WINT MATSUSHITA,ID=56021,ｱﾘ(9 ｽﾋﾟ-ｶ)	08/1997 - 04/1998	1
86120-26080	KCH4#,RCH41,47..G,STD,WINT MATSUSHITA,ID=56027,ｱﾘ(4 ｽﾋﾟ-ｶ)	04/1998 - 07/1999	1
86120-26090	KCH4#,RCH41,47..G,STD,WINT MATSUSHITA,ID=56028,ｱﾘ(9 ｽﾋﾟ-ｶ)	04/1998 - 07/1999	1
86120-26022	KCH4#,RCH41..G,STD,WINT MATSUSHITA,ID=56020,ｱﾘ(4 ｽﾋﾟ-ｶ)	08/1997 - 04/1998	1
86120-26031	KCH4#,RCH41..G,STD,WINT MATSUSHITA,ID=56017,ｱﾘ(9 ｽﾋﾟ-ｶ)	04/1997 - 08/1997	1
86790A - CAMERA ASSY, TELEVISION
86790-26010	KCH4#,RCH41,47..G,STD,WINT	04/1998 - 07/1999	1
86790-26010	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
86791B - BRACKET, TELEVISION CAMERA
86791-26020	KCH4#,RCH41,47..G,STD,WINT	04/1998 - 07/1999	1
86791-26020	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
86792A - CONTROLLER, TELEVISION CAMERA
86792-26010	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
86792-26020	KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1997 - 04/1998	1
86792-26010	KCH4#,RCH41,47..G,STD,WINT	04/1998 - 07/1999	1
86792-26020	KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1998 - 07/1999	1
86860 - ANTENNA ASSY, NAVIGATION
86860-26020	RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1998 - 07/1999	1
86860-26010	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
86862 - BRACKET, NAVIGATION ANTENNA
86862-26010	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
Common parts
93319-54008
93568-14512
93568-15014
94185-60600

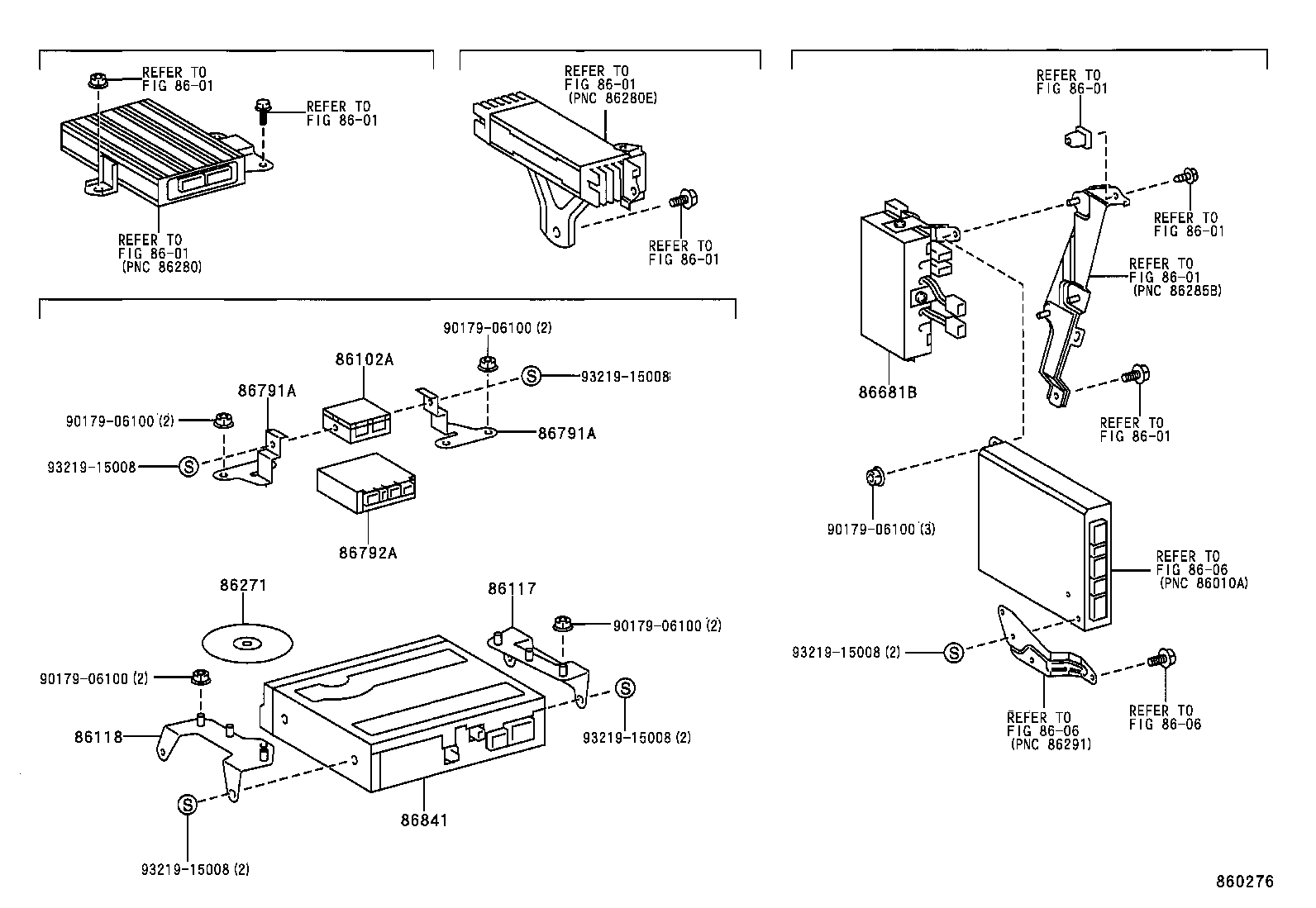

ILLUST NO. 2 OF 2(9704- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
86102A - SELECTOR SUB-ASSY, ANTENNA
86102-26020	KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1997 - 04/1998	1
86102-26010	KCH4#,RCH41,47..G,STD,WINT	04/1998 - 07/1999	1
86102-26010	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
86102-26020	KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1998 - 07/1999	1
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-26060	KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1997 - 04/1998	1
86117-26050	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
86117-26050	KCH4#,RCH41,47..G,STD,WINT	04/1998 - 07/1999	1
86117-26060	KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1998 - 07/1999	1
86271 - DISC, DISC PLAYER
86271-33011	KCH4#,RCH41..G,STD,WINT	11/1997 - 04/1998	1
86271-33010	KCH4#,RCH41..G,STD,WINT	04/1997 - 11/1997	1
86271-33011	KCH4#,RCH41,47..G,STD,WINT	04/1998 - 07/1999	1
86291A - BRACKET, TELEVISION
86291-26130	KCH4#,RCH41,47..G,STD,WINT	04/1998 - 07/1999	1
86291-26130	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
86681B - DIVIDER, ANTENNA
86681-26030	KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1997 - 04/1998	1
86681-26040	KCH4#,RCH41,47..G,STD,V,WINT	04/1998 - 12/2999	1
86681-26040	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
86681-26030	KCH4#,RCH41,47..4D..(G,STD,V,WINT) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1998 - 12/2999	1
86841 - COMPUTER, NAVIGATION
86841-33011	KCH4#,RCH41..G,STD,WINT	04/1997 - 08/1997	1
86841-47010	KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1998 - 07/1999	1
86841-33012	KCH4#,RCH41..G,STD,WINT	08/1997 - 04/1998	1
Common parts
90179-06100
93219-15008
Linked diagrams
8601
8606

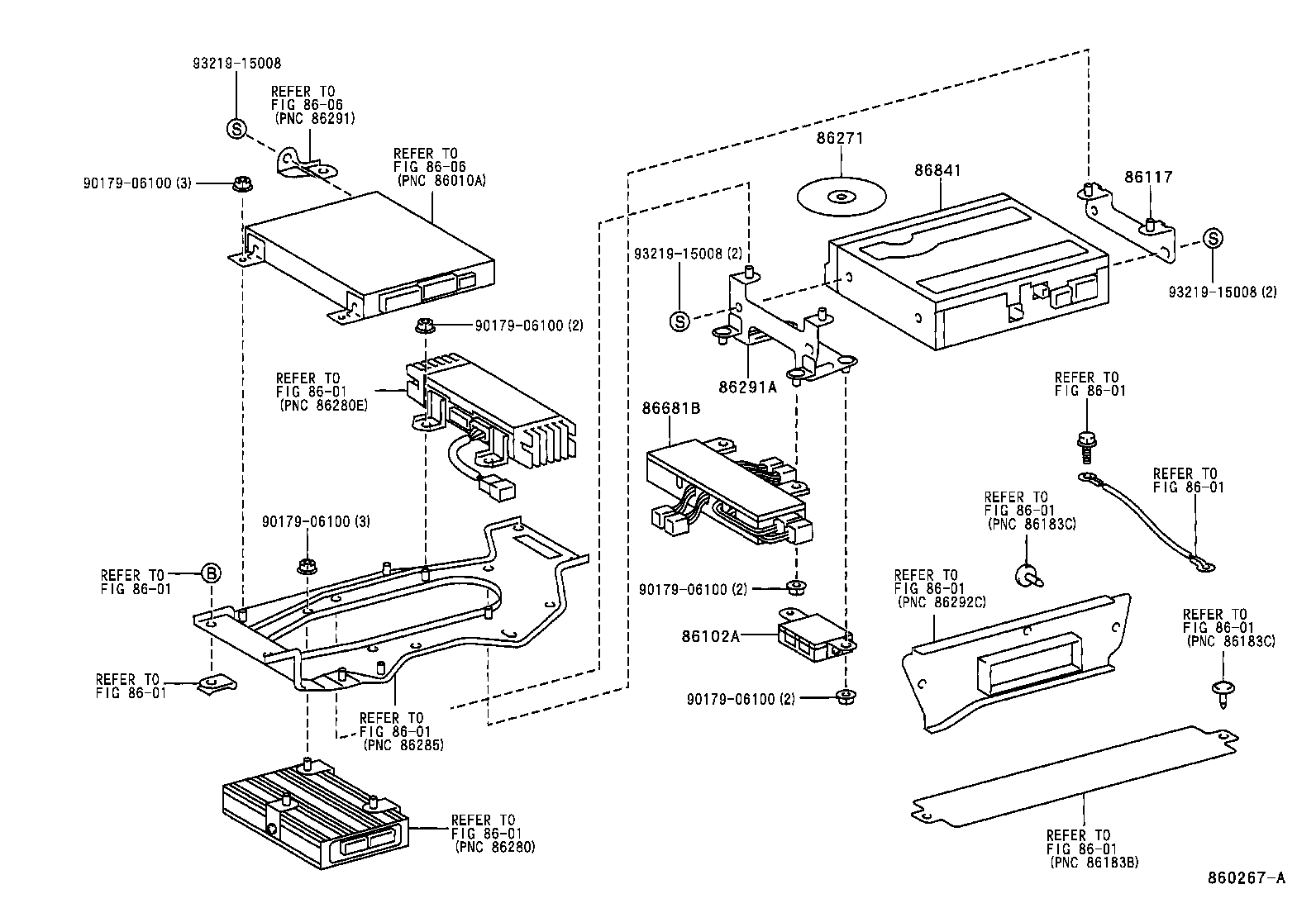

ILLUST NO. 2 OF 2(9704- )

Click highlighted areas on diagram

ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)

Part #	Description	Period	Qty
86102A - SELECTOR SUB-ASSY, ANTENNA
86102-26020	KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1997 - 04/1998	1
86102-26010	KCH4#,RCH41,47..G,STD,WINT	04/1998 - 07/1999	1
86102-26010	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
86102-26020	KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1998 - 07/1999	1
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-26060	KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1997 - 04/1998	1
86117-26050	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
86117-26050	KCH4#,RCH41,47..G,STD,WINT	04/1998 - 07/1999	1
86117-26060	KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1998 - 07/1999	1
86118 - BRACKET, MULTI-DISPLAY CONTROLER, B
86118-26050	KCH4#,RCH41,47..4D..(G,STD,WINT)	04/1998 - 07/1999	1
86118-26050	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
86271 - DISC, DISC PLAYER
86271-33011	KCH4#,RCH41..G,STD,WINT	11/1997 - 04/1998	1
86271-33010	KCH4#,RCH41..G,STD,WINT	04/1997 - 11/1997	1
86271-33011	KCH4#,RCH41,47..G,STD,WINT	04/1998 - 07/1999	1
86681B - DIVIDER, ANTENNA
86681-26030	KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1997 - 04/1998	1
86681-26040	KCH4#,RCH41,47..G,STD,V,WINT	04/1998 - 12/2999	1
86681-26040	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
86681-26030	KCH4#,RCH41,47..4D..(G,STD,V,WINT) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1998 - 12/2999	1
86791A - BRACKET, SELECTOR SUB-ASSY ANTENA
86791-26010	KCH4#,RCH41,47..4D..(G,STD,WINT)	04/1998 - 07/1999	2
86791-26010	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	2
86791A - BRACKET, SELECTOR SUB-ASSY ANTENA
86791-26010	KCH4#,RCH41,47..4D..(G,STD,WINT)	04/1998 - 07/1999	2
86791-26010	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	2
86792A - CONTROLLER, TELEVISION CAMERA
86792-26010	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
86792-26020	KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1997 - 04/1998	1
86792-26010	KCH4#,RCH41,47..G,STD,WINT	04/1998 - 07/1999	1
86792-26020	KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1998 - 07/1999	1
86841 - COMPUTER, NAVIGATION
86841-33011	KCH4#,RCH41..G,STD,WINT	04/1997 - 08/1997	1
86841-47010	KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1998 - 07/1999	1
86841-33012	KCH4#,RCH41..G,STD,WINT	08/1997 - 04/1998	1
Common parts
90179-06100
93219-15008
Linked diagrams
8601
8606

RCH41W-GFSQK (1997)

ILLUST NO. 1 OF 2(9704-9907)

ILLUST NO. 2 OF 2(9704- )

ILLUST NO. 2 OF 2(9704- )

Part Price Details
