RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

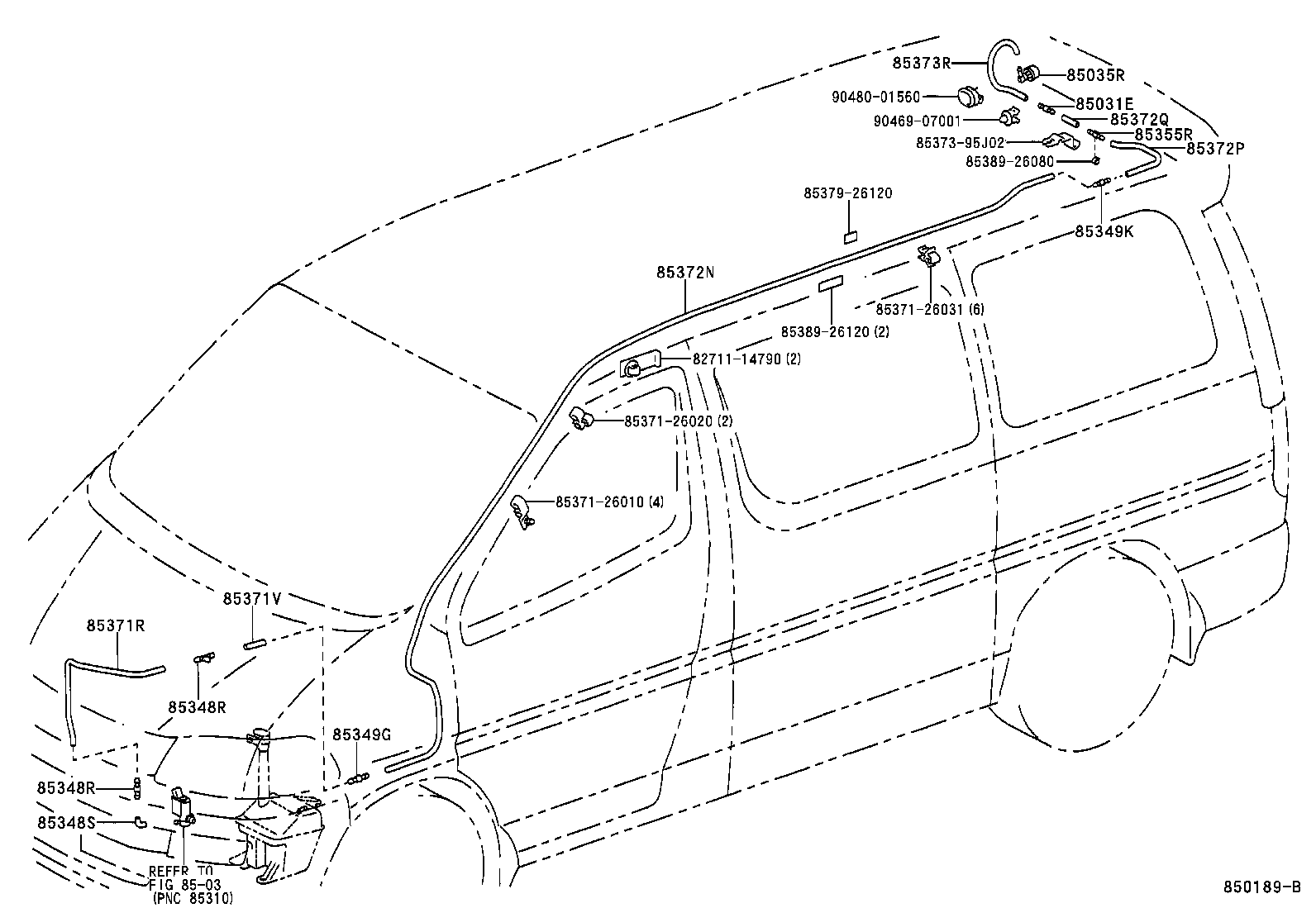

Click highlighted areas on diagram

diagram 8271114790 8503 85031E 85035R 85348R 85348R 85348S 85349G 85349K 85355R 8537126010 8537126020 8537126031 85371R 85371V 85372N 85372P 85372Q 8537395J02 85373R 8537926120 8538926080 8538926120 9046907001 9048001560
Part # Description Qty Price
85031E - VALVE SUB-ASSY REAR WASHER, NO.2
85349-89122

KCH4#,LXH4#,RCH4#

 1
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-26020

KCH4#,LXH4#,RCH4#

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85375-20800

KCH4#,LXH4#,RCH4#

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85375-20800

KCH4#,LXH4#,RCH4#

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-14481

KCH4#,LXH4#,RCH4#

 1
85349G - JOINT, REAR WASHER HOSE, NO.2
85349-89122

KCH4#,LXH4#,RCH4#

 2
85349-89122

KCH4#,LXH4#,RCH4#

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85355-20200

KCH4#,LXH4#,RCH4#

 1
85355R - VALVE, REAR WASHER HOSE
85321-26020

KCH4#,LXH4#,RCH4#

 1
85321-26030

KCH4#,LXH4#,RCH4#

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001

KCH4#,LXH4#,RCH4#

*H,L=850

 1
85371V - HOSE, REAR WASHER (FROM JOINT TO JOINT)
90099-33299

KCH4#,LXH4#,RCH4#

*H,L=40

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-59142

KCH4#,LXH4#,RCH4#

長さ=4300

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-33299

KCH4#,LXH4#,RCH4#

*H,L=400

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-33299

KCH4#,LXH4#,RCH4#

*H,L=90

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-59220

KCH4#,LXH4#,RCH4#

長さ=310

 1
Common parts
82711-14790
85371-26010
85371-26020
85371-26031
85373-95J02
85379-26120
85389-26080
85389-26120
90469-07001
90480-01560
Linked diagrams
8503
