RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

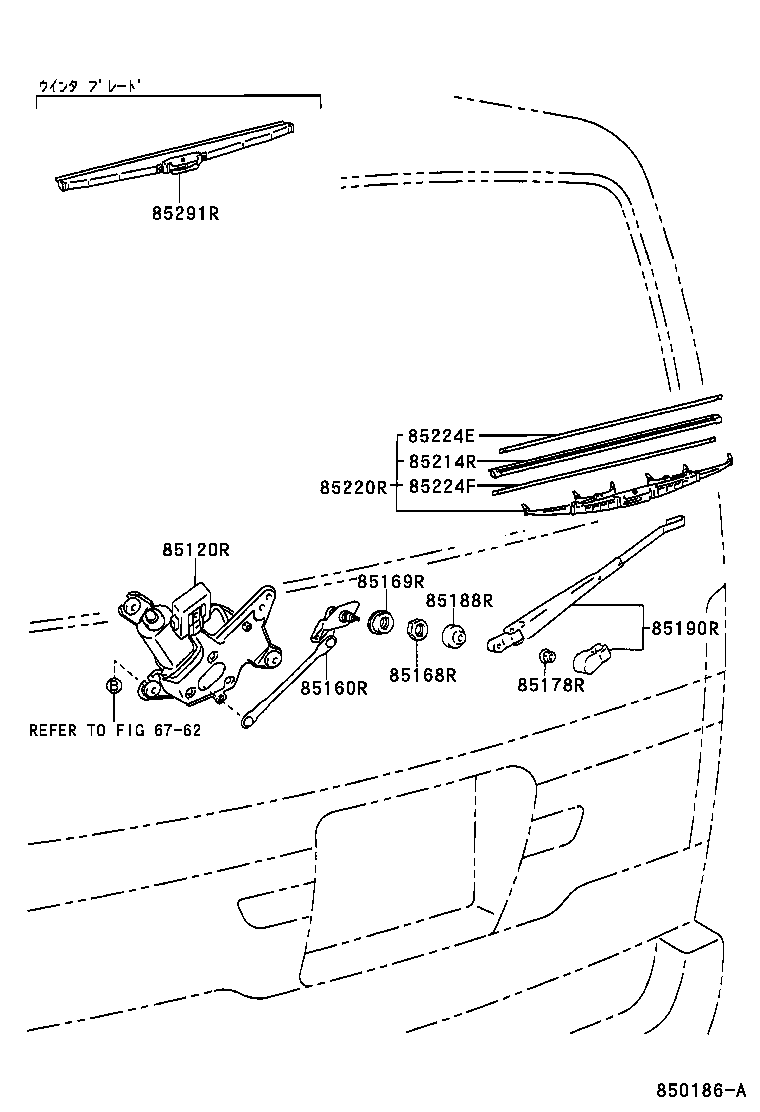

Click highlighted areas on diagram

diagram 6762 85120R 85160R 85168R 85169R 85178R 85188R 85190R 85214R 85220R 85224E 85224F 85291R
Part # Description Qty Price
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85080-26030

KCH4#,LXH4#,RCH4#

 1
85160R - LINK ASSY, REAR WIPER
85170-26050

KCH4#,LXH4#,RCH4#

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
85168-95700

KCH4#,LXH4#,RCH4#

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85134-26060

KCH4#,LXH4#,RCH4#

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06125

KCH4#,LXH4#,RCH4#

 1
90179-06158

KCH4#,LXH4#,RCH4#

 1
85188R - CAP, REAR WIPER PIVOT, NO.1
85178-95J00

KCH4#,LXH4#,RCH4#

 1
85190R - ARM ASSY, REAR WIPER
85241-26030

KCH4#,LXH4#,RCH4#

 1
85214R - RUBBER, REAR WIPER
85214-20420

KCH4#,LXH4#,RCH4#

 1
85220R - BLADE ASSY, REAR WIPER
85242-26030

KCH4#,LXH4#,RCH4#

 1
85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1
85224-1G010

KCH4#,LXH4#,RCH4#

 1
85224F - PLATE, REAR WIPER RUBBER BACKING, NO.2
85224-1G010

KCH4#,LXH4#,RCH4#

 1
85291R - BLADE,REAR WIPER, WINTER
85291-60020

KCH4#,LXH4#,RCH4#

 1
Linked diagrams
6762
