RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

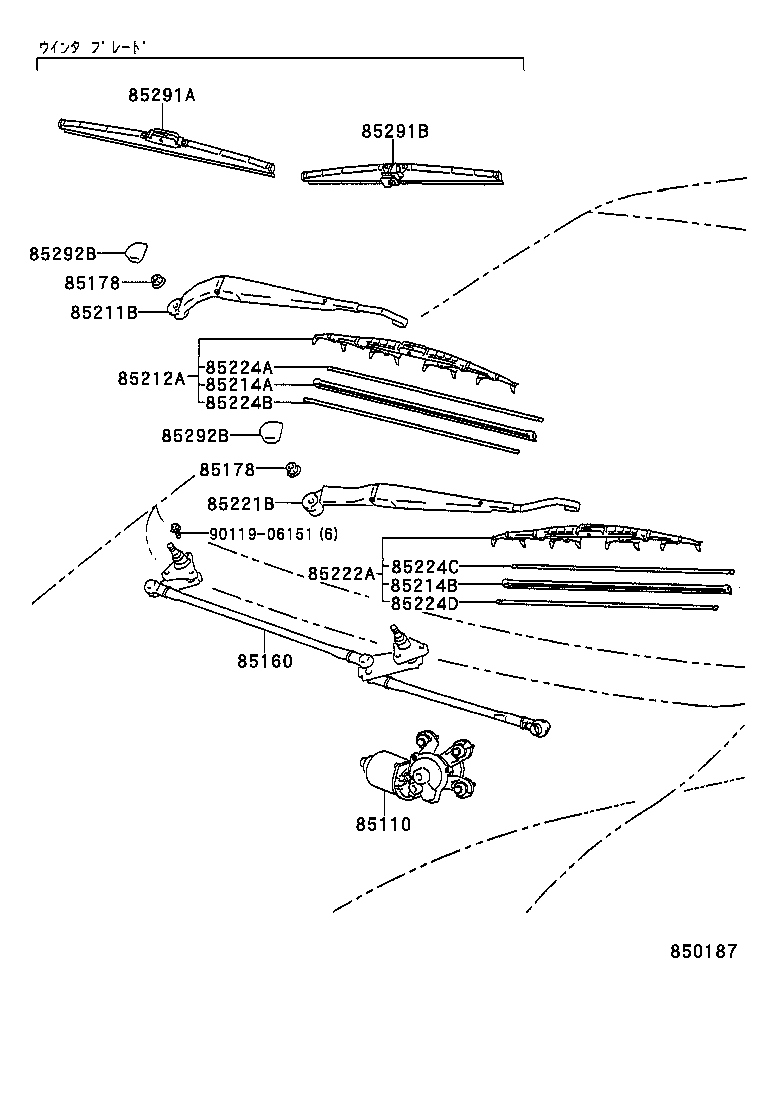

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85224A 85224B 85224C 85224D 85291A 85291B 85292B 85292B 9011906151
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-26110

KCH4#,LXH4#,RCH4#

 1
85110-26120

KCH4#,LXH4#,RCH4#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-26130

KCH4#,LXH4#,RCH4#

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08113

KCH4#,LXH4#,RCH4#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08113

KCH4#,LXH4#,RCH4#

 2
85211B - ARM, FRONT WIPER, RH
85211-26062

KCH4#,LXH4#,RCH4#

 1
85211-26061

KCH4#,LXH4#,RCH4#

 1
85212A - BLADE, FR WIPER, RH
85212-26100

KCH4#,LXH4#,RCH4#

 1
85212-26090

KCH4#,LXH4#,RCH4#

 1
85214A - RUBBER, WIPER, RH
85214-44010

KCH4#,LXH4#,RCH4#

 1
85214B - RUBBER, WIPER, LH
85214-35030

KCH4#,LXH4#,RCH4#

 1
85221B - ARM, FRONT WIPER, LH
85221-26051

KCH4#,LXH4#,RCH4#

 1
85221-26052

KCH4#,LXH4#,RCH4#

 1
85222A - BLADE, FR WIPER, LH
85222-26080

KCH4#,LXH4#,RCH4#

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-26070

KCH4#,LXH4#,RCH4#

 1
85224-44060

KCH4#,LXH4#,RCH4#

 1
85224B - PLATE, WIPER RUBBER BACKING, NO.2
85224-44060

KCH4#,LXH4#,RCH4#

 1
85224-26080

KCH4#,LXH4#,RCH4#

 1
85224C - PLATE, WIPER RUBBER BACKING, NO.3
85224-60100

KCH4#,LXH4#,RCH4#

 1
85224D - PLATE, WIPER RUBBER BACKING, NO.4
85224-60100

KCH4#,LXH4#,RCH4#

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-26030

KCH4#,LXH4#,RCH4#

 1
85291-26040

KCH4#,LXH4#,RCH4#

ｱﾘ(ﾌｲﾝ)

 1
85291-26080

KCH4#,LXH4#,RCH4#

 1
85291-26090

LXH4#;RCH42..MTM;KCH4#..G07S;RCH41,47..W07S;KCH4#,RCH41,47..E,STD,WINT

ｱﾘ(ﾌｲﾝ)

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-26050

KCH4#,LXH4#,RCH4#

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-26010

KCH4#,LXH4#,RCH4#

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-26010

KCH4#,LXH4#,RCH4#

 2
Common parts
90119-06151
