RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704-9907)KCH4#,RCH41,47..G,STD,WINT

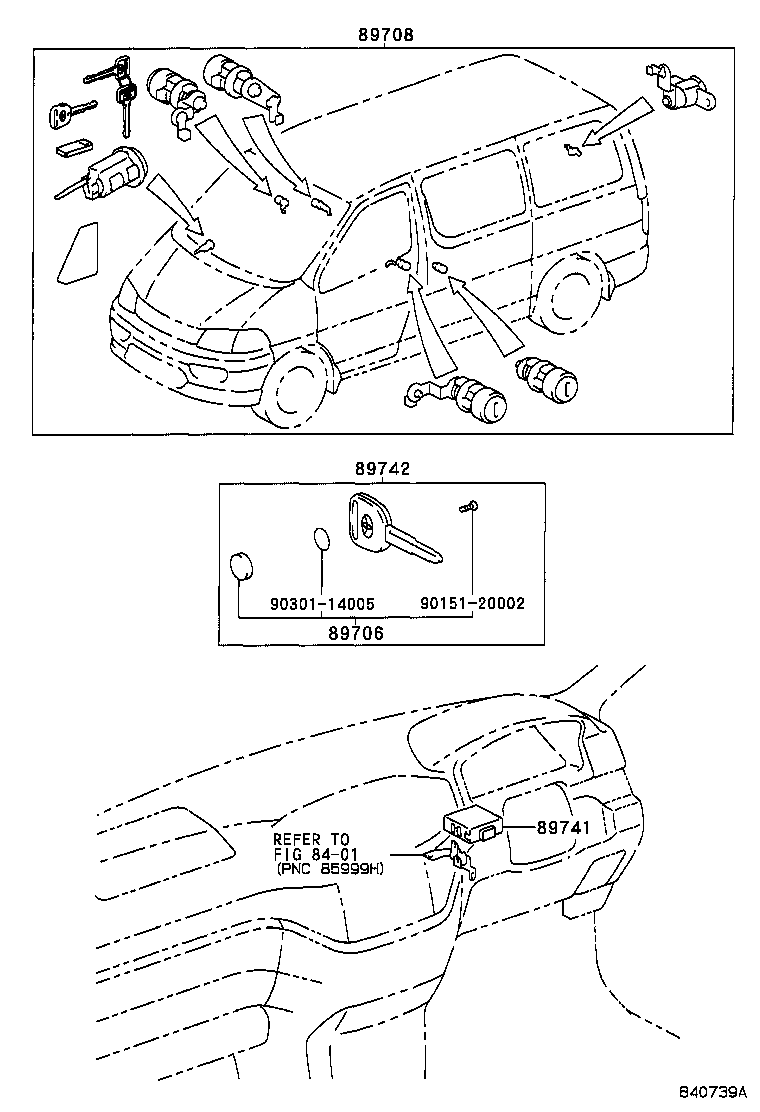

Click highlighted areas on diagram

diagram 8401 89706 89708 89741 89742 9015120002 9030114005
Part # Description Qty Price
89706 - BATTERY SET, TRANSMITTER
89706-50010

KCH4#,RCH41,47..G,STD,WINT

 1
89706-50010

KCH4#,RCH41..G

 1
89708 - CYLINDER SET, WIRELESS DOOR LOCK
89708-26010

KCH4#,RCH41..G

 1
89708-26011

KCH4#,RCH41,47..4D..(G,STD,WINT)

 1
89741 - RECEIVER, DOOR CONTROL
89741-26061

KCH4#,RCH41,47..G,STD,WINT

 1
89741-26061

KCH4#,RCH41..G

 1
89742 - TRANSMITTER, DOOR CONTROL
89742-26050

KCH4#,RCH41..G

1 ﾎﾞﾀﾝ ﾀｲﾌﾟ

 1
89742-26050

KCH4#,RCH41,47..G,STD,WINT

1 ﾎﾞﾀﾝ ﾀｲﾌﾟ

 1
Common parts
90151-20002
90301-14005
Linked diagrams
8401
