RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

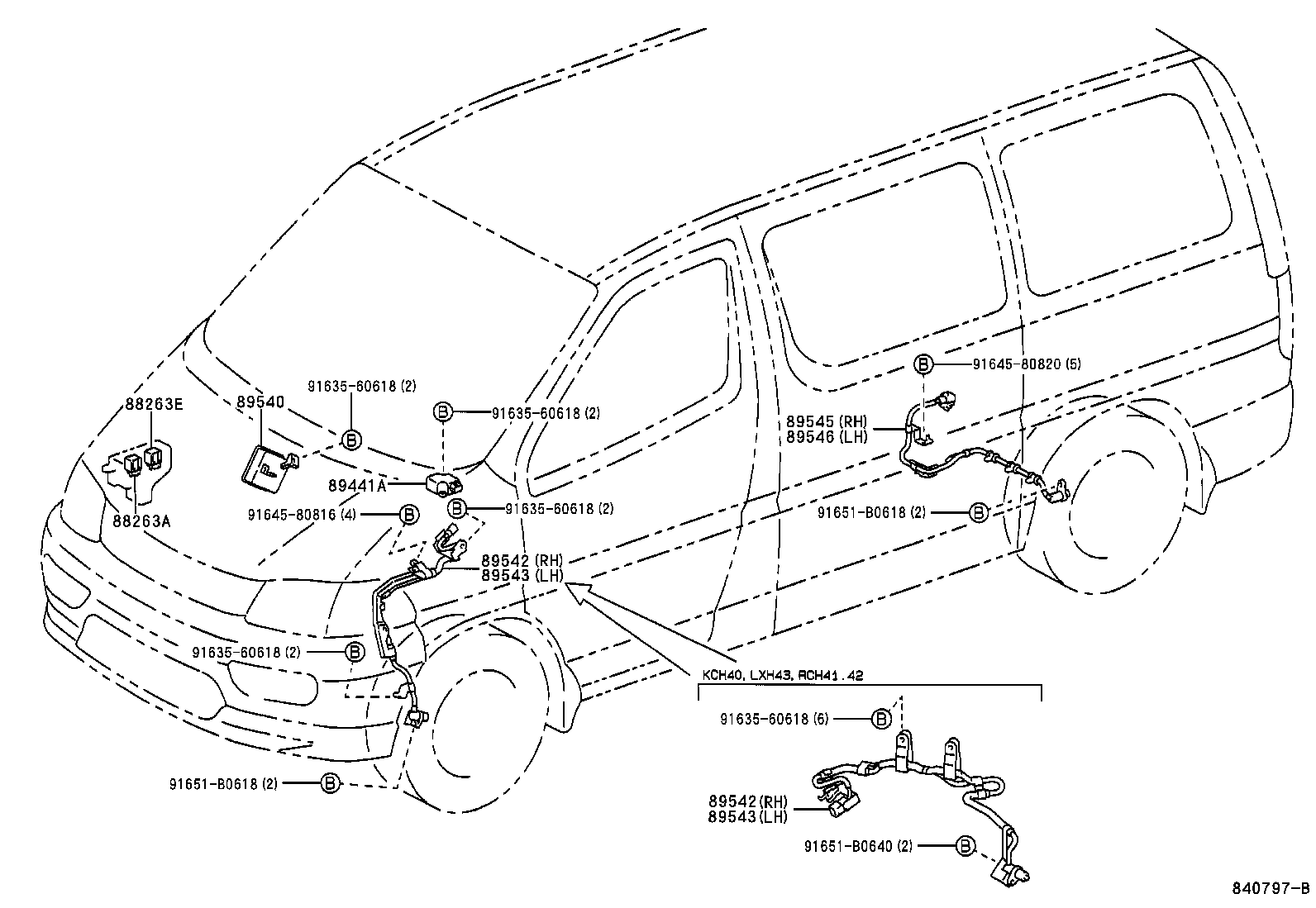

Click highlighted areas on diagram

diagram 88263A 88263E 89441A 89540 89542 89542 89543 89543 89545 89546 9163560618 9163560618 9163560618 9163560618 9163560618 9164580816 9164580820 91651B0618 91651B0618 91651B0640
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-14110

KCH4#,LXH4#,RCH4#

 1
88263E - RELAY, SKID CONTROL NO.2
88263-24030

KCH4#,LXH4#,RCH4#

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-26170

KCH40,RCH41

 1
89542 - SENSOR, SPEED, FRONT RH
89542-26080

KCH40,LXH43,RCH41,42

 1
89542 - SENSOR, SPEED, FRONT RH
89542-26080

KCH40,LXH43,RCH41,42

 1
89543 - SENSOR, SPEED, FRONT LH
89543-26080

KCH40,LXH43,RCH41,42

 1
89543 - SENSOR, SPEED, FRONT LH
89543-26080

KCH40,LXH43,RCH41,42

 1
89545 - SENSOR, SPEED, REAR RH
89545-26060

KCH4#,RCH41,47

 1
89546 - SENSOR, SPEED, REAR LH
89546-26060

KCH4#,RCH41,47

 1
Common parts
91635-60618
91645-80816
91645-80820
91651-B0618
91651-B0640
