RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )RCH4#

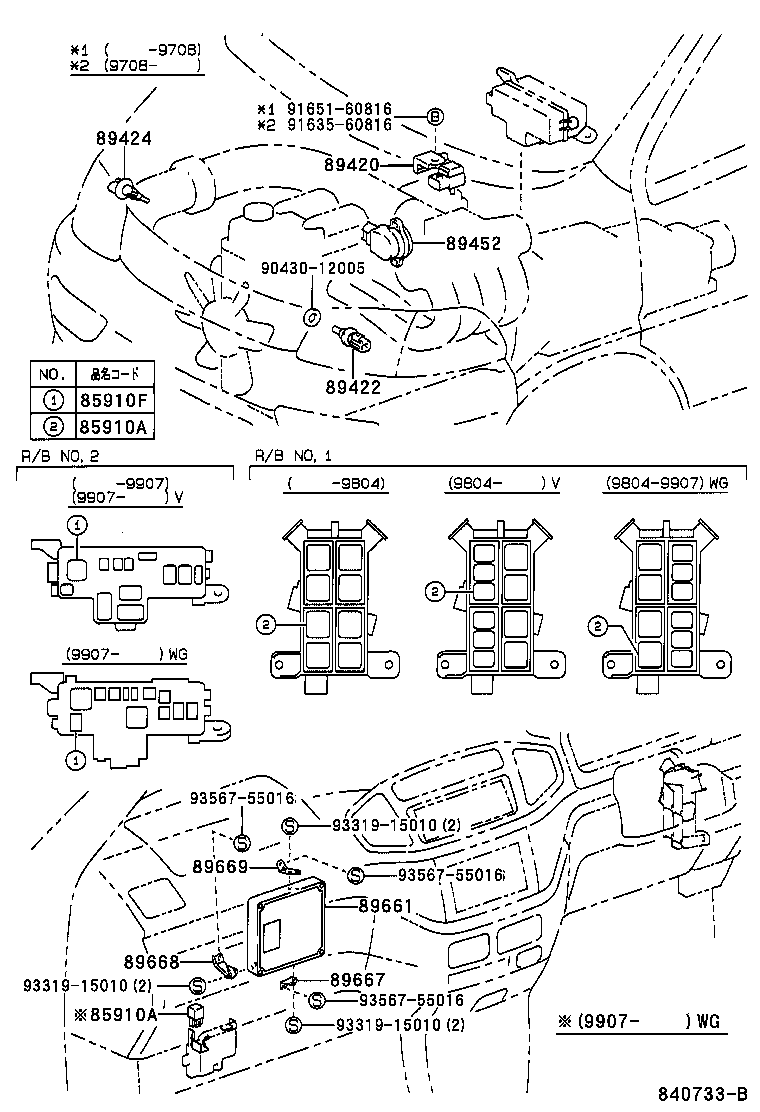

Click highlighted areas on diagram

diagram 85910A 85910A 85910F 89420 89422 89424 89452 89661 89667 89668 89669 9043012005 9163560816 9165160816 9331915010 9331915010 9331915010 9356755016 9356755016 9356755016
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02009

RCH4#

 1
90987-02012

RCH4#

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02009

RCH4#

 1
90987-02012

RCH4#

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02009

RCH4#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

RCH41,47

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

RCH4#

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-22080

RCH4#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-26430

RCH41,47

DENSO

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-26040

RCH4#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-26060

RCH41,47

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-26030

RCH4#

 1
Common parts
90430-12005
91635-60816
91651-60816
93319-15010
93567-55016
