RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

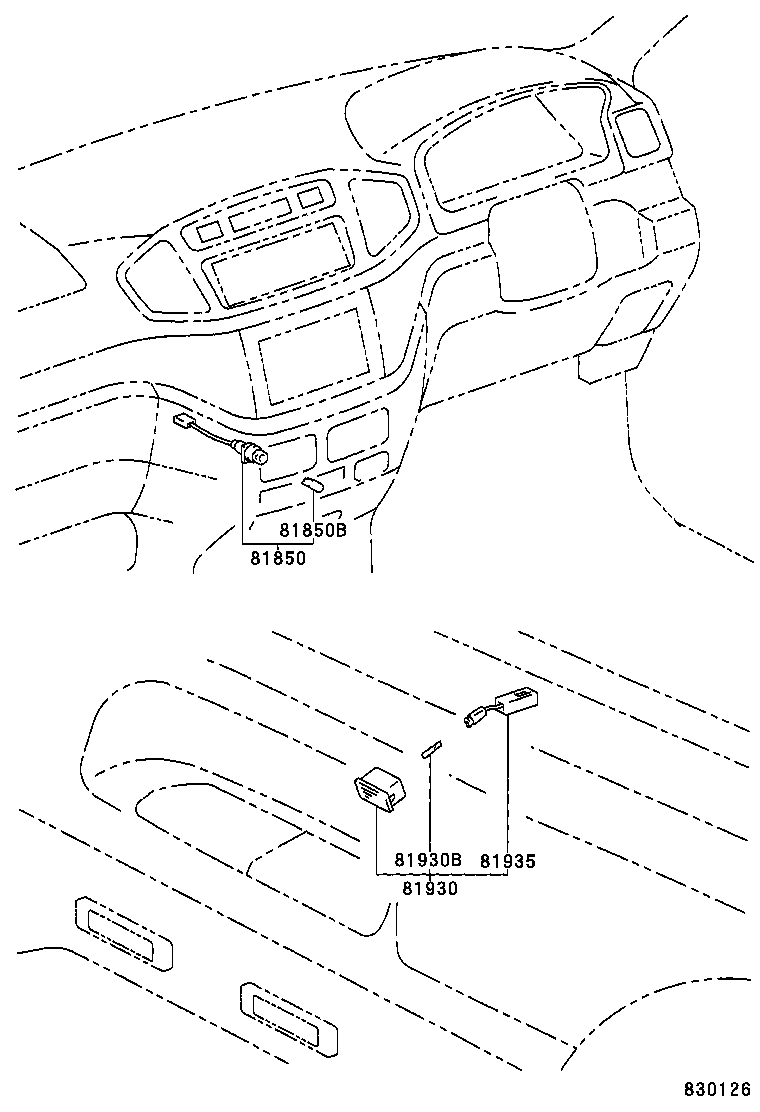

Click highlighted areas on diagram

diagram 81850 81850B 81930 81930B 81935
Part # Description Qty Price
81850 - LAMP ASSY, INDICATOR
81850-26030

KCH4#,LXH4#,RCH4#

 1
81850B - BULB, INDICATOR LAMP
90981-11014

KCH4#,LXH4#,RCH4#

14V 1.4W

 1
81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
81930-26020

KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)

 1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11018

KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)

12V 1.2W ｿｹｯﾄ無し

 1
81935 - SOCKET AND WIRE, HEATER CONTROL INDICATOR LAMP
81935-26010

KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)

 1
