Toyota Regius/touring hiace RCH41 METER

RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999

Engine 3RZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

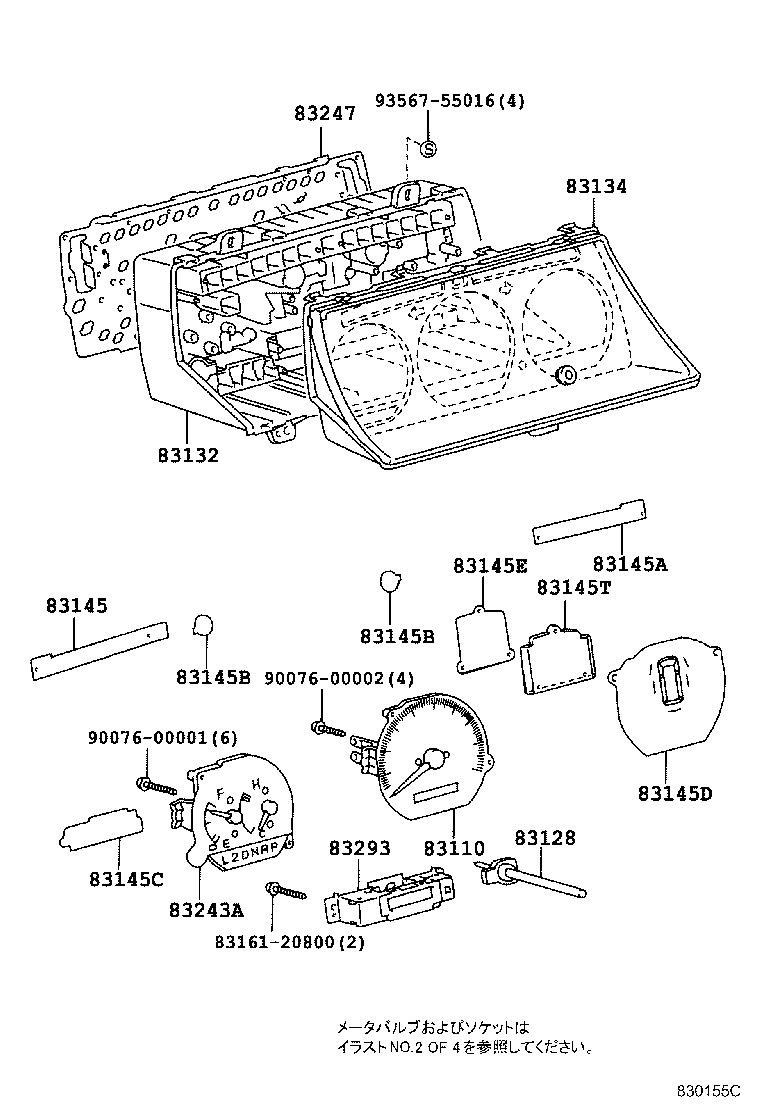

ILLUST NO. 1 OF 4(9704- )G,STD,V,WINT,WISTD

Click highlighted areas on diagram

ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ)

Part #	Description	Period	Qty
83110 - SPEEDOMETER ASSY
83220-26140	RCH41..W07S YAZAKI	04/1997 - 04/1998	1
83220-26210	RCH41,47..G,STD,V YAZAKI,ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ	04/1998 - 12/2999	1
83128 - KNOB, TRIP COUNTER
83224-26380	LXH4#;KCH4#,RCH4#..E,STD,WINT	04/1997 - 04/1998	1
83224-26380	LXH4#;KCH4#,RCH4#..E,STD,V,WINT,WISTD	05/1998 - 12/2999	1
83132 - CASE, COMBINATION METER
83841-26520	RCH41..W07S	04/1997 - 04/1998	1
83841-26510	RCH41,47..G,STD,V;KCH4#..E,G,STD,V,WINT ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ	05/1998 - 12/2999	1
83841-26510	KCH46;RCH47..STD;KCH40..G08S,W08S;RCH41..4D..(G,STD) ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ	04/1998 - 05/1998	1
83134 - COVER, COMBINATION METER, NO.1
83821-26510	KCH4#,RCH41..G	04/1997 - 04/1998	1
83821-26680	RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ	04/1998 - 05/1998	1
83821-26680	KCH4#,RCH41,47..G,STD,V ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ	05/1998 - 12/2999	1
83145 - LENS, METER, NO.1
83831-26510	RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	05/1998 - 07/1999	1
83831-26600	KCH4#,RCH41,47..E,STD,V,WINT,WISTD	05/1998 - 12/2999	1
83831-26510	KCH4#,RCH47..STD;RCH41..4D..(G,STD) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1998 - 05/1998	1
83831-26520	RCH41..W07S	04/1997 - 04/1998	1
83145B - LENS, METER, NO.3
83833-26010	KCH46,LXH4#;KCH40,RCH41..G08S,W07S,W08S	04/1998 - 05/1998	2
83833-26010	KCH4#,LXH4#,RCH4#	04/1997 - 04/1998	2
83833-26010	KCH4#,LXH4#,RCH4#	05/1998 - 12/2999	2
83145B - LENS, METER, NO.3
83833-26010	KCH46,LXH4#;KCH40,RCH41..G08S,W07S,W08S	04/1998 - 05/1998	2
83833-26010	KCH4#,LXH4#,RCH4#	04/1997 - 04/1998	2
83833-26010	KCH4#,LXH4#,RCH4#	05/1998 - 12/2999	2
83145C - LENS, METER, NO.4
83832-26390	LXH4#..ATM;KCH4#,RCH4#..ATM..(E,STD,V,WINT,WISTD)	05/1998 - 12/2999	1
83247 - PLATE, METER CIRCUIT
83861-2F160	RCH41..G,STD ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ	04/1998 - 07/1999	1
83861-26520	RCH41..W07S	04/1997 - 04/1998	1
Common parts
83161-20800
90076-00001
90076-00002
93567-55016

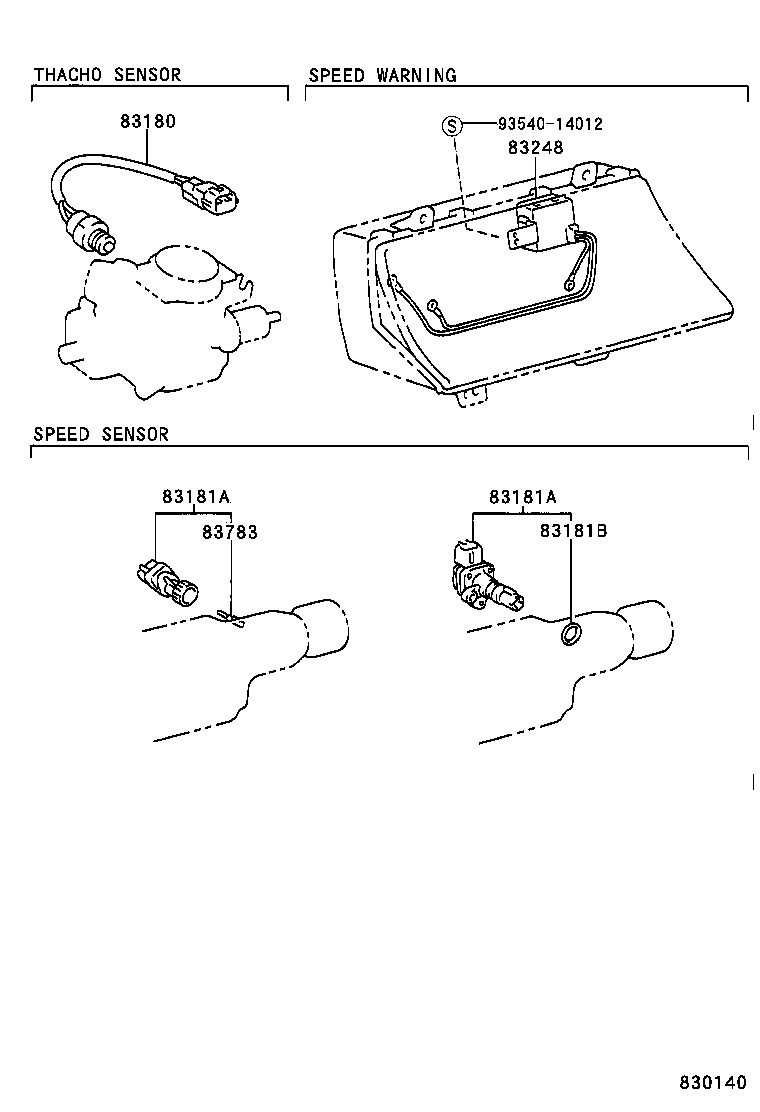

ILLUST NO. 3 OF 4(9704- )

Click highlighted areas on diagram

ｽﾋﾟ-ﾄﾞｳｵ-ﾆﾝｸﾞﾁﾔｲﾑ & ｾﾝｻ

Part #	Description	Period	Qty
83248 - CHIME, SPEED WARNING
86650-30140	KCH4#,LXH4#,RCH4#	04/1997 - 07/1999	1
Common parts
93540-14012

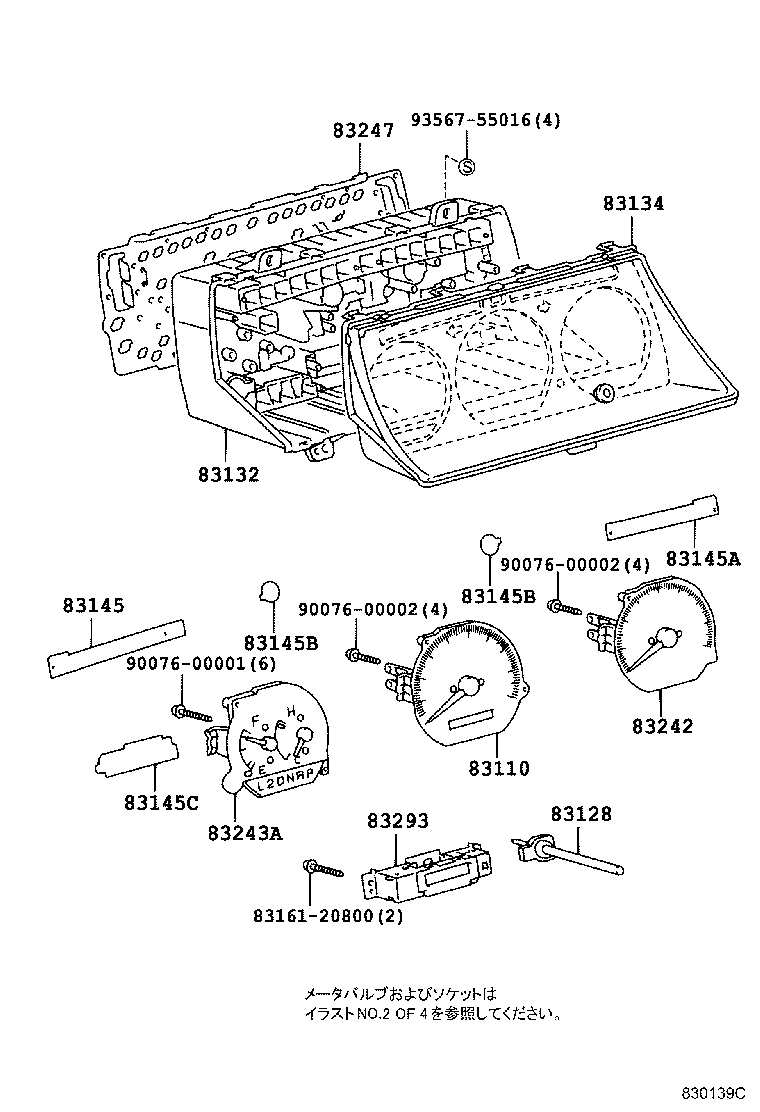

ILLUST NO. 1 OF 4(9704-9907)E

Click highlighted areas on diagram

ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ)

Part #	Description	Period	Qty
83110 - SPEEDOMETER ASSY
83220-26140	RCH41..W07S YAZAKI	04/1997 - 04/1998	1
83220-26210	RCH41,47..G,STD,V YAZAKI,ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ	04/1998 - 12/2999	1
83128 - KNOB, TRIP COUNTER
83224-26380	LXH4#;KCH4#,RCH4#..E,STD,WINT	04/1997 - 04/1998	1
83224-26380	LXH4#;KCH4#,RCH4#..E,STD,V,WINT,WISTD	05/1998 - 12/2999	1
83132 - CASE, COMBINATION METER
83841-26520	RCH41..W07S	04/1997 - 04/1998	1
83841-26510	RCH41,47..G,STD,V;KCH4#..E,G,STD,V,WINT ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ	05/1998 - 12/2999	1
83841-26510	KCH46;RCH47..STD;KCH40..G08S,W08S;RCH41..4D..(G,STD) ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ	04/1998 - 05/1998	1
83134 - COVER, COMBINATION METER, NO.1
83821-26510	KCH4#,RCH41..G	04/1997 - 04/1998	1
83821-26680	RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ	04/1998 - 05/1998	1
83821-26680	KCH4#,RCH41,47..G,STD,V ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ	05/1998 - 12/2999	1
83145 - LENS, METER, NO.1
83831-26510	RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	05/1998 - 07/1999	1
83831-26600	KCH4#,RCH41,47..E,STD,V,WINT,WISTD	05/1998 - 12/2999	1
83831-26510	KCH4#,RCH47..STD;RCH41..4D..(G,STD) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1998 - 05/1998	1
83831-26520	RCH41..W07S	04/1997 - 04/1998	1
83145B - LENS, METER, NO.3
83833-26010	KCH46,LXH4#;KCH40,RCH41..G08S,W07S,W08S	04/1998 - 05/1998	2
83833-26010	KCH4#,LXH4#,RCH4#	04/1997 - 04/1998	2
83833-26010	KCH4#,LXH4#,RCH4#	05/1998 - 12/2999	2
83145B - LENS, METER, NO.3
83833-26010	KCH46,LXH4#;KCH40,RCH41..G08S,W07S,W08S	04/1998 - 05/1998	2
83833-26010	KCH4#,LXH4#,RCH4#	04/1997 - 04/1998	2
83833-26010	KCH4#,LXH4#,RCH4#	05/1998 - 12/2999	2
83145C - LENS, METER, NO.4
83832-26390	LXH4#..ATM;KCH4#,RCH4#..ATM..(E,STD,V,WINT,WISTD)	05/1998 - 12/2999	1
83247 - PLATE, METER CIRCUIT
83861-2F160	RCH41..G,STD ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ	04/1998 - 07/1999	1
83861-26520	RCH41..W07S	04/1997 - 04/1998	1
Common parts
83161-20800
90076-00001
90076-00002
93567-55016

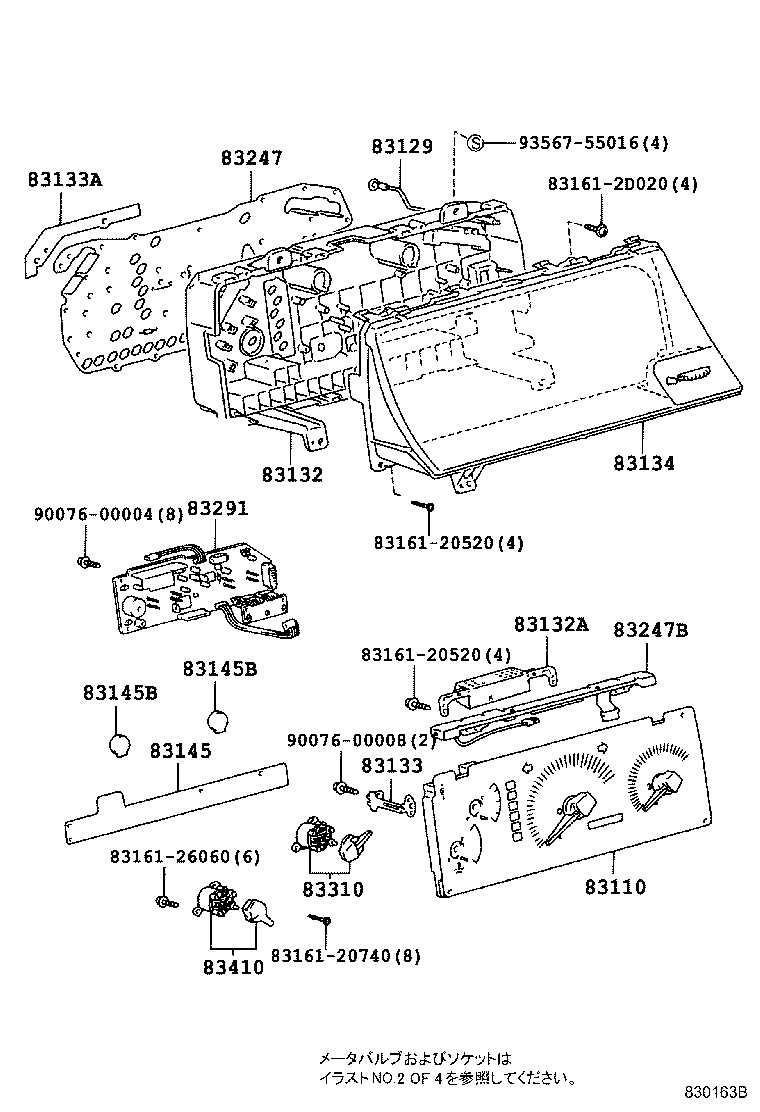

ILLUST NO. 1 OF 4(9704- )

Click highlighted areas on diagram

ｵﾌﾟﾃｨﾄﾛﾝﾒ-ﾀ

Part #	Description	Period	Qty
83110 - SPEEDOMETER ASSY
83220-26140	RCH41..W07S YAZAKI	04/1997 - 04/1998	1
83220-26210	RCH41,47..G,STD,V YAZAKI,ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ	04/1998 - 12/2999	1
83129 - WIRE, METER
83875-26510	KCH40,RCH41..(G,STD)..(G08S,W07S,W08S);KCH46,RCH47..(G,STD)..(G07S,G08S,W08S)	04/1998 - 05/1998	1
83875-26510	KCH4#,RCH41,47..G,STD,V	05/1998 - 12/2999	1
83132 - CASE, COMBINATION METER
83841-26520	RCH41..W07S	04/1997 - 04/1998	1
83841-26510	RCH41,47..G,STD,V;KCH4#..E,G,STD,V,WINT ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ	05/1998 - 12/2999	1
83841-26510	KCH46;RCH47..STD;KCH40..G08S,W08S;RCH41..4D..(G,STD) ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ	04/1998 - 05/1998	1
83132A - CASE, METER
83842-26510	KCH46;RCH47..STD;RCH41..G,STD;KCH40..G08S,W08S	04/1998 - 05/1998	1
83842-26510	KCH4#;RCH41..W07S	04/1997 - 04/1998	1
83842-26510	RCH41,47..G,STD,V;KCH4#..E,G,STD,V,WINT	05/1998 - 12/2999	1
83133 - PLATE, COMBINATION METER, NO.1
83811-26510	KCH46;RCH47..STD;RCH41..G,STD;KCH40..G08S,W08S	04/1998 - 05/1998	1
83811-26510	RCH41,47..G,STD,V;KCH4#..E,G,STD,V,WINT	05/1998 - 12/2999	1
83811-26510	KCH4#;RCH41..W07S	04/1997 - 04/1998	1
83133A - PLATE, COMBINATION METER, NO.2
83812-26510	KCH40,RCH41..(G,STD)..(G08S,W07S,W08S);KCH46,RCH47..(G,STD)..(G07S,G08S,W08S)	04/1998 - 05/1998	1
83812-26510	KCH4#,RCH41,47..G,STD,V	05/1998 - 12/2999	1
83134 - COVER, COMBINATION METER, NO.1
83821-26510	KCH4#,RCH41..G	04/1997 - 04/1998	1
83821-26680	RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ	04/1998 - 05/1998	1
83821-26680	KCH4#,RCH41,47..G,STD,V ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ	05/1998 - 12/2999	1
83145 - LENS, METER, NO.1
83831-26510	RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	05/1998 - 07/1999	1
83831-26600	KCH4#,RCH41,47..E,STD,V,WINT,WISTD	05/1998 - 12/2999	1
83831-26510	KCH4#,RCH47..STD;RCH41..4D..(G,STD) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1998 - 05/1998	1
83831-26520	RCH41..W07S	04/1997 - 04/1998	1
83145B - LENS, METER, NO.3
83833-26010	KCH46,LXH4#;KCH40,RCH41..G08S,W07S,W08S	04/1998 - 05/1998	2
83833-26010	KCH4#,LXH4#,RCH4#	04/1997 - 04/1998	2
83833-26010	KCH4#,LXH4#,RCH4#	05/1998 - 12/2999	2
83145B - LENS, METER, NO.3
83833-26010	KCH46,LXH4#;KCH40,RCH41..G08S,W07S,W08S	04/1998 - 05/1998	2
83833-26010	KCH4#,LXH4#,RCH4#	04/1997 - 04/1998	2
83833-26010	KCH4#,LXH4#,RCH4#	05/1998 - 12/2999	2
83247 - PLATE, METER CIRCUIT
83861-2F160	RCH41..G,STD ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ	04/1998 - 07/1999	1
83861-26520	RCH41..W07S	04/1997 - 04/1998	1
83247B - PLATE, METER CIRCUIT, NO.2
83862-26510	KCH4#;RCH41..W07S	04/1997 - 04/1998	1
83862-26680	RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ	04/1998 - 07/1999	1
83291 - COMPUTER, COMBINATION METER
83291-26150	RCH41..W07S YAZAKI	04/1997 - 04/1998	1
83291-26150	RCH41,47..G,STD YAZAKI	04/1998 - 07/1999	1
83291-26170	RCH41,47..4D..(G,STD) YAZAKI,ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1998 - 07/1999	1
83291-26170	RCH41..W07S YAZAKI,ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1997 - 04/1998	1
83310 - GAGE ASSY, FUEL RECEIVER
83882-26510	RCH41,47..G,STD,V;KCH4#..E,G,STD,V,WINT YAZAKI	05/1998 - 12/2999	1
83882-26510	KCH46;RCH47..STD;RCH41..G,STD;KCH40..G08S,W08S YAZAKI	04/1998 - 05/1998	1
83882-26510	KCH4#;RCH41..W07S YAZAKI	04/1997 - 04/1998	1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83883-26510	KCH46;RCH47..STD;RCH41..G,STD;KCH40..G08S,W08S YAZAKI	04/1998 - 05/1998	1
83883-26510	KCH4#;RCH41..W07S YAZAKI	04/1997 - 04/1998	1
83883-26510	RCH41,47..G,STD,V;KCH4#..E,G,STD,V,WINT YAZAKI	05/1998 - 12/2999	1
Common parts
83161-20520
83161-20740
83161-26060
83161-2D020
90076-00004
90076-00008
93567-55016

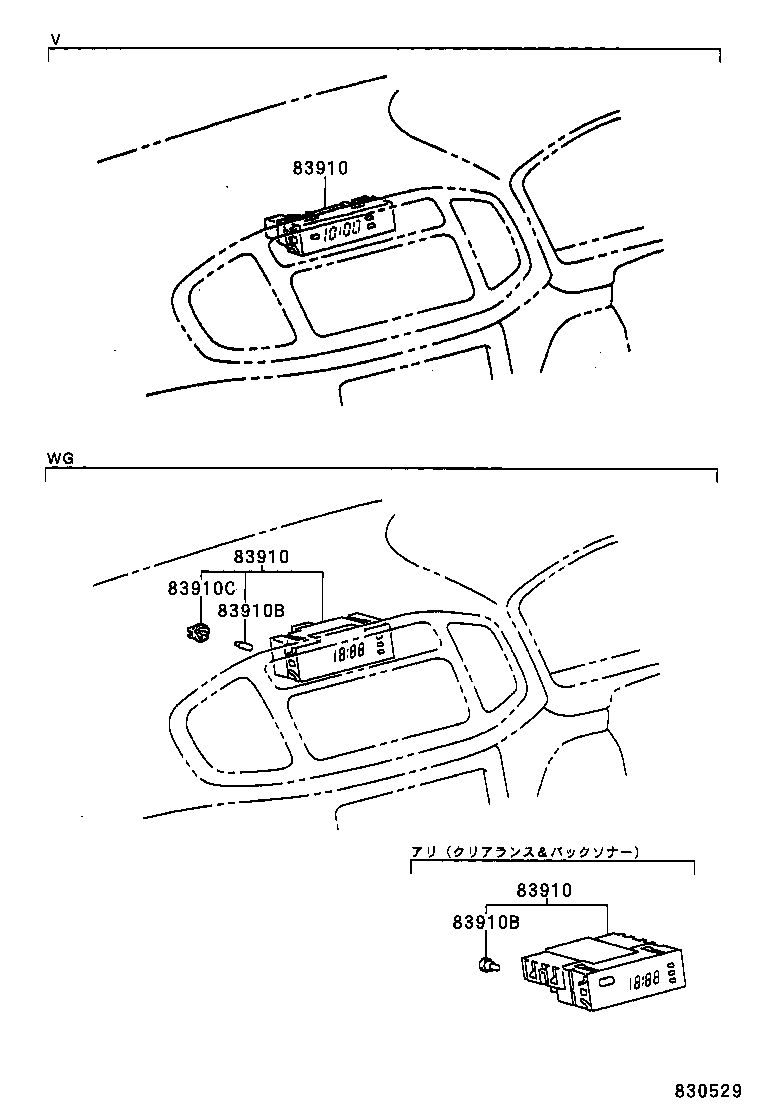

ILLUST NO. 4 OF 4(9704- )

Click highlighted areas on diagram

ｸﾛﾂｸ

Part #	Description	Period	Qty
83910 - CLOCK ASSY
83910-26030	KCH4#,RCH41,47..G,STD ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-)	04/1997 - 07/1999	1
83910-44020	KCH4#,LXH4#,RCH4#	04/1997 - 07/1999	1
83910 - CLOCK ASSY
83910-26030	KCH4#,RCH41,47..G,STD ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-)	04/1997 - 07/1999	1
83910-44020	KCH4#,LXH4#,RCH4#	04/1997 - 07/1999	1
83910 - CLOCK ASSY
83910-26030	KCH4#,RCH41,47..G,STD ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-)	04/1997 - 07/1999	1
83910-44020	KCH4#,LXH4#,RCH4#	04/1997 - 07/1999	1

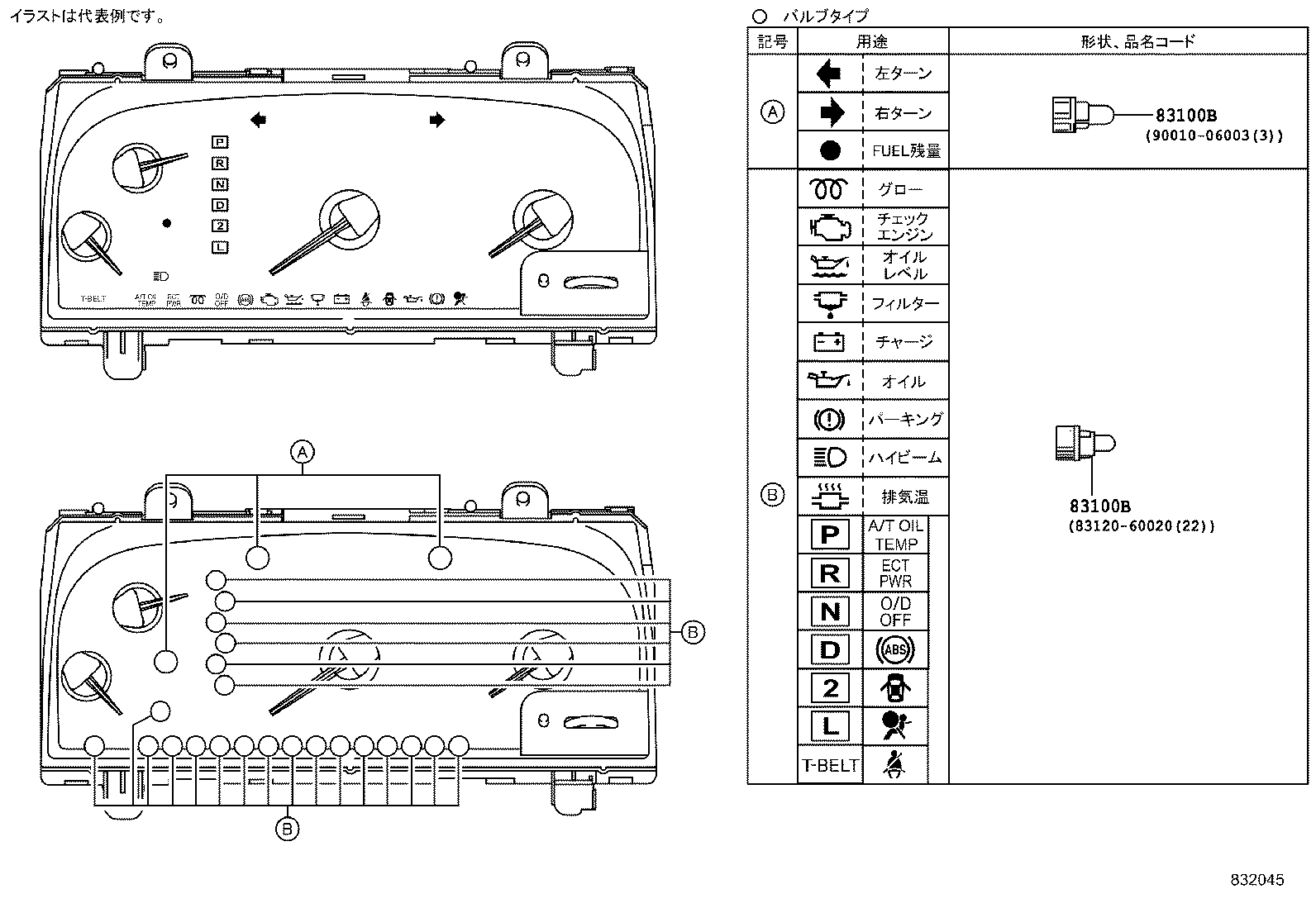

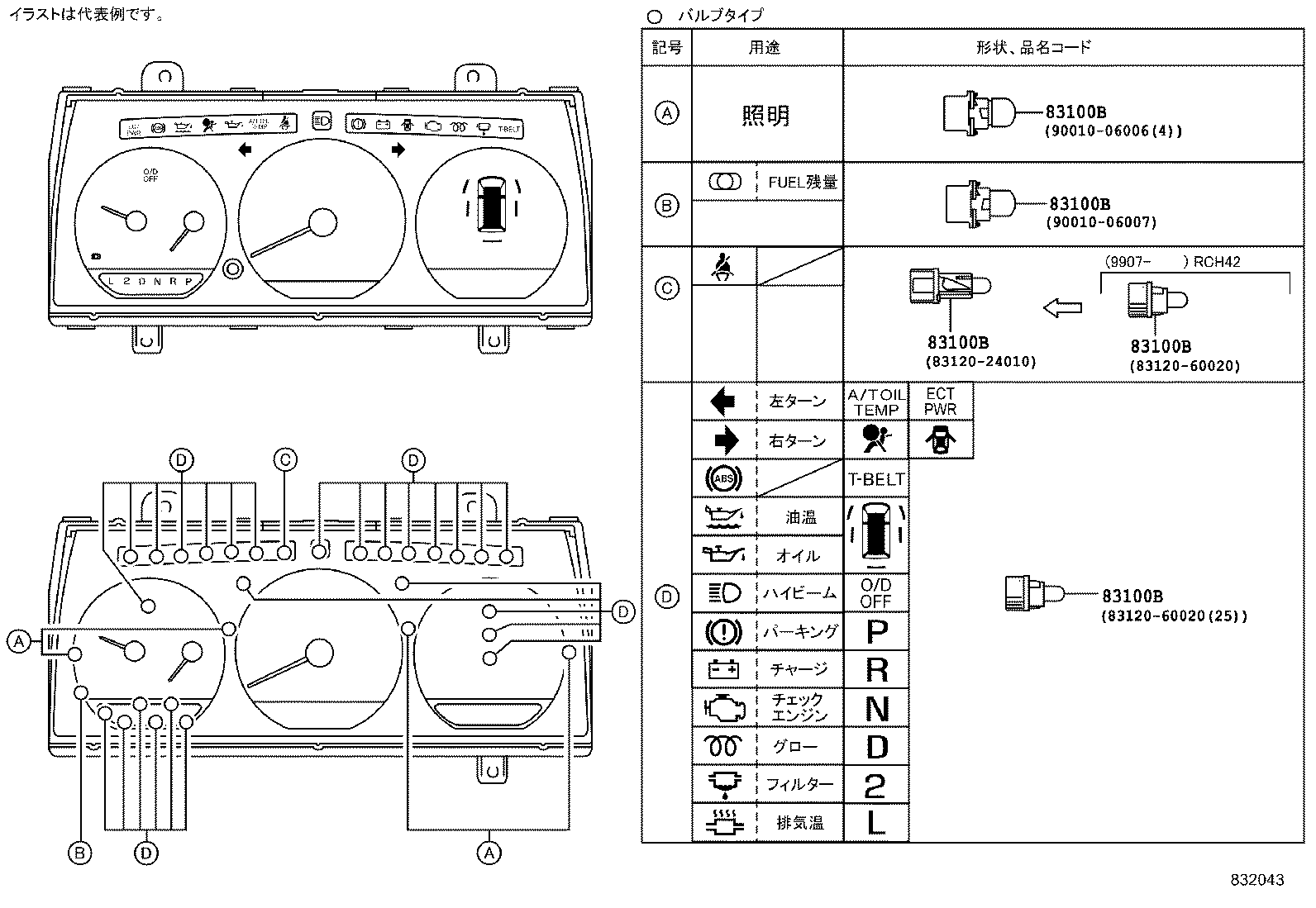

ILLUST NO. 2 OF 4(9704- )E ; (9706- )LXH4#,RCH42..STD

Click highlighted areas on diagram

ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒ-ﾀ:ﾅｼ(ﾀｺﾒ-ﾀ))

Part #	Description	Period	Qty
83100B - BULB, COMBINATION METER, NO.1
83120-60020	KCH4#,LXH4#,RCH4# 12V 1.4W,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06003	KCH4#,RCH41..G 14V 3.0W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06007	LXH4#;KCH4#,RCH4#..E,STD,WINT 12V 3.4W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06003	KCH4#,RCH41,47..G,STD,V 14V 3.0W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
90010-06003	KCH40,RCH41..(G,STD)..(G08S,W07S,W08S);KCH46,RCH47..(G,STD)..(G07S,G08S,W08S) 14V 3.0W,ｿｹｯﾄ付き	04/1998 - 05/1998	1
90010-06007	LXH4#;KCH46..E,STD,WINT;KCH40,RCH4#..E,STD,V,WINT,WISTD 12V 3.4W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
83120-24010	LXH4#;KCH4#,RCH4#..E,STD,WINT 13.5V,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06006	LXH4#..G;KCH4#,RCH41,47..E,STD,WINT 12V 3.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	05/1998 - 12/2999	1
83100B - BULB, COMBINATION METER, NO.1
83120-60020	KCH4#,LXH4#,RCH4# 12V 1.4W,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06003	KCH4#,RCH41..G 14V 3.0W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06007	LXH4#;KCH4#,RCH4#..E,STD,WINT 12V 3.4W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06003	KCH4#,RCH41,47..G,STD,V 14V 3.0W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
90010-06003	KCH40,RCH41..(G,STD)..(G08S,W07S,W08S);KCH46,RCH47..(G,STD)..(G07S,G08S,W08S) 14V 3.0W,ｿｹｯﾄ付き	04/1998 - 05/1998	1
90010-06007	LXH4#;KCH46..E,STD,WINT;KCH40,RCH4#..E,STD,V,WINT,WISTD 12V 3.4W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
83120-24010	LXH4#;KCH4#,RCH4#..E,STD,WINT 13.5V,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06006	LXH4#..G;KCH4#,RCH41,47..E,STD,WINT 12V 3.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	05/1998 - 12/2999	1
83100B - BULB, COMBINATION METER, NO.1
83120-60020	KCH4#,LXH4#,RCH4# 12V 1.4W,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06003	KCH4#,RCH41..G 14V 3.0W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06007	LXH4#;KCH4#,RCH4#..E,STD,WINT 12V 3.4W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06003	KCH4#,RCH41,47..G,STD,V 14V 3.0W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
90010-06003	KCH40,RCH41..(G,STD)..(G08S,W07S,W08S);KCH46,RCH47..(G,STD)..(G07S,G08S,W08S) 14V 3.0W,ｿｹｯﾄ付き	04/1998 - 05/1998	1
90010-06007	LXH4#;KCH46..E,STD,WINT;KCH40,RCH4#..E,STD,V,WINT,WISTD 12V 3.4W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
83120-24010	LXH4#;KCH4#,RCH4#..E,STD,WINT 13.5V,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06006	LXH4#..G;KCH4#,RCH41,47..E,STD,WINT 12V 3.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	05/1998 - 12/2999	1
83100B - BULB, COMBINATION METER, NO.1
83120-60020	KCH4#,LXH4#,RCH4# 12V 1.4W,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06003	KCH4#,RCH41..G 14V 3.0W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06007	LXH4#;KCH4#,RCH4#..E,STD,WINT 12V 3.4W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06003	KCH4#,RCH41,47..G,STD,V 14V 3.0W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
90010-06003	KCH40,RCH41..(G,STD)..(G08S,W07S,W08S);KCH46,RCH47..(G,STD)..(G07S,G08S,W08S) 14V 3.0W,ｿｹｯﾄ付き	04/1998 - 05/1998	1
90010-06007	LXH4#;KCH46..E,STD,WINT;KCH40,RCH4#..E,STD,V,WINT,WISTD 12V 3.4W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
83120-24010	LXH4#;KCH4#,RCH4#..E,STD,WINT 13.5V,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06006	LXH4#..G;KCH4#,RCH41,47..E,STD,WINT 12V 3.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	05/1998 - 12/2999	1
83100B - BULB, COMBINATION METER, NO.1
83120-60020	KCH4#,LXH4#,RCH4# 12V 1.4W,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06003	KCH4#,RCH41..G 14V 3.0W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06007	LXH4#;KCH4#,RCH4#..E,STD,WINT 12V 3.4W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06003	KCH4#,RCH41,47..G,STD,V 14V 3.0W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
90010-06003	KCH40,RCH41..(G,STD)..(G08S,W07S,W08S);KCH46,RCH47..(G,STD)..(G07S,G08S,W08S) 14V 3.0W,ｿｹｯﾄ付き	04/1998 - 05/1998	1
90010-06007	LXH4#;KCH46..E,STD,WINT;KCH40,RCH4#..E,STD,V,WINT,WISTD 12V 3.4W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
83120-24010	LXH4#;KCH4#,RCH4#..E,STD,WINT 13.5V,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06006	LXH4#..G;KCH4#,RCH41,47..E,STD,WINT 12V 3.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	05/1998 - 12/2999	1

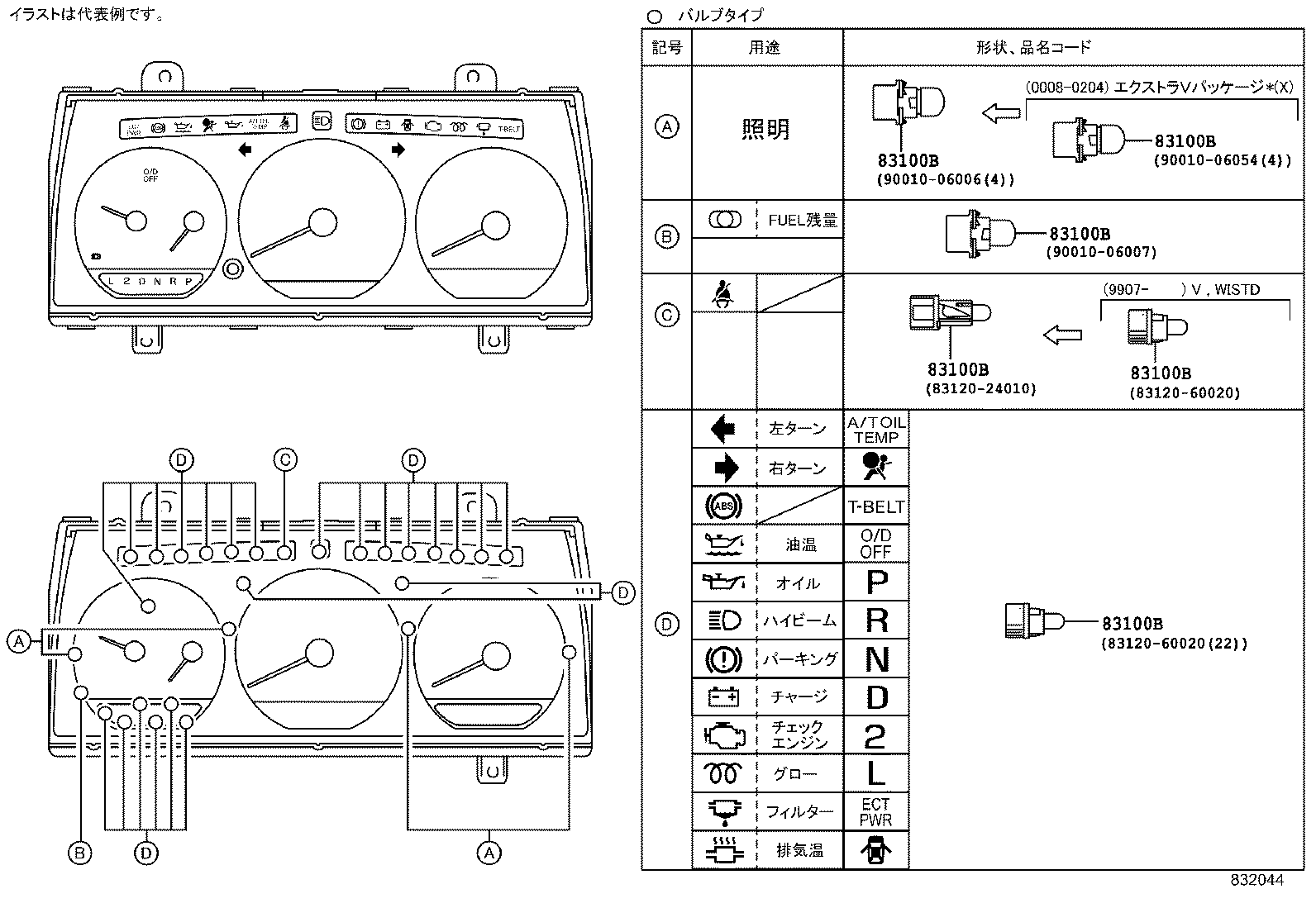

ILLUST NO. 2 OF 4(9704- )G,STD,V,WINT,WISTD

Click highlighted areas on diagram

ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒ-ﾀ:ｱﾘ(ﾀｺﾒ-ﾀ))

Part #	Description	Period	Qty
83100B - BULB, COMBINATION METER, NO.1
83120-60020	KCH4#,LXH4#,RCH4# 12V 1.4W,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06003	KCH4#,RCH41..G 14V 3.0W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06007	LXH4#;KCH4#,RCH4#..E,STD,WINT 12V 3.4W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06003	KCH4#,RCH41,47..G,STD,V 14V 3.0W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
90010-06003	KCH40,RCH41..(G,STD)..(G08S,W07S,W08S);KCH46,RCH47..(G,STD)..(G07S,G08S,W08S) 14V 3.0W,ｿｹｯﾄ付き	04/1998 - 05/1998	1
90010-06007	LXH4#;KCH46..E,STD,WINT;KCH40,RCH4#..E,STD,V,WINT,WISTD 12V 3.4W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
83120-24010	LXH4#;KCH4#,RCH4#..E,STD,WINT 13.5V,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06006	LXH4#..G;KCH4#,RCH41,47..E,STD,WINT 12V 3.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	05/1998 - 12/2999	1
83100B - BULB, COMBINATION METER, NO.1
83120-60020	KCH4#,LXH4#,RCH4# 12V 1.4W,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06003	KCH4#,RCH41..G 14V 3.0W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06007	LXH4#;KCH4#,RCH4#..E,STD,WINT 12V 3.4W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06003	KCH4#,RCH41,47..G,STD,V 14V 3.0W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
90010-06003	KCH40,RCH41..(G,STD)..(G08S,W07S,W08S);KCH46,RCH47..(G,STD)..(G07S,G08S,W08S) 14V 3.0W,ｿｹｯﾄ付き	04/1998 - 05/1998	1
90010-06007	LXH4#;KCH46..E,STD,WINT;KCH40,RCH4#..E,STD,V,WINT,WISTD 12V 3.4W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
83120-24010	LXH4#;KCH4#,RCH4#..E,STD,WINT 13.5V,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06006	LXH4#..G;KCH4#,RCH41,47..E,STD,WINT 12V 3.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	05/1998 - 12/2999	1
83100B - BULB, COMBINATION METER, NO.1
83120-60020	KCH4#,LXH4#,RCH4# 12V 1.4W,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06003	KCH4#,RCH41..G 14V 3.0W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06007	LXH4#;KCH4#,RCH4#..E,STD,WINT 12V 3.4W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06003	KCH4#,RCH41,47..G,STD,V 14V 3.0W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
90010-06003	KCH40,RCH41..(G,STD)..(G08S,W07S,W08S);KCH46,RCH47..(G,STD)..(G07S,G08S,W08S) 14V 3.0W,ｿｹｯﾄ付き	04/1998 - 05/1998	1
90010-06007	LXH4#;KCH46..E,STD,WINT;KCH40,RCH4#..E,STD,V,WINT,WISTD 12V 3.4W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
83120-24010	LXH4#;KCH4#,RCH4#..E,STD,WINT 13.5V,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06006	LXH4#..G;KCH4#,RCH41,47..E,STD,WINT 12V 3.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	05/1998 - 12/2999	1
83100B - BULB, COMBINATION METER, NO.1
83120-60020	KCH4#,LXH4#,RCH4# 12V 1.4W,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06003	KCH4#,RCH41..G 14V 3.0W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06007	LXH4#;KCH4#,RCH4#..E,STD,WINT 12V 3.4W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06003	KCH4#,RCH41,47..G,STD,V 14V 3.0W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
90010-06003	KCH40,RCH41..(G,STD)..(G08S,W07S,W08S);KCH46,RCH47..(G,STD)..(G07S,G08S,W08S) 14V 3.0W,ｿｹｯﾄ付き	04/1998 - 05/1998	1
90010-06007	LXH4#;KCH46..E,STD,WINT;KCH40,RCH4#..E,STD,V,WINT,WISTD 12V 3.4W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
83120-24010	LXH4#;KCH4#,RCH4#..E,STD,WINT 13.5V,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06006	LXH4#..G;KCH4#,RCH41,47..E,STD,WINT 12V 3.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	05/1998 - 12/2999	1
83100B - BULB, COMBINATION METER, NO.1
83120-60020	KCH4#,LXH4#,RCH4# 12V 1.4W,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06003	KCH4#,RCH41..G 14V 3.0W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06007	LXH4#;KCH4#,RCH4#..E,STD,WINT 12V 3.4W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06003	KCH4#,RCH41,47..G,STD,V 14V 3.0W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
90010-06003	KCH40,RCH41..(G,STD)..(G08S,W07S,W08S);KCH46,RCH47..(G,STD)..(G07S,G08S,W08S) 14V 3.0W,ｿｹｯﾄ付き	04/1998 - 05/1998	1
90010-06007	LXH4#;KCH46..E,STD,WINT;KCH40,RCH4#..E,STD,V,WINT,WISTD 12V 3.4W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
83120-24010	LXH4#;KCH4#,RCH4#..E,STD,WINT 13.5V,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06006	LXH4#..G;KCH4#,RCH41,47..E,STD,WINT 12V 3.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	05/1998 - 12/2999	1
83100B - BULB, COMBINATION METER, NO.1
83120-60020	KCH4#,LXH4#,RCH4# 12V 1.4W,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06003	KCH4#,RCH41..G 14V 3.0W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06007	LXH4#;KCH4#,RCH4#..E,STD,WINT 12V 3.4W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06003	KCH4#,RCH41,47..G,STD,V 14V 3.0W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
90010-06003	KCH40,RCH41..(G,STD)..(G08S,W07S,W08S);KCH46,RCH47..(G,STD)..(G07S,G08S,W08S) 14V 3.0W,ｿｹｯﾄ付き	04/1998 - 05/1998	1
90010-06007	LXH4#;KCH46..E,STD,WINT;KCH40,RCH4#..E,STD,V,WINT,WISTD 12V 3.4W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
83120-24010	LXH4#;KCH4#,RCH4#..E,STD,WINT 13.5V,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06006	LXH4#..G;KCH4#,RCH41,47..E,STD,WINT 12V 3.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	05/1998 - 12/2999	1

ILLUST NO. 2 OF 4(9704- )

Click highlighted areas on diagram

ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｵﾌﾟﾃｨﾄﾛﾝﾒｰﾀ)

Part #	Description	Period	Qty
83100B - BULB, COMBINATION METER, NO.1
83120-60020	KCH4#,LXH4#,RCH4# 12V 1.4W,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06003	KCH4#,RCH41..G 14V 3.0W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06007	LXH4#;KCH4#,RCH4#..E,STD,WINT 12V 3.4W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06003	KCH4#,RCH41,47..G,STD,V 14V 3.0W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
90010-06003	KCH40,RCH41..(G,STD)..(G08S,W07S,W08S);KCH46,RCH47..(G,STD)..(G07S,G08S,W08S) 14V 3.0W,ｿｹｯﾄ付き	04/1998 - 05/1998	1
90010-06007	LXH4#;KCH46..E,STD,WINT;KCH40,RCH4#..E,STD,V,WINT,WISTD 12V 3.4W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
83120-24010	LXH4#;KCH4#,RCH4#..E,STD,WINT 13.5V,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06006	LXH4#..G;KCH4#,RCH41,47..E,STD,WINT 12V 3.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	05/1998 - 12/2999	1
83100B - BULB, COMBINATION METER, NO.1
83120-60020	KCH4#,LXH4#,RCH4# 12V 1.4W,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06003	KCH4#,RCH41..G 14V 3.0W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06007	LXH4#;KCH4#,RCH4#..E,STD,WINT 12V 3.4W,ｿｹｯﾄ付き	04/1997 - 04/1998	1
90010-06003	KCH4#,RCH41,47..G,STD,V 14V 3.0W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
90010-06003	KCH40,RCH41..(G,STD)..(G08S,W07S,W08S);KCH46,RCH47..(G,STD)..(G07S,G08S,W08S) 14V 3.0W,ｿｹｯﾄ付き	04/1998 - 05/1998	1
90010-06007	LXH4#;KCH46..E,STD,WINT;KCH40,RCH4#..E,STD,V,WINT,WISTD 12V 3.4W,ｿｹｯﾄ付き	05/1998 - 12/2999	1
83120-24010	LXH4#;KCH4#,RCH4#..E,STD,WINT 13.5V,ｿｹｯﾄ付き	04/1997 - 12/2999	1
90010-06006	LXH4#..G;KCH4#,RCH41,47..E,STD,WINT 12V 3.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	05/1998 - 12/2999	1

RCH41W-GFSQK (1997)

ILLUST NO. 1 OF 4(9704- )G,STD,V,WINT,WISTD

ILLUST NO. 3 OF 4(9704- )

ILLUST NO. 1 OF 4(9704-9907)E

ILLUST NO. 1 OF 4(9704- )

ILLUST NO. 4 OF 4(9704- )

ILLUST NO. 2 OF 4(9704- )E ; (9706- )LXH4#,RCH42..STD

ILLUST NO. 2 OF 4(9704- )G,STD,V,WINT,WISTD

ILLUST NO. 2 OF 4(9704- )

Part Price Details
