RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )KCH4#,RCH41,47

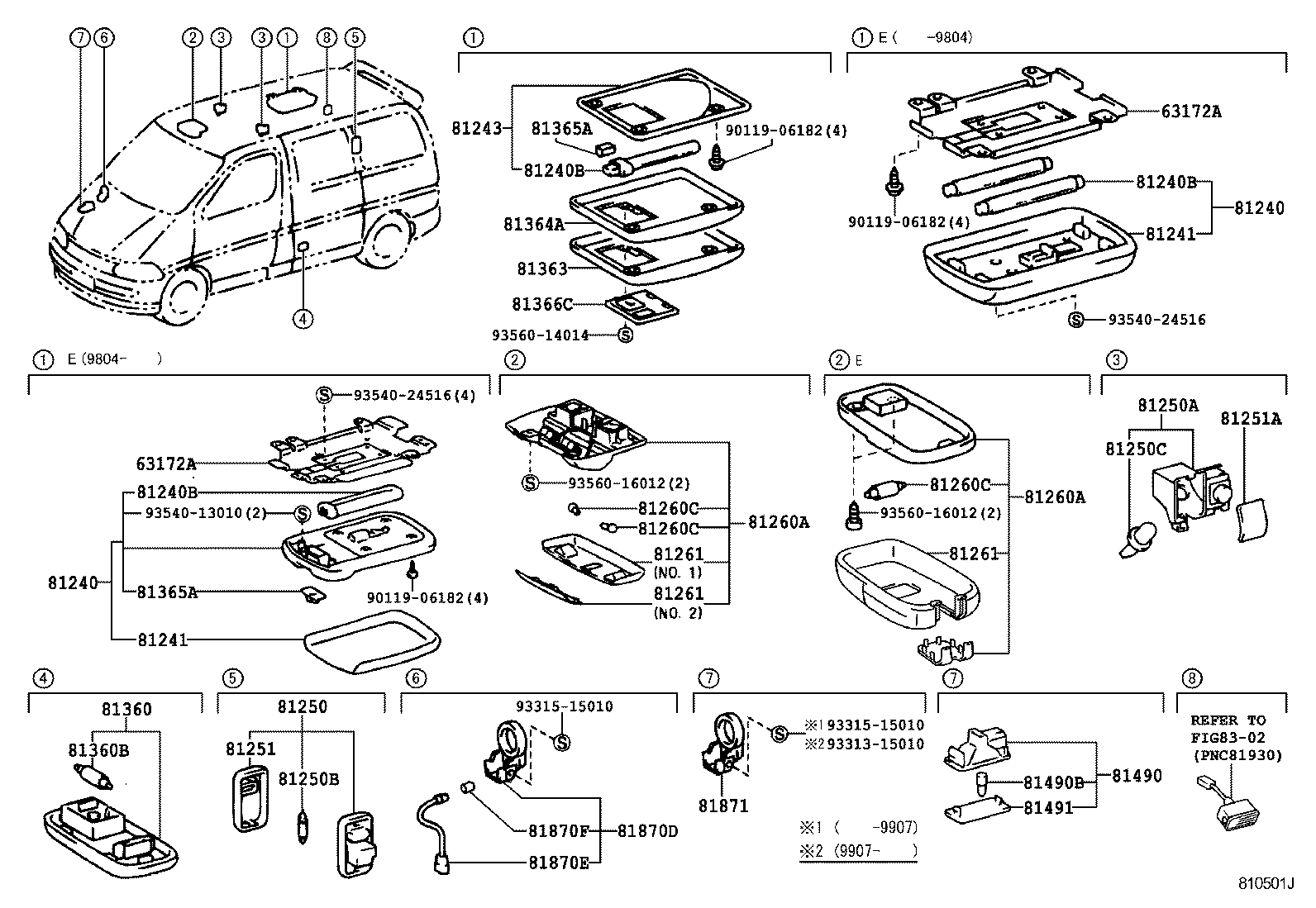

Click highlighted areas on diagram

diagram 63172A 63172A 81240 81240 81240B 81240B 81240B 81241 81241 81243 81250 81250A 81250B 81250C 81251 81251A 81260A 81260A 81260C 81260C 81260C 81261 81261 81261 81360 81360B 81363 81364A 81365A 81365A 81366C 81490 81490B 81491 81870D 81870E 81870F 81871 8302 9011906182 9011906182 9011906182 9331315010 9331515010 9331515010 9354013010 9354024516 9354024516 9356014014 9356016012 9356016012
Part # Description Qty Price
81240B - BULB, ROOM LAMP, NO.1
90981-11046

KCH4#,RCH41,47..G,STD,WINT

12V 13W

 1
90981-11046

LXH4#..G;KCH4#,RCH41,47

12V 13W

 1
81240B - BULB, ROOM LAMP, NO.1
90981-11046

KCH4#,RCH41,47..G,STD,WINT

12V 13W

 1
90981-11046

LXH4#..G;KCH4#,RCH41,47

12V 13W

 1
81240B - BULB, ROOM LAMP, NO.1
90981-11046

KCH4#,RCH41,47..G,STD,WINT

12V 13W

 1
90981-11046

LXH4#..G;KCH4#,RCH41,47

12V 13W

 1
81243 - BODY, ROOM LAMP, NO.1
81243-26080B2

KCH4#,RCH41,47..G,STD

LT.GRAY,TRIM6#

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-13020G1

KCH4#,RCH41,47..G,STD

SAGE,TRIM6#

 1
81250A - LAMP ASSY, SPOT
81250-26020B1

KCH4#,RCH41,47..G,STD

LT.GRAY,TRIM6#,右側

 1
81290-26020B1

KCH4#,RCH41,47..G,STD

LT.GRAY,TRIM6#,左側

 1
81250B - BULB, ROOM LAMP, NO.2
90981-11021

KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)

12V 5W

 1
81250C - BULB, SPOT LAMP
99132-12050

KCH4#,RCH41,47..G,STD,WINT

12V 5W

 2
81251 - LENS, ROOM LAMP, NO.2
81251-12030

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 1
81251A - LENS, SPOT LAMP
81251-26020

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 2
81260A - LAMP ASSY, MAP
81240-95J08B5

RCH41,47..STD;RCH41,47..W07S;KCH4#..(G,STD)..(G07S,G08S)

LT.GRAY,TRIM6#

 1
81260A - LAMP ASSY, MAP
81240-95J08B5

RCH41,47..STD;RCH41,47..W07S;KCH4#..(G,STD)..(G07S,G08S)

LT.GRAY,TRIM6#

 1
81260C - BULB(FOR MAP LAMP)
90981-12020

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12020

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12020

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

12V 8W

 2
81261 - LENS AND COVER, MAP LAMP
81245-95J07B2

KCH4#,RCH41,47..G,STD

LT.GRAY,TRIM6#,NO.2

 1
81241-95J08

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

NO.1

 1
81245-95J07B2

KCH4#,RCH41,47..G,STD,WINT

LT.GRAY,TRIM6#,NO.2

 1
81261 - LENS AND COVER, MAP LAMP
81245-95J07B2

KCH4#,RCH41,47..G,STD

LT.GRAY,TRIM6#,NO.2

 1
81241-95J08

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

NO.1

 1
81245-95J07B2

KCH4#,RCH41,47..G,STD,WINT

LT.GRAY,TRIM6#,NO.2

 1
81261 - LENS AND COVER, MAP LAMP
81245-95J07B2

KCH4#,RCH41,47..G,STD

LT.GRAY,TRIM6#,NO.2

 1
81241-95J08

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

NO.1

 1
81245-95J07B2

KCH4#,RCH41,47..G,STD,WINT

LT.GRAY,TRIM6#,NO.2

 1
81360 - LAMP ASSY, STEP OR SPOT
81250-95J05G0

KCH4#,RCH41,47..4D..(G,STD)

DK.SAGE,TRIM6#

 1
81250-95J05B0

LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD

BLUISH GRAY,TRIM1#

 1
81360B - BULB, STEP OR SPOT LAMP
99132-13050

LXH4#..G;KCH4#,RCH41,47..4D

12V 5W

 1
81363 - LENS, ROOM LAMP, OUTER
81363-26010

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 1
81364A - LENS, ROOM LAMP, INNER
81364-26010

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 1
81365A - KNOB, ROOM LAMP SWITCH
81365-26010

KCH4#,RCH41,47..G,STD,WINT

 1
81365A - KNOB, ROOM LAMP SWITCH
81365-26010

KCH4#,RCH41,47..G,STD,WINT

 1
81366C - BASE, ROOM LAMP SWITCH
81366-26010B2

KCH4#,RCH41,47..G,STD

LT.GRAY,TRIM6#

 1
81490 - LAMP ASSY, FOOT
81490-26010

KCH4#,RCH41,47..G

 1
81490B - BULB (FOR FOOT LAMP)
90981-11018

KCH4#,RCH41,47..G

12V 1.2W ｿｹｯﾄ無し

 1
81491 - LENS, FOOT LAMP
81261-50010

KCH4#,RCH41,47..G

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-26011

LXH4#..G;KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11014

LXH4#..G;KCH4#,RCH41,47..G,STD,V,WINT,WISTD

14V 1.4W

 1
81870F - CAP, KEY CYLINDER LAMP BULB
84998-10070

LXH4#..G;KCH4#,RCH41,47..G,STD,WINT

 1
Common parts
90119-06182
93313-15010
93315-15010
93540-13010
93540-24516
93560-14014
93560-16012
Linked diagrams
8302
