RCH41W-GFSQK (1997)
Toyota Regius/Touring Hiace

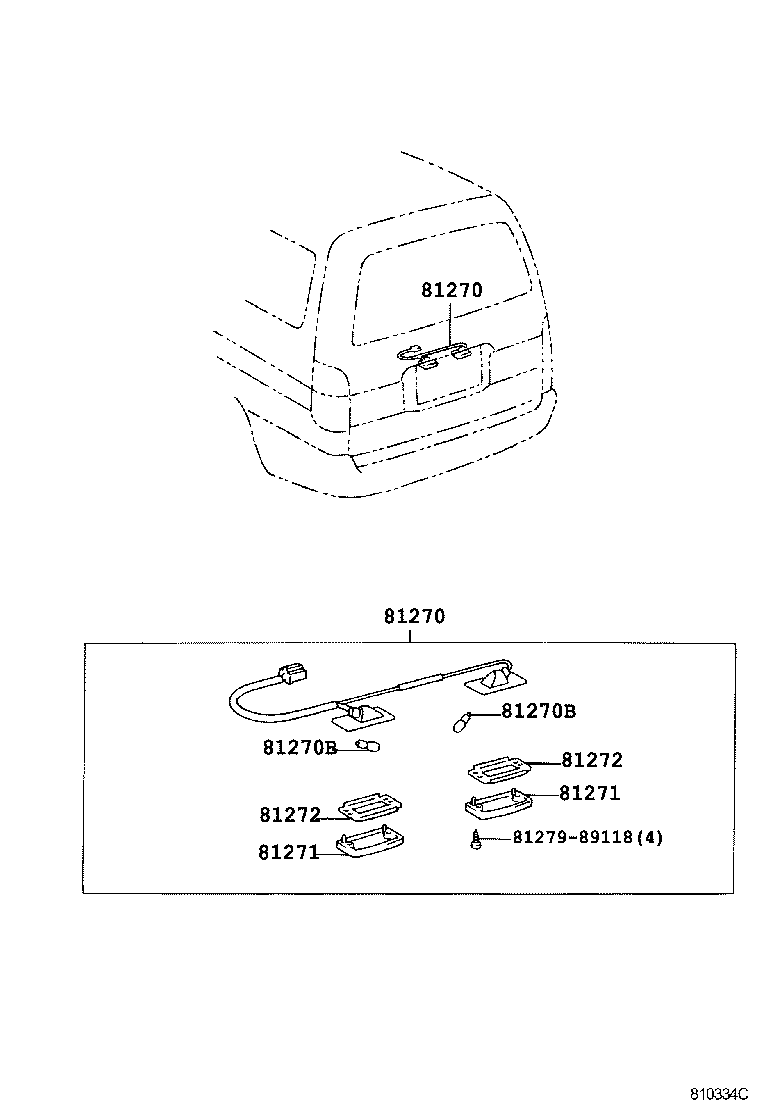

ILLUST NO. 1 OF 2(9704- )KCH4#,RCH41,47
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-26070 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 81270-26080 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 81270-26080 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-26070 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 81270-26080 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 81270-26080 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
KCH4#,LXH4#,RCH4# 12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
KCH4#,LXH4#,RCH4# 12V 5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-95J07 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 81274-13240 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),左側 |
1 | ||
| 81274-13240 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),左側 |
1 | ||
| 81273-13240 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),右側 |
1 | ||
| 81273-13240 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),右側 |
1 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-95J07 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 81274-13240 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),左側 |
1 | ||
| 81274-13240 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),左側 |
1 | ||
| 81273-13240 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),右側 |
1 | ||
| 81273-13240 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),右側 |
1 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-95J07 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-95J07 |
KCH4#,LXH4#,RCH4# |
2 | ||
| Common parts | ||||
| 81279-89118 | ||||

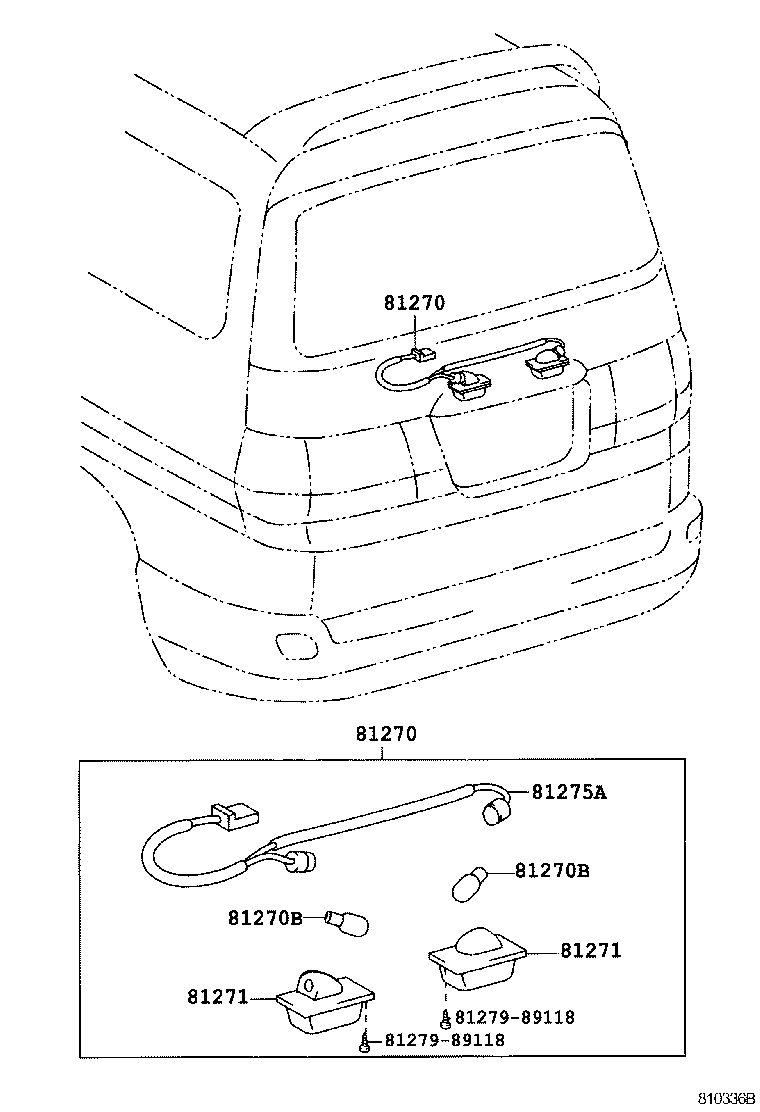

ILLUST NO. 2 OF 2(9704- )KCH4#,RCH41,47
ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-26070 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 81270-26080 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 81270-26080 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-26070 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 81270-26080 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 81270-26080 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
KCH4#,LXH4#,RCH4# 12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
KCH4#,LXH4#,RCH4# 12V 5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-95J07 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 81274-13240 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),左側 |
1 | ||
| 81274-13240 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),左側 |
1 | ||
| 81273-13240 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),右側 |
1 | ||
| 81273-13240 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),右側 |
1 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-95J07 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 81274-13240 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),左側 |
1 | ||
| 81274-13240 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),左側 |
1 | ||
| 81273-13240 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),右側 |
1 | ||
| 81273-13240 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),右側 |
1 | ||
| 81275A - CORD, LICENSE PLATE LAMP | ||||
| 81275-26080 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 81275-26080 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| Common parts | ||||
| 81279-89118 | ||||
