RCH41W-GFSQK (1997)
Toyota Regius/Touring Hiace
Production
Apr 1997
-
Jul 1999
Engine
3RZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

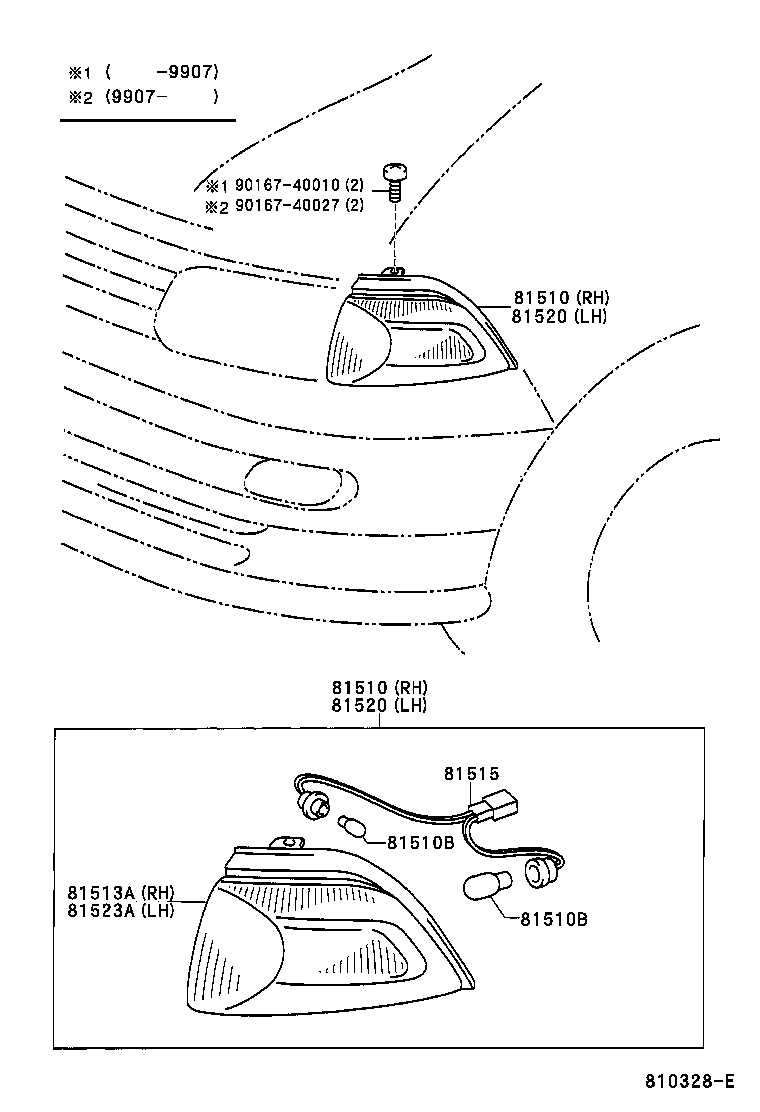

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-26140 |
KCH4#,RCH41,47..E,G,STD |
1 | ||
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-26140 |
KCH4#,RCH41,47..E,G,STD |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-12050 |
KCH4#,LXH4#,RCH4# 12V 5W |
2 | ||
| 90981-11042 |
KCH4#,LXH4#,RCH4# 12V 21W |
2 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-12050 |
KCH4#,LXH4#,RCH4# 12V 5W |
2 | ||
| 90981-11042 |
KCH4#,LXH4#,RCH4# 12V 21W |
2 | ||
| 81513A - UNIT ASSY, FRONT TURN SIGNAL LAMP, RH | ||||
| 81513-26140 |
KCH4#,RCH41,47..E,G,STD |
1 | ||
| 81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY | ||||
| 81515-26140 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-26140 |
KCH4#,RCH41,47..E,G,STD |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-26140 |
KCH4#,RCH41,47..E,G,STD |
1 | ||
| 81523A - UNIT ASSY, FRONT TURN SIGNAL LAMP, LH | ||||
| 81523-26140 |
KCH4#,RCH41,47..E,G,STD |
1 | ||
| Common parts | ||||
| 90167-40010 | ||||
| 90167-40027 | ||||
