RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )RCH4#

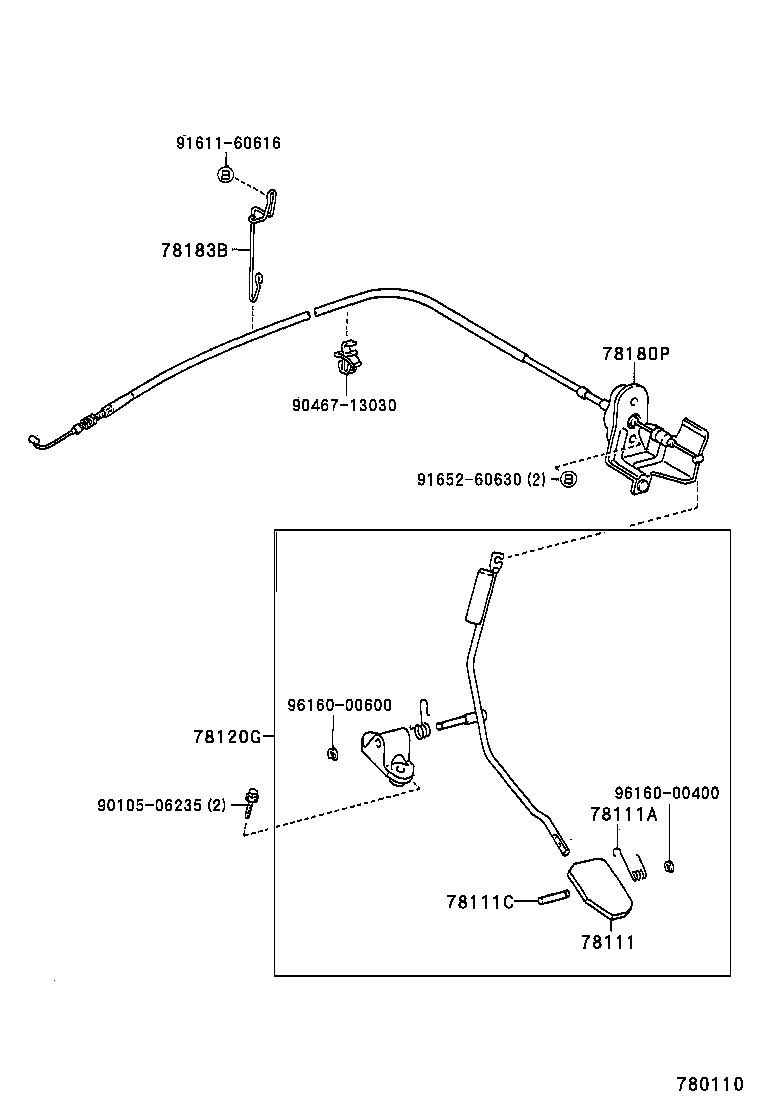

Click highlighted areas on diagram

diagram 78111 78111A 78111C 78120G 78180P 78183B 9010506235 9046713030 9161160616 9165260630 9616000400 9616000600
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78111-20050

KCH4#,LXH4#,RCH4#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18050

LXH4#,RCH4#;KCH4#..G07S;KCH4#..E,STD,WINT

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

KCH4#,LXH4#,RCH4#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-26070

LXH4#,RCH4#..ATM

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-26150

RCH41,47

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-26090

RCH41,47

 1
Common parts
90105-06235
90467-13030
91611-60616
91652-60630
96160-00400
96160-00600
