RCH41W-GFSQK (1997)
Toyota Regius/Touring Hiace
(9704- )RCH4#

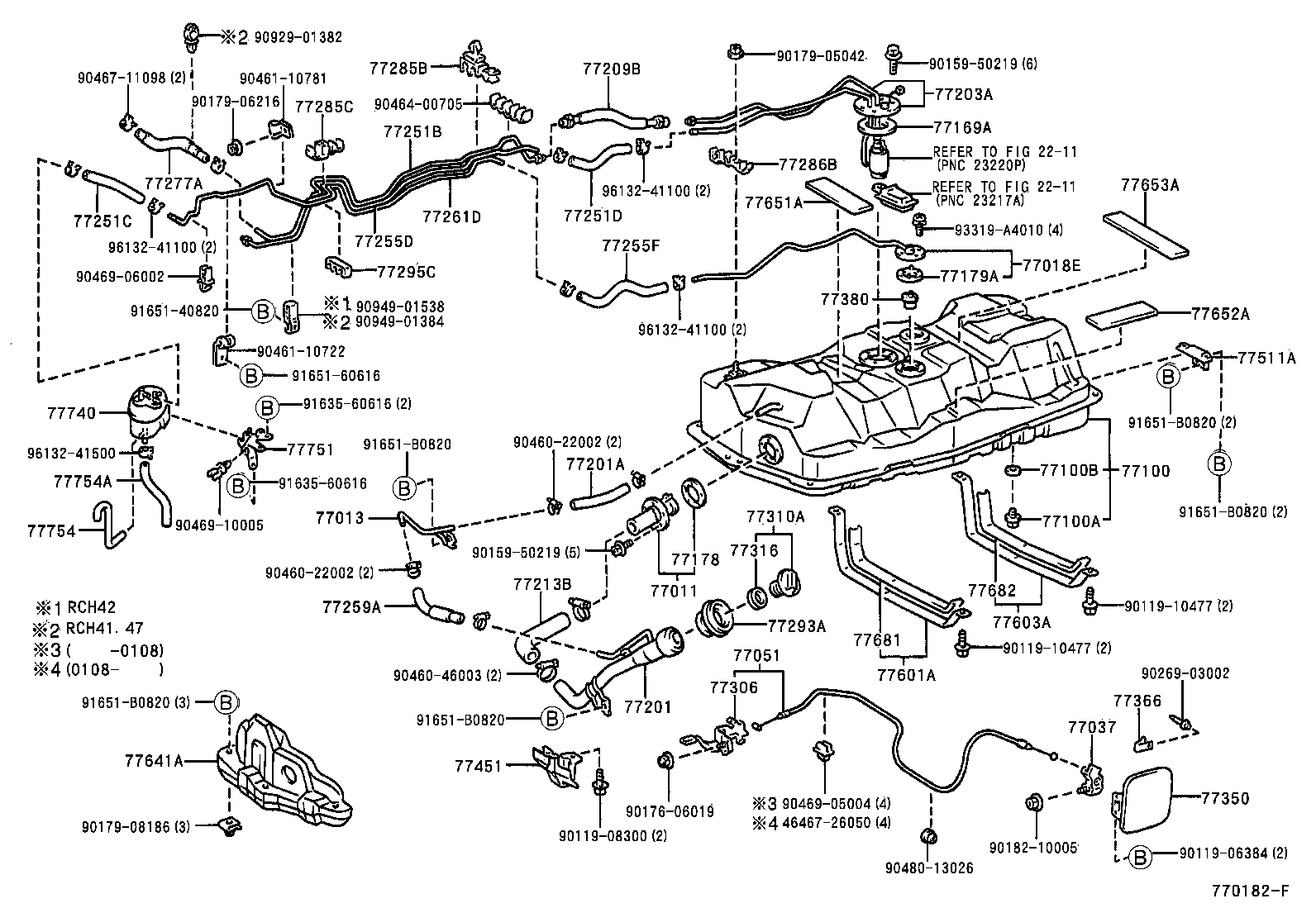

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-26050 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 | ||||
| 77013-26110 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-26220 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-95D01 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77050-26030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-26630 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-32010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-26200 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95313-13017 |
KCH4#,LXH4#,RCH4# 長さ=170 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-26180 |
RCH4# |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-26050 |
RCH4# |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-26100 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-26800 |
RCH41,47 |
1 | ||
| 77251-26850 |
RCH41,47 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95333-06020 |
RCH4# *H,L=160 |
1 | ||
| 95333-06020 |
RCH4# *H,L=150 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-06020 |
RCH4# *H,L=160 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-26550 |
RCH41,47 |
1 | ||
| 77255-26510 |
RCH41,47 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06040 |
RCH4# *H,L=320 |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-26050 |
KCH4#,LXH4#,RCH4# 長さ=220 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-26100 |
RCH4# |
1 | ||
| 77261-26070 |
RCH4# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-75070 |
RCH41,47 長さ=520 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-26030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN) | ||||
| 77285-26040 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77285-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-26010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-35110 |
RCH4# |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-35070 |
RCH4# |
1 | ||
| 77310-48010 |
RCH4# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-95J01 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77451 - PROTECTOR, FUEL INLET HOSE | ||||
| 77451-26030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77511-26030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26090 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-26060 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-26030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-26070 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77653-26040 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-26040 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-32060 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-26080 |
RCH4# |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-26070 |
RCH4# |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-26020 |
RCH4# |
1 | ||
| 77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77754-26030 |
RCH4# |
1 | ||
| Common parts | ||||
| 46467-26050 | ||||
| 90119-06384 | ||||
| 90119-08300 | ||||
| 90119-10477 | ||||
| 90159-50219 | ||||
| 90176-06019 | ||||
| 90179-05042 | ||||
| 90179-06216 | ||||
| 90179-08186 | ||||
| 90182-10005 | ||||
| 90269-03002 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90461-10722 | ||||
| 90461-10781 | ||||
| 90464-00705 | ||||
| 90467-11098 | ||||
| 90469-05004 | ||||
| 90469-06002 | ||||
| 90469-10005 | ||||
| 90480-13026 | ||||
| 90929-01382 | ||||
| 90949-01384 | ||||
| 90949-01538 | ||||
| 91635-60616 | ||||
| 91651-40820 | ||||
| 91651-60616 | ||||
| 91651-B0820 | ||||
| 93319-A4010 | ||||
| 96132-41100 | ||||
| 96132-41500 | ||||
| Linked diagrams | ||||
| 2211 | ||||
