RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

Click highlighted areas on diagram

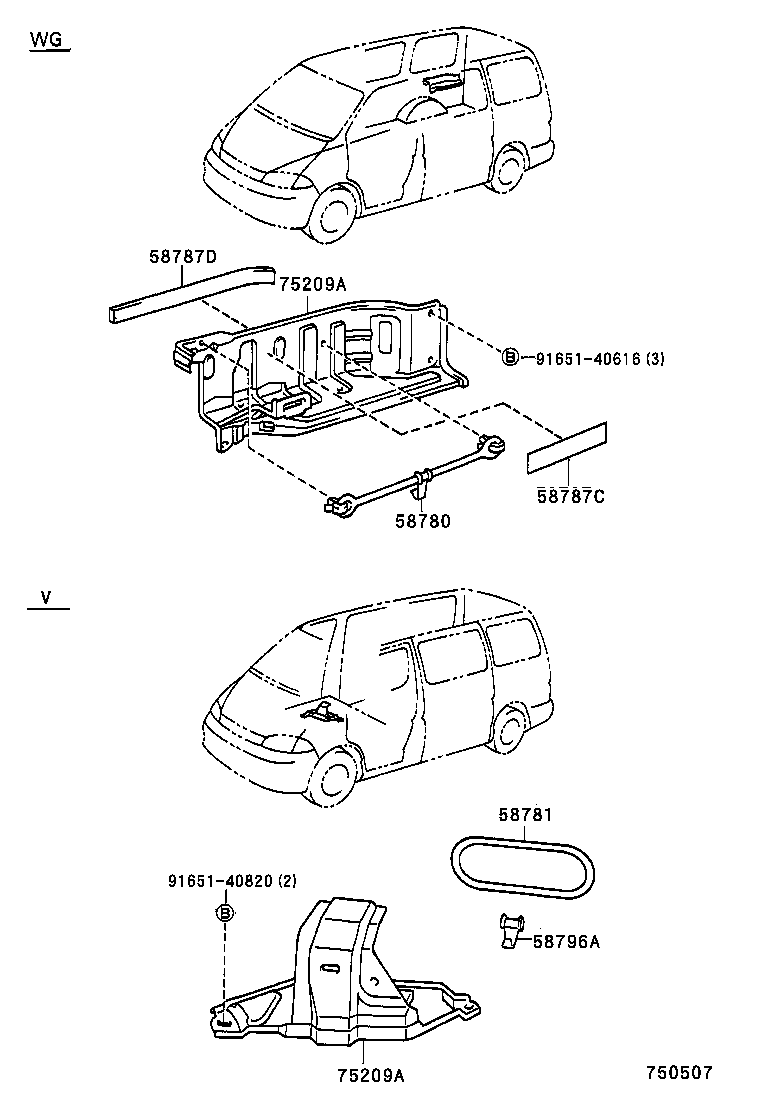

diagram 58780 58781 58787C 58787D 58796A 75209A 75209A 9165140616 9165140820
Part # Description Qty Price
58780 - BAND ASSY, TOOL BOX
58780-26010

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 1
75209A - BASE SUB ASSY, JACK HOLDER
75209-26030

KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)

 1
75209A - BASE SUB ASSY, JACK HOLDER
75209-26030

KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)

 1
Common parts
91651-40616
91651-40820
