RCH41W-GFSQK (1997)
Toyota Regius/Touring Hiace

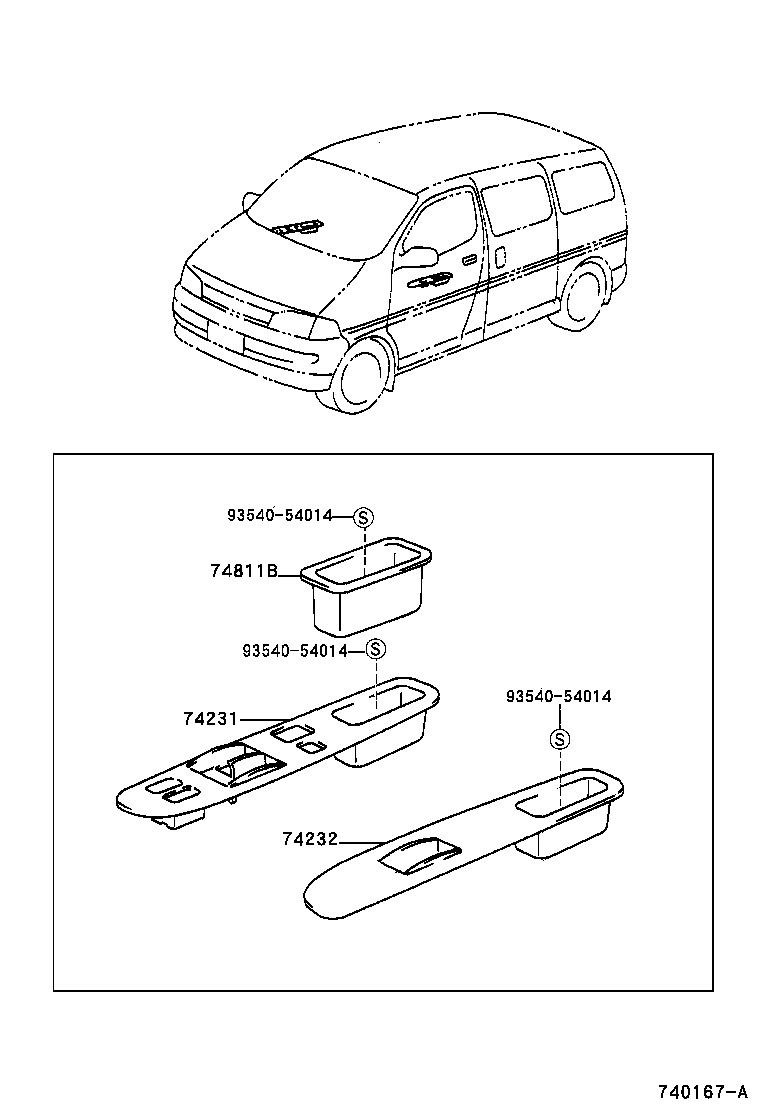

ILLUST NO. 1 OF 2(9704- )
ｱ-ﾑﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-26080 |
KCH4#,RCH41,47..G |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-26030 |
KCH4#,RCH41,47..G,STD ﾓｸﾒ |
1 | ||
| Common parts | ||||
| 93540-54014 | ||||

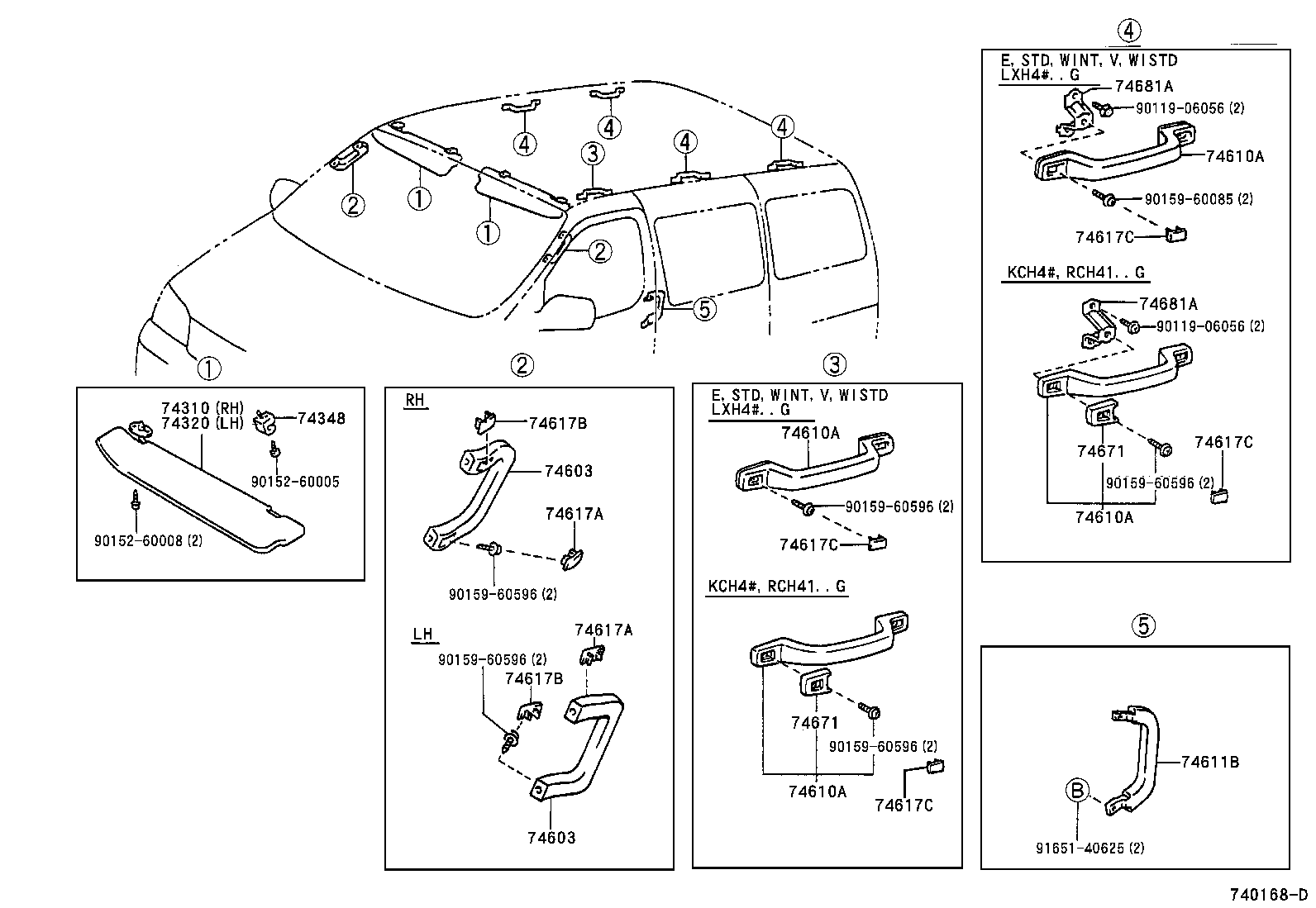

ILLUST NO. 2 OF 2(9704- )
ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘﾂﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-26550B2 |
KCH40,RCH41..G,STD GRAY,TRIM6# |
1 | ||
| 74310-26551B2 |
KCH40,RCH41..G,STD GRAY,TRIM6# |
1 | ||
| 74310-26640B1 |
KCH40,RCH41..G,STD ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞﾄﾞｱ),LT.BLUISH GRAY,TRIM6# |
1 | ||
| 74310-26641B1 |
KCH40,RCH41..G,STD ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ- & ｵ-ﾄ ｽﾗｲﾄﾞﾄﾞｱ),GRAY,TRIM6# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-26330B2 |
KCH4#,RCH41,47..G,STD GRAY,TRIM6# |
1 | ||
| 74320-26331B2 |
KCH4#,RCH41,47..G,STD ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),GRAY,TRIM6# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-26020B4 |
LXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
2 | ||
| 74348-26020B3 |
KCH4#,RCH41,47..G,STD LT.GRAY,TRIM6# |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-26010B3 |
KCH4#,RCH41,47..G,STD LT.GRAY,TRIM6# |
2 | ||
| 74610-26010B4 |
LXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-26010B3 |
KCH4#,RCH41,47..G,STD LT.GRAY,TRIM6# |
2 | ||
| 74610-26010B4 |
LXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-26020B1 |
KCH4#,RCH41,47..G LT.GRAY,TRIM6# |
5 | ||
| 74610-32010B2 |
KCH4#,RCH41,47..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
5 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-26020B1 |
KCH4#,RCH41,47..G LT.GRAY,TRIM6# |
5 | ||
| 74610-32010B2 |
KCH4#,RCH41,47..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
5 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-26020B1 |
KCH4#,RCH41,47..G LT.GRAY,TRIM6# |
5 | ||
| 74610-32010B2 |
KCH4#,RCH41,47..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
5 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-26020B1 |
KCH4#,RCH41,47..G LT.GRAY,TRIM6# |
5 | ||
| 74610-32010B2 |
KCH4#,RCH41,47..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
5 | ||
| 74611B - GRIP, ASSIST | ||||
| 74610-26050B1 |
KCH4#,RCH41,47..G,STD LT.GRAY,TRIM6# |
1 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-26020B4 |
LXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
2 | ||
| 74617-26020B3 |
KCH4#,RCH41,47..G,STD LT.GRAY,TRIM6# |
2 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-26020B4 |
LXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
2 | ||
| 74617-26020B3 |
KCH4#,RCH41,47..G,STD LT.GRAY,TRIM6# |
2 | ||
| 74617B - PLUG, DOOR ASSIST GRIP | ||||
| 74617-26010B3 |
KCH4#,RCH41,47..G,STD LT.GRAY,TRIM6# |
2 | ||
| 74617-26010B4 |
LXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
2 | ||
| 74617B - PLUG, DOOR ASSIST GRIP | ||||
| 74617-26010B3 |
KCH4#,RCH41,47..G,STD LT.GRAY,TRIM6# |
2 | ||
| 74617-26010B4 |
LXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
2 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-16010P5 |
KCH4#,RCH41,47..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
10 | ||
| 74617-22010B2 |
KCH4#,RCH41,47..G LT.GRAY,TRIM6# |
10 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-16010P5 |
KCH4#,RCH41,47..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
10 | ||
| 74617-22010B2 |
KCH4#,RCH41,47..G LT.GRAY,TRIM6# |
10 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-16010P5 |
KCH4#,RCH41,47..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
10 | ||
| 74617-22010B2 |
KCH4#,RCH41,47..G LT.GRAY,TRIM6# |
10 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-16010P5 |
KCH4#,RCH41,47..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
10 | ||
| 74617-22010B2 |
KCH4#,RCH41,47..G LT.GRAY,TRIM6# |
10 | ||
| 74671 - SUPPORT, ASSIST GRIP | ||||
| 74671-22010B2 |
KCH4#,RCH41,47..G LT.GRAY,TRIM6# |
10 | ||
| 74671 - SUPPORT, ASSIST GRIP | ||||
| 74671-22010B2 |
KCH4#,RCH41,47..G LT.GRAY,TRIM6# |
10 | ||
| 74681A - RETAINER, ASSIST GRIP | ||||
| 74681-26030 |
KCH4#,RCH41,47..4D ﾚﾌﾄ(ﾘﾔ) & ﾗｲﾄ |
6 | ||
| 74681-26040 |
LXH4#..G;KCH4#,RCH41,47..4D ﾚﾌﾄ(ﾌﾛﾝﾄ) |
2 | ||
| 74681A - RETAINER, ASSIST GRIP | ||||
| 74681-26030 |
KCH4#,RCH41,47..4D ﾚﾌﾄ(ﾘﾔ) & ﾗｲﾄ |
6 | ||
| 74681-26040 |
LXH4#..G;KCH4#,RCH41,47..4D ﾚﾌﾄ(ﾌﾛﾝﾄ) |
2 | ||
| Common parts | ||||
| 90119-06056 | ||||
| 90152-60005 | ||||
| 90152-60008 | ||||
| 90159-60085 | ||||
| 90159-60596 | ||||
| 91651-40625 | ||||
