RCH41W-GFSQK (1997)
Toyota Regius/Touring Hiace

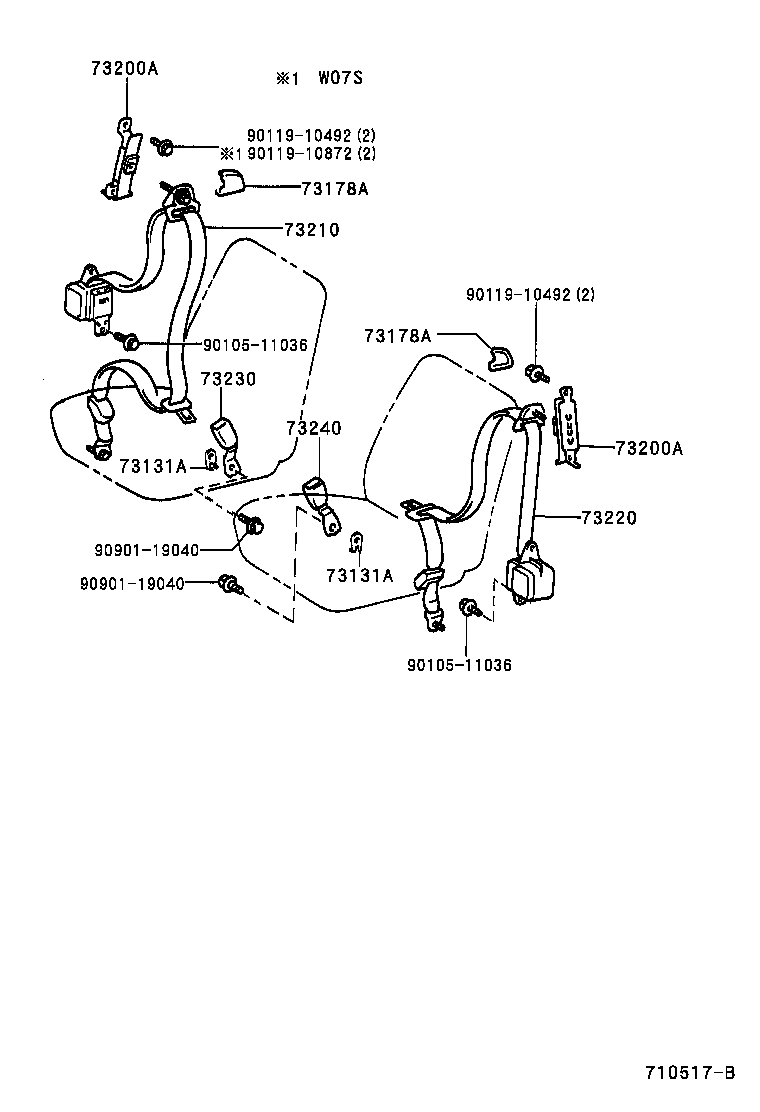

ILLUST NO. 1 OF 3(9704- )KCH4#,RCH41,47
ﾌﾛﾝﾄ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-12040B6 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
2 | ||
| 73178-12040B5 |
KCH4#,RCH41,47..G,STD LT.GRAY,TRIM6# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-12040B6 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
2 | ||
| 73178-12040B5 |
KCH4#,RCH41,47..G,STD LT.GRAY,TRIM6# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-26011B1 |
KCH4#,RCH41,47..4D..(G,STD) LT.GRAY,TRIM6# |
2 | ||
| 73200-26011B2 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-26011B1 |
KCH4#,RCH41,47..4D..(G,STD) LT.GRAY,TRIM6# |
2 | ||
| 73200-26011B2 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-26150G1 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73210-26150G0 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-26050G1 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73220-26050G0 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-26030G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 73230-26030B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 73230-26120G0 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),DK.SAGE,TRIM6# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-26110G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90119-10492 | ||||
| 90119-10872 | ||||
| 90901-19040 | ||||

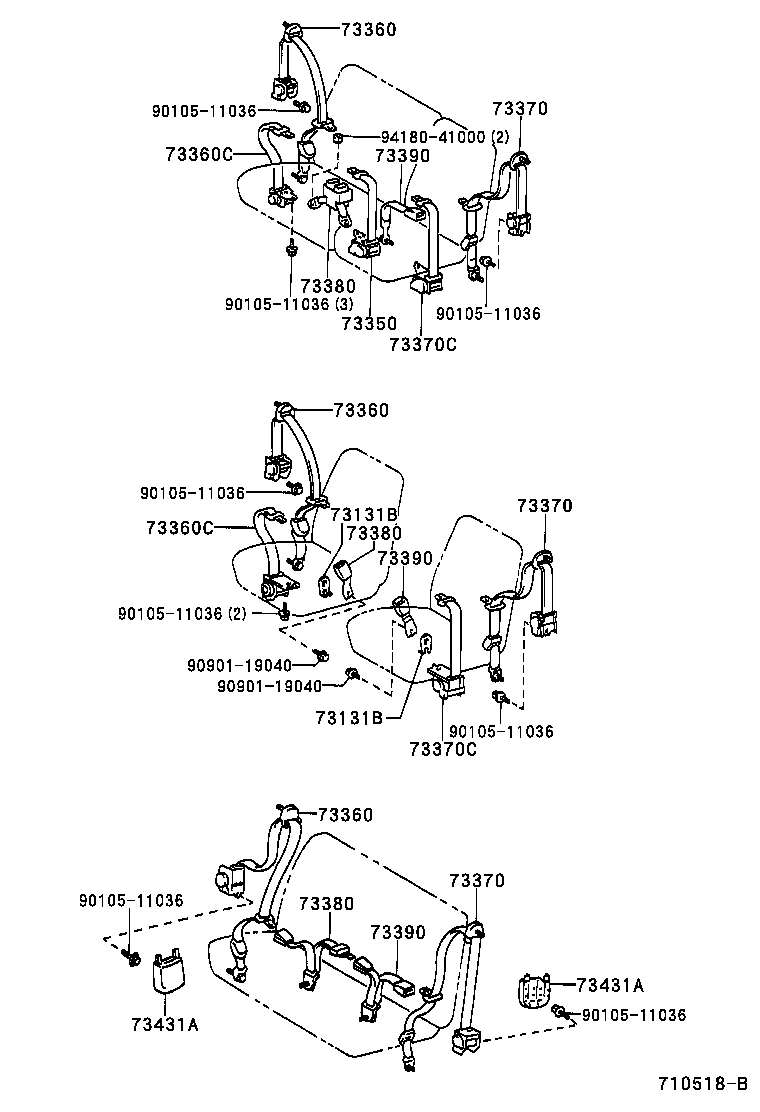

ILLUST NO. 2 OF 3(9704- )KCH4#,RCH41,47
ﾘﾔ NO.1 ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-26450G1 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73360-26450G0 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-26450G1 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73360-26450G0 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-26450G1 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73360-26450G0 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-26240G0 |
KCH4#,RCH41,47..G DARK AGATE,TRIM6# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-26240G0 |
KCH4#,RCH41,47..G DARK AGATE,TRIM6# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-26041G1 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73370-26041G0 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-26041G1 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73370-26041G0 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-26041G1 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73370-26041G0 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-26160G0 |
KCH4#,RCH41,47..G DARK AGATE,TRIM6# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-26160G0 |
KCH4#,RCH41,47..G DARK AGATE,TRIM6# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73580-26090B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 73230-26110G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73580-26090B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 73230-26110G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73580-26090B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 73230-26110G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73230-26110G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 73590-26130B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73230-26110G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 73590-26130B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73230-26110G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 73590-26130B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90901-19040 | ||||
| 94180-41000 | ||||

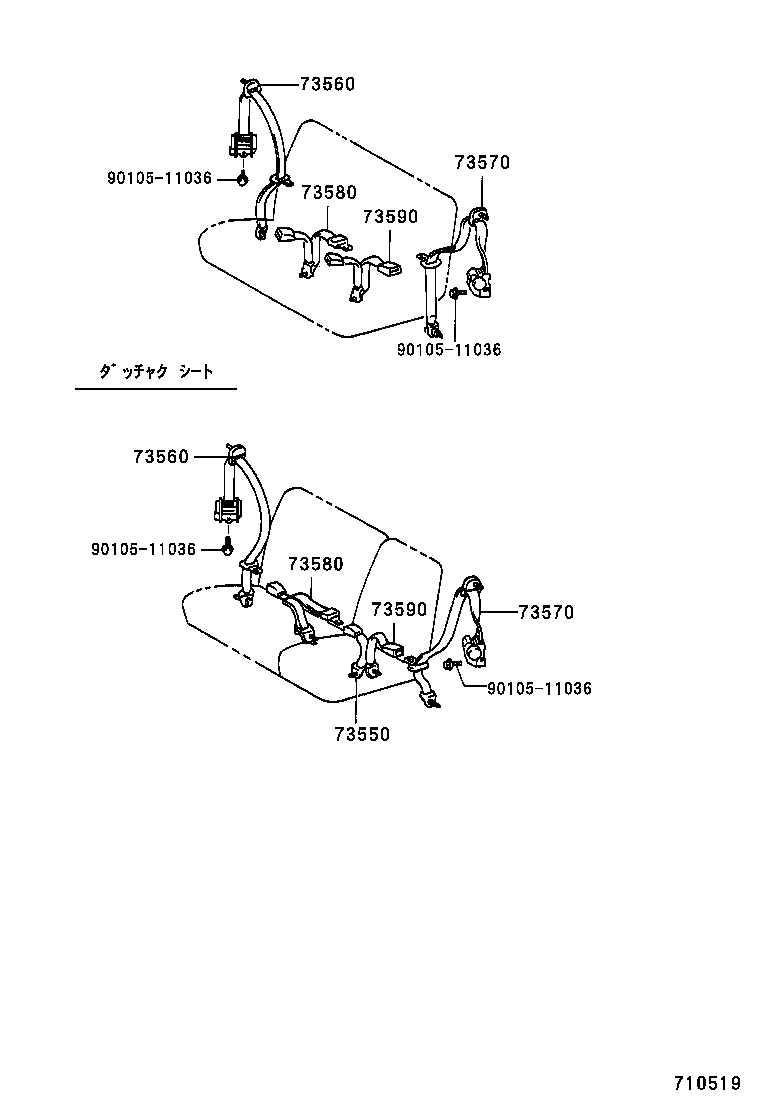

ILLUST NO. 3 OF 3(9704- )KCH4#,RCH41,47
ﾘﾔ NO.2 ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-26111G1 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73560-26110G1 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73560-26111G0 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-26111G1 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73560-26110G1 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73560-26111G0 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73560-26111G0 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73560-26111G1 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73560-26110G1 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73560-26111G0 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73560-26111G1 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73560-26110G1 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73580-26090G0 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73580-26090G0 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73590-26130G0 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73590-26130G0 |
KCH4#,RCH41,47..G,STD DARK AGATE,TRIM6# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
