RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

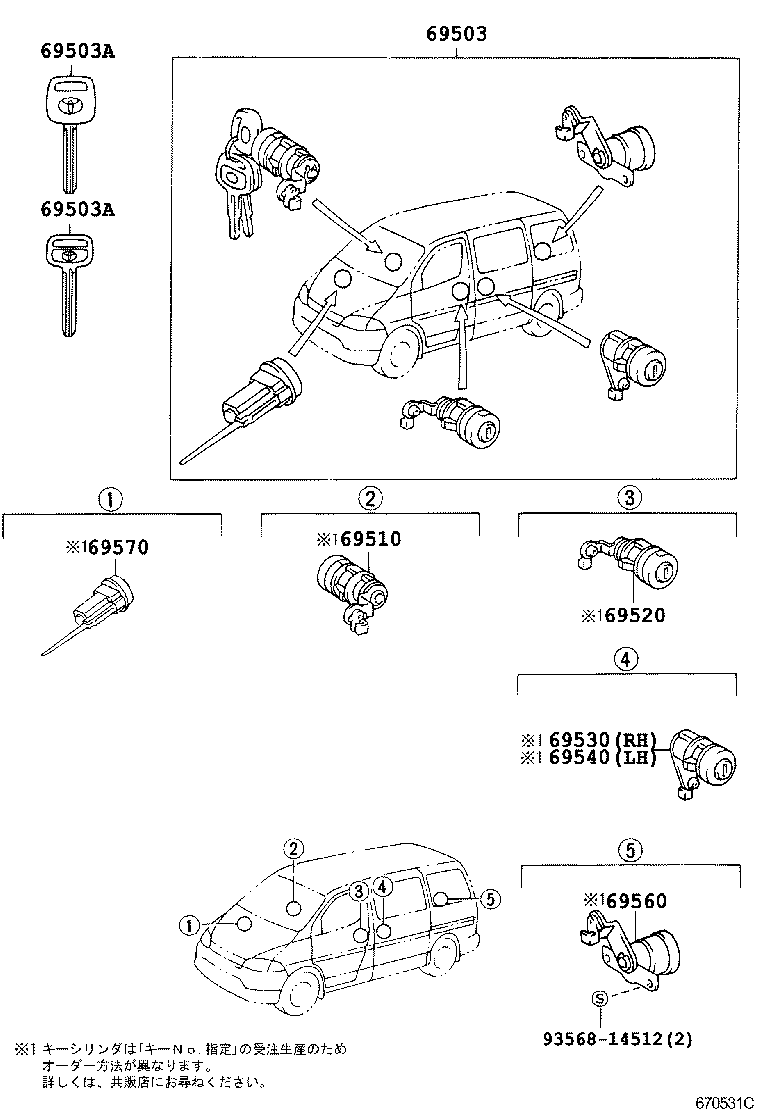

Click highlighted areas on diagram

diagram 69503 69503A 69503A 69510 69520 69530 69540 69560 69570 9356814512
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69503-26470

LXH4#..4D;KCH4#,RCH41,47..E,STD,V,WINT,WISTD

 1
69503A - KEY, BLANK
90999-00185

LXH4#;KCH4#,RCH4#..E,STD,V,WINT,WISTD

ﾏｽﾀｰｷｰ,*68付き

 1
90999-00186

KCH4#,LXH4#,RCH4#

ﾏｽﾀｰｷｰ

 1
69503A - KEY, BLANK
90999-00185

LXH4#;KCH4#,RCH4#..E,STD,V,WINT,WISTD

ﾏｽﾀｰｷｰ,*68付き

 1
90999-00186

KCH4#,LXH4#,RCH4#

ﾏｽﾀｰｷｰ

 1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-26020

KCH4#,LXH4#,RCH4#

 1
69510-26020

KCH4#,LXH4#,RCH4#

 1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-26020

KCH4#,LXH4#,RCH4#

 1
69520-26020

KCH4#,LXH4#,RCH4#

 1
69540 - CYLINDER ASSY, SLIDE DOOR LOCK, LH
69540-26040

KCH4#,LXH4#,RCH4#

 1
69540-26040

KCH4#,LXH4#,RCH4#

 1
69560 - CYLINDER ASSY, BACK DOOR LOCK
69560-26020

KCH4#,LXH4#,RCH4#

 1
69560-26020

KCH4#,LXH4#,RCH4#

 1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-26020

KCH4#,LXH4#,RCH4#

 1
69570-26020

KCH4#,LXH4#,RCH4#

 1
Common parts
93568-14512
