RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

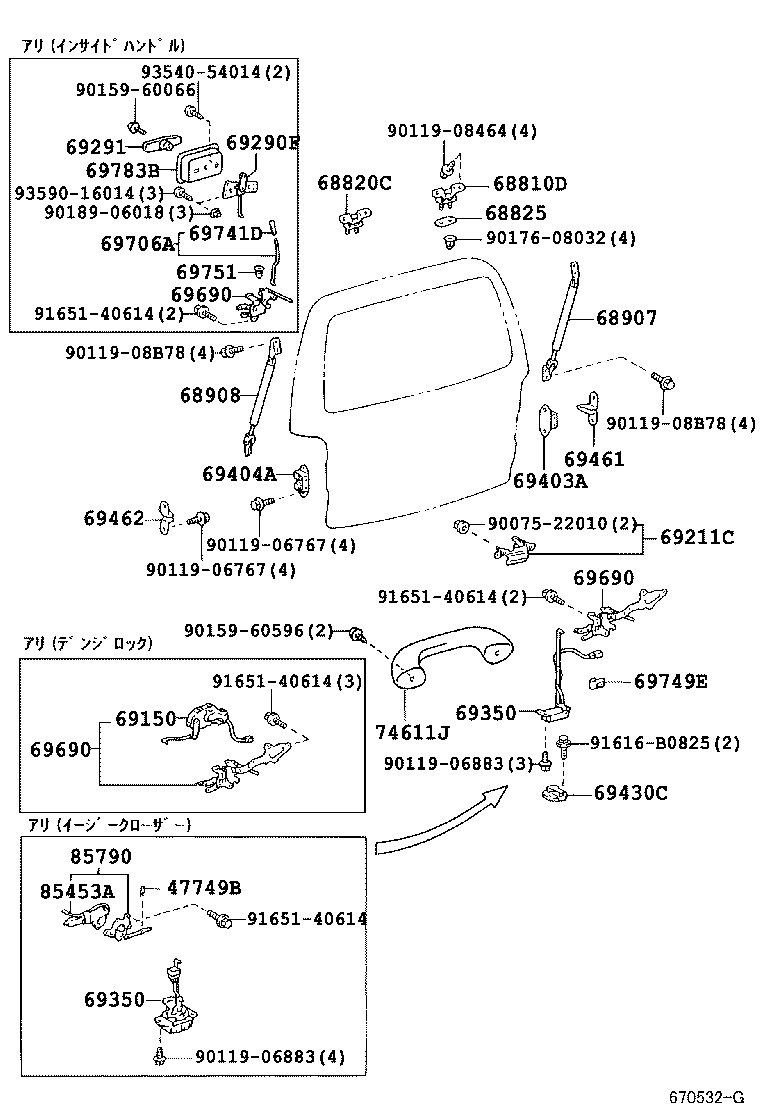

Click highlighted areas on diagram

diagram 47749B 68810D 68820C 68825 68907 68908 69150 69211C 69290F 69291 69350 69350 69403A 69404A 69430C 69461 69462 69690 69690 69690 69706A 69741D 69749E 69751 69783B 74611J 85453A 85790 9007522010 9011906767 9011906767 9011906883 9011906883 9011908464 9011908B78 9011908B78 9015960066 9015960596 9017608032 9018906018 91616B0825 9165140614 9165140614 9165140614 9165140614 9354054014 9359016014
Part # Description Qty Price
47749B - CLIP, PIN HOLD
47749-26010

KCH4#,RCH41,47..G,STD,V

 1
47749-26010

KCH4#,RCH41..G,STD

 1
68810D - HINGE ASSY, BACK DOOR, RH
68810-26010

KCH4#,LXH4#,RCH4#

 1
68820C - HINGE ASSY, BACK DOOR, LH
68820-26010

KCH4#,LXH4#,RCH4#

 1
68825 - PLATE, BACK DOOR HINGE
68825-95700

KCH4#,LXH4#,RCH4#

 2
68907 - STAY SUB-ASSY, BACK DOOR DAMPER, RH
68907-26400

KCH4#,RCH41,47

ｺ-ｼﾖﾝﾗﾍﾞﾙﾏ-ｸ = K

 1
68907-26430

KCH4#,RCH41..G,STD

ｺ-ｼﾖﾝﾗﾍﾞﾙﾏ-ｸ = N

 1
68907-26430

KCH4#,RCH41,47..G,STD

ｺ-ｼﾖﾝﾗﾍﾞﾙﾏ-ｸ = N

 1
68907-26620

KCH4#,RCH41,47

ｺ-ｼﾖﾝﾗﾍﾞﾙﾏ-ｸ = K

 1
68907-26640

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

ｺ-ｼﾖﾝﾗﾍﾞﾙﾏ-ｸ = M OR U

 1
68907-26650

KCH4#,RCH41,47..G,STD

ｺ-ｼﾖﾝﾗﾍﾞﾙﾏ-ｸ = N

 1
68907-26420

KCH4#,RCH41,47..G,STD,WINT

ｺ-ｼﾖﾝﾗﾍﾞﾙﾏ-ｸ = M

 1
68907-26630

KCH4#,RCH41,47..E,STD,V,WINT

ｺ-ｼﾖﾝﾗﾍﾞﾙﾏ-ｸ = L OR R

 1
68908 - STAY SUB-ASSY, BACK DOOR DAMPER, LH
68908-26430

KCH4#,RCH41..G,STD

ｺ-ｼﾖﾝﾗﾍﾞﾙﾏ-ｸ = N

 1
68908-26420

KCH4#,RCH41,47..G,STD,WINT

ｺ-ｼﾖﾝﾗﾍﾞﾙﾏ-ｸ = M

 1
68908-26430

KCH4#,RCH41,47..G,STD

ｺ-ｼﾖﾝﾗﾍﾞﾙﾏ-ｸ = N

 1
68908-26400

RCH47..W08S;KCH4#,RCH41..4D

ｺ-ｼﾖﾝﾗﾍﾞﾙﾏ-ｸ = K

 1
68908-26630

KCH4#,RCH41,47..E,STD,V,WINT

ｺ-ｼﾖﾝﾗﾍﾞﾙﾏ-ｸ = L OR R

 1
68908-26620

KCH4#,RCH41,47

ｺ-ｼﾖﾝﾗﾍﾞﾙﾏ-ｸ = K

 1
68908-26650

KCH4#,RCH41,47..G,STD,V

ｺ-ｼﾖﾝﾗﾍﾞﾙﾏ-ｸ = N

 1
68908-26640

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

ｺ-ｼﾖﾝﾗﾍﾞﾙﾏ-ｸ = M OR U

 1
69150 - ACTUATOR ASSY, BACK DOOR LOCK
69150-26040

LXH4#;KCH4#,RCH4#..E,STD,WINT

 1
69150-26030

RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT)

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
69150-26030

KCH4#,RCH41..G

 1
69211C - HANDLE, BACK DOOR OUTSIDE
69023-26020

KCH4#,LXH4#,RCH4#

 1
69350 - LOCK ASSY, BACK DOOR
69350-26060

KCH4#,RCH41..G,STD

ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ)

 1
69350-26050

KCH4#,LXH4#,RCH4#

 1
69350-26060

KCH4#,RCH41,47..G,STD,V

ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ)

 1
69350 - LOCK ASSY, BACK DOOR
69350-26060

KCH4#,RCH41..G,STD

ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ)

 1
69350-26050

KCH4#,LXH4#,RCH4#

 1
69350-26060

KCH4#,RCH41,47..G,STD,V

ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ)

 1
69403A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
69403-26040

KCH4#,LXH4#,RCH4#

 1
69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
69403-26040

KCH4#,LXH4#,RCH4#

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-95J00

KCH4#,LXH4#,RCH4#

 1
69430-26010

KCH4#,RCH41,47..G,STD,V

ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ)

 1
69430-26010

KCH4#,RCH41..G,STD

ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ)

 1
69461 - STOPPER, BACK DOOR SIDE MALE, RH
69401-26020

KCH4#,LXH4#,RCH4#

 1
69462 - STOPPER, BACK DOOR SIDE MALE, LH
69401-26020

KCH4#,LXH4#,RCH4#

 1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-26070

RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT)

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
69690-26070

KCH4#,RCH41..G

 1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-26070

RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT)

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
69690-26070

KCH4#,RCH41..G

 1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-26070

RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT)

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
69690-26070

KCH4#,RCH41..G

 1
69749E - CLAMP, BACK DOOR LOCK LINK
69749-30020

KCH4#,LXH4#,RCH4#

 1
85453A - MOTOR, DOOR CONTROL
85453-26020

KCH4#,RCH41,47..G,STD,V

 1
85453-26020

KCH4#,RCH41..G,STD

 1
85453-26011

KCH4#,RCH41..G,STD

 1
85790 - MOTOR ASSY, BACK DOOR CLOSER
85790-26020

KCH4#,RCH41..G,STD

 1
85790-26020

KCH4#,RCH41,47..G,STD,V

 1
85790-26010

KCH4#,RCH41..G,STD

 1
Common parts
90075-22010
90119-06767
90119-06883
90119-08464
90119-08B78
90159-60066
90159-60596
90176-08032
90189-06018
91616-B0825
91651-40614
93540-54014
93590-16014
