RCH41W-GFSQK (1997)
Toyota Regius/Touring Hiace

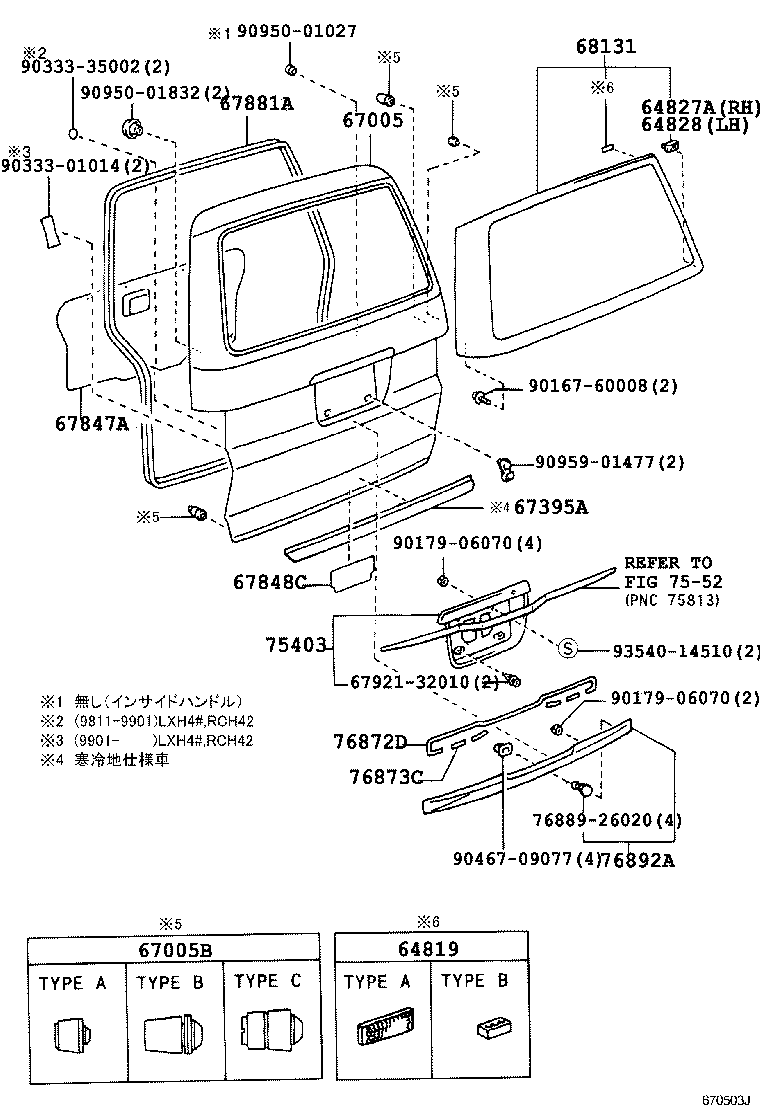

ILLUST NO. 2 OF 2(9704-9907)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-26010 |
KCH4#,LXH4#,RCH4# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 64819-26030 |
KCH4#,LXH4#,RCH4# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 64827A - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-26010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 64828 - CLIP, BACK WINDOW GLASS, LH | ||||
| 64828-26010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-2N680 |
KCH4#,RCH41..G,STD ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｰﾃﾝ & ﾘﾔ ｽﾎﾟｲﾗ & ｲｰｼﾞｰｸﾛｰｻﾞ) |
1 | ||
| 67005-2N740 |
KCH4#,RCH41,47..G,STD ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 67005-2N681 |
KCH4#,RCH41,47..G,STD ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｰﾃﾝ & ﾘﾔ ｽﾎﾟｲﾗ & ｲｰｼﾞｰｸﾛｰｻﾞ) |
1 | ||
| 67005-2N680 |
KCH4#,RCH41,47..G,STD ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｰﾃﾝ & ﾘﾔ ｽﾎﾟｲﾗ & ｲｰｼﾞｰｸﾛｰｻﾞ) |
1 | ||
| 67005-2N741 |
KCH4#,RCH41,47..G,STD ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ(ｻｲﾄﾞ & ﾊﾞﾂｸ) & ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 67005-2N742 |
KCH4#,RCH41,47..G,STD ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ & ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 67005-2N682 |
KCH4#,RCH41,47..G,STD ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ & ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09092 |
LXH4#;RCH42..MTM;KCH4#..G07S;RCH41,47..W07S;KCH4#,RCH41,47..E,STD,WINT TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90541-06061 |
LXH4#;RCH42..MTM;KCH4#..G07S;RCH41,47..W07S;KCH4#,RCH41,47..E,STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90541-10032 |
LXH4#;RCH42..MTM;KCH4#..G07S;RCH41,47..W07S;KCH4#,RCH41,47..E,STD,WINT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 67395A - PROTECTOR, BACK DOOR, LOWER | ||||
| 67395-26030 |
KCH4#,LXH4#,RCH4#..E,G,STD |
1 | ||
| 67395-26030 |
LXH4#..STD;KCH4#,RCH4#..E,G,STD |
1 | ||
| 67847A - COVER, BACK DOOR SERVICE HOLE | ||||
| 67847-26070 |
KCH4#,RCH41,47 |
1 | ||
| 67848C - COVER, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67848-26040 |
KCH4#,RCH41,47..G,STD,V |
1 | ||
| 67848-26040 |
KCH4#,RCH41..G,STD |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-26040 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-26030 |
KCH4#,RCH41,47..G *EHT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68105-26020 |
LXH4#;KCH4#,RCH4#..E,STD,WINT *EHT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 75403 - ORNAMENT SUB-ASSY, BACK DOOR | ||||
| 75403-26040G0 |
KCH4#,RCH41,47..E,STD LT GREEN M,6L5 |
1 | ||
| 75403-26060A0 |
KCH4#,RCH41..G,STD ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),WHITE PM,2EB |
1 | ||
| 75403-26060G1 |
KCH4#,RCH41..G,STD ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),DK.GREEN M.M.,2DK |
1 | ||
| 75403-26040G0 |
KCH4#,RCH41,47..G LT GREEN M,2DJ |
1 | ||
| 75403-26040G1 |
KCH4#,RCH41,47..G,STD DK.GREEN M.M.,2DK |
1 | ||
| 75403-26040A0 |
KCH4#,RCH41,47..G,STD WHITE PM,2EB |
1 | ||
| 75403-26040C0 |
KCH4#,RCH41,47..G,STD BLACK ME,2EV |
1 | ||
| 75403-26060G0 |
KCH4#,RCH41,47..G ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),LT GREEN M,2DJ |
1 | ||
| 75403-26060A0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),WHITE PM,2EB |
1 | ||
| 75403-26060C0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),BLACK ME,2EV |
1 | ||
| Common parts | ||||
| 67921-32010 | ||||
| 76889-26020 | ||||
| 90167-60008 | ||||
| 90179-06070 | ||||
| 90333-01014 | ||||
| 90333-35002 | ||||
| 90467-09077 | ||||
| 90950-01027 | ||||
| 90950-01832 | ||||
| 90959-01477 | ||||
| 93540-14510 | ||||
| Linked diagrams | ||||
| 7552 | ||||

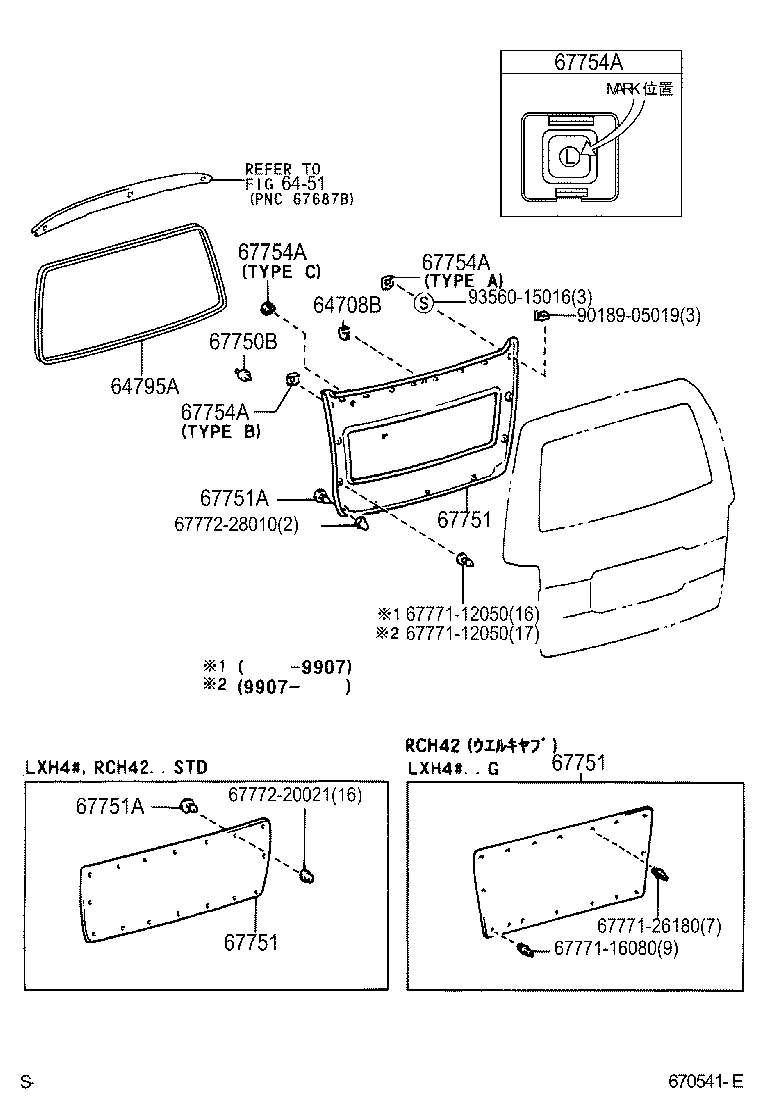

ILLUST NO. 1 OF 2(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64708B - CLIP, BACK DOOR TRIM | ||||
| 62476-26010B0 |
KCH4#,RCH41,47..E,STD,WINT,WISTD LT.BLUISH GRAY,TRIM1# |
1 | ||
| 64795A - TRIM, BACK WINDOW OPENING | ||||
| 64795-26040B0 |
KCH4#,RCH41,47..G,STD LT.GRAY,TRIM6# |
1 | ||
| 67750B - FASTNER(FOR BACK DOOR TRIM) | ||||
| 90530-06009B2 |
KCH4#,RCH41,47..E,WINT LT.BLUISH GRAY,TRIM1# |
2 | ||
| 90530-06009G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
2 | ||
| 90530-06009G0 |
KCH4#,RCH41..4D..G SAGE,TRIM6# |
2 | ||
| 90530-06009B2 |
KCH4#,RCH41,47..G LT.BLUISH GRAY,TRIM6# |
2 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67750-26191G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
1 | ||
| 67750-26190G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
1 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67750-26191G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
1 | ||
| 67750-26190G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
1 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67750-26191G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
1 | ||
| 67750-26190G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
1 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-08157G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
2 | ||
| 90467-08157B2 |
KCH4#,RCH41,47..E,STD,WINT,WISTD LT.BLUISH GRAY,TRIM1# |
2 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-08157G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
2 | ||
| 90467-08157B2 |
KCH4#,RCH41,47..E,STD,WINT,WISTD LT.BLUISH GRAY,TRIM1# |
2 | ||
| 67754A - COVER, BACK DOOR HOLE | ||||
| 67754-26060B4 |
KCH4#,RCH41,47..E,STD,WINT,WISTD TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67754-26040B1 |
KCH4#,RCH41,47..E,STD,WINT,WISTD MARK = L & TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67754-26050B1 |
KCH4#,RCH41,47..E,STD,WINT,WISTD MARK = R & TYPE A:ｲﾗｽﾄｻﾝｼｮｳ,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67754A - COVER, BACK DOOR HOLE | ||||
| 67754-26060B4 |
KCH4#,RCH41,47..E,STD,WINT,WISTD TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67754-26040B1 |
KCH4#,RCH41,47..E,STD,WINT,WISTD MARK = L & TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67754-26050B1 |
KCH4#,RCH41,47..E,STD,WINT,WISTD MARK = R & TYPE A:ｲﾗｽﾄｻﾝｼｮｳ,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67754A - COVER, BACK DOOR HOLE | ||||
| 67754-26060B4 |
KCH4#,RCH41,47..E,STD,WINT,WISTD TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67754-26040B1 |
KCH4#,RCH41,47..E,STD,WINT,WISTD MARK = L & TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67754-26050B1 |
KCH4#,RCH41,47..E,STD,WINT,WISTD MARK = R & TYPE A:ｲﾗｽﾄｻﾝｼｮｳ,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67754A - COVER, BACK DOOR HOLE | ||||
| 67754-26060B4 |
KCH4#,RCH41,47..E,STD,WINT,WISTD TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67754-26040B1 |
KCH4#,RCH41,47..E,STD,WINT,WISTD MARK = L & TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67754-26050B1 |
KCH4#,RCH41,47..E,STD,WINT,WISTD MARK = R & TYPE A:ｲﾗｽﾄｻﾝｼｮｳ,LT.BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 67771-16080 | ||||
| 67771-26180 | ||||
| 67772-20021 | ||||
| 67772-28010 | ||||
| 90189-05019 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 6451 | ||||
