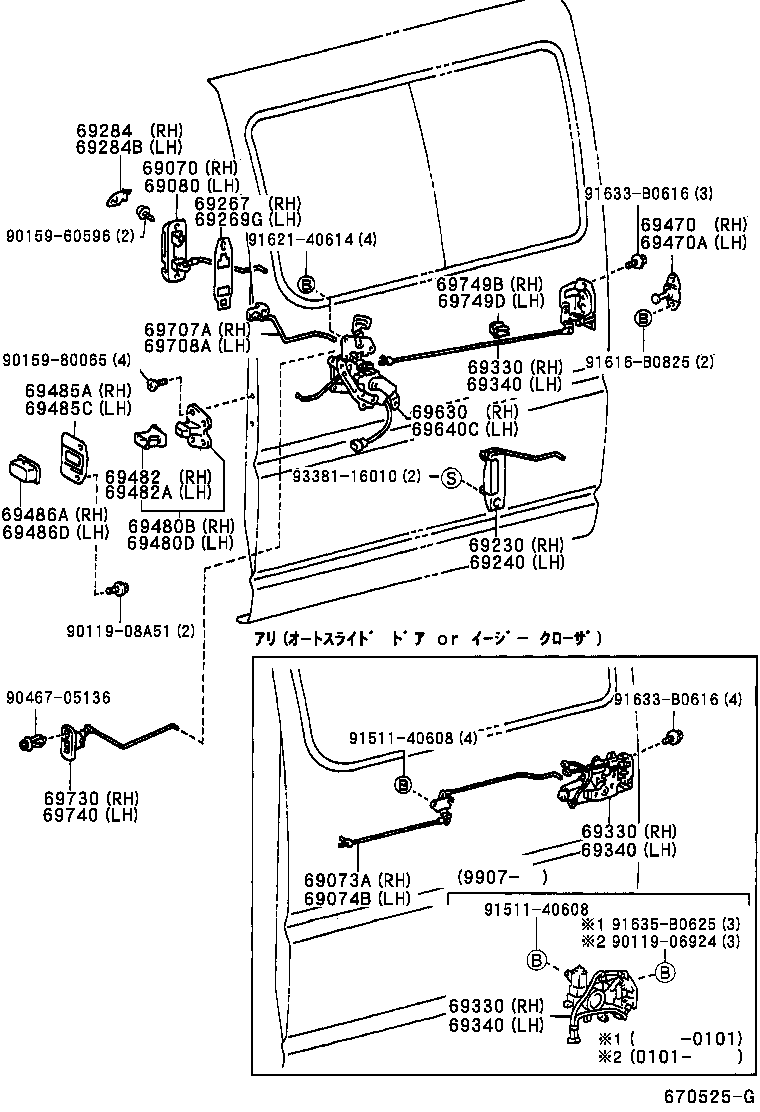

Toyota Regius/touring hiace RCH41 REAR DOOR LOCK & HANDLE

Part #	Description	Period	Qty
69074B - LINK SUB-ASSY, SLIDE DOOR LOCK CONTROL, LH
69074-26020	LXH4#..G;RCH47..STD;KCH4#,RCH41..4D..(G,STD,WINT)	04/1997 - 07/1999	1
69080 - HANDLE ASSY, SLIDE DOOR, INSIDE, LH
69080-26020G0	KCH4#,RCH41,47..G,STD SAGE,TRIM6#	04/1997 - 07/1999	1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-26020A0	KCH4#,RCH41,47..G,STD WHITE PEARL MC.,2EB	04/1998 - 07/1999	1
69240-26020A0	KCH4#,RCH41..G WHITE PEARL MC.,2EB	04/1997 - 04/1998	1
69240-26020G3	KCH4#,RCH41..G DK.GREEN M.M.,2DK	04/1997 - 04/1998	1
69240-26020C0	KCH4#,RCH41,47..G,STD BLACK ME,2EV	04/1998 - 07/1999	1
69240-26020G2	KCH4#,RCH41,47..G LT GREEN M,2DJ	04/1997 - 07/1999	1
69240-26010	LXH4#;KCH4#,RCH4#..E,STD	04/1997 - 05/2002	1
69269G - SEAL, DOOR INSIDE HANDLE
69268-95J01	KCH4#,LXH4#,RCH4#	04/1997 - 12/2999	1
69284B - PLUG, SLIDE DOOR INSIDE HANDLE, LH
69284-95J00G0	KCH4#,RCH41,47..G,STD SAGE,TRIM6#	04/1997 - 07/1999	2
69284-95J00B1	LXH4#;KCH4#,RCH4#..E,STD,WINT LT.BLUISH GRAY,TRIM1#	04/1997 - 07/1999	2
69340 - LOCK ASSY, REAR DOOR, LH
69300-26070	LXH4#..G;KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ)	04/1998 - 07/1999	1
69300-26090	KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ)	04/1998 - 07/1999	1
69300-26070	LXH4#..G;RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ)	04/1997 - 04/1998	1
69300-26090	RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ)	04/1997 - 04/1998	1
69340-26030	LXH4#;KCH4#,RCH4#..E,STD,V,WINT,WISTD	04/1997 - 12/2999	1
69340 - LOCK ASSY, REAR DOOR, LH
69300-26070	LXH4#..G;KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ)	04/1998 - 07/1999	1
69300-26090	KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ)	04/1998 - 07/1999	1
69300-26070	LXH4#..G;RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ)	04/1997 - 04/1998	1
69300-26090	RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ)	04/1997 - 04/1998	1
69340-26030	LXH4#;KCH4#,RCH4#..E,STD,V,WINT,WISTD	04/1997 - 12/2999	1
69340 - LOCK ASSY, REAR DOOR, LH
69300-26070	LXH4#..G;KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ)	04/1998 - 07/1999	1
69300-26090	KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ)	04/1998 - 07/1999	1
69300-26070	LXH4#..G;RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ)	04/1997 - 04/1998	1
69300-26090	RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ)	04/1997 - 04/1998	1
69340-26030	LXH4#;KCH4#,RCH4#..E,STD,V,WINT,WISTD	04/1997 - 12/2999	1
69470A - PLATE ASSY, SLIDE DOOR LOCK STRIKER, LH
69470-26010	LXH4#;KCH4#,RCH4#..E,STD,V,WINT,WISTD	04/1997 - 05/2002	1
69470-95J02	LXH4#..G;RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ)	04/1997 - 04/1998	1
69470-95J02	LXH4#..G;KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ)	04/1998 - 07/1999	1
69480D - HOOK ASSY, SLIDE DOOR FRONT LOCK
69480-26020	KCH4#,LXH4#,RCH4#	04/1997 - 12/2999	1
69482A - COVER, SLIDE DOOR FRONT LOCK HOOK
69482-26010	KCH4#,LXH4#,RCH4#	04/1997 - 12/2999	1
69485C - BRACKET, SLIDE DOOR FRONT LOCK STRIKER
69485-26010	KCH4#,LXH4#,RCH4#	04/1997 - 12/2999	1
69486D - COVER, SLIDE DOOR FRONT LOCK STRIKER
69486-95701	KCH4#,LXH4#,RCH4#	04/1997 - 12/2999	1
69640C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH
69640-26130	KCH4#,RCH41..G	04/1997 - 04/1998	1
69640-26130	KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	04/1998 - 07/1999	1
69708A - ROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH
69708-26010G0	KCH4#,RCH41,47..G,STD SAGE,TRIM6#	04/1997 - 07/1999	1
69708-26010B1	LXH4#;KCH4#,RCH4#..E,STD,WINT LT.BLUISH GRAY,TRIM1#	04/1997 - 07/1999	1
69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH
69740-26010	KCH4#,LXH4#,RCH4#	04/1997 - 12/2999	1
69749D - CLAMP, SLIDE DOOR LOCK LINK
69749-95J00	LXH4#;KCH4#,RCH4#..E,STD,V,WINT,WISTD	04/1997 - 12/2999	1
Common parts
90119-06924
90119-08A51
90159-60596
90159-80065
90467-05136
91511-40608
91616-B0825
91621-40614
91633-B0616
91635-B0625
93381-16010

RCH41W-GFSQK (1997)

(9704- )
