RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

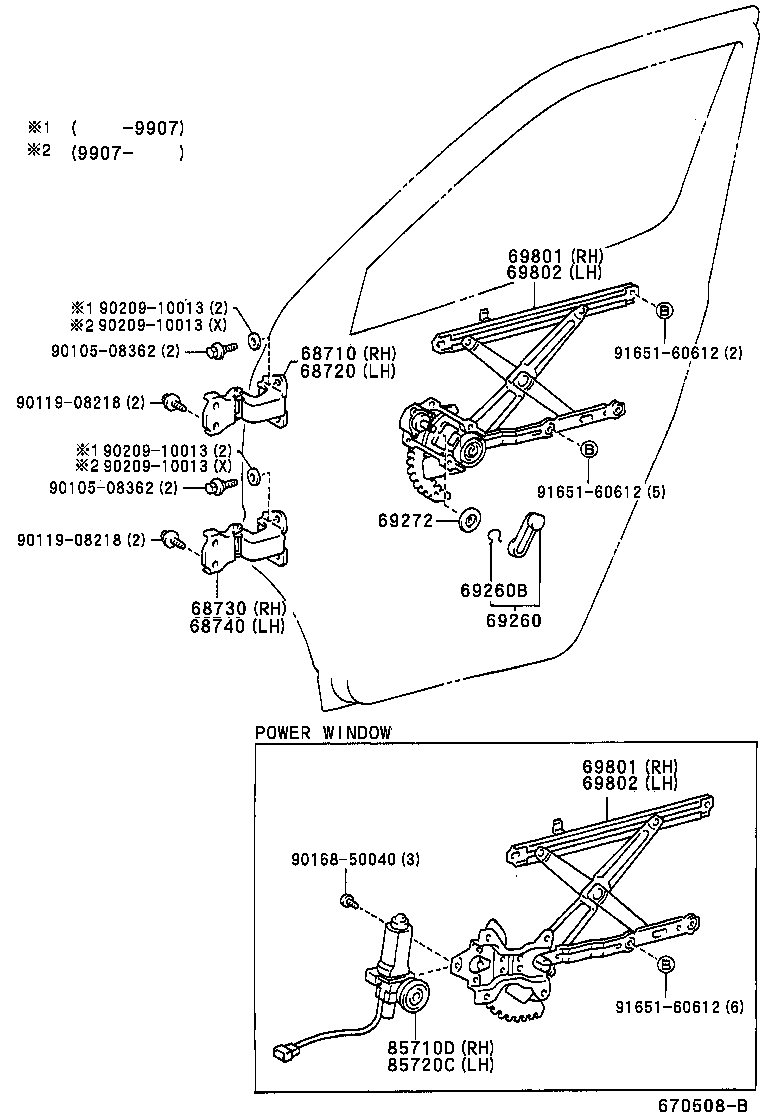

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 85710D 85720C 9010508362 9010508362 9011908218 9011908218 9016850040 9020910013 9020910013 9020910013 9020910013 9165160612 9165160612 9165160612
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68720-26010

KCH4#,LXH4#,RCH4#

 1
68720-28010

KCH4#,RCH4#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68710-28010

KCH4#,RCH4#

 1
68710-26010

KCH4#,LXH4#,RCH4#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-26010

KCH4#,LXH4#,RCH4#

 1
68720-28010

KCH4#,RCH4#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-28010

KCH4#,RCH4#

 1
68710-26010

KCH4#,LXH4#,RCH4#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-26020

KCH4#,LXH4#,RCH4#

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-26020

KCH4#,LXH4#,RCH4#

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-26020

KCH4#,LXH4#,RCH4#

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-26020

KCH4#,LXH4#,RCH4#

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)

 1
85710D - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-26030

KCH4#,LXH4#,RCH4#

 1
85720C - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-28030

KCH4#,LXH4#,RCH4#

 1
85720-28080

KCH4#,LXH4#,RCH4#

 1
Common parts
90105-08362
90119-08218
90168-50040
90209-10013
91651-60612
